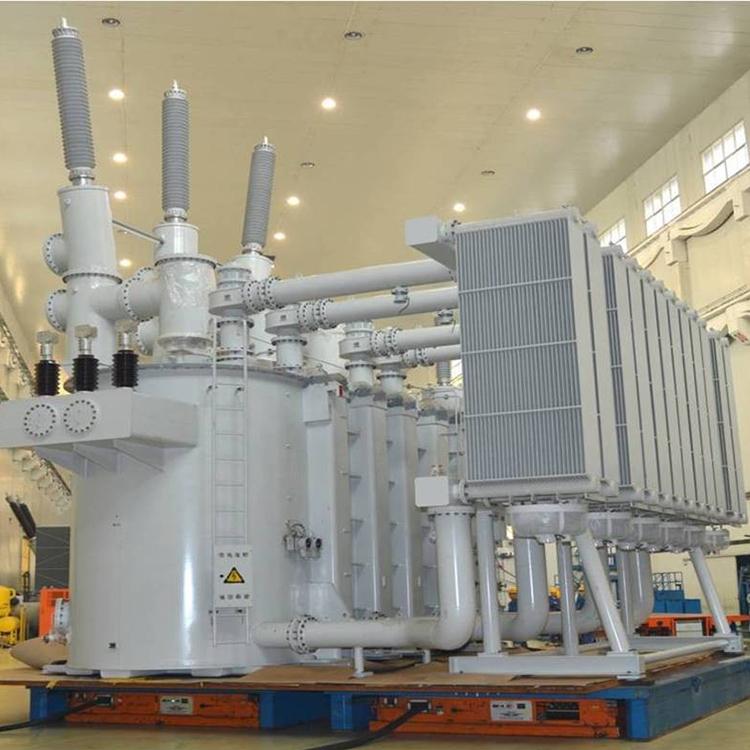

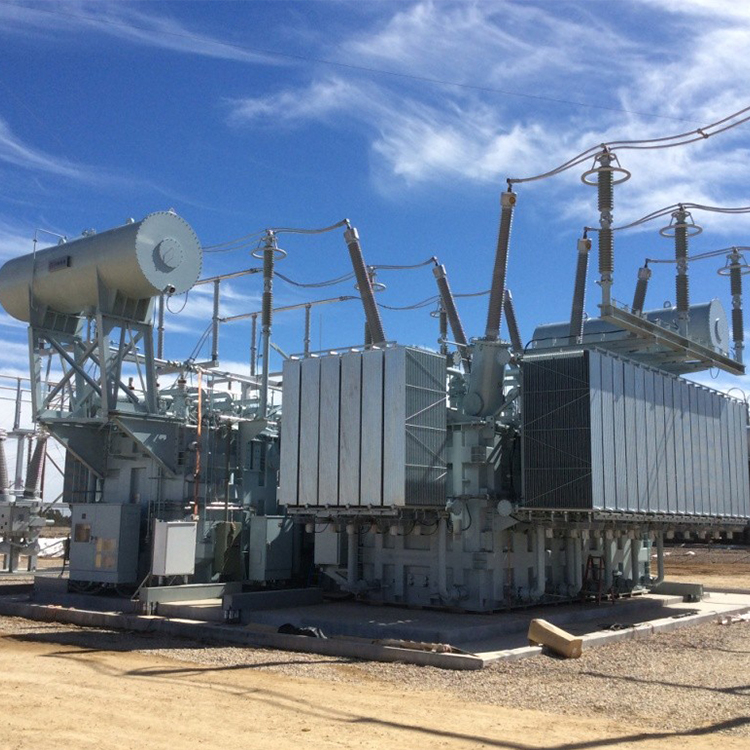

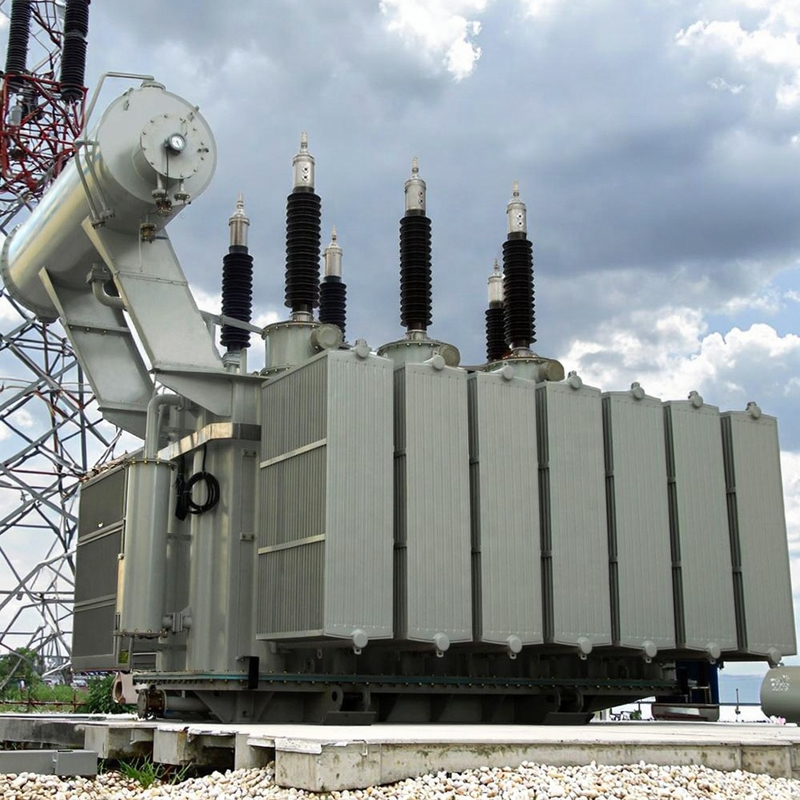

110kV High Voltage Transformer with IP23 Protection and IEC 60076 Compliance for Efficient Power Transmission

110kV High Voltage Transformer with IP23 Protection and IEC 60076 Compliance for Efficient Power Transmission

110kV High Voltage Transformer

IP23 High Voltage Transformer

IEC 60076 Power Transformer

Place of Origin:

China

Brand Name:

HENTG Power

Certification:

CE

Chat Now
Request A Quote
110kV High Voltage Transformer with IP23 Protection and IEC 60076 Compliance for Efficient Power Transmission 110kV High Voltage Transformer with IP23 Protection and IEC 60076 Compliance for Efficient Power Transmission 110kV High Voltage Transformer with IP23 Protection and IEC 60076 Compliance for Efficient Power Transmission
Product Details
Warranty:
3 Year
Package:
Wooden Case
Cooling Method:
Oil Immersed
Rated Capacity:
1000 Kva
Vector Group:
Dyn11 Or Customized
Frequency:
50Hz/60Hz
Protection Level:
IP23
Application:
Power Transformer
Rated Voltage:
110kV
Temperature Rise:
≤ 65°C
Insulation Class:
Class A/B/F/H
Type:
Power Transformer
Winding:
Cu/copper
Reference Standards:
IEC 60076
Highlight:

110kV High Voltage Transformer

,

IP23 High Voltage Transformer

,

IEC 60076 Power Transformer

Payment & Shipping Terms
Minimum Order Quantity
1
RELATED PRODUCTS
Good price High Efficiency 66kV Power Transformer with 100MVA Rated Power and IP23 Protection Level for Reliable Performance online

High Efficiency 66kV Power Transformer with 100MVA Rated Power and IP23 Protection Level for Reliable Performance

Chat Now
Good price Three Phase Oil Immersed Distribution Transformer 35KV Class ONAN Cooling Customizable online Video

Three Phase Oil Immersed Distribution Transformer 35KV Class ONAN Cooling Customizable

Chat Now
Good price 3000KVA Oil Filled Distribution Transformer Three Phase Electronic Step Down Transformer online Video

3000KVA Oil Filled Distribution Transformer Three Phase Electronic Step Down Transformer

Chat Now
Good price 20kw Aluminum Oil Filled Distribution Transformer High Voltage Step Up Transformer online Video

20kw Aluminum Oil Filled Distribution Transformer High Voltage Step Up Transformer

Chat Now
Contact Us
+86 15074989773
info@hentgpower.com
Chat Now
Product Description
110kV High Voltage Transformers for Utilities & Industry | Low Loss & Efficient
High Voltage Rating for Efficient Power Transmission

Designed for regional power grids, large-scale industrial facilities, and renewable energy booster stations. These transformers enhance long-distance transmission efficiency while minimizing line losses.

  • Robust insulation system with exceptional high-voltage shock resistance
  • Optimized for maximum transmission efficiency
Flexible Configuration Options

Multiple cooling structures and wiring methods for diverse application requirements:

  • Cooling methods: ONAN, ONAF, and OFWF
  • Wiring group options: YNd11 and YNyn0 configurations
  • Optional intelligent monitoring system for remote status tracking
Internationally Certified Quality

Manufactured to meet global standards with reliable craftsmanship:

  • Compliance with IEC, ANSI, and GB standards
  • Third-party testing available (SGS, KEMA)
  • Premium materials and vacuum drying technology ensure insulating oil and winding quality
  • Global export capability to Middle East, Africa, Southeast Asia, and South America
110kV High Voltage Transformer with IP23 Protection and IEC 60076 Compliance for Efficient Power Transmission 0
Technical Specifications
Rated Power (KVA) High Voltage (HV) Low Voltage (KV) Connection Symbol Short Circuit Impedance No-load Loss (W) On-load Loss (W) No load Current (%)
6300 110 121 6.3 6.6 10.5 11 YNd11 10.5 10000 36000 0.8
8000 110 121 6.3 6.6 10.5 11 YNd11 10.5 12000 45000 0.8
10000 110 121 6.3 6.6 10.5 11 YNd11 10.5 14200 53000 0.74
12500 110 121 6.3 6.6 10.5 11 YNd11 10.5 16800 63000 0.74
16000 110 121 6.3 6.6 10.5 11 YNd11 10.5 20200 77000 0.69
20000 110 121 6.3 6.6 10.5 11 YNd11 10.5 24000 93000 0.69
25000 110 121 6.3 6.6 10.5 11 YNd11 10.5 28400 110000 0.64
31500 110 121 6.3 6.6 10.5 11 YNd11 10.5 33800 133000 0.64
40000 110 121 6.3 6.6 10.5 11 YNd11 10.5 40400 156000 0.58
50000 110 121 6.3 6.6 10.5 11 YNd11 10.5 47800 194000 0.58
63000 110 121 6.3 6.6 10.5 11 YNd11 10.5 56800 234000 0.52

Widely used in power plants, substations, and large industrial facilities. Incorporates advanced domestic and international technologies with optimized design for core, winding, active parts, leads, and tank.

Key Features
  • Low partial discharge and minimal operational losses
  • Reduced noise emission levels
  • Lightweight yet highly reliable construction
  • Stable performance with economic and environmental benefits
