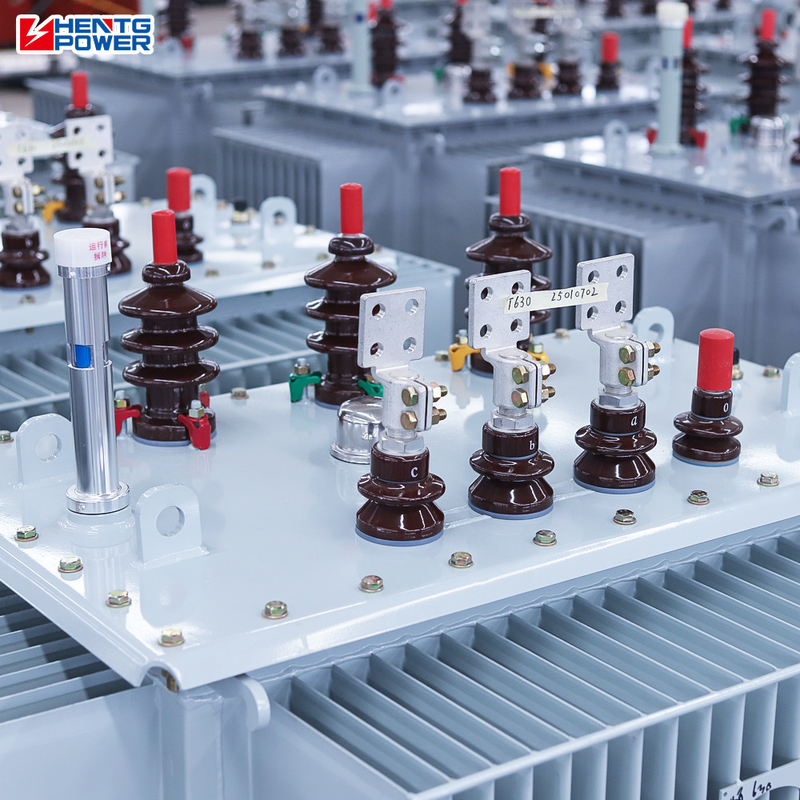

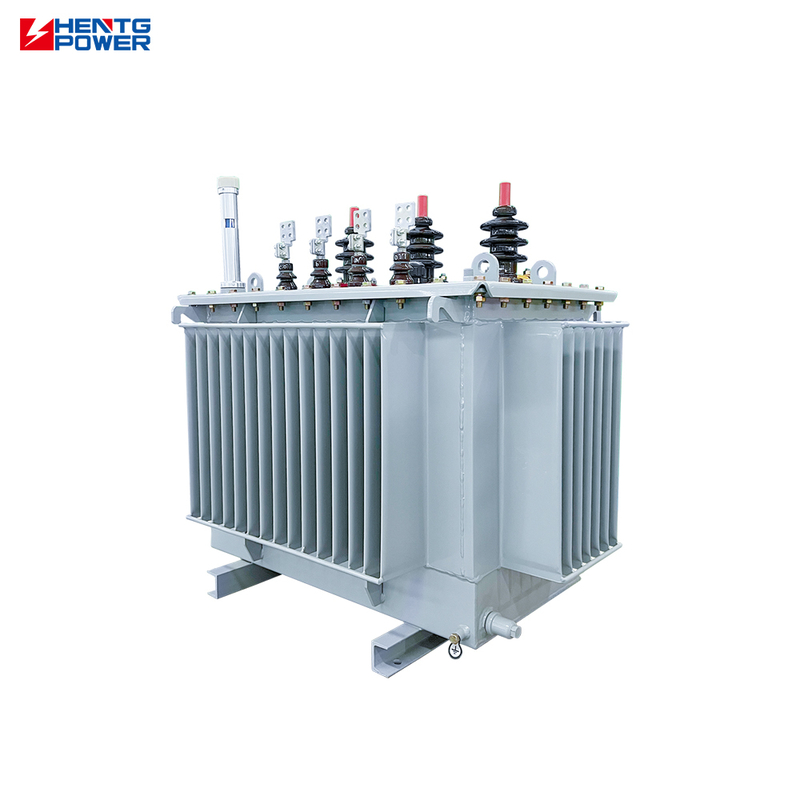

MV HV Oil Immersed Transformer 50KVA 200KVA 400 KVA High Frequency Manufacturers
Three Phase Oil Immersed Transformer (30-10000kVA) Product Overview High-performance MV/HV oil immersed transformer designed for power distribution networks, featuring energy efficiency and reliable operation in demanding environments. Key Specifications Attribute Specification Rated Capacity 30-10000kVA Frequency 50Hz, 60Hz Phase Three Input Voltage 3kV-69kV (Multiple Options) Output Voltage 110V-10kV (Multiple Options) Cooling Method ONAN/ONAF or Customized Winding Material
oil immersed transformer 50kva
,mv hv oil immersed transformer
,mv oil immersed electrical transformer
High-performance MV/HV oil immersed transformer designed for power distribution networks, featuring energy efficiency and reliable operation in demanding environments.
| Attribute | Specification |
|---|---|
| Rated Capacity | 30-10000kVA |
| Frequency | 50Hz, 60Hz |
| Phase | Three |
| Input Voltage | 3kV-69kV (Multiple Options) |
| Output Voltage | 110V-10kV (Multiple Options) |
| Cooling Method | ONAN/ONAF or Customized |
| Winding Material | Copper/Aluminum |
| Noise Level | ≤ 65dB |
| Warranty | 3 Years |

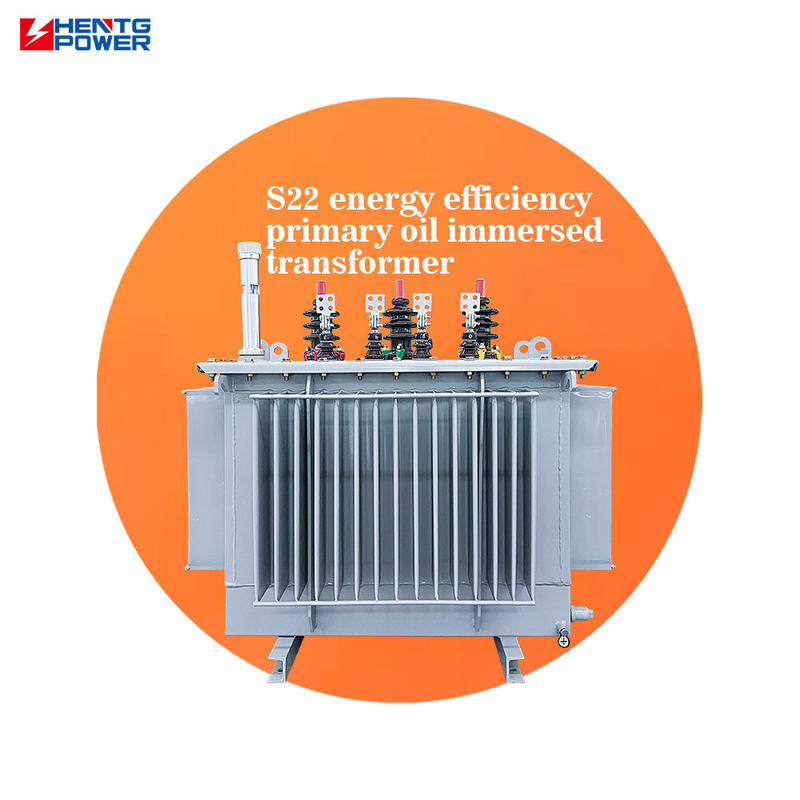

- S22 Energy Efficiency standard for reduced operational costs
- Extended maintenance intervals with reduced upkeep requirements
- Oxygen-free copper windings with high insulation strength
- Short-circuit resistant design with low thermal rise
- Stable long-term operation with minimal maintenance
- Customizable configurations available
| Rated Capacity (KVA) | Vector Group | Voltage Combination | No-load Loss | Load Loss | Impedance |
|---|---|---|---|---|---|
| 30 | Yyn0/Dyn11 | 10/6.3/6 | 65 | 455/430 | 4.0 |
| 50 | ±5% ±2X2.5% | 80 | 655/625 | ||
| 100 | 120 | 1140/1080 | |||
| 400 | 330 | 3250/3095 | 4.5 | ||
| 1600 | 940 | 10440/10440 | 5.0 |
Ideal for power distribution networks, urban and rural power grid transformation, and industrial power systems requiring reliable energy transmission.
-
