Place of Origin:
Jiangsu, China
Brand Name:
HENTG Power
Certification:
CE
Model Number:
ZGS
| Attribute | Value |
|---|---|
| Type | distribution transformer |
| Material | Copper, 100% Copper Wire |
| Frequency | 50Hz, 60Hz |
| Shape | Rectangle |
| Winding Material | Copper |
| Application | Power |
| Phase | Three |
| Coil Structure | Wound Coil |
| Coil Number | Multi-winding coil |
| Input Voltage | 3kV, 6kV, 10kV, 15kV, 35kV, 69kV, 110kV, 115kV, 132kV, 220kV, 400kV |
| Output Voltage | 11kV, 110V, 220V, 380V, 440V, 480V, 415V, 400V |
| Product name | Oil Immersed Power Transformer |
| Standard | IEC ANSI IEEE |
| Rated capacity | 75KVA-3750KVA |
| Cooling Method | ONAN ONAF OFAF |
| Core material | 100% Cooper |
| Color | Green |
| Warranty | 3 Years |
| Feature | High Efficiency |
| Application | Electronic Equipment |
| Capacity (KVA) | HV | Tapping range | LV | No-load loss | Load loss | Impedance | Efficiency |
|---|---|---|---|---|---|---|---|
| 75 | 2400 4160 7200 7620 12000 12470 13200 13800 14400 19920 24940 34500 | ±2X2.5% | 110 120 208 240 277 347 415 416 480 600 690 | 130 | 100 | 4.0-6.3 | 99.03 |
| 152 | 200 | 1800 | 99.16 | ||||
| 225 | 350 | 3100 | 99.23 | ||||
| 300 | 430 | 3700 | 99.27 | ||||
| 500 | 600 | 5410 | 99.35 | ||||
| 750 | 880 | 7500 | 99.4 | ||||
| 1000 | 1000 | 10300 | 99.43 | ||||
| 1500 | 1400 | 14500 | 99.48 | ||||
| 2000 | 1800 | 18300 | 99.51 | ||||
| 2500 | 2300 | 23100 | 99.53 | ||||
| 3150 | |||||||
| 3750 |

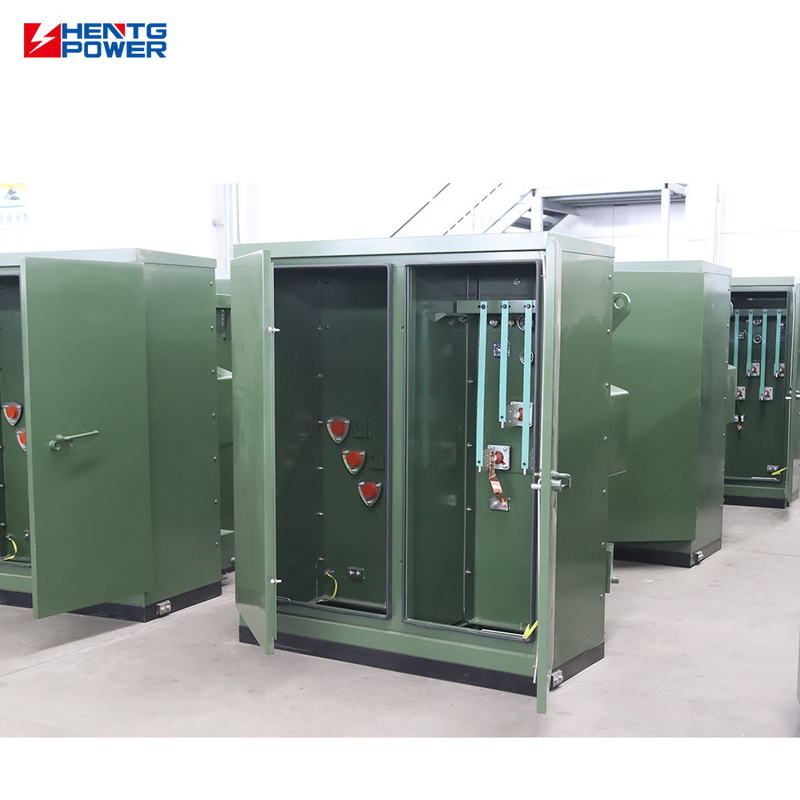

The 3750kVA Three-Phase Pad-Mounted Transformer is a premium outdoor power distribution solution designed for large-scale industrial, utility, and commercial applications. Built for reliability, safety, and efficiency, it features a robust sealed enclosure, tamper-resistant design, and optimized core technology. Ideal for high-load demands, this transformer offers long-term performance with minimal maintenance and a compact footprint suitable for space-constrained installations.
