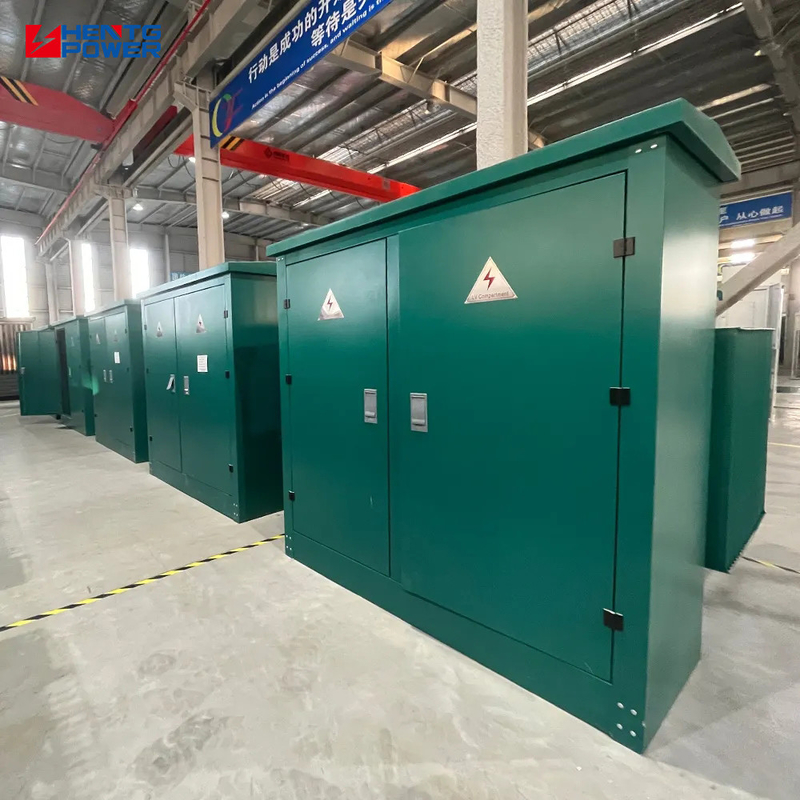

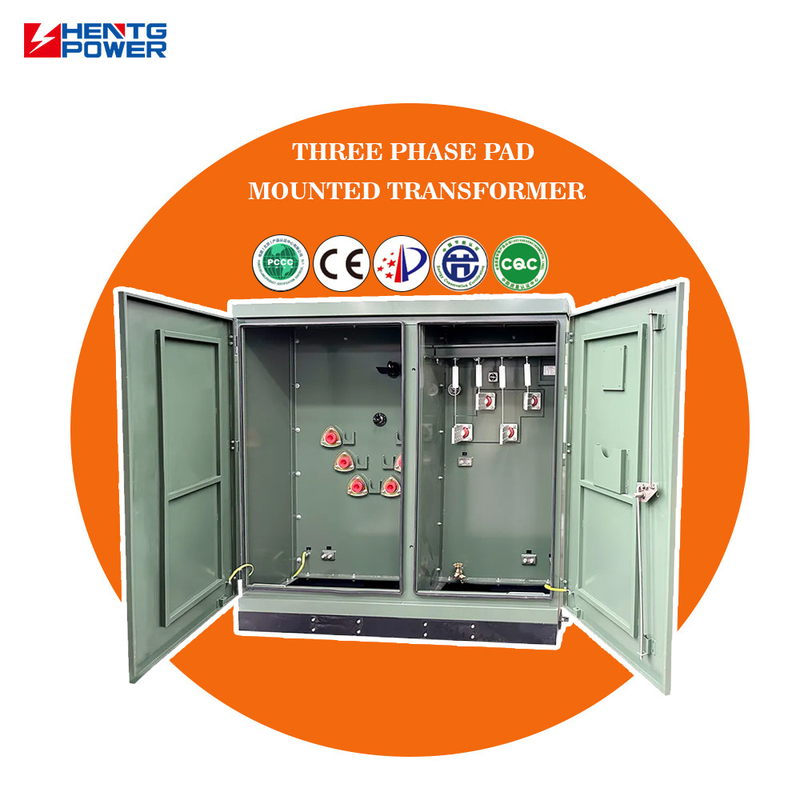

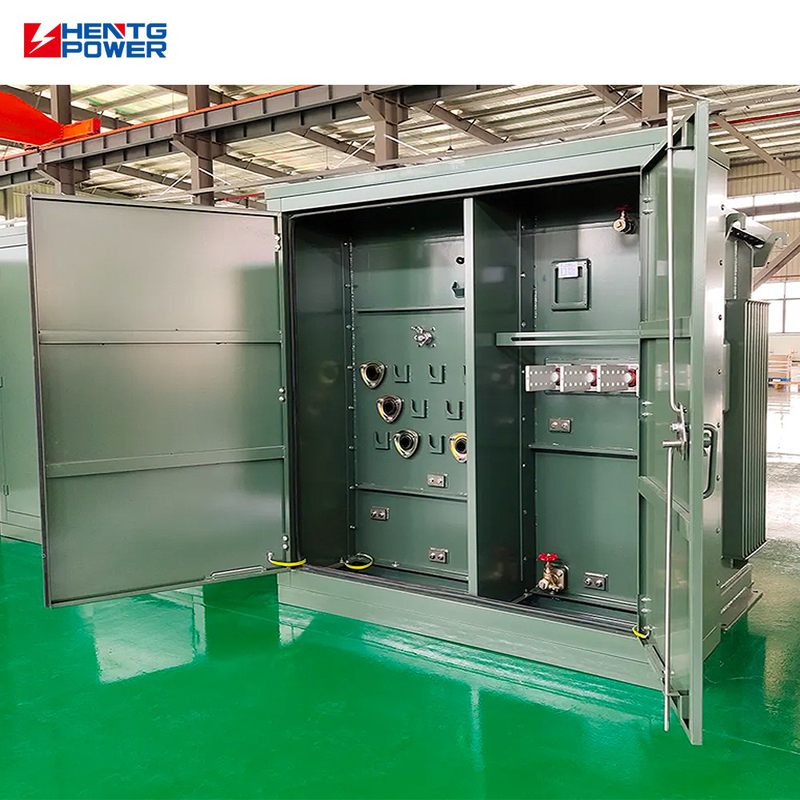

Aluminum Winding Electrical Power Transformer 300KVA 3 Phase Pad Mounted Transformer
Aluminum Winding Electrical Power Transformer 300KVA 3 Phase Pad Mounted Transformer Product Specifications Type Distribution transformer, power transformer, Oil-filled Transformer Frequency 50Hz, 60Hz Winding Material Aluminum Phase Three Coil Structure TOROIDAL Coil Number Multi-winding coil Input Voltage 3kV, 6kV, 10kV, 15kV, 35kV, 69kV, 110kV, 220kV, 400kV, 115kV, 132kV Output Voltage 5V, 400V, 208V, 200V, 415V, 127V, 11kV, 12V, 24V, 48V, 110V, 220V, 36V, 380V, 440V, 480V
Aluminum Winding Electrical Power Transformer
,300KVA 3 Phase Pad Mounted Transformer
,Aluminum Winding Pad Mounted Transformer
| Type | Distribution transformer, power transformer, Oil-filled Transformer |
| Frequency | 50Hz, 60Hz |
| Winding Material | Aluminum |
| Phase | Three |
| Coil Structure | TOROIDAL |
| Coil Number | Multi-winding coil |
| Input Voltage | 3kV, 6kV, 10kV, 15kV, 35kV, 69kV, 110kV, 220kV, 400kV, 115kV, 132kV |
| Output Voltage | 5V, 400V, 208V, 200V, 415V, 127V, 11kV, 12V, 24V, 48V, 110V, 220V, 36V, 380V, 440V, 480V, 9V |
| Cooling Method | ONAN ONAF OFAF |
| Feature | High Efficiency |
| Application | Power Distribution System |
| Capacity (KVA) | HV | Tapping range | LV | No-load loss | Load loss | Impedance | Efficiency |
|---|---|---|---|---|---|---|---|
| 75 | 2400 4160 7200 7620 12000 12470 13200 13800 14400 19920 24940 34500 | ±2X2.5% | 110 120 208 240 277 347 415 416 480 600 690 | 130 | 100 | 4.0-6.3 | 99.03 |
| 152 | 200 | 1800 | 99.16 | ||||
| 225 | 350 | 3100 | 99.23 | ||||
| 300 | 430 | 3700 | 99.27 | ||||
| 500 | 600 | 5410 | 99.35 |
The 2500kVA Three-Phase Pad-Mounted Transformer is engineered for high-demand power distribution in outdoor and public-access settings. Its sealed and tamper-resistant design ensures maximum safety, while advanced insulation and low-loss core technology provide efficient and reliable operation. Ideal for commercial, industrial, and utility-scale applications, this transformer combines performance, durability, and convenience in one integrated solution.
- Rated Power: 2500kVA
- Configuration: Three-Phase, Pad-Mounted
- Type: Oil-immersed, sealed tank construction
- Cooling Method: ONAN (Oil Natural Air Natural)
- Weatherproof, corrosion-resistant enclosure
- ANSI/IEEE/IEC compliant design
- Low noise emission levels suitable for residential zones
- Dead-front/tamper-proof design for public safety
- High-grade silicon steel core with low no-load loss
-
