1600kVA Three Phase Dry Type Transformer Low Loss Power Distribution Solution
1600kVA Three Phase Dry Type Transformer Low Loss Power Distribution Solution Product Overview SCB11 Series 1600kVA Dry-Type Transformer provides a reliable, fire-safe, and low-loss power distribution solution for industrial and commercial applications. Technical Specifications Attribute Value Frequency 60Hz Phase Three Application Power transformer Output Voltage 400V Input Voltage 10kV Type Cast Resin Dry Standard DOE/IEC60076/IEEE Warranty 2 Years Vector Group Dyn11/Yyn0
1600kVA Three Phase Dry Type Transformer
,1600kVA Dry Type Transformer Low Loss

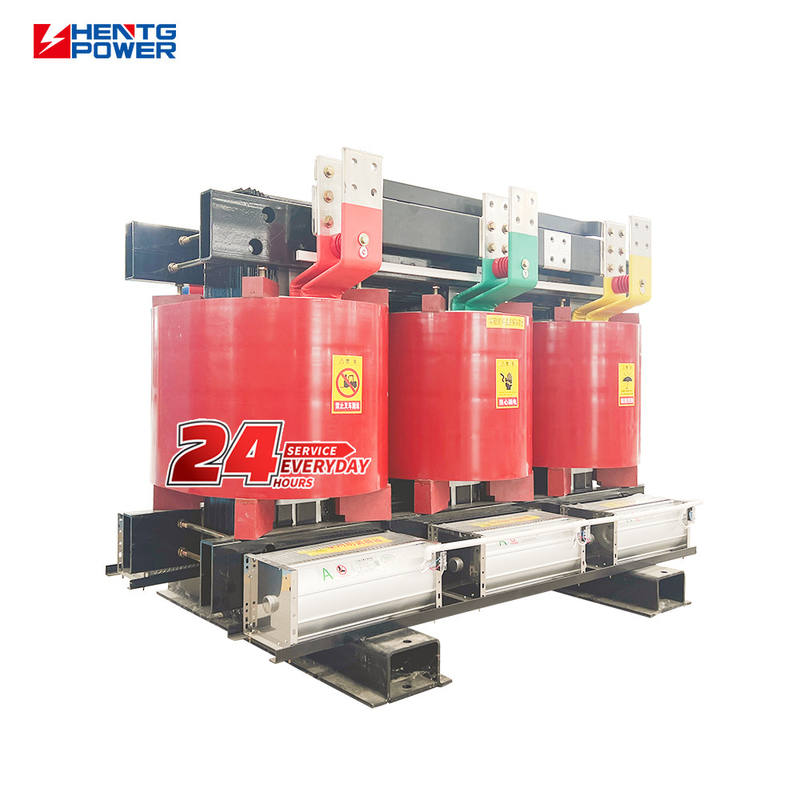

SCB11 Series 1600kVA Dry-Type Transformer provides a reliable, fire-safe, and low-loss power distribution solution for industrial and commercial applications.
| Attribute | Value |
|---|---|
| Frequency | 60Hz |
| Phase | Three |
| Application | Power transformer |
| Output Voltage | 400V |
| Input Voltage | 10kV |
| Type | Cast Resin Dry |
| Standard | DOE/IEC60076/IEEE |
| Warranty | 2 Years |
| Vector Group | Dyn11/Yyn0/Yd11/YNd11 |
| MOQ | 1 Set |
| Usage | Indoor Use Dry Type Electrical Power Transformer |
| High Voltage | 11kv 10kv 6.3kv 6kv 14.4KV 25KV 34.5KV |
| Low Voltage | 400v |
| Customized | Accept |
| Material | Copper Winding |
| Rated Capacity | Voltage Ratio | Vector Group | No-load Losses(kw) | Impedance |
|---|---|---|---|---|
| 30kva | 380v/3kv/6kv/11kv/33kv | Dyn11/Yd11/Yyno | 0.1 | 4% |
| 50kva | 380v/3kv/6kv/11kv/33kv | 0.13 | 4% | |
| 100kva | 380v/3kv/6kv/11kv/33kv | 0.2 | 4% | |
| 200kva | 380v/3kv/6kv/11kv/33kv | 0.34 | 4% | |
| 315kva | 380v/3kv/6kv/11kv/33kv | 0.42 | 4% | |
| 500kva | 380v/3kv/6kv/11kv/33kv | 0.6 | 4% | |
| 1000kva | 380v/3kv/6kv/11kv/33kv | 1.15 | 4.50% | |
| 1250kva | 6kv/11kv/33kv | 4.50% | ||
| 2500kva | 11kv/33kv | 2.3 | ||
| 4000kva | 11kv/33kv | 2.8 |

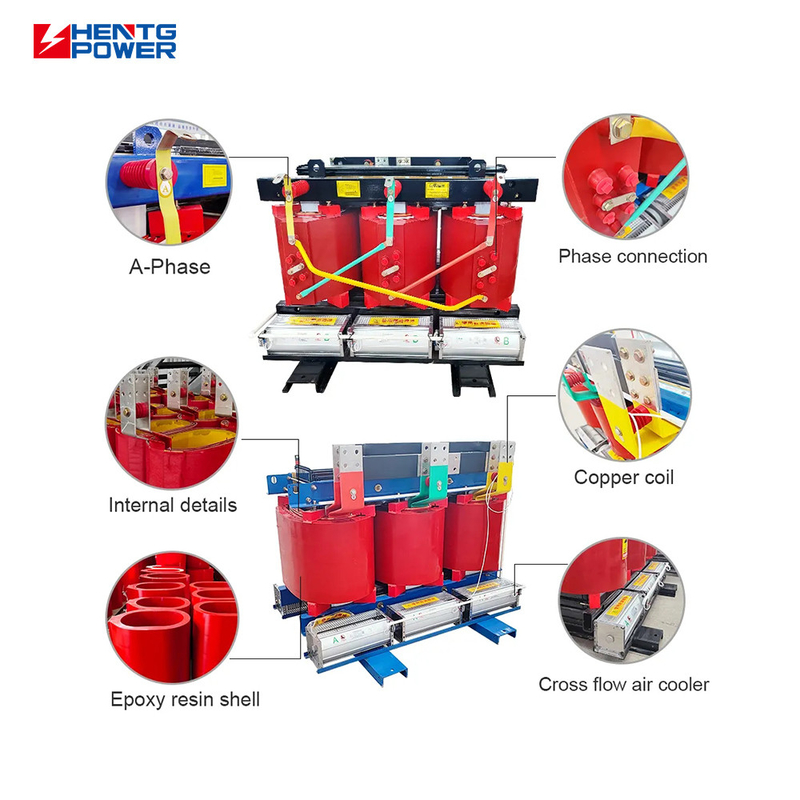

- Epoxy Resin Cast Coil: Vacuum pressure casting process improves insulation performance, heat resistance, and mechanical strength.
- High-Quality Silicon Steel Core: Reduces core losses and magnetic noise for greater energy efficiency.
- Air Natural Cooling (AN): Oil-free, self-cooled design eliminates risk of leakage or pollution.
- Low Noise Operation: Designed for quiet performance with ≤ 55 dB noise levels.
- Temperature Monitoring System (Optional): Real-time protection against overheating.
- Fire-Resistant & Moisture-Proof: Ideal for installation in high-density or enclosed spaces.
- Three-Phase, Indoor Use: Designed for consistent and balanced power supply in commercial or industrial facilities.
- Optimized for Indoor Environments: Perfect for malls, hospitals, schools, and data centers.
- High Durability: Strong short-circuit resistance, moisture-proof, and resistant to pollution.
- Long Service Life: Insulation class F and temperature rise class B ensure stable performance over years of operation.
- International Compliance: Meets IEC 60076, GB 6450, and other global transformer standards.
- Custom Voltage Available: Supports customized primary and secondary voltage ratings based on your application.
- Commercial Complexes & Office Buildings: Ensures stable and safe power for lighting, elevators, and HVAC systems.
- Industrial Facilities & Workshops: Supplies balanced, reliable power to motors, machinery, and automation systems.
- Hospitals & Medical Centers: Supports continuous, interference-free operation for diagnostic and life-support systems.
- Educational Institutions: Low noise, safe operation ideal for classrooms, labs, and administrative areas.
- Data Centers: Maintains consistent power delivery to sensitive servers and IT equipment.

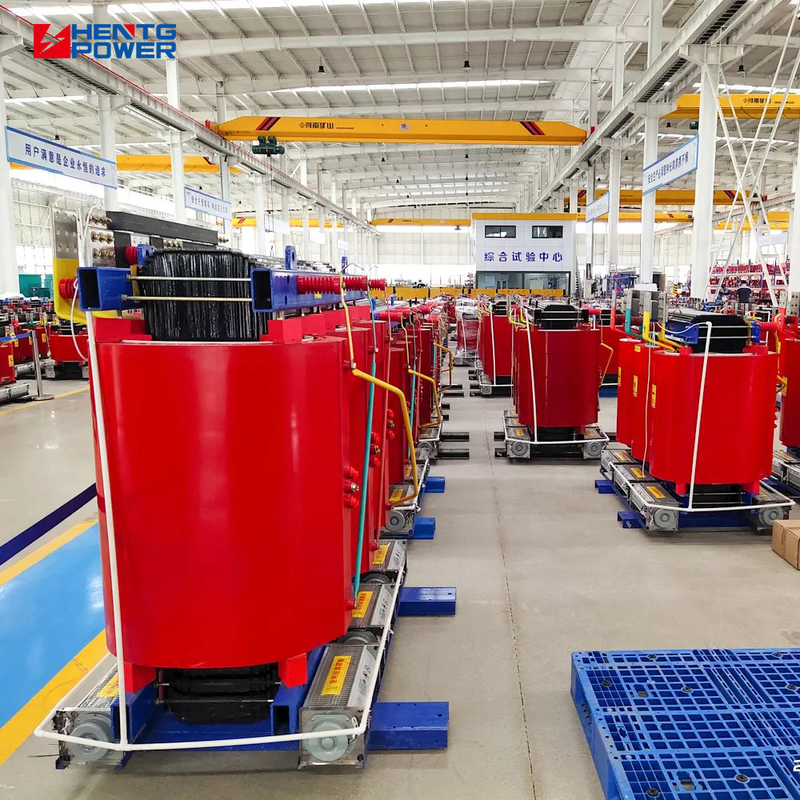

Professional designer, manufacturer and installer of power system solutions since 2011, occupying 100,000 square meters. Specializing in reliable, high-performance solutions for global power systems.
- Pre-production samples before mass production
- Final inspection before shipment with QC & test reports
- Factory Acceptance Test (FAT) available
- 2+ years guarantee service
- Professional drawing and technical teams
- 30+ senior engineers offering 24/7 support with 30-minute response time
- OEM services available
- Flexible payment options
-
