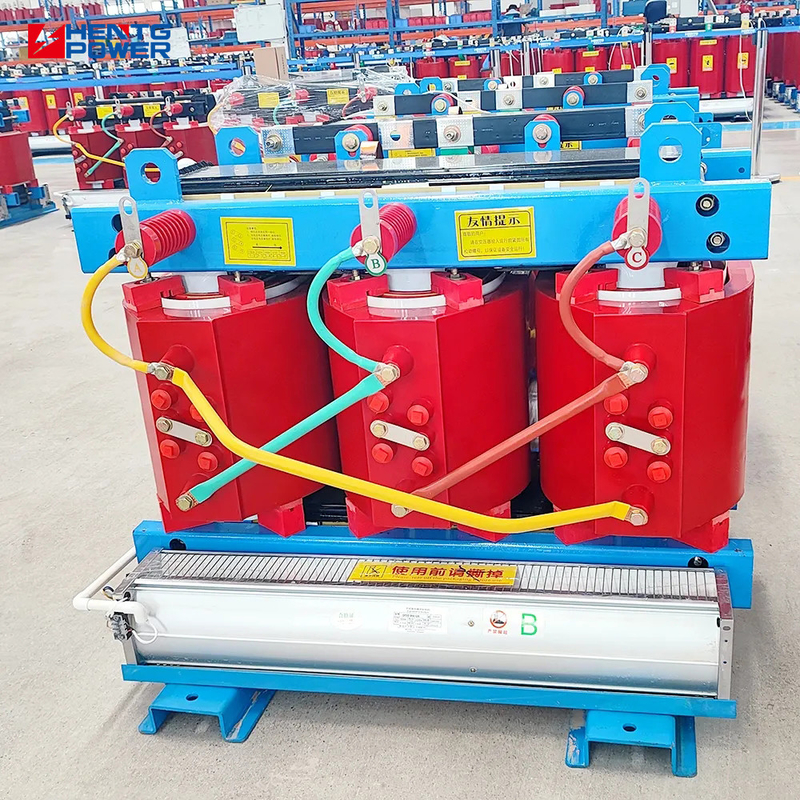

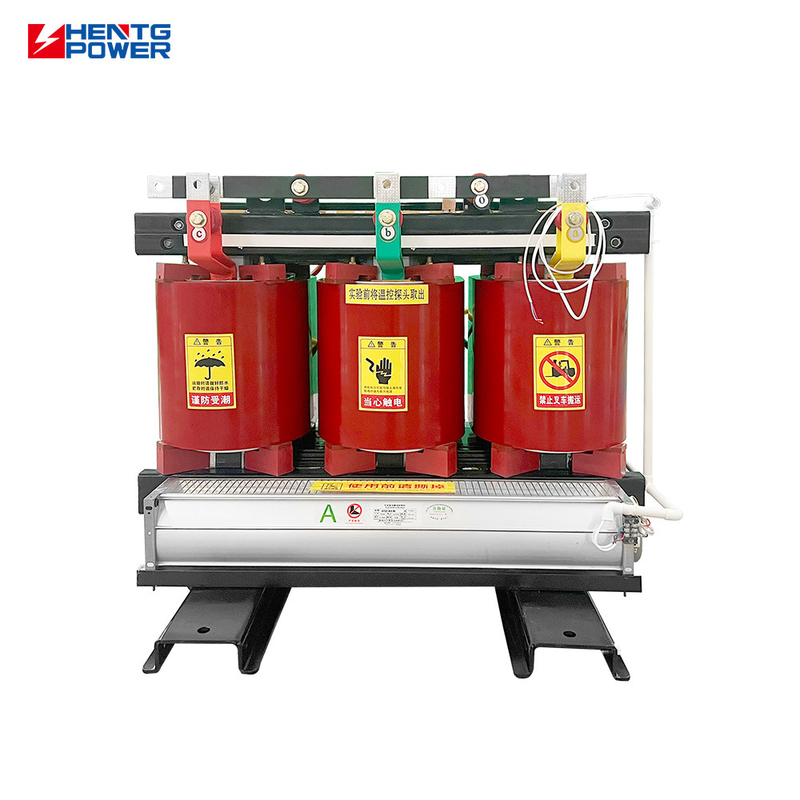

Epoxy Resin Dry Type Distribution Transformer 80 Kva 3 Phase With Triple Winding Coil
Epoxy Resin Dry Type Distribution Transformer 80 Kva 3 Phase With Triple Winding Coil Product Specifications Attribute Value Type Power transformer, distribution transformer, Dry Type Transformer Frequency 50Hz, 60Hz Winding Material Copper Application Power Phase Three Coil Structure Layered Winding Coil Number Triple-winding coil Input Voltage 10kV Output Voltage 400V Cooling Method Fan System Vector Group Dyn11/Yyn0 Transformer type Dry Isolation Insulation Material Epoxy
Epoxy Resin Dry Type Distribution Transformer
,Dry Type Distribution Transformer 80 Kva
,Triple Winding Coil Dry Distribution Transformer
| Attribute | Value |
|---|---|
| Type | Power transformer, distribution transformer, Dry Type Transformer |
| Frequency | 50Hz, 60Hz |
| Winding Material | Copper |
| Application | Power |
| Phase | Three |
| Coil Structure | Layered Winding |
| Coil Number | Triple-winding coil |
| Input Voltage | 10kV |
| Output Voltage | 400V |
| Cooling Method | Fan System |
| Vector Group | Dyn11/Yyn0 |
| Transformer type | Dry Isolation |
| Insulation Material | Epoxy resin |
| Standard | IEC60076 |
| Noise Level | Less than 60 dB |
| Capacity | 30-2500kVA |
The SCB13 80kVA epoxy-resin cast dry-type isolation transformer is designed to meet the demands of modern, sensitive electrical environments. Featuring compact dimensions, low noise, and high fire resistance, it's ideal for applications such as medical devices, communication equipment, automation systems, and precision instruments. This transformer ensures galvanic isolation between primary and secondary circuits, significantly reducing electrical interference and enhancing equipment safety.
| Rated capacity (KVA) | Vector Group | Voltage Combination | No-load loss | Load loss | No-load current | Impedance |
|---|---|---|---|---|---|---|
| 30 |
Yyn0 / Dyn11 |
10 6.3 6 |
135 | 640 | 2 | 4.0 |
| 50 | 195 | 900 | 2 | |||
| 80 | 265 | 1240 | 1.5 | |||
| 100 | 290 | 1410 | 1.5 | |||
| 125 | 340 | 1660 | 1.3 | |||
| 160 | 385 | 1910 | 1.3 | |||
| 200 | 445 | 2270 | 1.1 | |||
| 250 | 515 | 2480 | 1.1 | |||
| 315 | 635 | 3120 | 1 | |||
| 400 | 705 | 3590 | 1 | |||
| 500 | 835 | 4390 | 1 | |||
| 630 | 965 | 5290 | 0.85 | 6.0 |
- Compact Size: Ideal for tight spaces and indoor environments
- Epoxy Resin Insulation: High dielectric strength, moisture-proof and dust-resistant
- Electrical Isolation: Eliminates ground loops and reduces EMI/RFI
- Low Noise Operation: Quiet enough for offices, labs, and medical use
- Eco-Friendly Design: Oil-free, low-maintenance, zero pollution
- Improved Equipment Lifespan through stable power supply
- Lower Operating Costs with high energy efficiency
- Quiet & Safe Operation ideal for residential or office spaces
- Peace of Mind with long-lasting, maintenance-free design
- Office Buildings
- Hospitals
- Telecommunication Rooms
- Precision Laboratories
- Industrial Control Panels
- Educational Facilities
HENTG POWER is a professional designer, manufacturer and installer of power system solution around the World, was founded in 2011, occupies 100,000 square meter. specializing in reliable, high-performance solutions for global power systems.
Always a pre-production sample before mass production; Always final Inspection before shipment, We will provide QC & test reports. We accept FAT(Factory Acceptance Test). Factory can manufacture oil type and dry type distribution transformer, max 500KV 480MVA power transformer, GIS, switchgear, substation, based on ANSI/IEEE/DOE2016/CSA/IEC60076 standard. We will provide you with the guarantee service of over 2 years.
We have the professional and independent drawing team and technical team, It is expected that we can confirm all the contents on the drawings with you within 7 days. we have a professional technical team with 30+ senior engineers offer 24 hours online service and response within 30 min.
Accept OEM, business payment are negotiated.
-
