Place of Origin:
Hunan, China
Brand Name:
HENTG Power
Certification:
CE
Model Number:
SC(B)13
| Attribute | Value |
|---|---|
| Type | distribution transformer, Power Isolation Transformer |
| Frequency | 50Hz, 60Hz |
| Winding Material | Aluminum |
| Application | Power |
| Phase | Three |
| Coil Structure | Layered Winding |
| Coil Number | Triple-winding coil |
| Input Voltage | 3kV, 6kV, 10kV, 15kV, 35kV, 69kV, 110kV, 220kV, 400kV, 115kV, 132kV |
| Output Voltage | 5V, 400V, 208V, 200V, 415V, 127V, 11kV, 12V, 24V, 48V, 110V, 220V, 36V, 380V, 440V, 480V, 9V |
| Cooling Method | ANAF |
| Vector Group | Dyn11/Yyn0 |
| Transformer type | S13-MRL Oil-immersed Transformer |
| Function | AC Voltage Converting Device |
| Rated capacity (KVA) | Vector Group | Voltage Combination | No-load loss | Load loss | No-load current | Impedance |
|---|---|---|---|---|---|---|
| 30 | Yyn0 / Dyn11 | 10 6.3 6 | 135 | 640 | 2 | 4.0 |
| 50 | 195 | 900 | 2 | |||
| 80 | 265 | 1240 | 1.5 | |||
| 100 | 290 | 1410 | 1.5 | |||
| 125 | 340 | 1660 | 1.3 | |||
| 160 | 385 | 1910 | 1.3 | |||
| 200 | 445 | 2270 | 1.1 | 6.0 | ||
| 250 | 515 | 2480 | 1.1 | |||
| 315 | 635 | 3120 | 1 | |||
| 400 | 705 | 3590 | 1 | |||
| 500 | 835 | 4390 | 1 | |||
| 630 | 965 | 5290 | 0.85 | |||
| 630 | 935 | 5360 | 0.85 | |||
| 800 | 1090 | 6260 | 0.85 | |||
| 1000 | 1270 | 7310 | 0.85 | |||
| 1250 | 1500 | 8720 | 0.85 | |||
| 1600 | 1760 | 10500 | 0.85 |

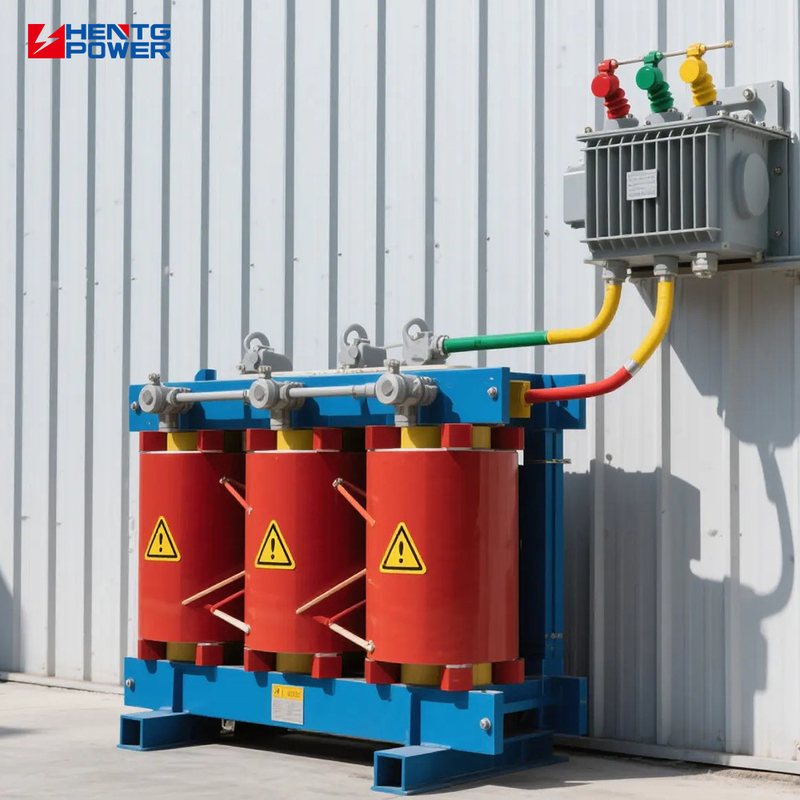

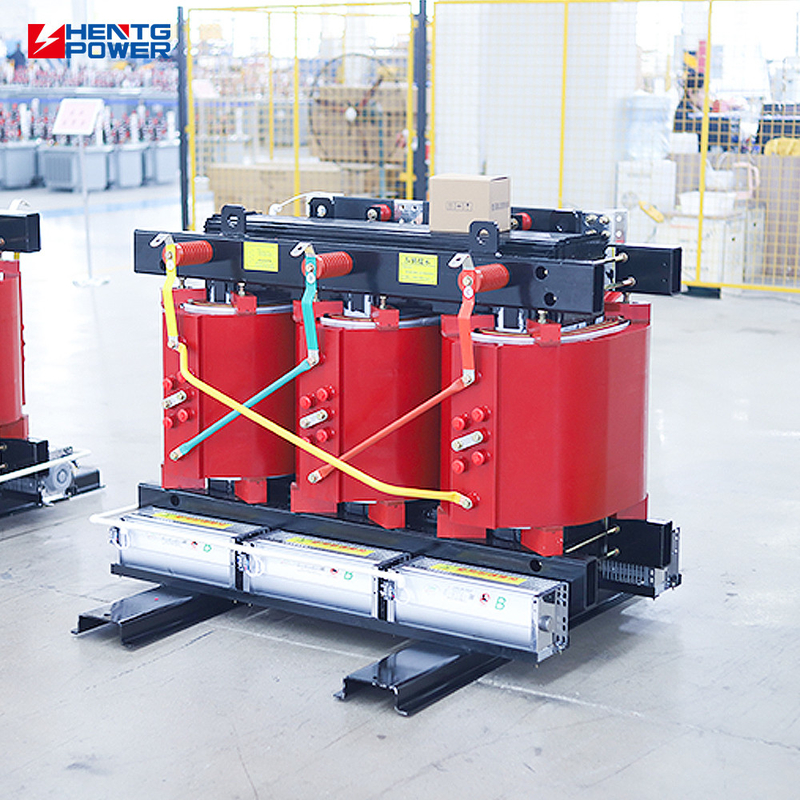

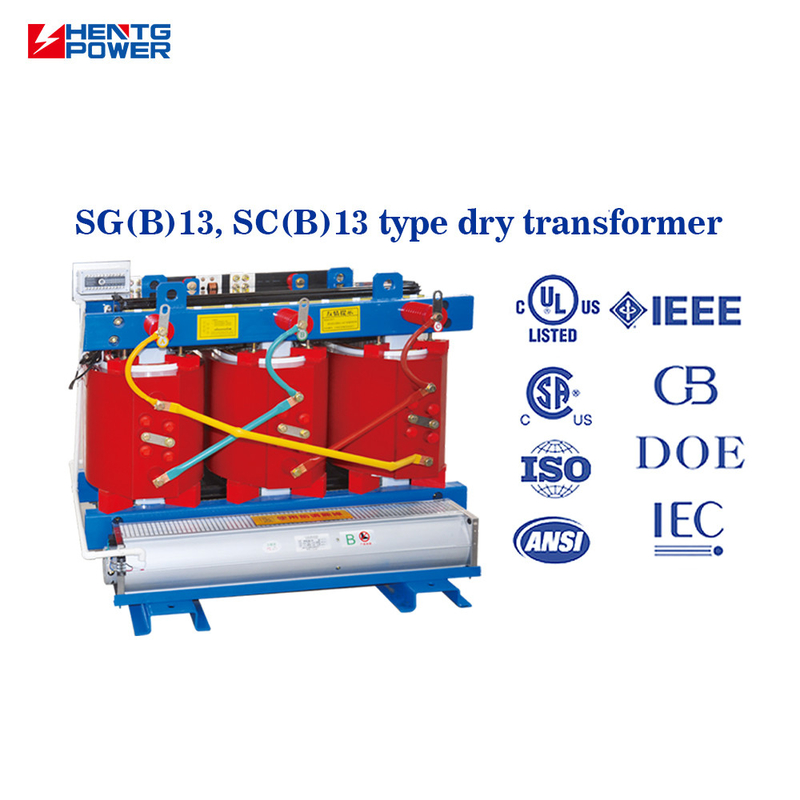

Cast resin dry type transformer is a type of SC(B) dry transformer with epoxy resin, which is widely used in many fields. Its winding surface consists of high-quality protective material that forms the cover. Even in harsh environments such as dust and humidity, it will not affect the cast insulating dry-type transformer. The process characteristic of resin casting is that it must rely on molds and use special casting equipment to cast the coil in a vacuum state. The epoxy resin used is an insulating glue, so it is also called an epoxy cast resin dry type transformer.
We will respond to your inquiry within 1 hour and recommend suitable transformer according to your needs. At the same time, we will provide you with reasonable quotations and payment terms. We have a professional and independent drawing team and technical team, and we will confirm all the contents on the drawing with you within 7 days after payment. The drawing usually contains technical data, weight and parts list.

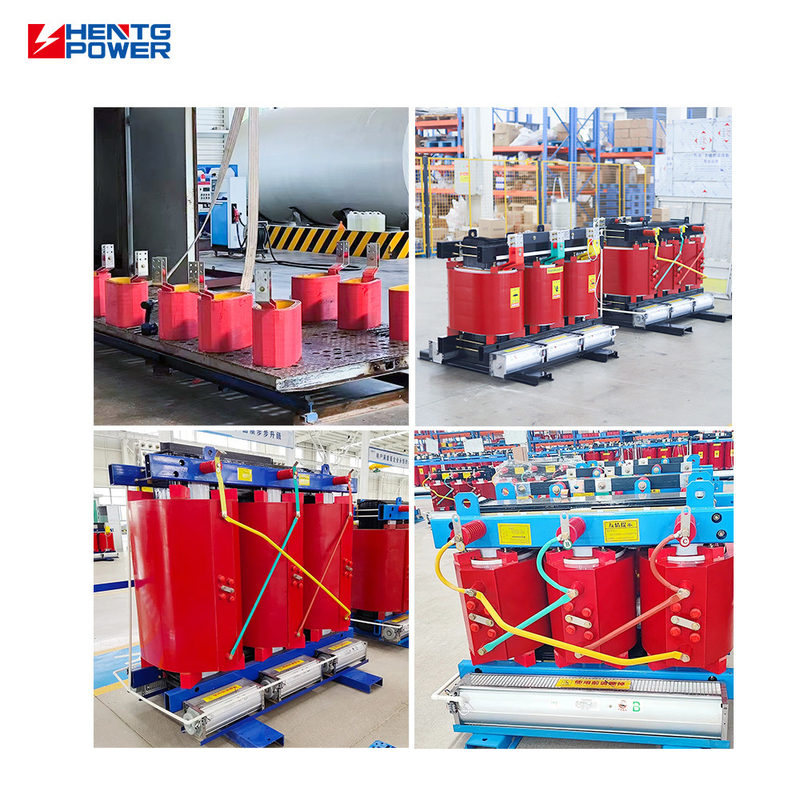

After designing the production drawing, the factory will prepare the stock, produce, and conduct quality inspection before shipment. If you have special accessory requirements, we can provide you with accessories. Our raw materials are strictly screened. In the quality inspection stage, we will provide you with the dual guarantee of QC report and test report to escort your products.
We have a professional team to guide the installation, and also support on-site installation. We will provide you with more than 2 years of warranty service.
HENTG POWER is a professional designer, manufacturer and installer of power system solution around the World, was founded in 2011, occupies 100,000 square meter, specializing in reliable, high-performance solutions for global power systems.
Always a pre-production sample before mass production; Always final Inspection before shipment. We will provide QC & test reports. We accept FAT(Factory Acceptance Test). Factory can manufacture oil type and dry type distribution transformer, max 500KV 480MVA power transformer, GIS, switchgear, substation, based on ANSI/IEEE/DOE2016/CSA/IEC60076 standard. We will provide you with the guarantee service of over 2 years.
We have the professional and independent drawing team and technical team. It is expected that we can confirm all the contents on the drawings with you within 7 days. We have a professional technical team with 30+ senior engineers offer 24 hours online service and response within 30 min.
Accept OEM, business payment are negotiated.
