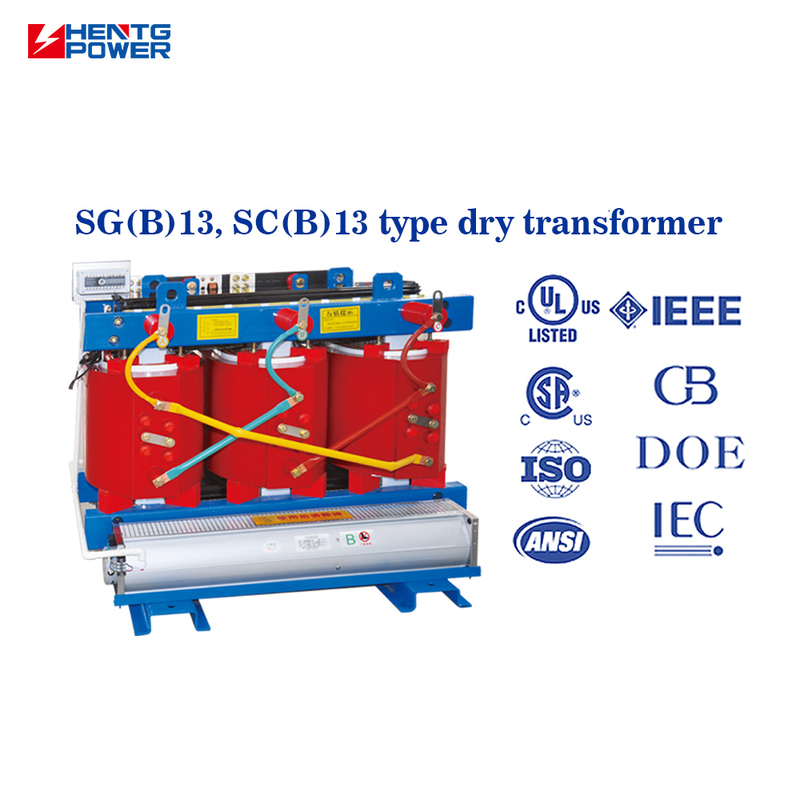

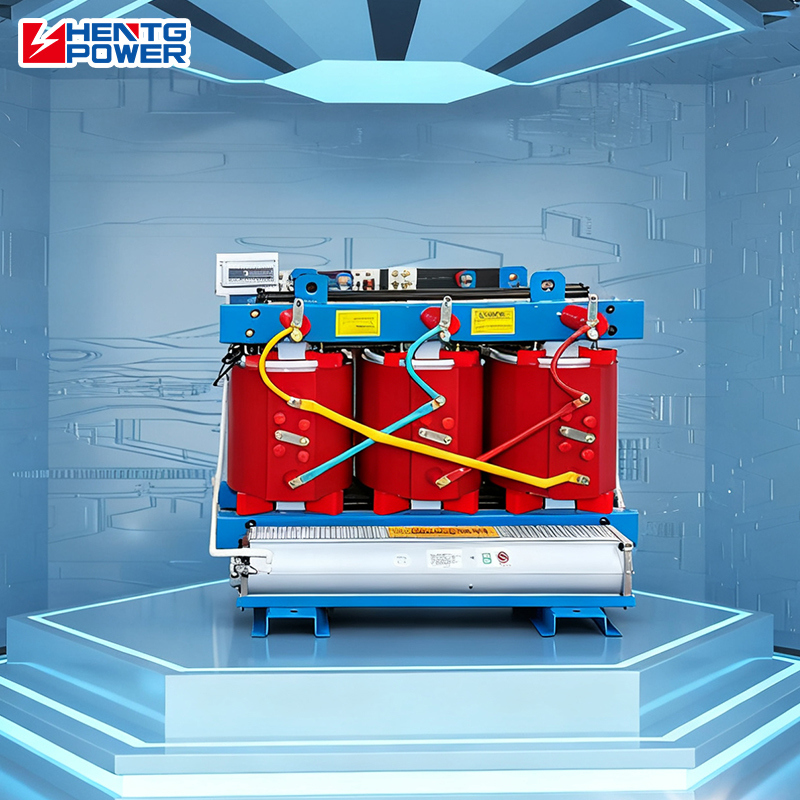

High Efficiency Epoxy Resin Dry Type Transformer with Environmental Resilience and Long Service Life
OEM High Quality Epoxy Resin Dry-type Transformers (1600kVA, 2000kVA, 2500kVA, 60Hz) Premium Dry Type Transformers with Superior Safety and Efficiency Our high-quality epoxy resin dry-type transformers offer exceptional performance, safety, and energy efficiency for demanding industrial applications...
Environmental Resilience Dry Type Transformer
,Long Service Life Epoxy Resin Transformer
,Low Noise Cast Resin Transformer
Our high-quality epoxy resin dry-type transformers offer exceptional performance, safety, and energy efficiency for demanding industrial applications.
Our OEM epoxy resin dry-type transformers are designed for high-demand applications such as data centers, IT facilities, and critical power infrastructure. Available in 1600kVA, 2000kVA, and 2500kVA capacities, 60Hz, with copper or aluminum windings, these transformers combine high reliability, safety, and fully customizable design to meet your specific operational requirements.
-
Tailored Voltage & Configuration: Primary/secondary voltages, tap settings, and connection types can be customized.
-
Core & Winding Options: Copper or aluminum windings, optimized for efficiency, cost, and performance.
-
Cooling & Installation Flexibility: Natural air (AN) or forced air (AF) cooling, indoor or semi-indoor setups.
-
Size & Footprint Adaptation: Compact designs for space-constrained facilities or modular deployment.
-
Optional Monitoring & Protection: Thermal sensors, temperature alarms, and smart monitoring interfaces for real-time status tracking.
Technical Advantage: Vacuum casted with premium FRC1 (Fire Resistance Class 1) epoxy resin, our transformers are self-extinguishing. The core and windings are completely encapsulated, forming a solid shield impervious to moisture, dust, and corrosive gases.
Client Benefit: Maintenance-free operation with no risk of burning or explosion. Ideal for sensitive environments like hospitals, high-rises, airports, and factories.
Technical Advantage: Features high-grade, low-loss silicon steel cores and Class F or H insulation systems, exceeding IEC 60076-11 standards with efficiency levels up to 99%.
Client Benefit: Significant reduction in electricity bills and carbon footprint, with lower operating temperatures extending product lifespan.
Technical Advantage: Dry-type design with rugged epoxy resin encapsulation provides exceptional resistance to thermal shock, humidity, and harsh environments (-25°C to 50°C). Designed for service life exceeding 30 years.
Client Benefit: Install anywhere without transformer vaults - a green solution that's non-polluting, 100% recyclable, and ensures maximum uptime.
- Safe, fireproof, pollution-free, maintenance free
- Low loss, low noise with significant energy-saving effect
- High mechanical strength and strong short-circuit resistance
- Excellent thermal stability and long service life
- Good heat dissipation with strong overload capacity
- Moisture resistant for operation in harsh environments
| Rated Capacity (kVA) | Vector Group | Voltage Combination | No-load Loss | Load Loss | No-load Current | Impedance |
|---|---|---|---|---|---|---|
| 30 | Yyn0 / Dyn11 10 6.3 6 | ±5% ±2X2.5% (+3/-1)X2.5% | 135 | 640 | 2 | 4.0 |
| 50 | 195 | 900 | 2 | |||
| 80 | 265 | 1240 | 1.5 | |||
| 100 | 290 | 1410 | 1.5 | |||
| 125 | 340 | 1660 | 1.3 | |||
| 160 | 385 | 1910 | 1.3 | |||
| 200 | 445 | 2270 | 1.1 | |||
| 250 | 515 | 2480 | 1.1 | |||
| 315 | 635 | 3120 | 1 | |||
| 400 | 705 | 3590 | 1 | |||
| 500 | 835 | 4390 | 1 | |||
| 630 | 965 | 5360 | 0.85 | 6.0 | ||
| 630 | 935 | 5290 | 0.85 | |||
| 800 | 1090 | 6260 | 0.85 | |||
| 1000 | 1270 | 7310 | 0.85 | |||
| 1250 | 1500 | 8720 | 0.85 | |||
| 1600 | 1760 | 10500 | 0.85 |
| Pain Point | OEM Solution | Benefit |
|---|---|---|
| Specific voltage or configuration requirements | Custom primary/secondary voltages, tap settings, and connections | Transformer exactly fits your system |
| Limited installation space | Custom compact design | Easy deployment in space-constrained data centers |
| Monitoring & maintenance concerns | Optional smart sensors & alarms | Real-time monitoring, reduced downtime |
| Noise or vibration | Optimized winding and core design | Quiet operation, minimal disruption |
| High-value, critical equipment | Fire-safe epoxy resin insulation | Maximize safety and reliability |
-
