Place of Origin:
Jiangsu, China
Brand Name:
HENTG Power
Certification:
CE
Model Number:
ZGS series
Video
Video
| Attribute | Value |
|---|---|
| Frequency | 50Hz, 60Hz |
| Phase | Three |
| Coil Number | Three Windings, Multi Winding, Two Windings, Single Winding |
| Application | Distribution system |
| Coil Structure | Shell-Type Coil, layer coil, fully sealed construction, Disc Coil, round coil |
| Output Voltage | 10kV, 415V, 110V, 220V, 400V, 380V, 440V, 480V |
| Input Voltage | 11kV, 10.5kV, 3kV, 12.47kV, 6.6kV, 6.3kV, 6kV, 10kV, 35kV, 69kV, 110kV, 115kV |
| Type | Oil-Immersed Transformer |

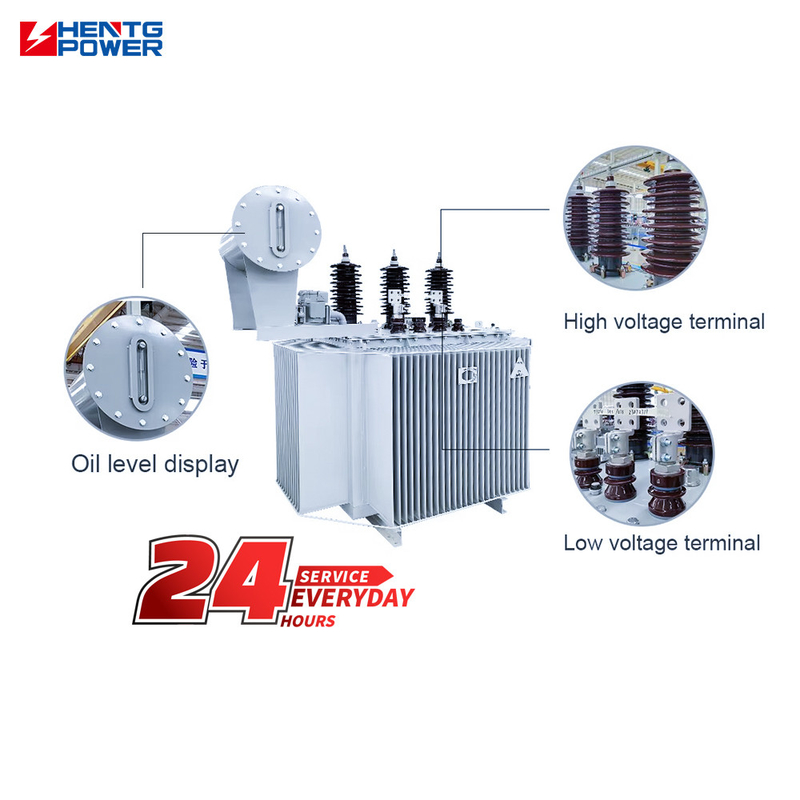

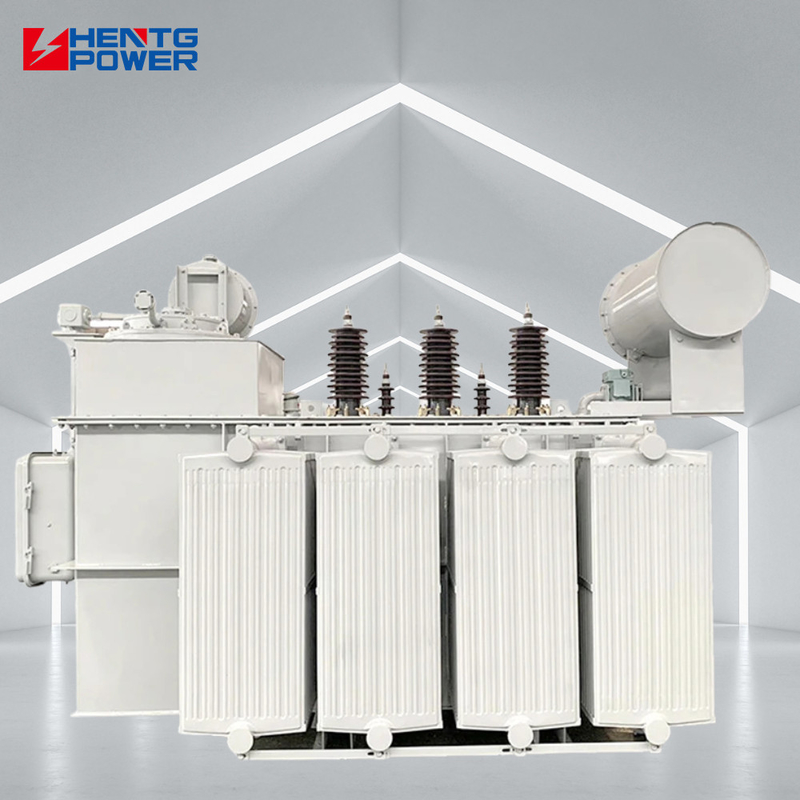

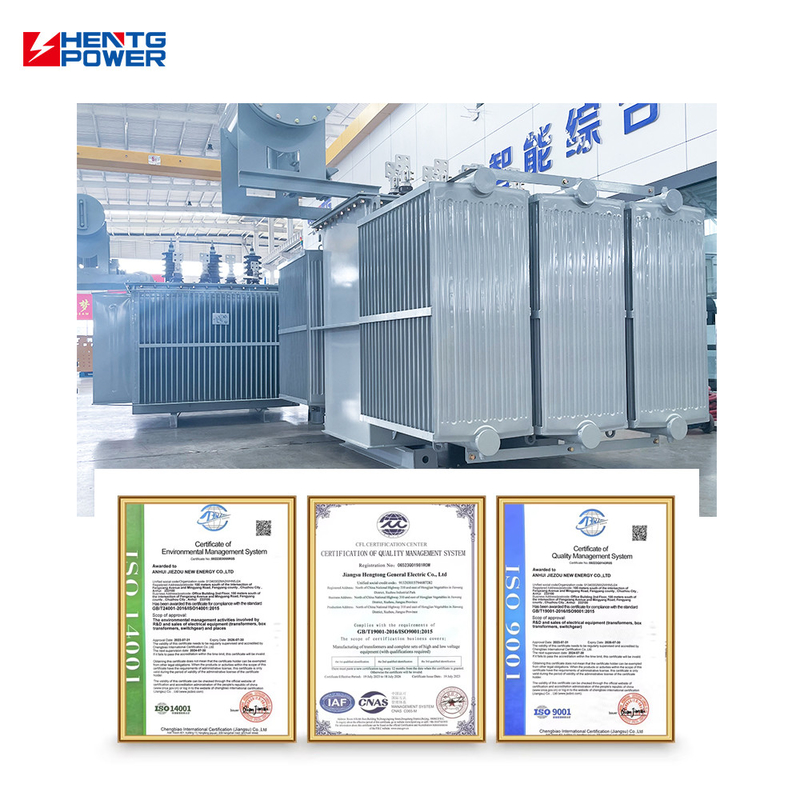

| Product Name | Three Phase Oil Immersed Transformer |
| Vector Group | Dyn11 / Yyn0 |
| Winding Material | Copper / Aluminum |
Product Overview
HENTG's 35kV series power transformers are more advanced in design, and have been greatly improved in material, structure and process.
| Capacity (KVA) | HV (KV) | HV Tapping | LV (KV) | Vector Group | No-load Loss (W) | On-load Loss (W) | No-load Current (%) | Short Circuit Impedance (%) |
|---|---|---|---|---|---|---|---|---|
| 630 | 35 | ±5% | 3.15 6.3 10.5 | Yd11 | 830 | 7870 | 1.1 | 6.5 |
| 800 | 980 | 9410 | 1 | |||||
| 1000 | 1150 | 11540 | 1 | |||||
| 1250 | 1410 | 13940 | 0.9 | |||||
| 1600 | 1700 | 16670 | 0.8 | |||||
| 2000 | 2180 | 18380 | 0.7 | |||||
| 2500 | 2560 | 19670 | 0.6 | |||||
| 3150 | 35~38.5 | ±5% | 3.15 6.3 10.5 | 3040 | 23090 | 0.56 | 7 | |
| 4000 | 3620 | 27360 | 0.56 | |||||
| 5000 | 35~38.5 | ±5% | 3.15 6.3 10.5 | 4320 | 31380 | 0.48 | 7 | |
| 6300 | 5250 | 35060 | 0.48 | 7.5 | ||||
| 8000 | 35~38.5 | ±2*2.5% | 3.15 3.3 6.3 6.6 10.5 11 | Ynd11 | 7200 | 38480 | 0.42 | |
| 10000 | 8700 | 45320 | 0.42 | |||||
| 12500 | 10080 | 53870 | 0.4 | 8 | ||||
| 16000 | 12160 | 65840 | 0.4 | |||||
| 20000 | 14400 | 79520 | 0.4 | |||||
| 25000 | 17020 | 94050 | 0.32 | |||||
| 31500 | 20220 | 112860 | 0.32 |
We will respond to your inquiry within 1 hour and recommend suitable transformer according to your needs. We provide reasonable quotations and payment terms. Our professional drawing team will confirm all contents on the drawing with you within 7 days after payment, including technical data, weight and parts list.
After finalizing the production drawing, we prepare stock, produce, and conduct quality inspection before shipment. We provide QC report and test report for quality assurance. Special accessory requirements can be accommodated.
Our professional team provides installation guidance and on-site support. We offer more than 2 years of warranty service.
HENTG POWER is a professional designer, manufacturer and installer of power system solutions worldwide, founded in 2011 with 100,000 square meter facility, specializing in reliable, high-performance solutions for global power systems.
We always provide pre-production samples before mass production and conduct final inspection before shipment with QC & test reports. We accept FAT (Factory Acceptance Test). Our factory can manufacture oil type and dry type distribution transformers up to 500KV 480MVA power transformers, GIS, switchgear, and substations based on ANSI/IEEE/DOE2016/CSA/IEC60076 standards with over 2 years warranty service.
We have professional and independent drawing and technical teams that can confirm all drawing contents within 7 days. Our technical team includes 30+ senior engineers offering 24-hour online service with response within 30 minutes.
We accept OEM orders and negotiate business payment terms.
For any questions or to discuss your specific requirements, please contact our technical team for professional advice and customized solutions.
