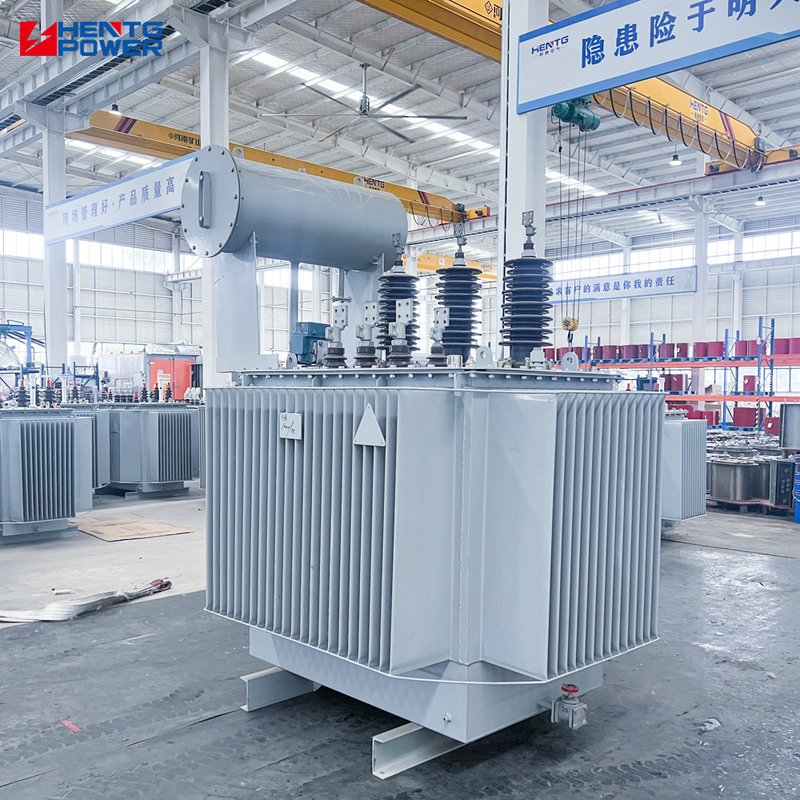

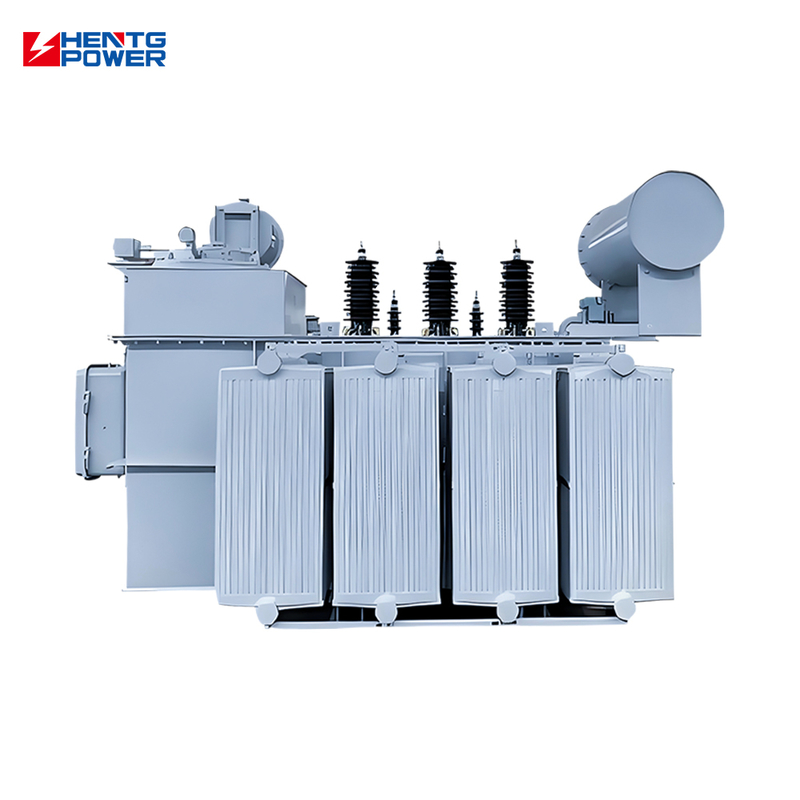

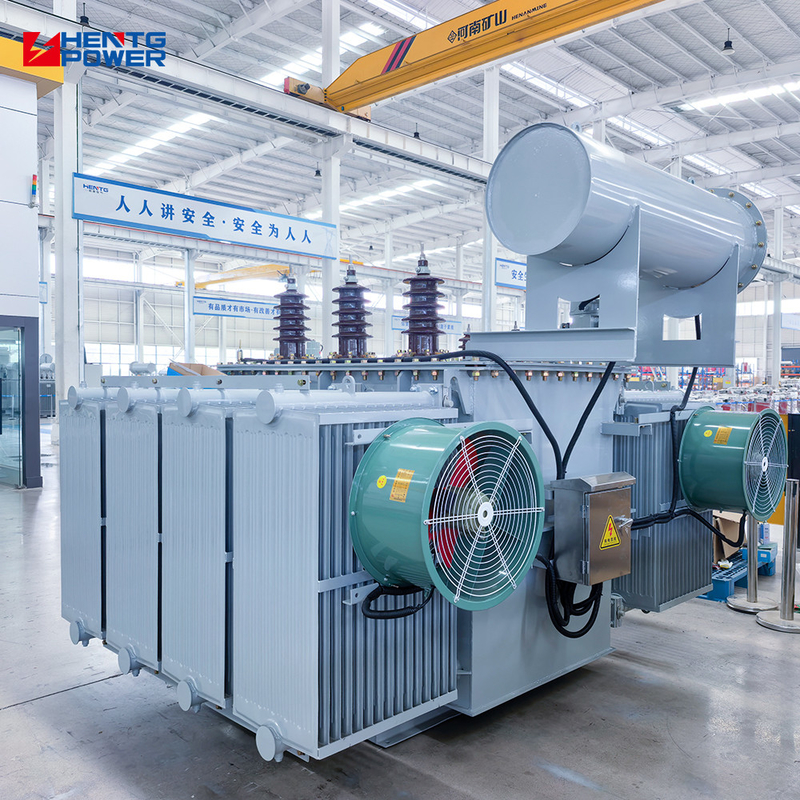

Electric Power Distribution Oil Immersed Mv High Voltage Isolation Transformer 1000kVA
Electric Power Distribution Oil Immersed MV High Voltage Isolation Transformer 1000kVA Product Overview 35kV Custom Electric Power Distribution Oil Immersed Transformer designed for medium voltage networks with efficient step-down transformation capabilities. Key Specifications Type Distribution Transformer, Oil-filled Transformer Material Aluminum, Copper Frequency 50Hz, 60Hz Phase Three Winding Material Aluminum, Copper Application Power Distribution System Standard IEC
high voltage isolation transformer 1000kva
,1000kva high voltage high frequency transformer
,380v high voltage isolation transformer
35kV Custom Electric Power Distribution Oil Immersed Transformer designed for medium voltage networks with efficient step-down transformation capabilities.
| Type | Distribution Transformer, Oil-filled Transformer |
| Material | Aluminum, Copper |
| Frequency | 50Hz, 60Hz |
| Phase | Three |
| Winding Material | Aluminum, Copper |
| Application | Power Distribution System |
| Standard | IEC ANSI |
| Capacity | 2000KVA |
| Vector Group | Yd11/YNd11 |
- Rated Voltage: 35kV
- Capacity Range: 50kVA to 3150kVA
- Cooling Method: Oil-immersed
- Frequency: 50Hz or 60Hz
- Impedance Voltage: Customizable
- Ambient Temperature Range: -25°C to +40°C
- Proven Quality: Manufactured in accordance with global standards for top-notch performance and safety
- Cost-effective: Long lifespan and low maintenance costs ensure high return on investment
- Global Support: Worldwide network of technicians and service centers
| Capacity (KVA) | HV (KV) | HV Tapping | LV (KV) | Vector Group | No-load Loss (W) | On-load Loss (W) | No-load Current (%) | Short Circuit Impedance (%) |
|---|---|---|---|---|---|---|---|---|
| 630 | 35 | ±5% | 3.15/6.3/10.5 | Yd11 | 830 | 7870 | 1.1 | 6.5 |
| 800 | 980 | 9410 | 1 | |||||
| 1000 | 1150 | 11540 | 1 |
- Optimized for 35kV Medium Voltage Networks
- Stable Three-Phase Power Supply
- Efficient Oil-Immersed Cooling System
- High Reliability Construction
We respond within 1 hour with suitable transformer recommendations and provide reasonable quotations. Our technical team confirms all drawing details within 7 days after payment.
After design approval, we prepare stock, produce, and conduct rigorous quality inspections. We provide QC reports and test reports for all products.
We offer professional installation guidance and on-site support. All products come with more than 2 years warranty service.
- 100,000m² factory with 250 workers and 30+ engineers
- 4 production lines with 10,000+ sets annual capacity
- 100% OQC testing with 25 detection contents
- 15 years power transformer experience
- Compliance with GB 20052-2024/ANSI/IEEE/DOE2016/CSA/IEC60076 standards
HENTG POWER is a professional designer, manufacturer and installer of power system solutions, founded in 2011 with 100,000 square meter facility.
We conduct pre-production samples, final inspections before shipment, and provide QC & test reports. We accept Factory Acceptance Tests (FAT).
We have professional drawing and technical teams with 30+ senior engineers offering 24/7 support with 30-minute response time.
-
