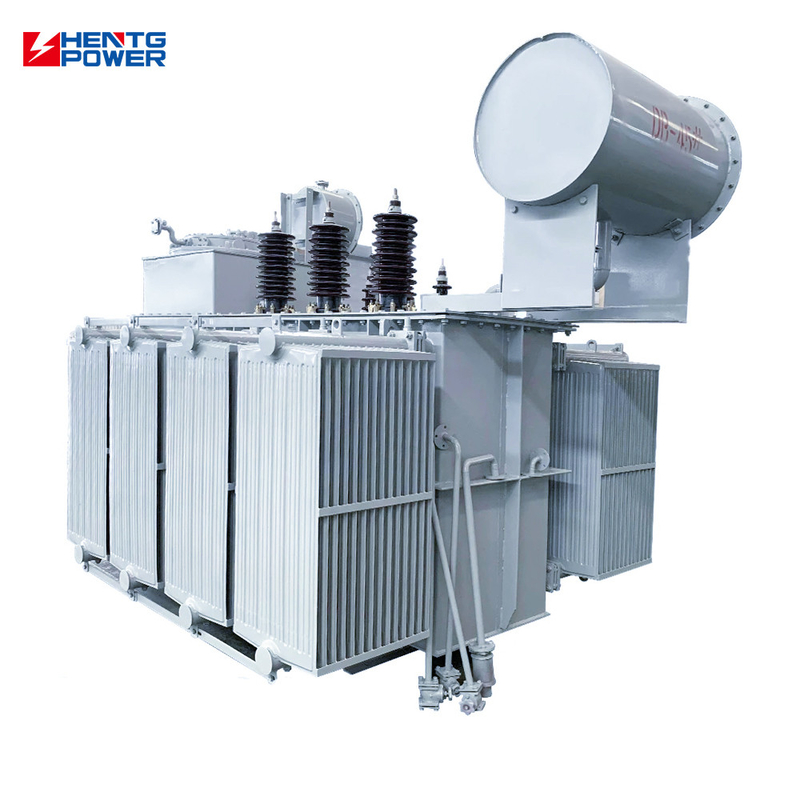

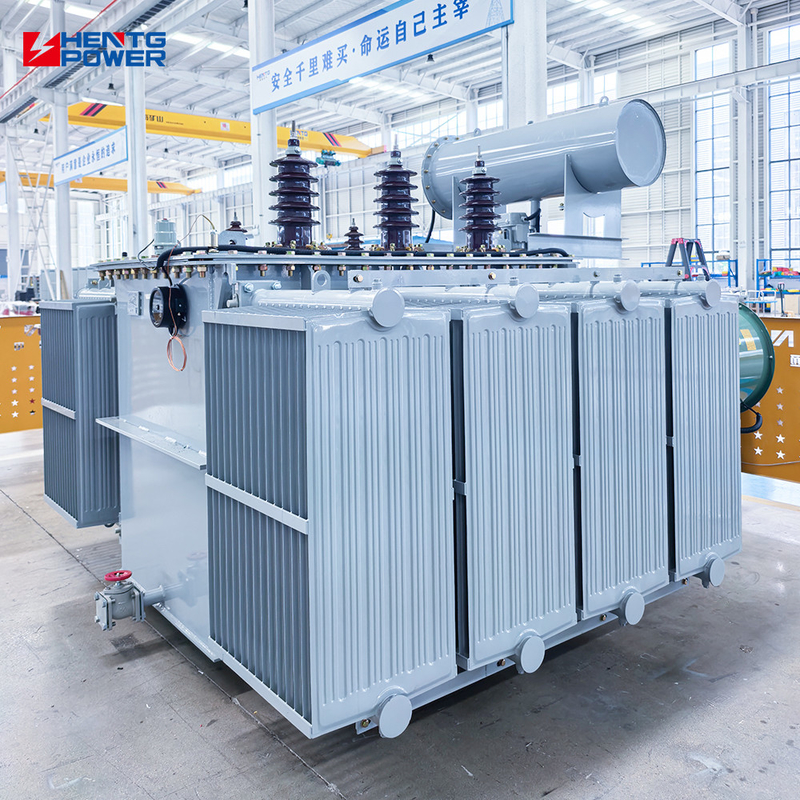

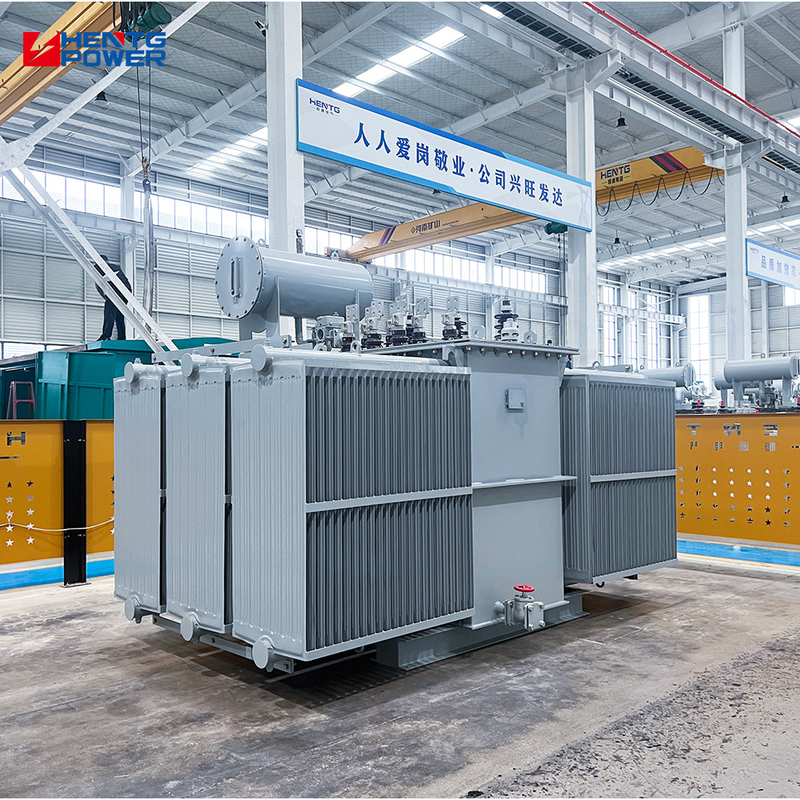

1000kva High Frequency Power Transformer High Voltage Oil Cooling Variable Voltage
1000kVA High Frequency Power Transformer High Voltage Oil Cooling Variable Voltage Transformer for power distribution systems Key Specifications Attribute Value Frequency 50Hz, 60Hz, 50/60Hz Phase Three Application Distribution System Output Voltage 220V, 380V, 400V, 440V, 480V, 11kV Input Voltage ...
1000kva High Frequency Power Transformer
,Oil Cooling High Frequency Power Transformer
,1000kva Variable Voltage Power Transformer
High Voltage Oil Cooling Variable Voltage Transformer for power distribution systems
| Attribute | Value |
|---|---|
| Frequency | 50Hz, 60Hz, 50/60Hz |
| Phase | Three |
| Application | Distribution System |
| Output Voltage | 220V, 380V, 400V, 440V, 480V, 11kV |
| Input Voltage | 12.47kV, 6.6kV, 6.3kV, 6kV, 10kV, 35kV, 69kV, 110kV, 115kV, 132kV, 220kV, 400kV |
| Type | Oil-Immersed Transformer |
| Rated Capacity | 500KVA~2000KVA |
| Cooling Method | Oil Cooling |
| Vector Group | Dyn11 / Yyn0 |
- Enhanced Reliability: Oil-immersed design ensures high performance in normal and extreme conditions
- Energy Efficient: Reduced energy losses contribute to lower environmental impact
- Global Support: Worldwide network of technicians and service centers
- Cost-effective: Long lifespan and low maintenance ensure high return on investment
| Capacity (KVA) | HV (KV) | HV Tapping | LV (KV) | Vector Group | No-load Loss (W) | On-load Loss (W) | No-load Current (%) | Short Circuit Impedance (%) |
|---|---|---|---|---|---|---|---|---|
| 630 | 35 | ±5% | 3.15 6.3 10.5 |
Yd11 | 830 | 7870 | 1.1 | 6.5 |
| 800 | 980 | 9410 | 1 | |||||
| 1000 | 1150 | 11540 | 1 | |||||
| 1250 | 1410 | 13940 | 0.9 | |||||
| 1600 | 1700 | 16670 | 0.8 | |||||
| 2000 | 2180 | 18380 | 0.7 | |||||
| 2500 | 2560 | 19670 | 0.6 |
We respond within 1 hour and recommend suitable transformers. Our technical team confirms all drawing contents within 7 days after payment, including technical data, weight and parts list.
After finalizing drawings, we manufacture and conduct rigorous quality inspections. We provide QC reports and test reports. Raw materials are strictly screened.
We provide professional installation guidance and on-site support. All products come with more than 2 years warranty service.
30+ senior engineers offering 24/7 support with 30-minute response time
100,000m² facility with 250 workers and 10,000+ sets annual capacity
100% OQC testing with 25 detection points and compliance with international standards
15 years in power transformer design and production
HENTG POWER is a professional designer, manufacturer and installer of power system solutions worldwide, founded in 2011 with 100,000 square meter facility.
We provide pre-production samples, conduct final inspections, and offer Factory Acceptance Tests. All products comply with international standards and come with over 2 years warranty.
Our professional technical team confirms all drawing contents within 7 days and offers 24/7 support with quick response times.
We accept OEM orders and negotiate business payment terms. Contact us today to discuss your requirements.
-
