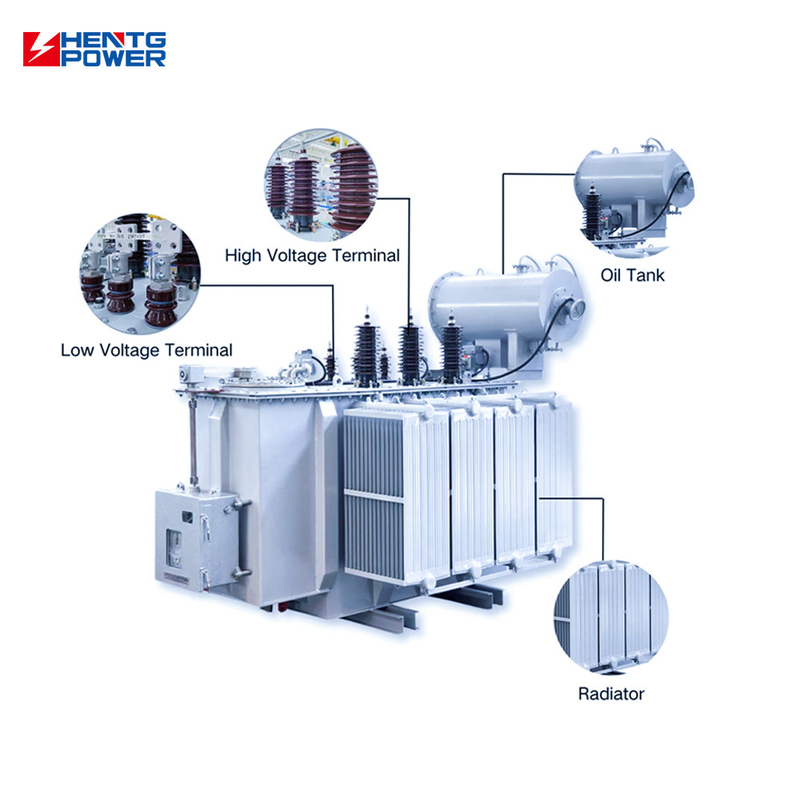

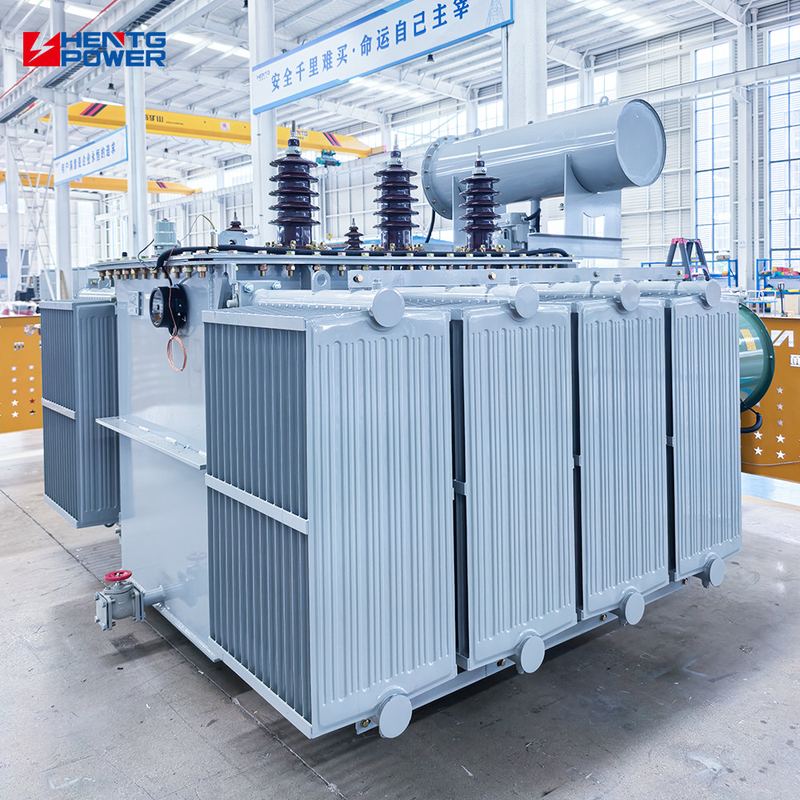

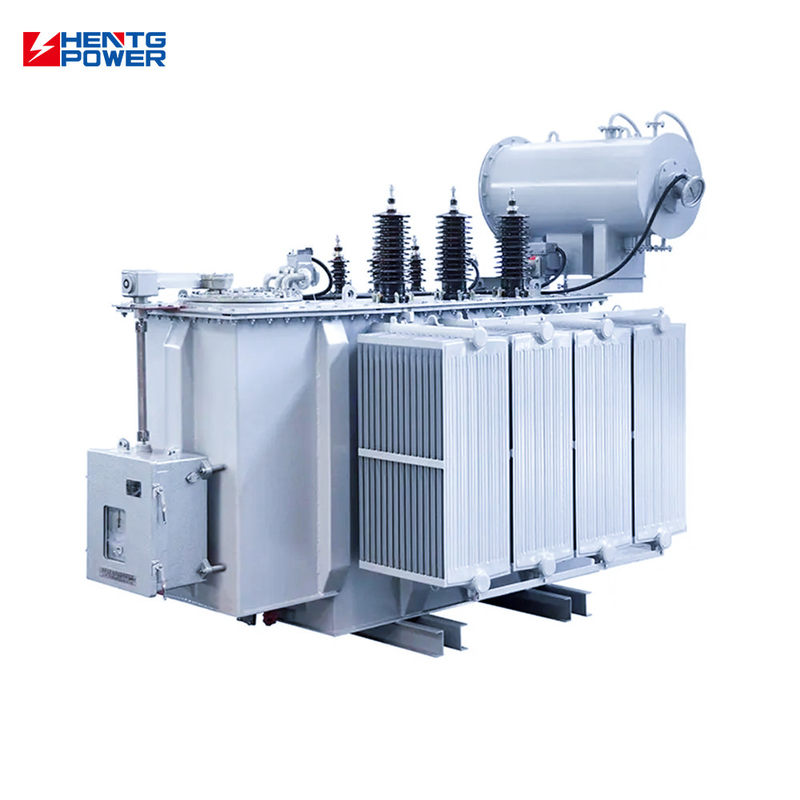

35KV Three Phase Power Transformer Variable Voltage Oil Immersed Transformer 1000KVA 1600KVA
35KV Three Phase Power Transformer Variable Voltage Oil Immersed Transformer 1000KVA 1600KVA Product Specifications Technical Specifications Attribute Value Frequency 50Hz, 60Hz Phase Three Coil Number Two Windings, Multi Winding, Three Windings Application Power Transformer Coil Structure Shell...
35KV Three Phase Power Transformer
,Variable Voltage Oil Immersed Transformer
,1000KVA Three Phase Power Transformer
| Attribute | Value |
|---|---|
| Frequency | 50Hz, 60Hz |
| Phase | Three |
| Coil Number | Two Windings, Multi Winding, Three Windings |
| Application | Power Transformer |
| Coil Structure | Shell-Type Coil, layer coil, fully sealed construction, Disc Coil, round coil |
| Output Voltage | 10kV, 415V, 110V, 220V, 380V, 400V, 480V |
| Input Voltage | 11kV, 10.5kV, 3kV, 12.47kV, 6.6kV, 6.3kV, 6kV, 10kV, 35kV |
| Type | Voltage Regulator Transformer, AUTOTRANSFORMER, Oil-Immersed Transformer |
| Winding Material | Copper / Aluminum |
| Cooling Method | ONAN ONAF OFAF |
| Customization | Accept |
| Capacity (KVA) | HV (KV) | HV Tapping | LV (KV) | Vector Group | No-load Loss (W) | On-load Loss (W) | No-load Current (%) | Short Circuit Impedance (%) |
|---|---|---|---|---|---|---|---|---|
| 630 | 35~38.5 | ±5% | 3.15 6.3 10.5 |
Yd11 | 830 | 7870 | 1.1 | 6.5 |
| 800 | 980 | 9410 | 1 | 6.5 | ||||
| 1000 | 1150 | 11540 | 1 | 6.5 | ||||
| 1250 | 1410 | 13940 | 0.9 | 6.5 | ||||
| 1600 | 1700 | 16670 | 0.8 | 6.5 | ||||
| 2000 | 2180 | 18380 | 0.7 | 6.5 | ||||
| 2500 | 2560 | 19670 | 0.6 | 6.5 | ||||
| 3150 | 3040 | 23090 | 0.56 | 7 |
- We respond to inquiries within 1 hour and recommend suitable transformers with quotations and payment terms
- Our professional team confirms all drawing contents within 7 days after payment
- Factory prepares stock, produces, and conducts quality inspection before shipment
- We provide QC report, test report, and support installation with over 2 years warranty
- 30+ senior engineers offering 24/7 online service with 30-minute response
- 100,000 m² factory with 250 workers and 30+ engineers
- 4 production lines with 10,000+ sets annual capacity
- 100% OQC testing with 25 detection contents
- 15 years power transformer design and production experience
- Compliance with GB 20052-2024/ANSI/IEEE/DOE2016/CSA/IEC60076 standards
- Global on-site technical support
-
