OEM Electricity Power Compact Substation 2500kVA Mv Hv Oil Type Transformer 1000kVA
OEM Electricity Power Compact Substation 2500kVA Mv Hv Oil Type Transformer 1000kVA Product Specifications Attribute Value Frequency 50Hz, 60Hz, 50/60Hz Phase Three Coil Number Multi Winding, Two Windings, Single Winding, Three Windings Application Distribution System Output Voltage 415V, 110V, 220V, 380V, 400V, 440V, 480V, 11kV Input Voltage 10.5kV, 3kV, 12.47kV, 6.6kV, 6.3kV, 6kV, 10kV, 35kV, 69kV, 110kV, 115kV, 132kV, 220kV Type Isolation Transformer, Voltage Regulator
OEM Electricity Power Compact Substation
,Oil Type Transformer 1000kVA
,Compact Substation Oil Type Transformer
| Attribute | Value |
|---|---|
| Frequency | 50Hz, 60Hz, 50/60Hz |
| Phase | Three |
| Coil Number | Multi Winding, Two Windings, Single Winding, Three Windings |
| Application | Distribution System |
| Output Voltage | 415V, 110V, 220V, 380V, 400V, 440V, 480V, 11kV |
| Input Voltage | 10.5kV, 3kV, 12.47kV, 6.6kV, 6.3kV, 6kV, 10kV, 35kV, 69kV, 110kV, 115kV, 132kV, 220kV |
| Type | Isolation Transformer, Voltage Regulator Transformer, AUTOTRANSFORMER, Field Adjustable Transformer, Oil-Immersed Transformer, Dual Winding Transformer |
| Product Name | Three Phase Oil Immersed Transformer |

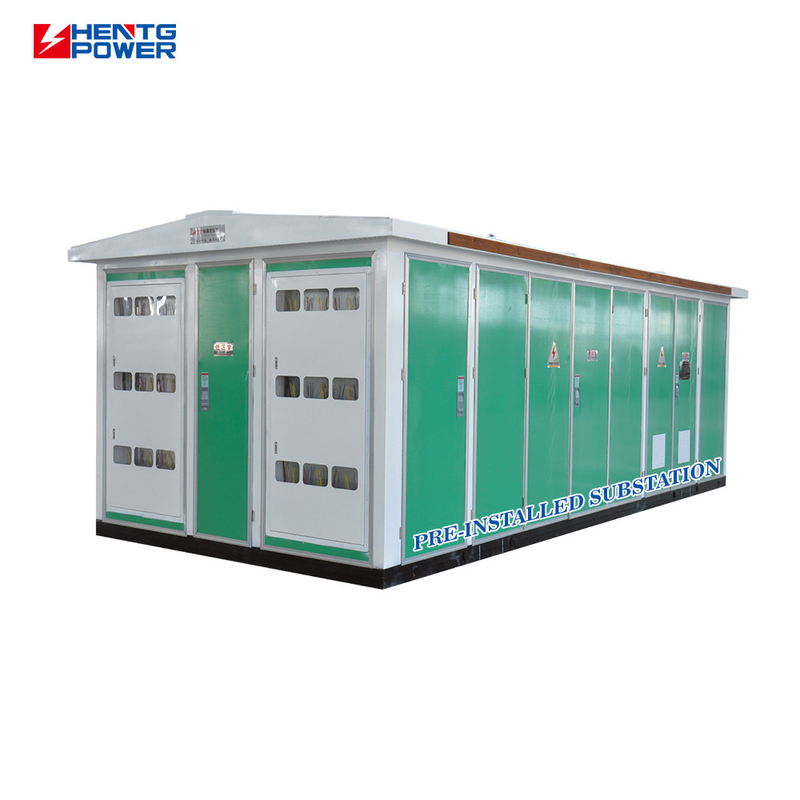

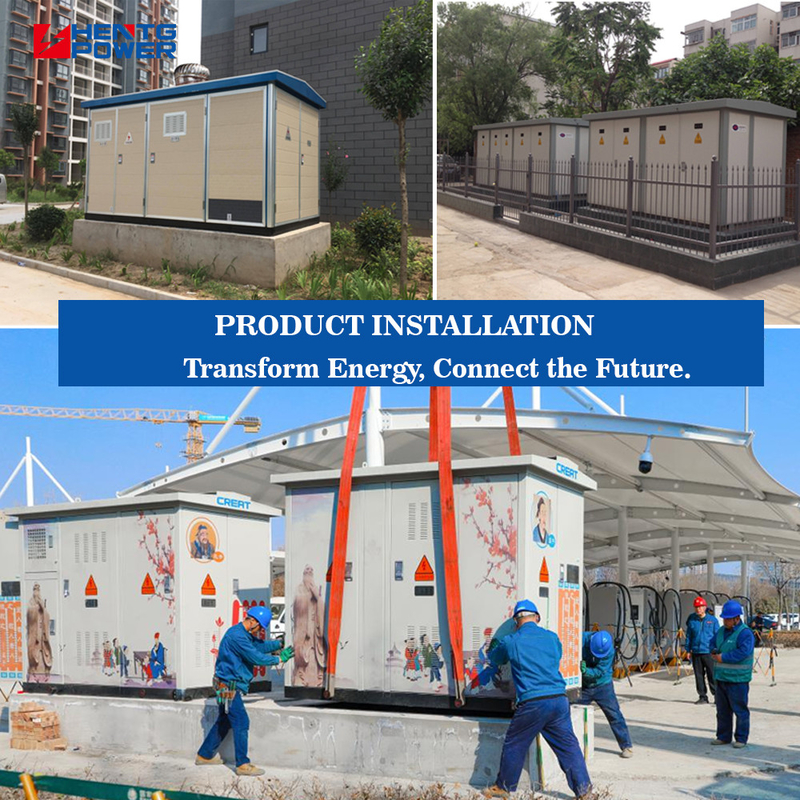

HENTG Power's compact prefabricated substation (also known as unit substation) is ideal for urban grids, industrial parks, solar/wind farms, and commercial facilities. With a compact footprint, fast deployment, and reliable operation, it meets your demands for both space and efficiency.
| Rated Frequency | Hz | 50 |
| Rated Voltage | kV | 6, 10, 35 |
| Max Working Voltage | kV | 6.9, 11.5, 40.5 |
| Industrial Frequency Voltage-resisting Time | kV | 32/36, 42/48, 95/118 |
| Thunder and Lighting Ballistic Voltage-resisting Time | kV | 60/70, 75/85, 185/215 |
| Rated Current | A | 400, 630 |
| Rated Brief-period Current-resisting | kA | 12.5(2s), 16(2s), 20(2s) |
| Rated Crest Value Current-resisting | kA | 32.5, 40, 50 |
| Rated Voltage | V | 380, 220 |
| Rated Current Of Major Return Circuit | A | 100-3200 |
| Rated short-circuit Current-resisting | kA | 15, 30, 50 |
| Rated Crest Value Current-resisting | kA | 30, 63, 110 |
| Branch Circuit | A | 10-800 |
| Quantity Of Branch | line | 1-12 |
| Compensation Circuit | kVAR | 0-360 |
| Rated Capacity | kVA | 50-2000 |
| Short-circuit Impedance | % | 4, 6 |
| Scope Of Branch Connection | +2x2.5% ±5% |
| Vector Group | Yyn0 Dyn11 |
- Aesthetic and Durable Appearance: The unit has a clean and modern appearance, with strong environmental adaptability. It integrates well with surrounding architecture and landscaping, enhancing the overall urban aesthetic.
- Proximity to Medium-Voltage Load Centers: Enables deployment close to medium-voltage load centers, reducing distribution line length, lowering line losses, and improving power quality and supply reliability.
- Cost-Effective and Low Operating Costs: Requires no civil infrastructure, reducing initial investment. No need for full-time staffing, minimizing labor costs. The long maintenance cycle and easy operation result in a lower total cost of ownership throughout the lifecycle.
- Reusable and Environmentally Friendly: The modular substation can be relocated and reused based on urban development needs, avoiding redundant investments and supporting sustainable development goals.
HENTG POWER is a professional designer, manufacturer and installer of power system solutions around the World, founded in 2011, occupying 100,000 square meters. We specialize in reliable, high-performance solutions for global power systems.

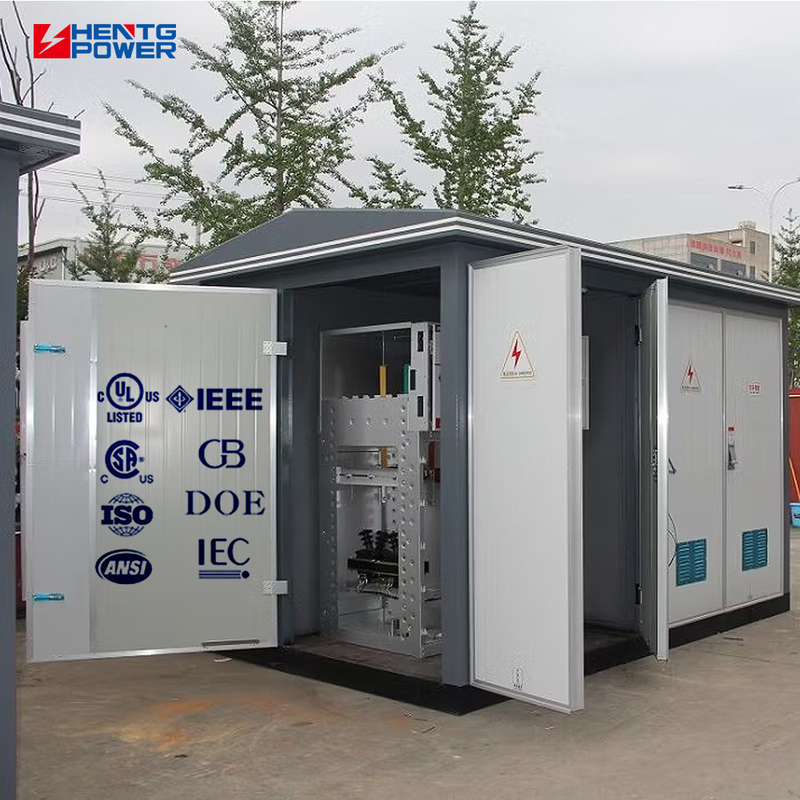

Always a pre-production sample before mass production; Always final Inspection before shipment. We will provide QC & test reports. We accept FAT (Factory Acceptance Test). Factory can manufacture oil type and dry type distribution transformer, max 500KV 480MVA power transformer, GIS, switchgear, substation, based on ANSI/IEEE/DOE2016/CSA/IEC60076 standard. We will provide you with the guarantee service of over 2 years.
We have the professional and independent drawing team and technical team. It is expected that we can confirm all the contents on the drawings with you within 7 days. We have a professional technical team with 30+ senior engineers offering 24 hours online service and response within 30 minutes.
Accept OEM, business payment are negotiated.
-
