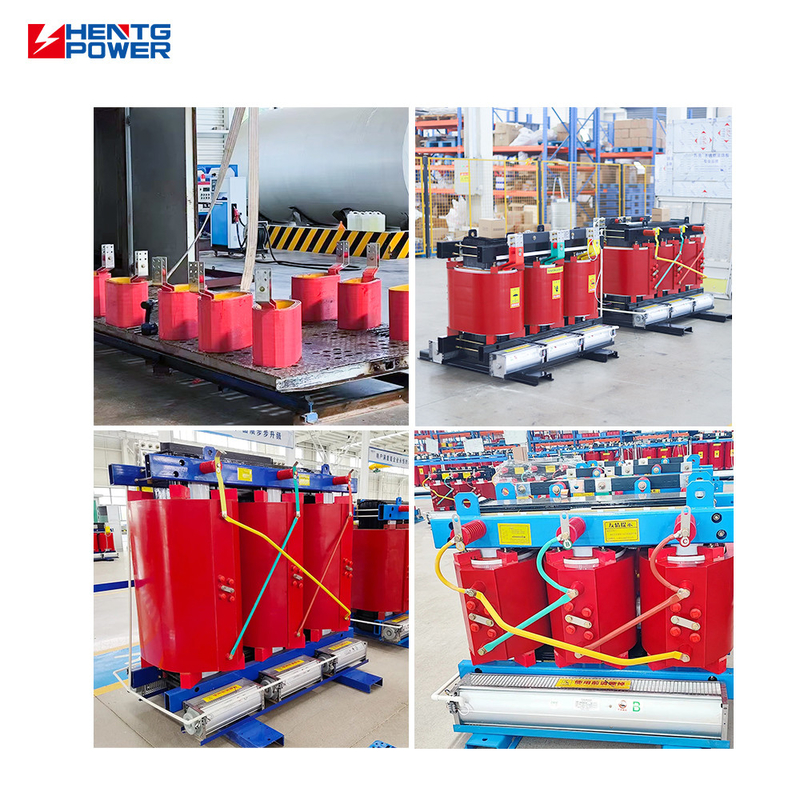

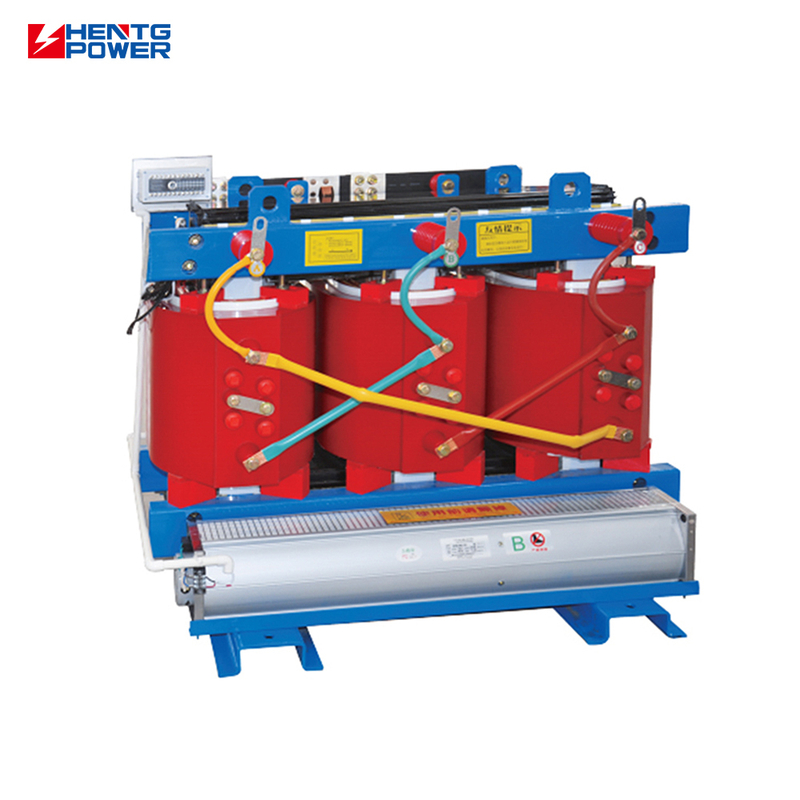

400V Dry Type Three Phase Isolation Transformer 500kVA With Disc Coil Structure
400V Dry Type Three Phase Isolation Transformer 500kVA With Disc Coil Structure Product Specifications Attribute Value Frequency 50Hz, 60Hz, 50/60Hz Phase Three Coil Number Single Winding, Two Windings, Multi Winding, Three Windings Application Distribution System Coil Structure Disc Coil Output Voltage 400V Input Voltage 35kV Type Isolation Transformer, Voltage Regulator Transformer, Dry Type Transformer, AUTOTRANSFORMER, Field Adjustable Transformer, Dual Winding Transforme
three phase isolation transformer 500kva
,400v three phase isolation transformer
,400v three phase distribution transformer
| Attribute | Value |
|---|---|
| Frequency | 50Hz, 60Hz, 50/60Hz |
| Phase | Three |
| Coil Number | Single Winding, Two Windings, Multi Winding, Three Windings |
| Application | Distribution System |
| Coil Structure | Disc Coil |
| Output Voltage | 400V |
| Input Voltage | 35kV |
| Type | Isolation Transformer, Voltage Regulator Transformer, Dry Type Transformer, AUTOTRANSFORMER, Field Adjustable Transformer, Dual Winding Transformer, Dry |
| Rated Capacity | 500kVA |
| Material | Copper Winding |
| Rated Capacity | Voltage Ratio | Vector Group | No-load Losses(kw) | Impedance |
|---|---|---|---|---|
| 30kVA | 380V/3kV/6kV/11kV/33kV | Dyn11/Yd11/Yyno | 0.1 | 4% |
| 50kVA | 380V/3kV/6kV/11kV/33kV | 0.13 | 4% | |
| 100kVA | 380V/3kV/6kV/11kV/33kV | 0.2 | 4% | |
| 200kVA | 380V/3kV/6kV/11kV/33kV | 0.34 | 4% | |
| 315kVA | 380V/3kV/6kV/11kV/33kV | 0.42 | 4% | |
| 500kVA | 380V/3kV/6kV/11kV/33kV | 0.6 | 4% | |
| 1000kVA | 380V/3kV/6kV/11kV/33kV | 1.15 | 4.50% |
- Full Electrical Isolation: Isolates the primary and secondary circuits, preventing electrical noise, surges, and harmonic distortion.

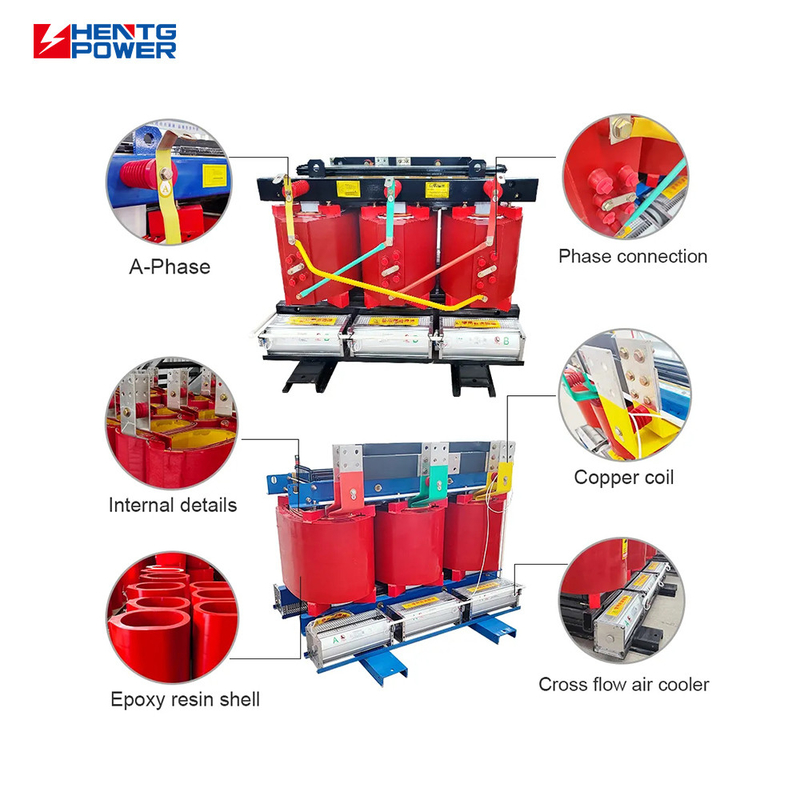

- Epoxy Resin Insulation: Provides superior thermal stability, moisture resistance, and high dielectric strength.
- Low Noise Operation: ≤ 55 dB noise level, ideal for environments requiring minimal acoustic disturbance.
- Oil-Free Design: Eliminates the risk of oil leakage, ensuring safety and environmental compliance.
- High Efficiency: Designed with low no-load and load losses to maximize energy efficiency and reduce operating costs.
- Enhanced Protection for Sensitive Equipment: Filters out voltage spikes, noise, and harmonics, ensuring clean power for sensitive electronics and machinery.
- Reduced Maintenance Costs: Oil-free and low-maintenance design means fewer checks, repairs, and replacements over the transformer's lifespan.
- Safe for Indoor Use: The sealed, flame-retardant construction makes it perfect for installation in indoor power rooms, commercial buildings, and industrial settings.
- Stable & Reliable Power: Provides a consistent, high-quality power supply, reducing the risk of equipment failure and system downtime.
- Energy Saving: Low loss rates and high efficiency contribute to lower energy consumption, offering long-term cost savings.
- Long Service Life: Built to last over 20 years, providing reliable operation and minimal downtime.
- High Fault Withstanding Capacity: Designed to withstand short-circuit conditions and thermal stresses, ensuring robustness in industrial environments.
- International Compliance: Meets IEC, CE, and other international safety and performance standards.
- Flexible Voltage Options: Can be customized to meet specific voltage requirements for various applications.
- Compact & Modular Design: Space-saving design makes it easier to integrate into various systems, offering greater flexibility in installations.
- Industrial Manufacturing: Reliable power supply for heavy machinery, automation systems, and production lines.
- Data Centers: Ensures clean and stable power to mission-critical IT infrastructure.
- Hospitals & Healthcare: Powers sensitive medical equipment with high reliability and low noise.
- Communication Systems: Ideal for communication hubs, telecom base stations, and control systems.
- Public Utilities & Infrastructure: Supports power distribution for substations, utility companies, and city grids.
-
