2500kVA Dry Type Distribution Transformer Fire Safe Design IEC60076-11 Standards
2500kVA Dry Type Distribution Transformer Fire Safe Design IEC60076-11 Standards Product Overview The SCB13 Series 2500kVA Dry-Type Transformer is a robust power distribution solution designed for large-scale industrial, commercial, and public utility applications. With its advanced cast resin insulation, low loss core, and air-cooled operation, this transformer ensures exceptional safety, stability, and energy efficiency, making it ideal for mission-critical environments.
2500kVA Dry Type Distribution Transformer
,IEC60076-11 Standards Dry Distribution Transformer

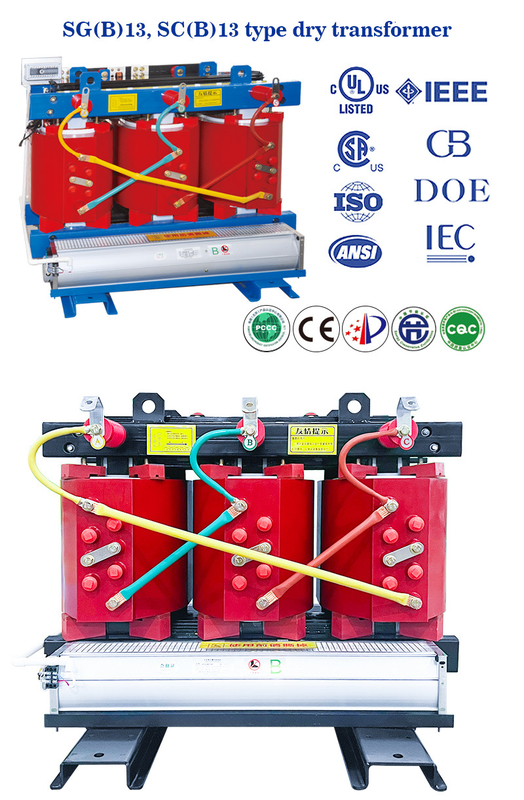

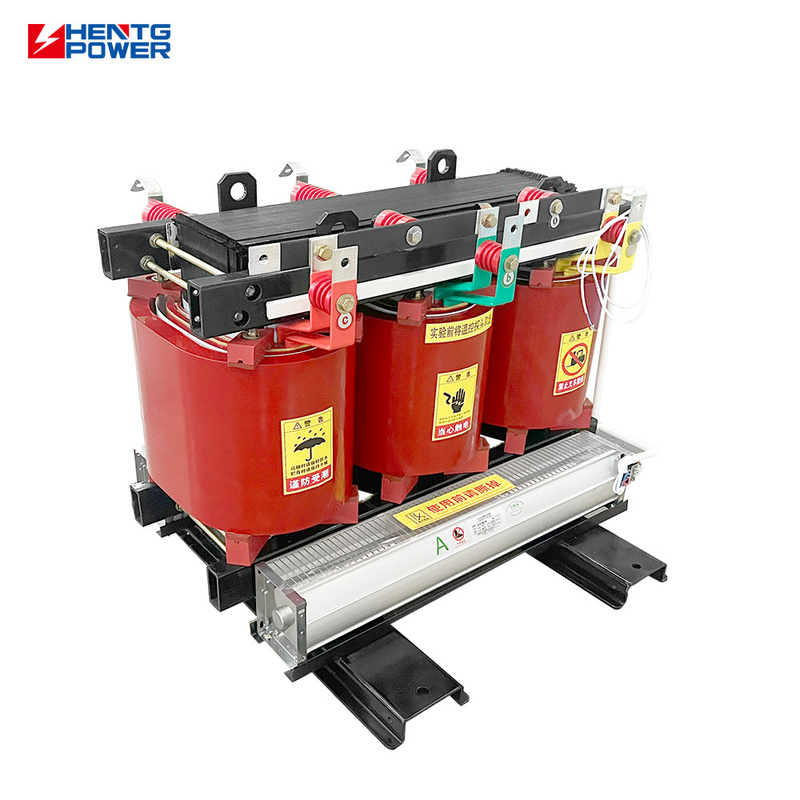

The SCB13 Series 2500kVA Dry-Type Transformer is a robust power distribution solution designed for large-scale industrial, commercial, and public utility applications. With its advanced cast resin insulation, low loss core, and air-cooled operation, this transformer ensures exceptional safety, stability, and energy efficiency, making it ideal for mission-critical environments.
| Rated Capacity (KVA) | Vector Group | Voltage Combination | No-load Loss | Load Loss | No-load Current | Impedance |
|---|---|---|---|---|---|---|
| 30 | Yyn0 / Dyn11 | 10 6.3 6 | 135 | 640 | 2 | 4.0 |
| 50 | 195 | 900 | 2 | |||
| 80 | 265 | 1240 | 1.5 | |||
| 100 | 290 | 1410 | 1.5 | |||
| 125 | 340 | 1660 | 1.3 | |||
| 160 | 385 | 1910 | 1.3 | |||
| 200 | 445 | 2270 | 1.1 | |||
| 250 | 515 | 2480 | 1.1 | |||
| 315 | 635 | 3120 | 1 | |||
| 400 | 705 | 3590 | 1 | |||
| 500 | 835 | 4390 | 1 | |||
| 630 | 965 | 5290 | 0.85 | 6.0 | ||
| 800 | 1090 | 6260 | 0.85 | |||
| 1000 | 1270 | 7310 | 0.85 | |||
| 1250 | 1500 | 8720 | 0.85 | |||
| 1600 | 1760 | 10500 | 0.85 | |||
| 2000 | 2190 | 13000 | 0.7 | |||
| 2500 | 2590 | 15400 | 0.7 |
- Rated Capacity: 2500kVA - Delivers reliable power for large-scale operations and critical infrastructure

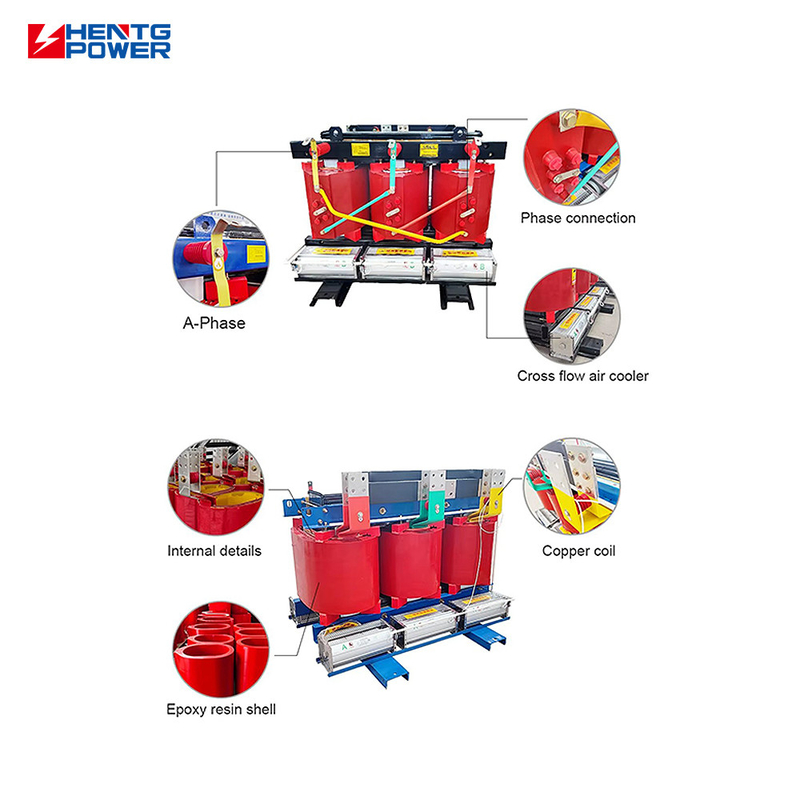

- Epoxy Cast Resin Insulation: Flame-retardant, non-toxic, moisture-resistant material for maximum safety
- Low Loss Core: Made from high-grade silicon steel for reduced no-load and load losses
- Cooling Method: AN (Air Natural) - Eliminates the need for oil, cutting down maintenance and environmental risks
- Low Noise Level: Operates under 60 dB, suitable for installation near occupied spaces
- Temperature Monitoring System: Built-in sensors for real-time thermal protection
- High Protection Level: Standard IP20 enclosure, upgradeable to IP23/IP44 for harsh environments
- Three-Phase Configuration: Supports stable and efficient power flow for complex electrical networks
- Energy Cost Savings: Significant energy efficiency with minimized losses, leading to long-term savings
- Enhanced Safety: Dry-type construction ensures zero risk of oil leakage, explosion, or fire, ideal for indoor applications
- Minimal Maintenance: No oil refilling, no tank inspection - just reliable operation and simple upkeep
- Superior Environmental Adaptability: Performs consistently across wide humidity and temperature ranges
- Long Operational Life: Built to last over 20 years with high reliability and consistent performance
- Eco-Friendly Design: Fully recyclable materials, oil-free insulation, and low carbon footprint
- Ideal for Demanding Environments: Widely used in airports, hospitals, tunnels, manufacturing plants, and data centers
- Meets Global Standards: Fully compliant with IEC 60076 and GB/T 10228 standards for safety and performance
- Customizable Parameters: Voltages, taps, enclosures, and smart monitoring systems can be tailored to project needs
- Supports Green Building Certification: Qualifies for LEED and other sustainability credentials
- Fast Installation: Compact footprint and easy connection terminals speed up on-site deployment
HENTG POWER is a professional designer, manufacturer and installer of power system solutions worldwide. Founded in 2011 with a 100,000 square meter facility, we specialize in reliable, high-performance solutions for global power systems.
We conduct pre-production samples before mass production and final inspection before shipment, providing QC & test reports. We accept Factory Acceptance Tests (FAT). Our factory manufactures oil-type and dry-type distribution transformers up to 500KV 480MVA power transformers, GIS, switchgear, and substations, complying with ANSI/IEEE/DOE2016/CSA/IEC60076 standards. We provide over 2 years of guarantee service.
- Professional and independent drawing and technical teams capable of confirming all drawing contents within 7 days
- Technical team includes 30+ senior engineers offering 24-hour online service with responses within 30 minutes
- We accept OEM orders, with business payment terms negotiated per project requirements
-
