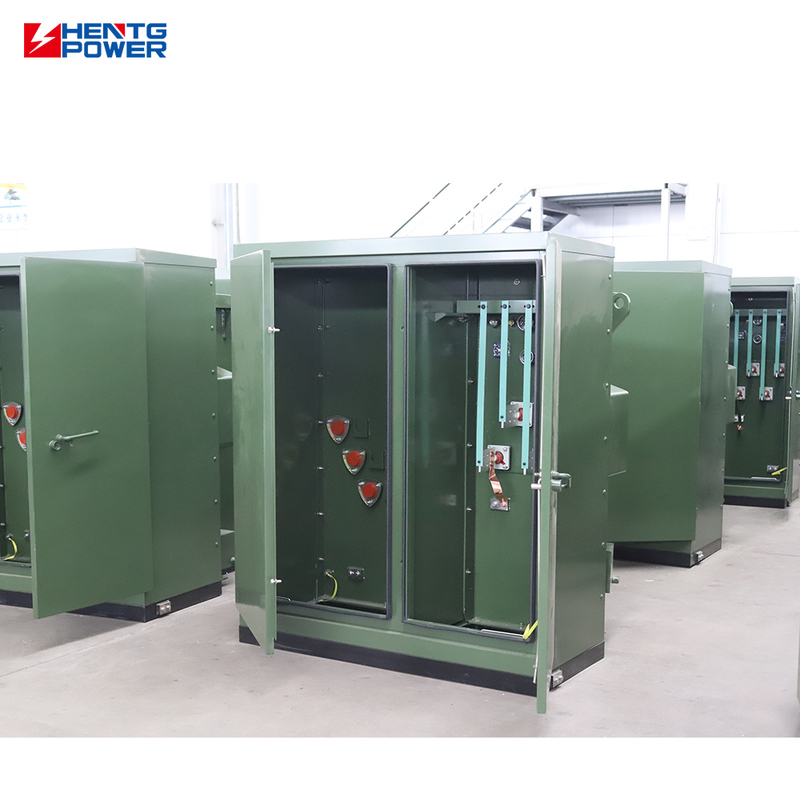

75kVA 3 Phase Oil Immersed Step Down Transformer with 110V Output for American Standard Power Distribution

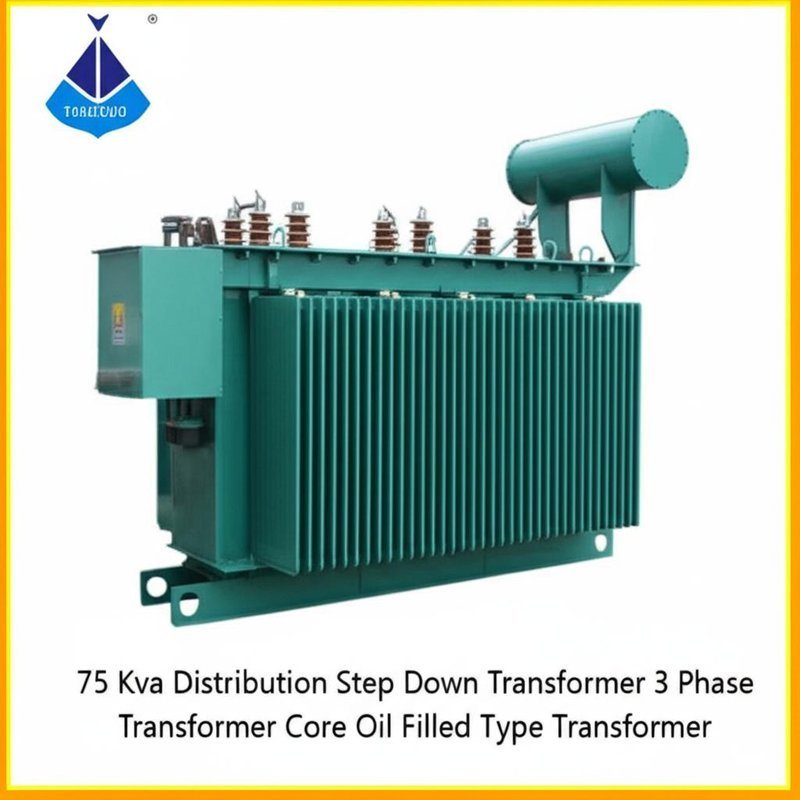

75 KVA Distribution Step Down Transformer - 3 Phase Core Oil Filled Type HENTG American Standard Pad-Mounted Transformer (75kVA-225kVA, 110V Output, 60Hz) HENTG delivers reliable power solutions for the American market with our specialized Pad-Mounted Distribution Transformer. Designed for outdoor commercial and light industrial applications, this three-phase transformer provides precise 110V output at 60Hz frequency. Key Features American Market Compatibility: Engineered to
75kVA Oil Immersed Transformer
,3 Phase Step Down Transformer
,110V Output Distribution Transformer

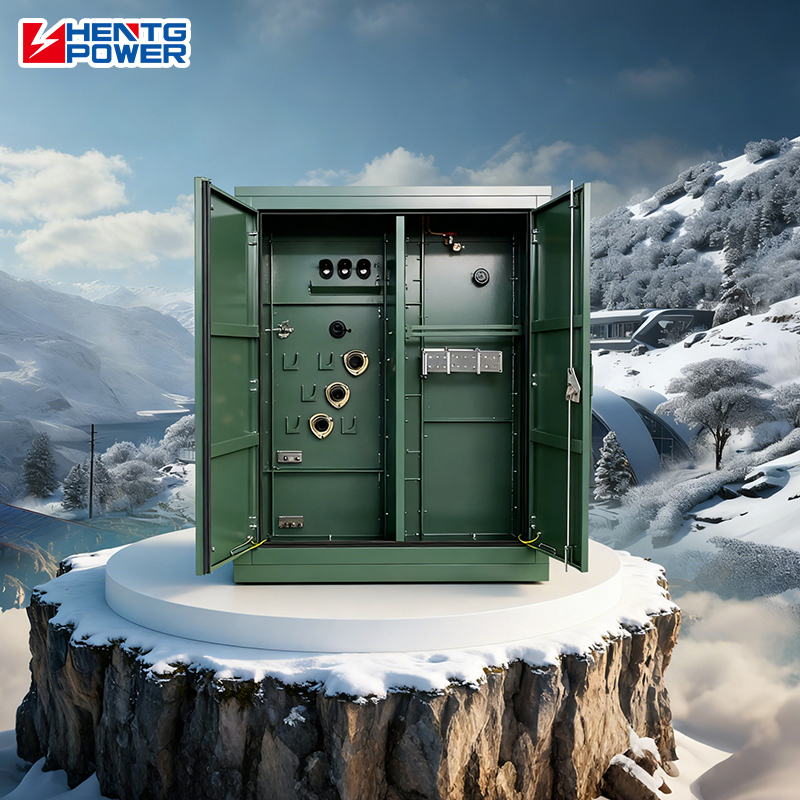

HENTG delivers reliable power solutions for the American market with our specialized Pad-Mounted Distribution Transformer. Designed for outdoor commercial and light industrial applications, this three-phase transformer provides precise 110V output at 60Hz frequency.
- American Market Compatibility: Engineered to meet North American voltage and frequency requirements (110V/60Hz) for seamless integration with U.S. electrical systems
- Enhanced Safety: Tamper-proof, lockable stainless steel cabinet protects against unauthorized access and environmental factors
- High Efficiency: Premium core and winding materials minimize energy loss and reduce operational costs
- Low Maintenance: Fully sealed pad-mounted design ensures reliable performance with minimal service requirements
| Capacity (kVA) | HV | Tapping Range | LV | No-load Loss | Load Loss | Impedance | Efficiency |
|---|---|---|---|---|---|---|---|
| 75 | 2400-34500 | ±2*2.5% | 110-690 | 130 | 100 | 4.0-6.3 | 99.03 |
| 152 | 200 | 1800 | 99.16 | ||||
| 225 | 350 | 3100 | 99.23 |
- Standards Compliance: Meets IEEE, ANSI, and UL standards
- Applications: Ideal for underground to overhead distribution, commercial centers, schools, hospitals, and light industrial parks
- Customization: Available options for primary voltage, BIL, and taps
-
