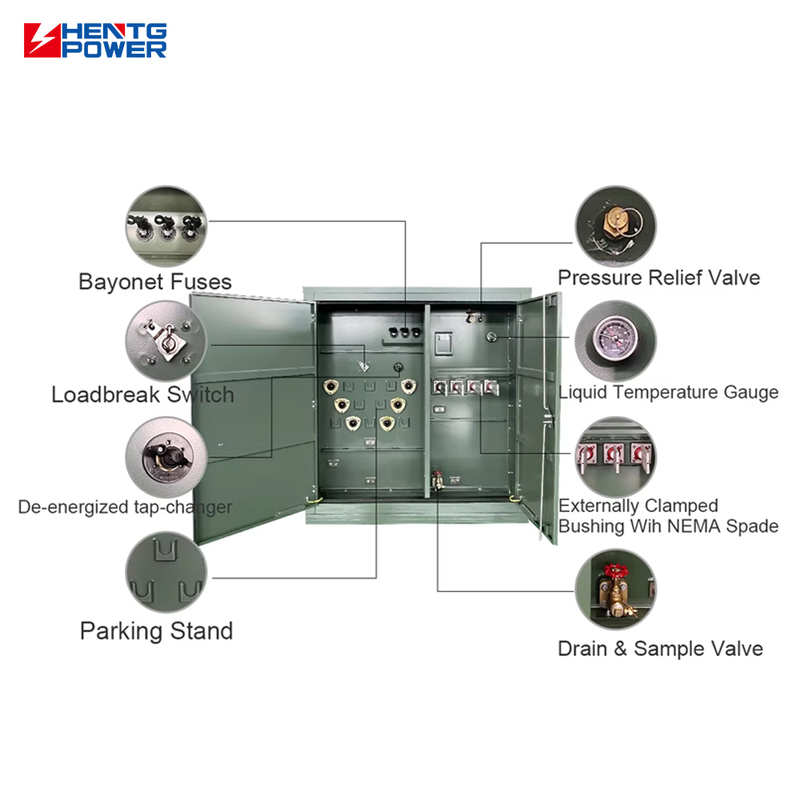

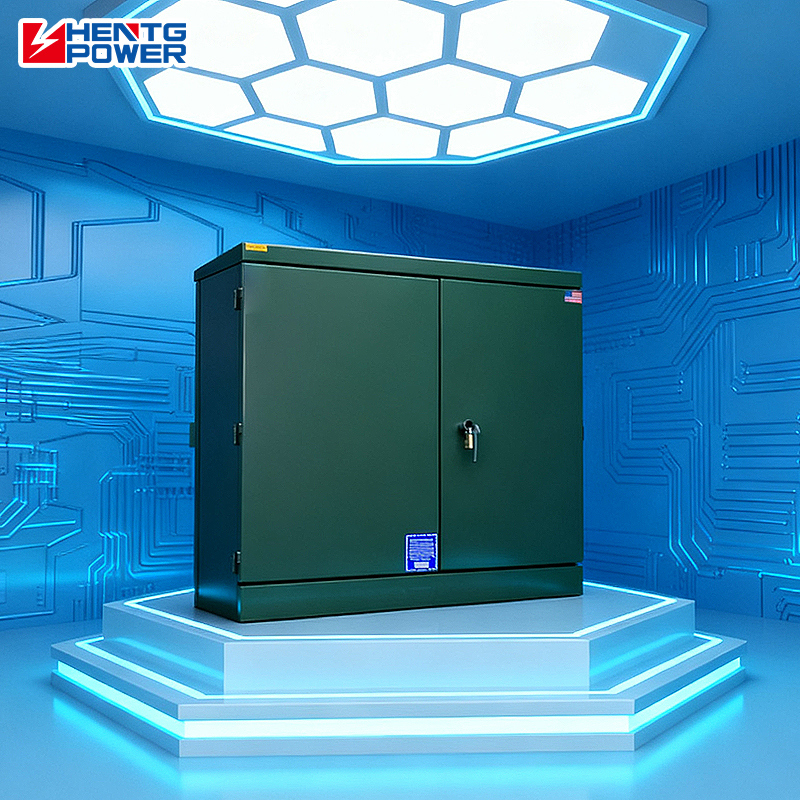

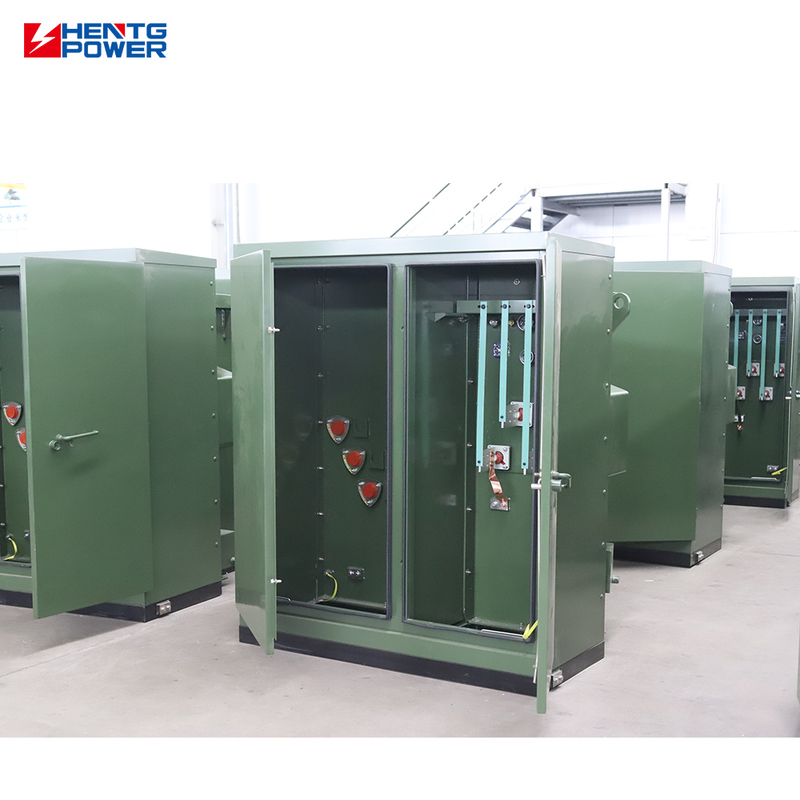

American Standard 110V Output 60Hz Three Phase Pad Mounted Transformer for Outdoor Power Distribution
HENTG POWER Three Phase Distribution Power Outdoor Combined Box American Pad-type Mv&hv Transformer Product Description: HENTG American Standard Pad-Mounted Transformer 75kva-225kva (110V Output, 60Hz) HENTG - Reliable Power for the American Market, Delivered Directly Meet the rigorous standards of the North American grid with HENTG's specialized Pad-Mounted Distribution Transformer. Designed for outdoor commercial and light industrial distribution, this three-phase
110V Output Pad Mounted Transformer
,60Hz Three Phase Transformer
,American Standard Distribution Transformer
HENTG - Reliable Power for the American Market, Delivered Directly
Meet the rigorous standards of the North American grid with HENTG's specialized Pad-Mounted Distribution Transformer. Designed for outdoor commercial and light industrial distribution, this three-phase transformer delivers a precise 110V output at 60Hz. Its compact, lockable, and tamper-resistant pad-mounted design ensures safety, durability, and seamless integration into the U.S. and American-standard markets.
- Precision-Engineered for the American Market: Specifically manufactured to meet North American voltage and frequency requirements (110V/60Hz), ensuring full compatibility with American electrical equipment.
- Superior Safety & Durability: Features a robust, tamper-proof, and lockable stainless steel cabinet that protects against unauthorized access and harsh weather conditions.
- High-Efficiency Performance: Constructed with high-quality core and winding materials for reduced energy loss and lower operating costs.
- Low Maintenance Design: Fully sealed pad-mounted construction requires minimal maintenance while offering exceptional reliability.
| Capacity (KVA) | HV | Tapping Range | LV | No-load Loss | Load Loss | Impedance | Efficiency |
|---|---|---|---|---|---|---|---|
| 75 | 2400-34500 | ±2*2.5% | 110-690 | 130 | 100 | 4.0-6.3 | 99.03 |
| 152 | 200 | 1800 | 99.16 | ||||
| 225 | 350 | 3100 | 99.23 |
- Standards Compliance: IEEE, ANSI, UL standards
- Typical Applications: Underground to overhead distribution, subdivisions, commercial centers, schools, hospitals, and light industrial parks
- Customization Options: Available for primary voltage, BIL, and taps
-
