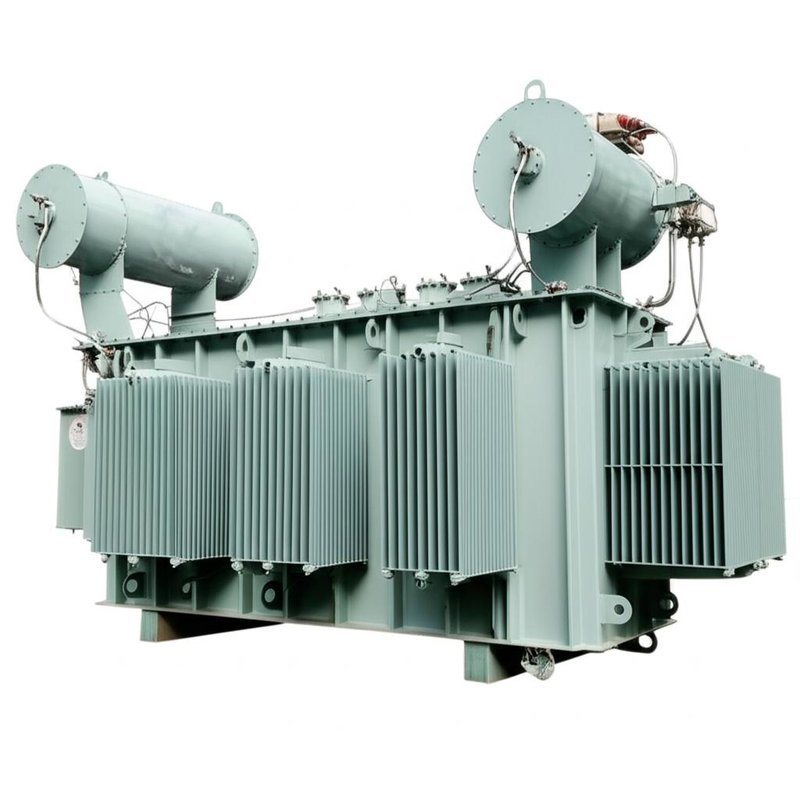

35kV Class 2500kVA Capacity Oil Immersed Power Distribution Transformer with 6.3-11kV Rated LV for Industrial Grids
35kV Class Power Distribution Transformer 2500kVA Capacity Oil Filled 3 Phase Electronic Transformer 2500KVA Product Overview 35kV oil filled distribution transformer designed for step-up applications in power distribution systems, with capacity range from 1500KVA to 2500KVA. Key Specifications Frequency: 50Hz, 60Hz, 50/60Hz Phase: Three Application: Distribution system Output Voltage: 10kV, 415V, 110V, 220V, 380V, 400V, 440V Input Voltage: 11kV, 10.5kV, 3kV, 6.6kV, 12.47kV,
35kV Class Oil Immersed Transformer
,2500kVA Capacity Power Distribution Transformer
,6.3-11kV Rated LV Step Down Transformer
35kV oil filled distribution transformer designed for step-up applications in power distribution systems, with capacity range from 1500KVA to 2500KVA.
- Frequency: 50Hz, 60Hz, 50/60Hz
- Phase: Three
- Application: Distribution system
- Output Voltage: 10kV, 415V, 110V, 220V, 380V, 400V, 440V
- Input Voltage: 11kV, 10.5kV, 3kV, 6.6kV, 12.47kV, 6.3kV, 6kV, 10kV, 35kV, 69kV
- Type: Oil-Immersed Transformer
- Rated Capacity: 630KVA-2500KVA
- Cooling Method: Oil Cooling
- Vector Group: Dyn11 / Yyn0
- Material: Aluminum, Copper
- Rated Voltage: 35kV
- Capacity Range: 50kVA to 3150kVA
- Cooling Method: Oil-immersed
- Frequency: 50Hz or 60Hz
- Impedance Voltage: Customizable
- Ambient Temperature: -25°C to +40°C
- Customizable Options: Available in various power ratings to meet specific requirements
- Energy Efficient: Minimizes losses for maximum energy savings
- Cost-effective: Long lifespan with low maintenance costs
- Global Support Network: Worldwide technicians and service centers
| Capacity (KVA) | HV (KV) | HV Tapping | LV (KV) | Vector Group | No-load Loss (W) | On-load Loss (W) | No-load Current (%) | Short Circuit Impedance (%) |
|---|---|---|---|---|---|---|---|---|
| 630 | 35 | ±5% | 3.15 6.3 10.5 |
Yd11 | 830 | 7870 | 1.1 | 6.5 |
| 800 | 35 | ±5% | 3.15 6.3 10.5 |
Yd11 | 980 | 9410 | 1 | 6.5 |
| 1000 | 35 | ±5% | 3.15 6.3 10.5 |
Yd11 | 1150 | 11540 | 1 | 6.5 |
| 1250 | 35 | ±5% | 3.15 6.3 10.5 |
Yd11 | 1410 | 13940 | 0.9 | 6.5 |
| 1600 | 35 | ±5% | 3.15 6.3 10.5 |
Yd11 | 1700 | 16670 | 0.8 | 6.5 |
| 2000 | 35 | ±5% | 3.15 6.3 10.5 |
Yd11 | 2180 | 18380 | 0.7 | 6.5 |
| 2500 | 35 | ±5% | 3.15 6.3 10.5 |
Yd11 | 2560 | 19670 | 0.6 | 6.5 |
- Optimized for 35kV Medium Voltage Networks: Designed for industrial zones, rural power grids, and utility substations
- Stable and Balanced Three-Phase Power Supply: Ensures smooth operation of heavy-duty equipment
- Efficient Oil-Immersed Cooling System: Uses mineral or natural ester insulating oil for effective heat dissipation
- High Reliability and Robust Construction: Built to withstand electrical, mechanical, and thermal stress
We respond within 1 hour with recommendations and quotations. Our technical team confirms all drawing details within 7 days after payment, including technical data, weight, and parts list.
After design approval, we prepare stock, manufacture, and conduct rigorous quality inspections. We provide QC reports and test reports for all products.
We provide professional installation guidance and on-site support. All products come with more than 2 years warranty service.
- 100,000m² factory with 250 workers and 30+ senior engineers
- 4 production lines with 10,000+ sets annual production capacity
- 100% OQC testing with 25 detection contents
- 15 years power transformer design and production experience
- Compliance with GB 20052-2024/ANSI/IEEE/DOE2016/CSA/IEC60076 standards
- Cross-industry power transformer solutions
- Global on-site technical support
-
