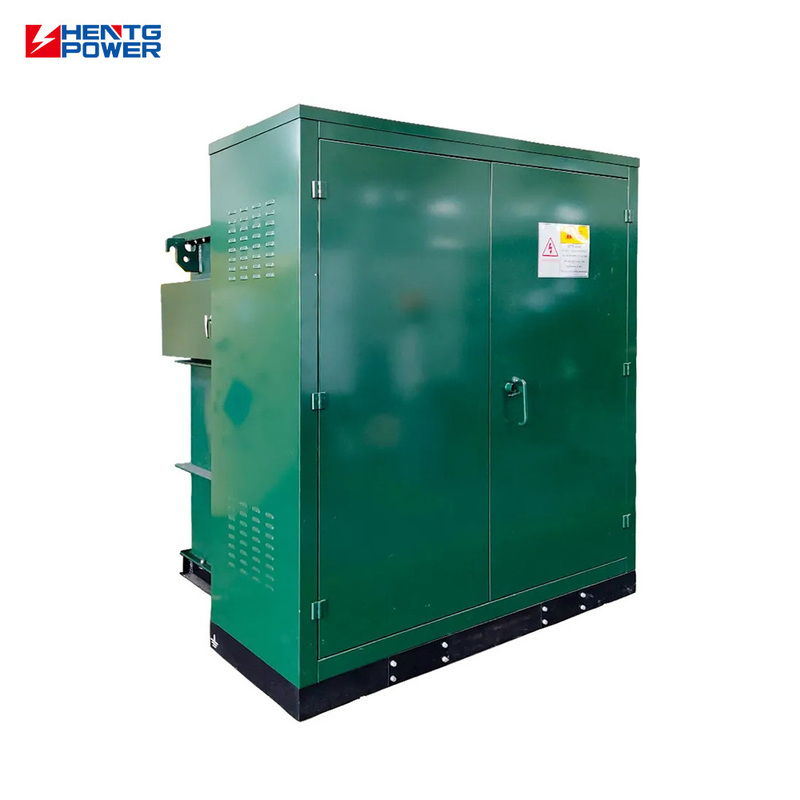

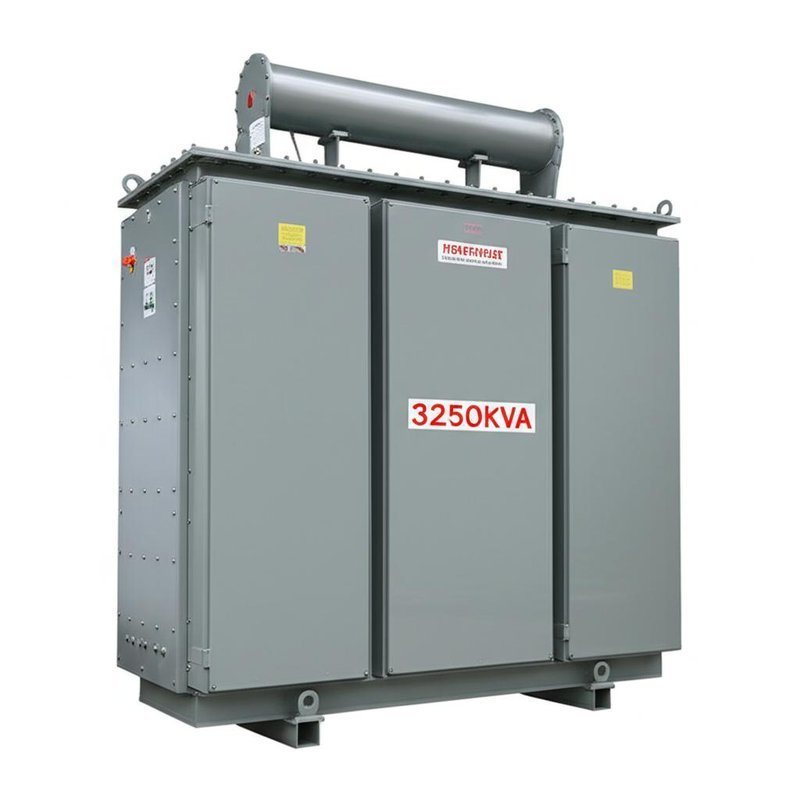

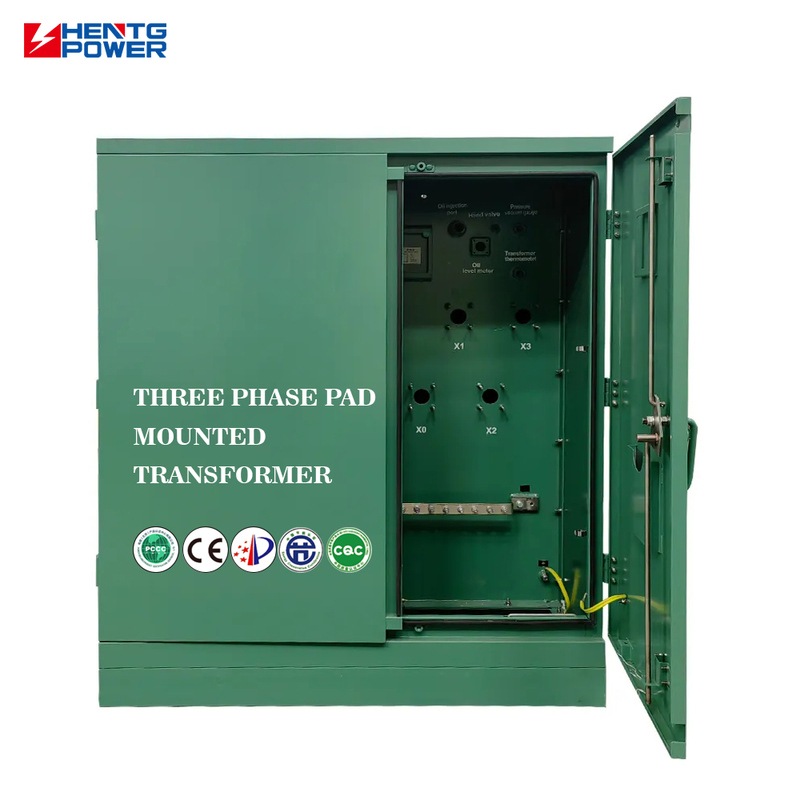

3250kVA High Efficiency Three Phase Pad Mounted Transformer with Long Lifespan and On-load/Off-load Tap Changer
Efficient Pad Mounted Three Phase Transformer 3250kVA with On-load/Off-load Tap Changer 3250 KVA Box Type Package Power Distribution Compact Electrical Substation Pad Mounted Transformer. Oil-immersed distribution transformers designed for stepping down voltage in underground power distribution systems for residential, commercial, and industrial applications. Key Benefits High efficiency (>99%) reduces operating costs and cooling requirements Tamperproof and weatherproof
3250kVA Pad Mounted Transformer
,High Efficiency Three Phase Transformer
,Long Lifespan Distribution Transformer
- High efficiency (>99%) reduces operating costs and cooling requirements
- Tamperproof and weatherproof design for safe public installation
- Environmentally friendly with biodegradable fluid options
- Extended lifespan (up to 60 years) with 12-36 month warranties
- Tapping range: ±2 x 2.5% or ±4 x 2.5% for voltage adjustments
- Includes electrostatic shielding, lightning arrestors, bay-o-net fuses, MOV surge arrestors
- Design options: Live-front or dead-front, loop or radial feed
| Capacity (KVA) | HV | Tapping Range | LV | No-load Loss | Load Loss | Impedance | Efficiency |
|---|---|---|---|---|---|---|---|
| 75 | 2400-34500 | ±2X2.5% | 110-690 | 130 | 100 | 4.0-6.3 | 99.03 |
| 152 | 200 | 1800 | 99.16 | ||||
| 225 | 350 | 3100 | 99.23 | ||||
| 300 | 430 | 3700 | 99.27 | ||||
| 500 | 600 | 5410 | 99.35 | ||||
| 750 | 880 | 7500 | 99.40 | ||||
| 1000 | 1000 | 10300 | 99.43 | ||||
| 1500 | 1400 | 14500 | 99.48 | ||||
| 2000 | 1800 | 18300 | 99.51 |
-
