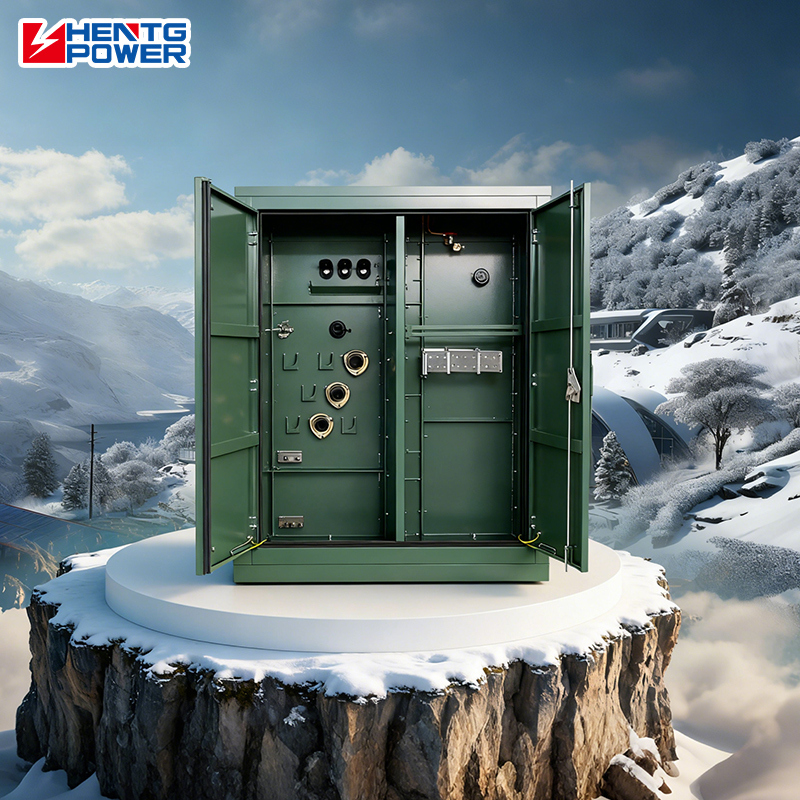

Compact and Safe Three-phase Pad-mounted Transformer Customizable for Outdoor and Indoor Installation
Three-phase Pad-mounted Transformers | Compact, Safe & Customizable Key Features and Benefits 1. Fully Sealed and Insulated Design Anti-incorrect operation and anti-theft features for public locations Waterproof and dustproof construction suitable for outdoor and underground installation Physically isolated wiring compartment from fuel tank ensures safe operation 2. Compact Size and Easy Installation Small footprint ideal for urban power distribution, commercial parks, and
Compact Three-phase Pad-mounted Transformer
,Safe Oil Immersed Transformer
,Customizable Oil-filled Transformer
- Anti-incorrect operation and anti-theft features for public locations
- Waterproof and dustproof construction suitable for outdoor and underground installation
- Physically isolated wiring compartment from fuel tank ensures safe operation
- Small footprint ideal for urban power distribution, commercial parks, and residential areas
- Ground-mounted installation eliminates need for substation construction
- Factory pre-assembled for simple on-site wiring and quick operation
- Manufactured to ANSI C57.12 and IEEE standards for North American and international markets
- Customizable rated capacity, voltage level, and wiring method (ring network/radial)
- Optional accessories: overload protection, fault indicators, and SPDs
| Capacity (KVA) | HV | Tapping Range | LV | No-load Loss | Load Loss | Impedance | Efficiency |
|---|---|---|---|---|---|---|---|
| 75 | 2400 4160 7200 7620 12000 12470 13200 13800 14400 19920 24940 34500 |
±2X2.5% | 110 120 208 240 277 347 415 416 480 600 690 |
130 | 100 | 4.0-6.3 | 99.03 |
| 152 | 200 | 1800 | 99.16 | ||||
| 225 | 350 | 3100 | 99.23 | ||||
| 300 | 430 | 3700 | 99.27 | ||||
| 500 | 600 | 5410 | 99.35 | ||||
| 750 | 880 | 7500 | 99.4 | ||||
| 1000 | 1000 | 10300 | 99.43 | ||||
| 1500 | 1400 | 14500 | 99.48 | ||||
| 2000 | 1800 | 18300 | 99.51 | ||||
| 2500 | 2300 | 23100 | 99.53 |
- Designed for underground loads (shopping malls, schools, institutions, factories)
- Features: stable voltage, no neutral drift, low loss, compact, reliable
- Standards compliance: CSA, ANSI C57, DOE, IEEE
-
