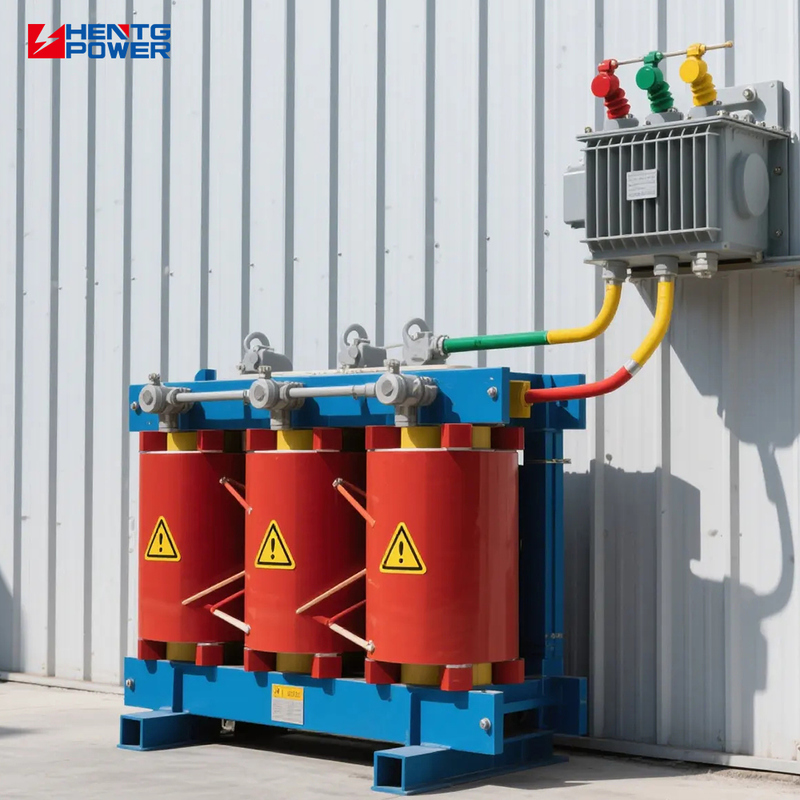

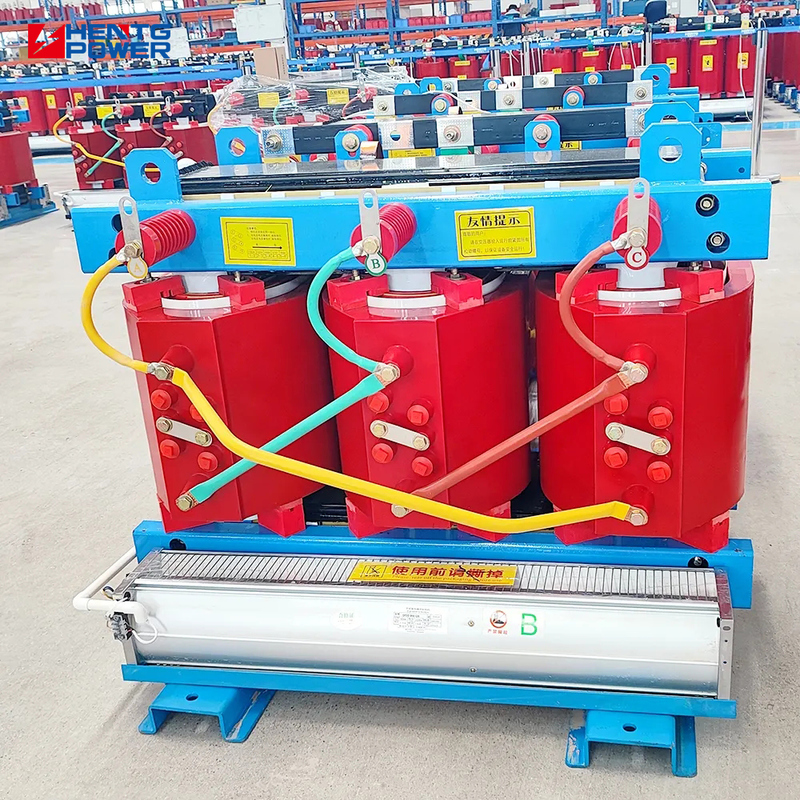

High-performance SC(B)13 Dry Type Power Transformer with Cooling Fan 800kVA 1250kVA
High-performance SC(B)13 Dry Type Power Transformer with Cooling Fan (800kVA / 1250kVA) Overview The SC(B)13 dry type transformer is engineered for modern commercial applications where safety, reliability, and energy efficiency are critical. With rated capacities of 800kVA and 1250kVA , it provides a stable and continuous power supply for shopping malls, office towers, hotels, hospitals, and large business complexes . Unlike traditional oil-immersed transformers, the SC(B)13
High-performance Dry Type Power Transformer
,800kVA SC(B)13 Transformer
,1250kVA Cast Resin Transformer
The SC(B)13 dry type transformer is engineered for modern commercial applications where safety, reliability, and energy efficiency are critical. With rated capacities of 800kVA and 1250kVA, it provides a stable and continuous power supply for shopping malls, office towers, hotels, hospitals, and large business complexes.
Unlike traditional oil-immersed transformers, the SC(B)13 adopts a cast resin dry insulation system, eliminating the risk of oil leakage or fire hazards. Combined with an intelligent cooling fan system, it maintains low operating temperatures even under peak load, ensuring consistent performance and extended service life.
-
High Efficiency & Energy Saving
Reduced no-load and load losses (compared with SC(B)10 series), helping commercial centers cut down on operational energy costs. -
Enhanced Cooling Performance
Equipped with forced air cooling fans for improved heat dissipation, enabling reliable operation in environments with high power demand. -
Safety & Fire Resistance
Resin-cast winding insulation is flame-retardant, moisture-proof, and explosion-proof, suitable for densely populated indoor areas. -
Low Noise & Eco-friendly
Designed to operate quietly, making it ideal for business centers where comfort and minimal disturbance are essential. -
Compact & Low Maintenance
No need for oil checks or filtration, reducing maintenance costs and downtime.
- Shopping malls & supermarkets
- Business centers & office buildings
- Hotels & convention centers
- Hospitals & educational institutions
- High-rise residential & mixed-use complexes
| Parameter | SC(B)13-800kVA | SC(B)13-1250kVA |
|---|---|---|
| Rated Capacity | 800 kVA | 1250 kVA |
| Voltage Class | 6kV / 10kV / 11kV / 33kV (customizable) | 6kV / 10kV / 11kV / 33kV (customizable) |
| Cooling Method | AN/AF (Natural Air / Forced Air) | AN/AF (Natural Air / Forced Air) |
| Insulation Class | F / H | F / H |
| Noise Level | ≤ 50 dB | ≤ 55 dB |
| Installation | Indoor / Outdoor | Indoor / Outdoor |
(Customized voltage and configuration available upon request.)
- Reliable power distribution for critical equipment such as HVAC, elevators, escalators, lighting, and IT systems.
- Enhanced safety for areas with large daily visitor traffic.
- Energy-efficient design aligned with green building and sustainability standards.
-
