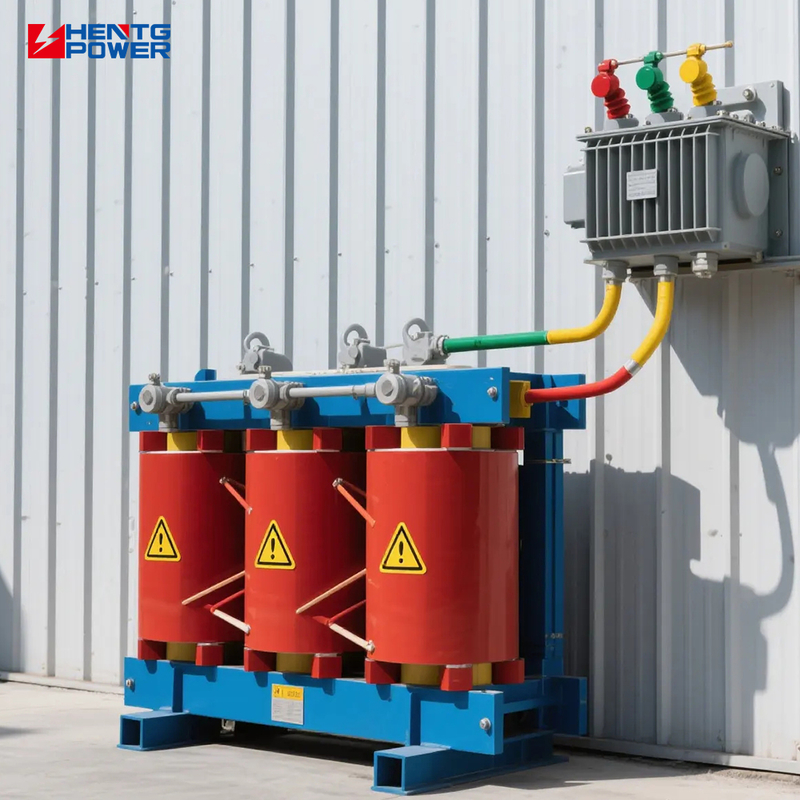

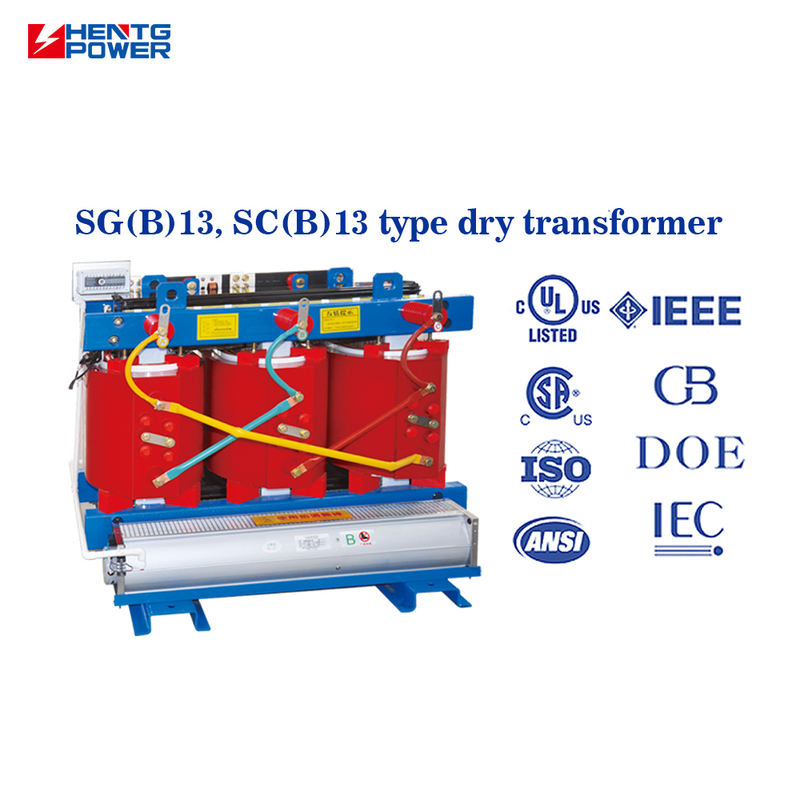

Dry Type Transformer Electrical 630kVA 800kVA 100% Copper 10/0.4kV Step Down 1000kVA

The Dry-Type Power Transformer Series (630kVA, 800kVA, 1000kVA) is specially designed for modern data center power distribution systems, where high reliability, fire safety, energy efficiency, and continuous operation are critical. With 100% copper windings and a 10kV / 0.4kV step-down configuration, this transformer provides stable and efficient power supply for mission-critical IT infrastructure.

Data centers demand uninterrupted power and maximum operational safety. This dry-type transformer features an oil-free, non-flammable design, making it ideal for indoor installation close to IT loads, UPS systems, and low-voltage distribution panels.

Key benefits for data centers include:

• No oil leakage or fire risk

• Reduced fire protection and containment requirements

• Safe operation in confined or enclosed electrical rooms

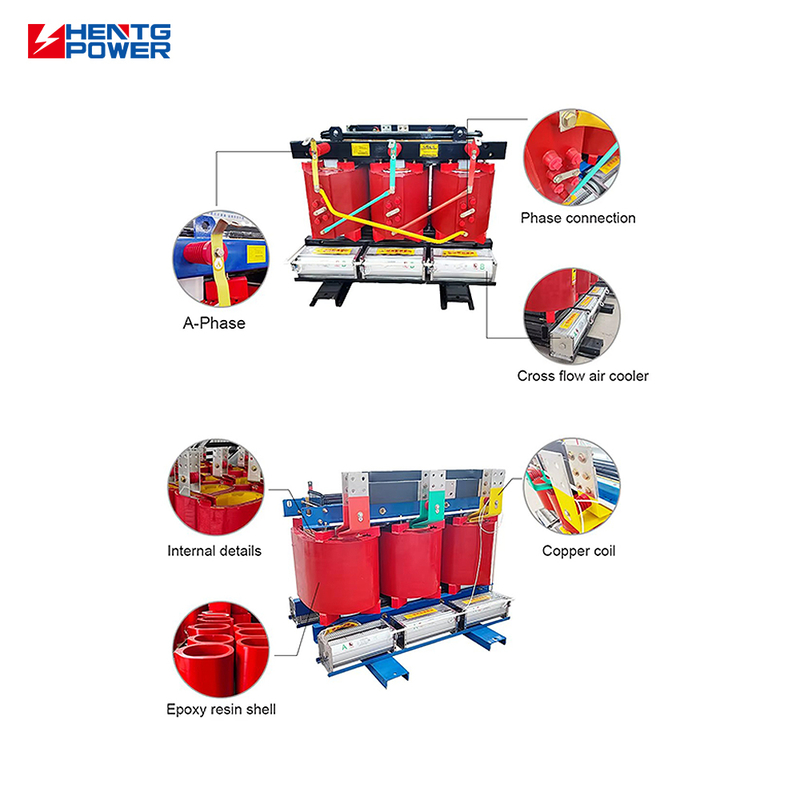

The transformer is manufactured with high-purity copper conductors, ensuring:

• Lower load losses

• Better thermal performance

• Higher long-term reliability

• Stable operation under continuous load

This design supports 24/7 operation and helps reduce total cost of ownership (TCO) over the data center’s lifecycle.

Dry-type transformers are valued for their safety, environmental friendliness, and versatility. Here are the key selling points based on information from web sources:

Dry-type transformers, which use air or solid insulation materials like epoxy resin instead of oil, are widely applied across various sectors due to their safety, environmental benefits, and versatility. Below are the key applications based on their characteristics:

• Commercial Buildings: Used in offices, shopping malls, and hotels due to their fire-resistant properties and lack of flammable liquids, ensuring safety in densely populated areas.

• Hospitals and Schools: Ideal for environments requiring high safety standards and low noise levels, as they eliminate risks of oil leaks and fires.

• Data Centers: Provide reliable power distribution with minimal maintenance, critical for uninterrupted operations in IT infrastructure.

• Manufacturing Plants: Employed in industries like steel, chemical, and automotive for their durability in harsh environments and ability to handle heavy electrical loads.

• Mining Operations: Suitable for underground or hazardous locations due to their robust construction and resistance to moisture and dust.

• Oil and Gas Facilities: Used in refineries and offshore platforms where fire safety is paramount, leveraging their flame-retardant insulation.

• Solar Power Plants: Integrated into solar inverters to step up voltage for grid connection, benefiting from low maintenance and environmental compatibility.

• Wind Farms: Used to manage variable loads and harsh outdoor conditions, with designs like vacuum pressure impregnated (VPI) transformers ensuring reliability.

• Energy Storage Systems: Support battery storage systems by providing efficient power conversion with minimal energy loss.

• Substations in Cities: Installed in compact urban substations due to their small footprint and low noise output, suitable for residential neighborhoods.

• High-Rise Buildings: Used for power distribution in skyscrapers, where safety and space constraints are critical considerations.

• Railways and Metros: Power traction systems and signaling equipment, leveraging their ability to operate in confined spaces with high reliability.

• Airports and Ports: Support critical infrastructure with stable power supply, benefiting from their resistance to environmental factors like humidity.

• Marine Applications: Used in ships and offshore platforms due to their corrosion resistance and compact design.

• Hazardous Locations: Certified for use in explosive or chemically aggressive environments, ensuring safe operation in Zone 1 or Zone 2 areas.

• Eco-Friendly Projects: Preferred in green building projects for their use of sustainable, halogen-free materials and low environmental impact.

• Safety: No oil means reduced fire and explosion risks, ideal for populated or sensitive areas.

• Low Maintenance: Minimal upkeep lowers operational costs in long-term applications.

• Environmental Compatibility: Eco-friendly materials support compliance with environmental regulations.

• Flexibility: Available in various designs (e.g., cast resin, VPI) to suit diverse voltage and environmental needs.

Dry-type transformers are a versatile solution for modern power distribution, meeting the demands of safety, efficiency, and sustainability across industries and infrastructure.

Consulting Process

Step 1: We will respond to your inquiry within 1 hour and recommend suitable transformer according to your needs. At the same time, we will provide you with reasonable quotations and payment terms.We have a professional and independent drawing team andte chnical team, and we will confirm all the contents on the drawing with you within 7 days after payment. The drawing usually contains technical data, weight and parts list. If you have any questions, please click here to consult.

Step 2: After designing the production drawing, the factory will prepare the stock, produce, and conduct quality inspection before shipment. If you have special accessory requirements, we can provide you with accessories. Our raw materials are strictly screened. In the quality inspection stage, we will provide you with the dual guarantee of QC report and test report to escort your products.

Step 3:We have a professional team to guide the installation, and also support on-site installation. We will provide you with more than 2 years of warranty service. Welcome to join us and create a win-win situation. Click here to start our business now.

If you have any questions, welcome to click here for discussion !

FAQs

Q: Who are we?

HENTG POWER is a professional designer, manufacturer and installer of power system solution around the World, was founded in 2011, occupies 100,000 square meter. specializing in reliable, high-performance solutions for global power systems.

Q: How can we guarantee quality?

Always a pre-production sample before mass production; Always final Inspection before shipment, We will provide QC & test reports. We accept FAT(Factory Acceptance Test). Factory can manufacture oil type and dry type distribution transformer, max 500KV 480MVA power transformer, GIS, switchgear, substation, based on IEEE/DOE2016/CSA/IEC60076 standard. We will provide you with the guarantee service of over 2 years.

Q: Why choose us?

We have the professional and independent drawing team and technical team, It is expected that we can confirm all the contents on the drawings with you within 7 days. we have a professional technical team with 30+ senior engineers offer 24 hours online service and response within 30 min.

Q: What services can we provide?

Accept OEM, business payment are negotiated.
