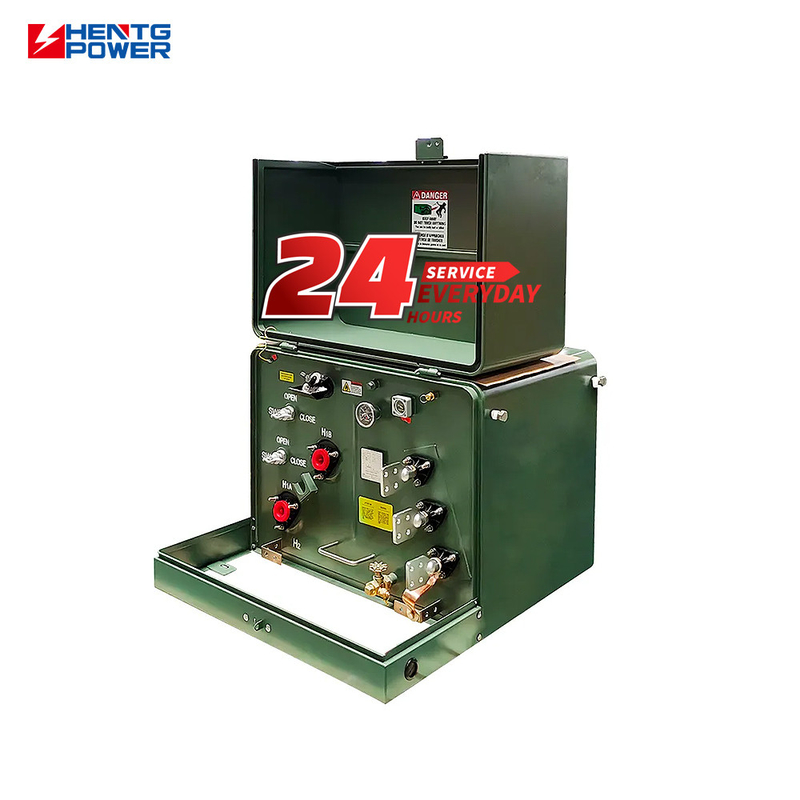

Copper Winding Oil Immersed Distribution Transformer 1 Phase Pad Mounted Cabinet Design

Copper Winding Pad Mounted Transformer

Oil Immersed Distribution Transformer 1 Phase

Pad Mounted Cabinet Oil Immersed Transformer

Place of Origin:

Jiangsu, China

Brand Name:

HENTG Power

Certification:

Model Number:

ZGS

Chat Now

Request A Quote

Product Details

Frequency:

50Hz, 60Hz, 50Hz/60Hz

Phase:

Single Phase

Coil Number:

Two Windings

Application:

Power Transformer

Coil Structure:

Round Coil

Output Voltage:

220V, 380V, 400V , 440V, 480V

Input Voltage:

35kV, 6kV, 10kV

Type:

Isolation Transformer, AUTOTRANSFORMER, Pad Mounted Transformer

Product Name:

Single Phase Transformer

Application:

Power Distribution System Power Transformer

Cooling Method:

ONAN

Warranty:

2 Years

Vector Group:

Dyn11 / Yyn0

Tapping Range:

±2X2.5%

Highlight:

Copper Winding Pad Mounted Transformer

Oil Immersed Distribution Transformer 1 Phase

Pad Mounted Cabinet Oil Immersed Transformer

Payment & Shipping Terms

Minimum Order Quantity

2 sets

Price

CN¥3450-5806/units

75kVA 167 Kva Single Phase Distribution Transformer Pad Mounted IEEE Standard

Chat Now

Video

Step Down Single Phase Transformer 167kVA 250kVA 500kVA Pad Mounted IP55 Protection

Chat Now

Video

High Frequency Pad Mounted Transformer 50 Kva Silicon Core Electric Power Transformer

Chat Now

Video

75kVA 100kVA 167kVA Transformer Single Phase Pad Installation Transformers Pad Mounted Transformer

Chat Now

+86 15074989773

info@hentgpower.com

Chat Now

Product Description

Copper Winding Oil Immersed Distribution Transformer 1 Phase Pad Mounted Cabinet Design

Product Specifications

Attribute	Value
Frequency	50Hz, 60Hz, 50Hz/60Hz
Phase	Single Phase
Coil Structure	Round coil
Output Voltage	220V, 380V, 400V, 440V, 480V
Input Voltage	35kV, 6kV, 10kV
Cooling Method	ONAN (Oil Natural Air Natural)
Warranty	2 Years
Vector Group	Dyn11 / Yyn0
Tapping Range	±2X2.5%

Key Features

Pad-Mounted Cabinet Design - Tamper-proof lockable cabinet with separate HV and LV compartments for safety
Mineral Oil Insulation - Environmentally tested insulating oil ensures reliable operation and thermal performance
Corrosion-Resistant Enclosure - Powder-coated tank with stainless hardware for harsh environments
ONAN Cooling System - Oil Natural Air Natural cooling ensures high thermal performance and reliability

Technical Specifications

Capacity (kVA)	HV (V)	Tapping Range	LV (V)	No-load Loss (W)	Load Loss (W)	Dimensions (mm)	Efficiency (%)
15	2400-34500	±2X2.5%	110-690	60-150	330-1150	610-740 x 740-960 x 840	98.82-99.49

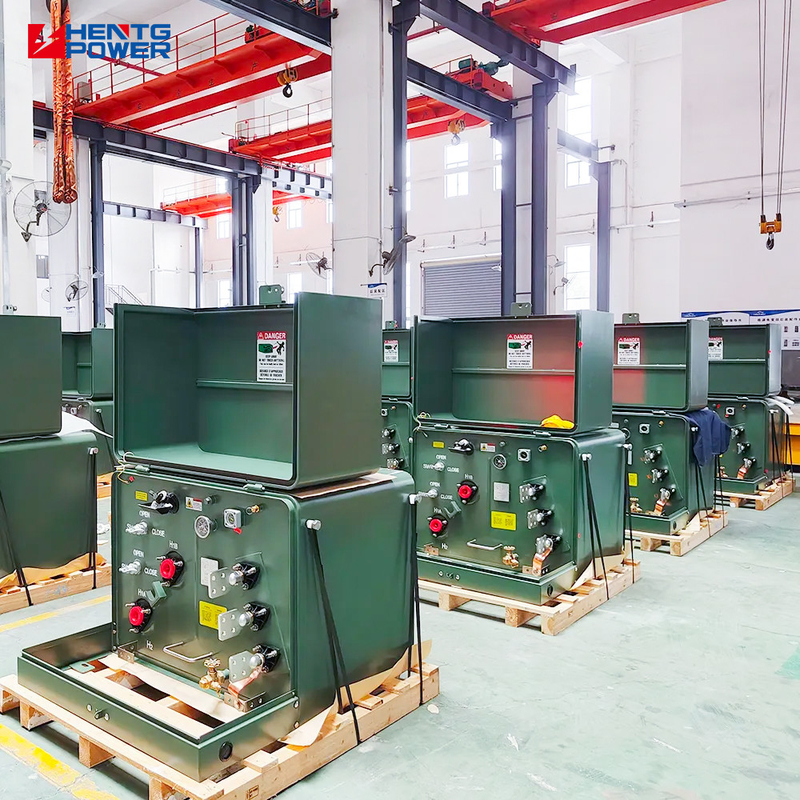

Our Manufacturing Process

Step 1: Design & Quotation We respond within 1 hour with suitable transformer recommendations, reasonable quotations, and payment terms. Our professional drawing team confirms all technical details within 7 days after payment.

Step 2: Production & Quality Control After design approval, we prepare stock, manufacture, and conduct rigorous quality inspections. We provide QC reports and test reports for all products.

Step 3: Installation & Support We provide professional installation guidance and on-site support. All products come with a 2+ year warranty and ongoing technical support.

Our Product Range

Oil-immersed transformers
Dry-type power transformers
SH15 and SCBH15 amorphous alloy transformers
YB prefabricated substations

About HENTG POWER

100,000m² factory with 250 workers and 30+ senior engineers
4 production lines with 10,000+ sets annual capacity
100% quality control with 25-point testing
15 years power transformer experience
Compliance with GB 20052-2024/ANSI/IEEE/DOE2016/CSA/IEC60076 standards

Frequently Asked Questions

Who are we?

HENTG POWER is a professional designer, manufacturer and installer of power system solutions founded in 2011, specializing in reliable, high-performance solutions for global power systems.

How do we guarantee quality?

We conduct pre-production sampling, final inspections before shipment, and provide QC & test reports. We accept Factory Acceptance Tests (FAT) and offer a 2+ year warranty.

Why choose us?

We have professional drawing and technical teams that confirm all details within 7 days. Our 30+ senior engineers provide 24/7 support with 30-minute response times.
