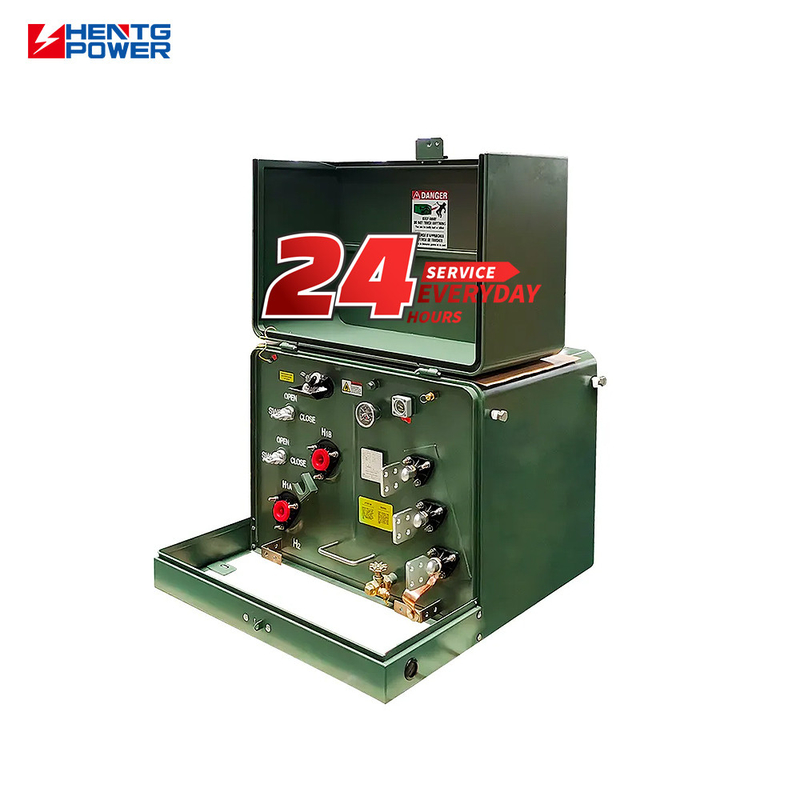

167 Kva Pad Mounted Transformer
,Step Up Down Single Phase Transformer
| Attribute | Value |
|---|---|
| Type | Distribution transformer |
| Material | Copper, 100% Copper |
| Frequency | 50Hz, 60Hz |
| Phase | Single Phase |
| Input Voltage | 3kV, 6kV, 10kV, 15kV |
| Output Voltage | 11kV, 12V, 24V, 110V, 220V, 380V, 440V, 480V |
| Rated capacity | 167KVA |
| Cooling Method | ONAN ONAF OFAF |
| Warranty | 3 Years |
| Transformer type | Oil-immersed Pad Mounted |
- Capacity: 15kVA ~ 500kVA
- Primary Voltage: 13.2kV / 13.8kV / 22.9kV / 33kV / Customized
- Secondary Voltage: 120/240V / 240/480V / Customized
- Frequency: 50Hz / 60Hz
- Phase: Single Phase
- Vector Group: Split-phase or grounded wye / Delta
- Cooling: ONAN (Oil Natural Air Natural)
- Insulation Class: A or B / Customized
- Temperature: ≤65K

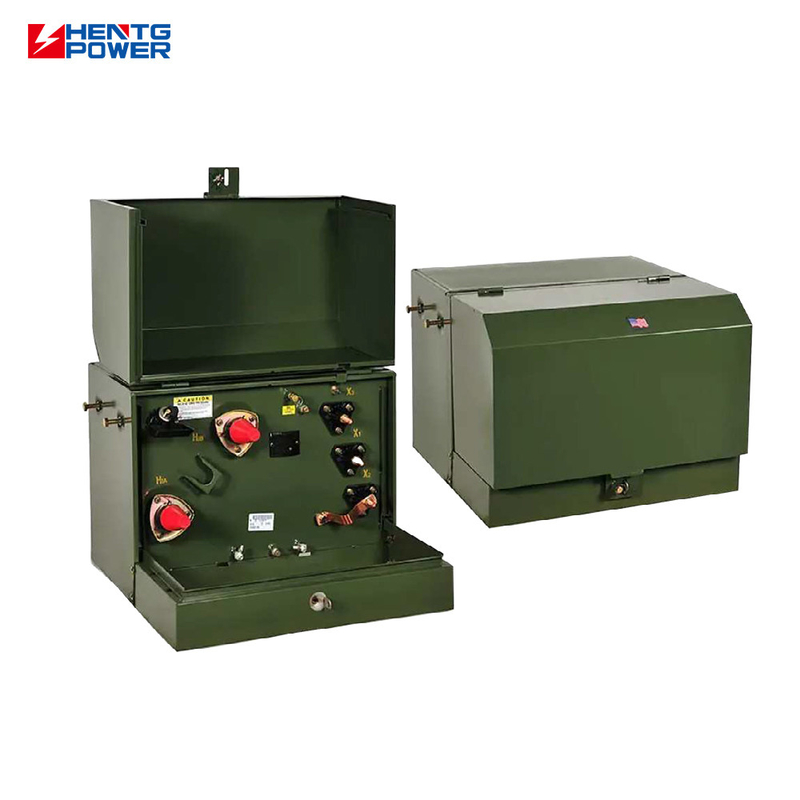

- Tank Structure: Pad-mounted, tamper-resistant, dead-front
- Protection: IP54 / NEMA 3R (outdoor)
- Design Life: ≥ 25 years
Hermetically sealed tank with minimal maintenance over a 20-30 year lifespan.
Factory-assembled and tested, plug-and-play ready for rapid deployment.
The pad-mounted design is ideal for limited space environments, ensuring effective space utilization.
| Capacity (KVA) | HV | Tapping range | LV | No-load loss | Load loss | Dimension(mm) | Efficiency |
|---|---|---|---|---|---|---|---|
| 167 | 2400-34500 | ±2X2.5% | 110-690 | 60-150 | 330-1150 | 610-740 x 740-960 x 840 | 98.82-99.49 |
We will respond to your inquiry within 1 hour and recommend suitable transformer according to your needs. At the same time, we will provide you with reasonable quotations and payment terms. We have a professional and independent drawing team and technical team, and we will confirm all the contents on the drawing with you within 7 days after payment.
After designing the production drawing, the factory will prepare the stock, produce, and conduct quality inspection before shipment. Our raw materials are strictly screened. In the quality inspection stage, we will provide you with the dual guarantee of QC report and test report.

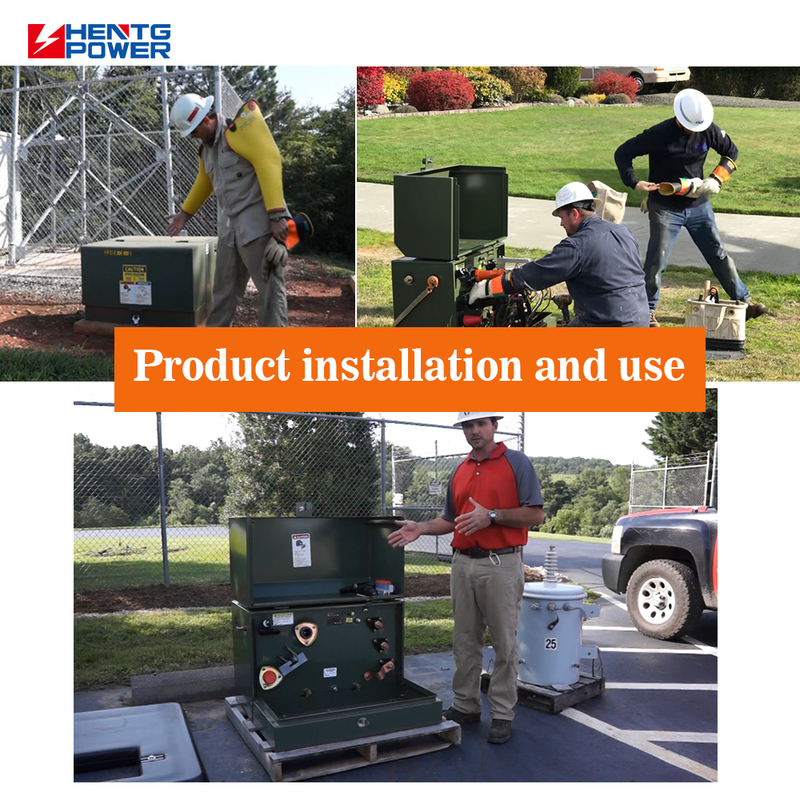

We have a professional team to guide the installation, and also support on-site installation. We will provide you with more than 2 years of warranty service.
HENTG POWER is a professional designer, manufacturer and installer of power system solution around the World, was founded in 2011, occupies 100,000 square meter. specializing in reliable, high-performance solutions for global power systems.
Always a pre-production sample before mass production; Always final Inspection before shipment, We will provide QC & test reports. We accept FAT(Factory Acceptance Test). Factory can manufacture oil type and dry type distribution transformer, max 500KV 480MVA power transformer, GIS, switchgear, substation, based on ANSI/IEEE/DOE2016/CSA/IEC60076 standard. We will provide you with the guarantee service of over 2 years.
We have the professional and independent drawing team and technical team. We can confirm all the contents on the drawings with you within 7 days. We have a professional technical team with 30+ senior engineers offer 24 hours online service and response within 30 min.
Accept OEM, business payment are negotiated.
- Oil-immersed transformers
- Dry-type power transformers
- SH15 and SCBH15 amorphous alloy transformers
- YB prefabricated substations
- 100000m² factory, 250 workers, 30+ engineers
- 4 production line, 10000+ sets annual production capacity
- 100% OQC testing with 25 detection contents
- 15 years power transformer designing and production experience
- Products comply with GB 20052-2024/ANSI/IEEE/DOE2016/CSA/IEC60076 standard
- Cross-industry power transformer solution
- Global on-site technical support
-
