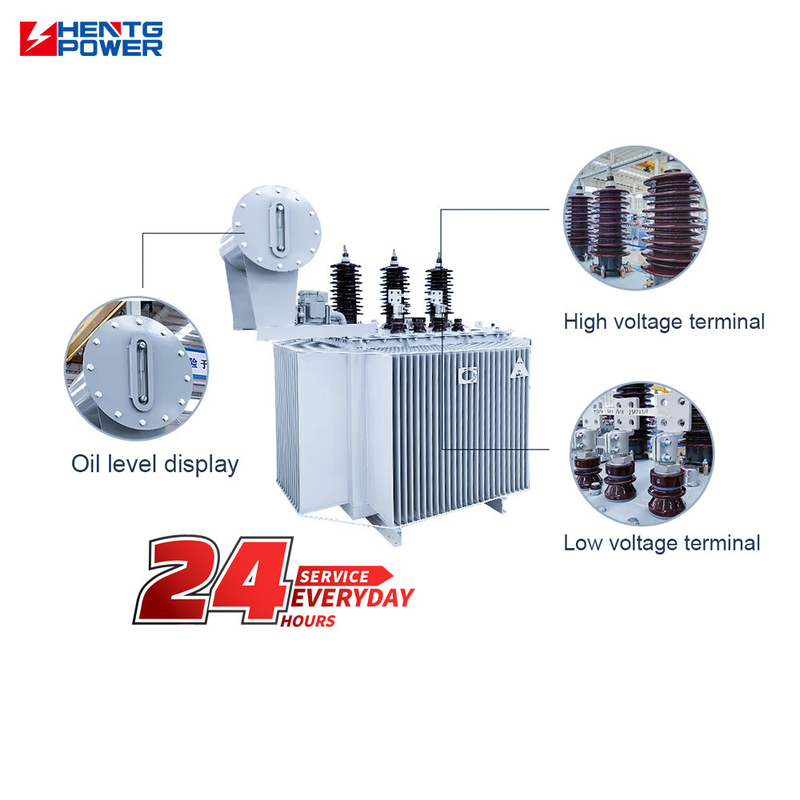

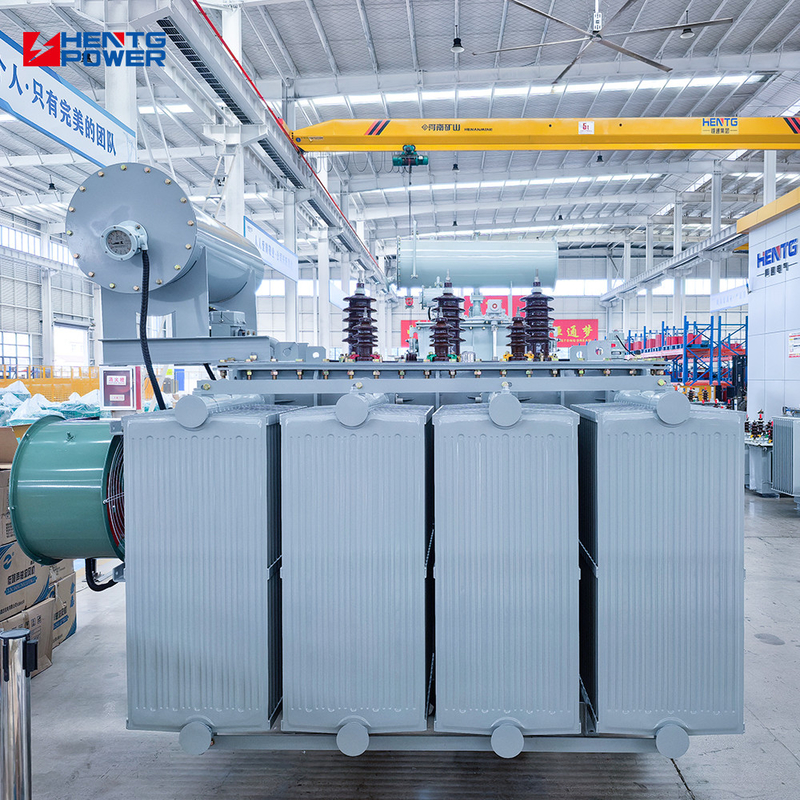

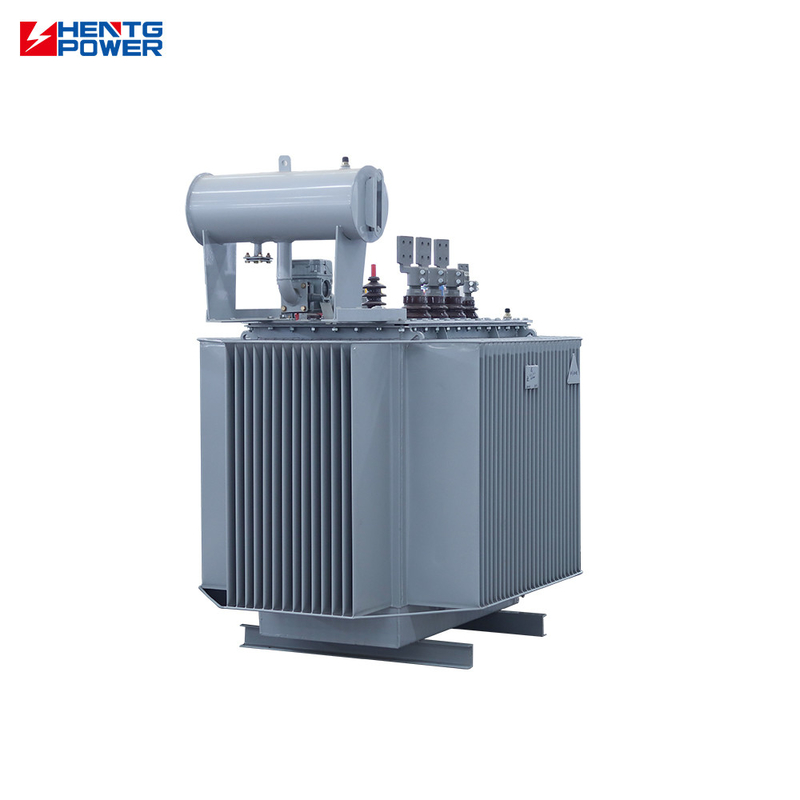

Outdoor 35 KV Oil Type Power Transformer Three Phase Dual Winding Coil Smart Monitoring

Outdoor 35 KV Oil Type Power Transformer

Smart Monitoring Oil Type Power Transformer

Dual Winding Coil Power Transformer

Place of Origin:

Hunan, China

Brand Name:

HENTG Power

Certification:

Model Number:

S11

Chat Now

Request A Quote

Product Details

Type:

Power Transformer, Oil-filled Power Transformer

Frequency:

50Hz, 60Hz

Winding Material:

Copper

Application:

Power

Phase:

Three

Coil Structure:

Layered Winding

Coil Number:

Dual-winding Coil

Input Voltage:

10kV, 3kV, 6kV, 15kV, 35kV, 69kV, 110kV, 115kV, 220kV, 400kV, Other

Output Voltage:

110V, 380V, 220V, 440V, 480V, 11kV, 415V

Product Name:

Three Phase Transformer

Application:

Power Distribution System

Material:

Aluminum Winding

Rated Capacity:

30-3000kva

Standard:

IEC60076

Usage:

Power Electronic

Warranty:

2 Years

Name:

Electronic Power Transformer

Highlight:

Outdoor 35 KV Oil Type Power Transformer

Smart Monitoring Oil Type Power Transformer

Dual Winding Coil Power Transformer

Payment & Shipping Terms

Minimum Order Quantity

2 sets

Price

CN¥1690-7560/pieces

Outdoor Copper Electrical Power Transformer 35KV Oil Immersed Three Phase IP54 Level

Chat Now

Video

Oil Filled 3 Phase Electronic Transformer 1500Kva 2500kva Step Up Distribution Transformer

Chat Now

Video

Electric Power Distribution Oil Immersed Mv High Voltage Isolation Transformer 1000kVA

Chat Now

Video

35KV Three Phase Power Transformer Variable Voltage Oil Immersed Transformer 1000KVA 1600KVA

Chat Now

+86 15074989773

info@hentgpower.com

Chat Now

Product Description

Outdoor 35 KV Oil Type Power Transformer Three Phase Dual Winding Coil Smart Monitoring

Product Specifications

Type

Power transformer, Oil-filled Power Transformer

Frequency

50Hz, 60Hz

Winding Material

Copper

Application

Power Distribution System

Phase

Three

Coil Structure

Layered Winding

Coil Number

Dual-winding coil

Input Voltage

10kV, 3kV, 6kV, 15kV, 35kV, 69kV, 110kV, 115kV, 220kV, 400kV, Other

Output Voltage

110V, 380V, 220V, 440V, 480V, 11kV, 415V

Rated capacity

30-3000kva

Standard

IEC60076

Warranty

2 Years

Key Features

High Efficiency & Energy Saving: Advanced core technology reduces energy loss and improves overall efficiency
Eco-friendly Design: Uses environmentally friendly oil that meets modern standards
Durability: High-quality materials ensure long-term stable operation in harsh environments
Smart Monitoring: Intelligent system for remote control and real-time fault alerts
Low Noise: Specially designed noise-reducing structure complies with modern standards

Technical Specifications (630KVA~31500KVA)

Capacity (KVA)	HV (KV)	HV Tapping	LV (KV)	Vector Group	No-load Loss (W)	On-load Loss (W)	No-load Current (%)	Short Circuit Impedance (%)
630	35	±5%	3.15 6.3 10.5	Yd11	830	7870	1.1	6.5
800	35	±5%	3.15 6.3 10.5	Yd11	980	9410	1	6.5
1000	35	±5%	3.15 6.3 10.5	Yd11	1150	11540	1	6.5
1250	35	±5%	3.15 6.3 10.5	Yd11	1410	13940	0.9	6.5
1600	35	±5%	3.15 6.3 10.5	Yd11	1700	16670	0.8	6.5

Key Advantages

Optimized for 35kV Medium Voltage Networks: Designed for industrial zones, rural power grids, and utility substations
Stable Three-Phase Power Supply: Delivers consistent voltage across all phases for heavy-duty equipment
Efficient Oil-Immersed Cooling: Uses mineral or natural ester insulating oil for effective heat dissipation
High Reliability: Built to withstand electrical, mechanical, and thermal stress in demanding environments

Ordering Process

Step 1: We respond within 1 hour with recommendations and quotations. Technical drawings confirmed within 7 days after payment.

Step 2: Factory prepares stock, produces, and conducts quality inspection with QC and test reports provided.

Step 3: Professional installation guidance and support with over 2 years warranty service.

Frequently Asked Questions

Who are we?

HENTG POWER is a professional designer, manufacturer and installer of power system solutions founded in 2011, specializing in reliable, high-performance solutions for global power systems.

How can we guarantee quality?

Pre-production samples, final inspection before shipment, QC & test reports, and Factory Acceptance Test (FAT). We manufacture transformers up to 500KV 480MVA based on international standards.

Why choose us?

Professional drawing and technical teams with 30+ senior engineers offering 24/7 online service with 30-minute response time.

What services can we provide?

OEM services with negotiated payment terms.
