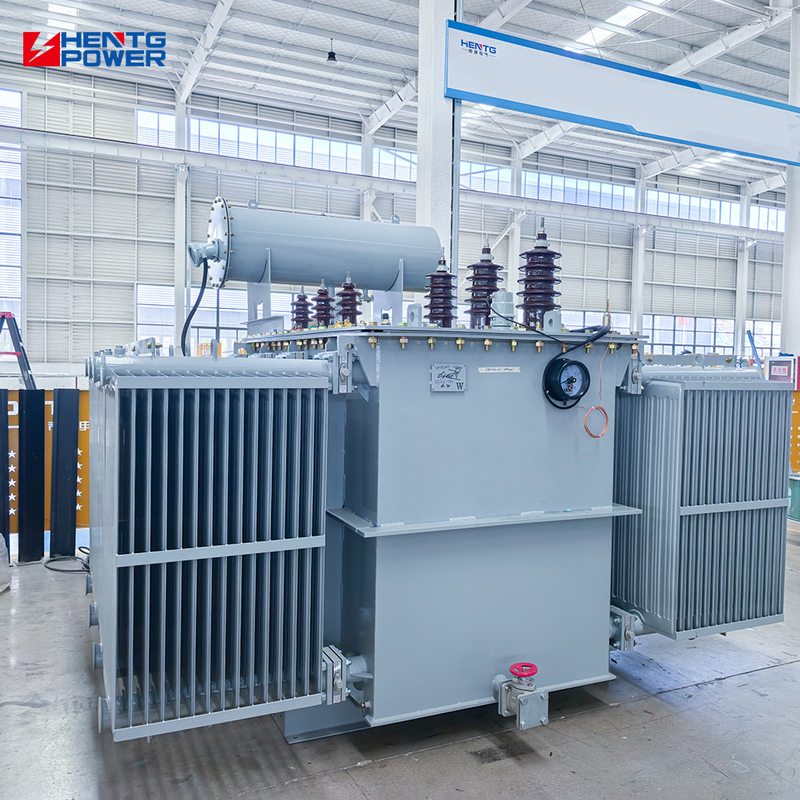

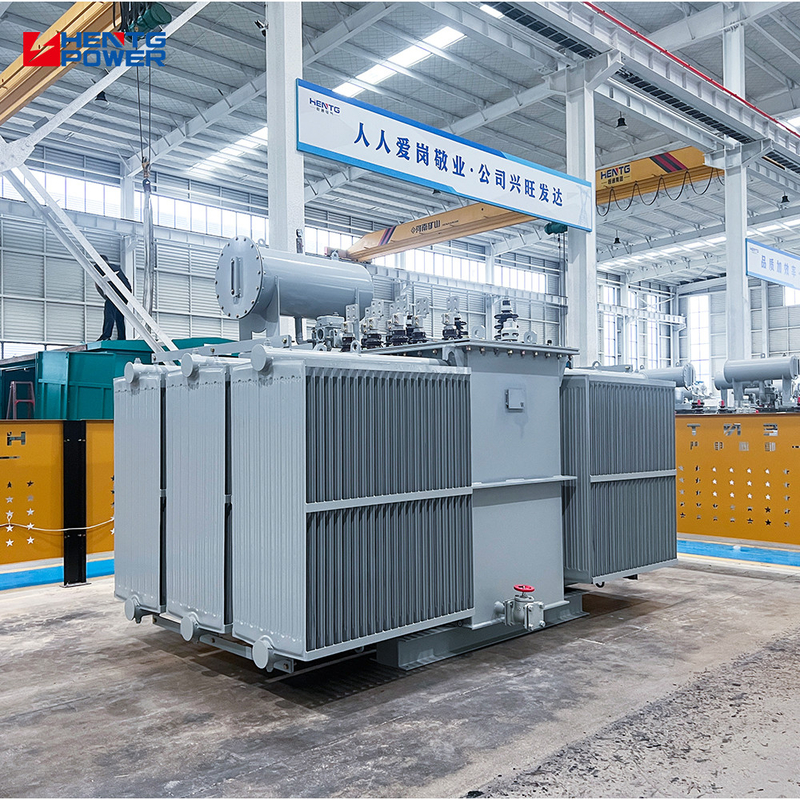

Industrial Grade Step Up Down Voltage Transformer 200kVA 315kVA 400kVA Rectangle Shape

Industrial Grade Step Up Down Voltage Transformer 200kVA 315kVA 400kVA Rectangle Shape

200kVA Step Up Down Voltage Transformer 200kVA

400kVA Industrial Grade Voltage Transformer

Place of Origin:

Jiangsu, China

Brand Name:

HENTG Power

Certification:

CE

Model Number:

ZGS Series

Chat Now
Request A Quote
Product Details
Type:
Distribution Transformer, Oil-filled Power Transformer
Material:
Copper
Frequency:
50Hz, 60Hz
Shape:
Rectangle
Winding Material:
Aluminum, Copper
Application:
Power
Phase:
Three
Coil Structure:
Circular Coil
Coil Number:
Dual-winding Coil
Input Voltage:
6kV, 3kV, 10kV, 15kV, 69kV, 110kV, 115kV, 132kV, 220kV
Output Voltage:
415V, 127V, 11kV, 220V, 380V, 440V, 480V
Primary Voltage:
35~38.5KV±5%
Cooling Method:
ONAN ONAF OFAF
Product Name:
Three Phase Transformer
Application:
Power Distribution System
Rated Capacity:
50-400kva
Usage:
Power Electronic
Highlight:

200kVA Step Up Down Voltage Transformer 200kVA

,

400kVA Industrial Grade Voltage Transformer

Payment & Shipping Terms
Minimum Order Quantity
2 sets
Price
CN¥11,082.61-28,831.88/sets
Product Description
Industrial Grade Step Up Down Voltage Transformer 200kVA 315kVA 400kVA Rectangle Shape
Product Specifications
Attribute Value
Type distribution transformer, Oil-filled Power Transformer
Material Copper
Frequency 50Hz, 60Hz
Shape Rectangle
Winding Material Aluminum, Copper
Application Power
Phase Three
Coil Structure Circular coil
Coil Number Dual-winding coil
Input Voltage 6kV, 3kV, 10kV, 15kV, 69kV, 110kV, 115kV, 132kV, 220kV
Output Voltage 415V, 127V, 11kV, 220V, 380V, 440V, 480V
Primary voltage 35~38.5KV±5%
Cooling Method ONAN ONAF OFAF
Product name Three Phase Transformer
Application Power Distribution System
Rated capacity 50-400kva
Usage Power Electronic
Product Description

50kVA Oil Immersed Electric Transformers 200kVA 315kVA 400kVA Industrial Step Up/Down Voltage Electric Transformers

Key Advantages
  • Enhanced Reliability: With an oil-immersed design, the transformer offers high reliability in both normal and extreme conditions.
  • Lower Carbon Footprint: By reducing energy losses, the transformer contributes to a lower environmental impact.
  • Global Support Network: Backed by a worldwide network of technicians and service centers.
Technical Specifications

Rated Voltage: 35kV

Capacity Range: 50kVA to 3150kVA

Cooling Method: Oil-immersed

Frequency: 50Hz or 60Hz

Impedance Voltage: Customizable

Ambient Temperature: -25°C to +40°C

Technical Data For 35KV Three-Phase Oil Immersed Transformer (630KVA~31500KVA)
Capacity (KVA) HV (KV) HV Tapping LV (KV) Vector Group No-load Loss (W) On-load Loss (W) No-load Current (%) Short Circuit Impedance (%)
630 35 ±5% 3.15
6.3
10.5
Yd11 830 7870 1.1 6.5
800 980 9410 1
1000 1150 11540 1
1250 1410 13940 0.9
1600 1700 16670 0.8
2000 2180 18380 0.7
2500 2560 19670 0.6
3150 35~38.5 ±5% 3.15
6.3
10.5
3040 23090 0.56 7
4000 3620 27360 0.56
5000 4320 31380 0.48
6300 5250 35060 0.48 7.5
8000 35~38.5 ±2*2.5% 3.15
3.3
6.3
6.6
10.5
11
Ynd11 7200 38480 0.42
10000 8700 45320 0.42
12500 10080 53870 0.4 8
16000 12160 65840 0.4
20000 14400 79520 0.4
25000 17020 94050 0.32
31500 20220 112860 0.32
Industrial Grade Step Up Down Voltage Transformer 200kVA 315kVA 400kVA Rectangle Shape 0
Our Process
Step 1: Consultation & Design

We will respond to your inquiry within 1 hour and recommend suitable transformer according to your needs. At the same time, we will provide you with reasonable quotations and payment terms. We have a professional and independent drawing team and technical team, and we will confirm all the contents on the drawing with you within 7 days after payment. The drawing usually contains technical data, weight and parts list.

Step 2: Production & Quality Control

After designing the production drawing, the factory will prepare the stock, produce, and conduct quality inspection before shipment. If you have special accessory requirements, we can provide you with accessories. Our raw materials are strictly screened. In the quality inspection stage, we will provide you with the dual guarantee of QC report and test report to escort your products.

Step 3: Installation & Support

We have a professional team to guide the installation, and also support on-site installation. We will provide you with more than 2 years of warranty service.

Key Features
  • Optimized for 35kV Medium Voltage Networks: Designed specifically for 35kV distribution systems, a common voltage level in industrial zones, rural power grids, and utility substations in many regions. Provides efficient and stable step-down transformation from sub-transmission to distribution voltage levels (e.g., 35kV to10kV/0.4kV). Supports regional power grid expansion and rural electrification projects.
  • Stable and Balanced Three-Phase Power Supply: Delivers consistent voltage across all three phases, ensuring smooth operation of heavy-duty equipment and reducing voltage fluctuations. Ideal for industrial plants, commercial centers, and large-scale energy consumers requiring reliable three-phase power.
  • Efficient Oil-Immersed Cooling System: Uses mineral or natural ester insulating oil for effective heat dissipation and dielectric insulation. Maintains stable operating temperatures even under high load or continuous duty conditions. Enhances transformer lifespan and reduces thermal aging of insulation materials.
  • High Reliability and Robust Construction: Built to withstand electrical, mechanical, and thermal stress in demanding outdoor and indoor environments. Features hermetic sealing or conservator-type oil tanks to prevent moisture ingress and maintain oil quality.
Frequently Asked Questions
Who are we?

HENTG POWER is a professional designer, manufacturer and installer of power system solution around the World, was founded in 2011, occupies 100,000 square meter. specializing in reliable, high-performance solutions for global power systems.

How can we guarantee quality?

Always a pre-production sample before mass production; Always final Inspection before shipment, We will provide QC & test reports. We accept FAT(Factory Acceptance Test). Factory can manufacture oil type and dry type distribution transformer, max 500KV 480MVA power transformer, GIS, switchgear, substation, based on ANSI/IEEE/DOE2016/CSA/IEC60076 standard. We will provide you with the guarantee service of over 2 years.

Why choose us?

We have the professional and independent drawing team and technical team, It is expected that we can confirm all the contents on the drawings with you within 7 days. we have a professional technical team with 30+ senior engineers offer 24 hours online service and response within 30 min.

What services can we provide?

Accept OEM, business payment are negotiated.
