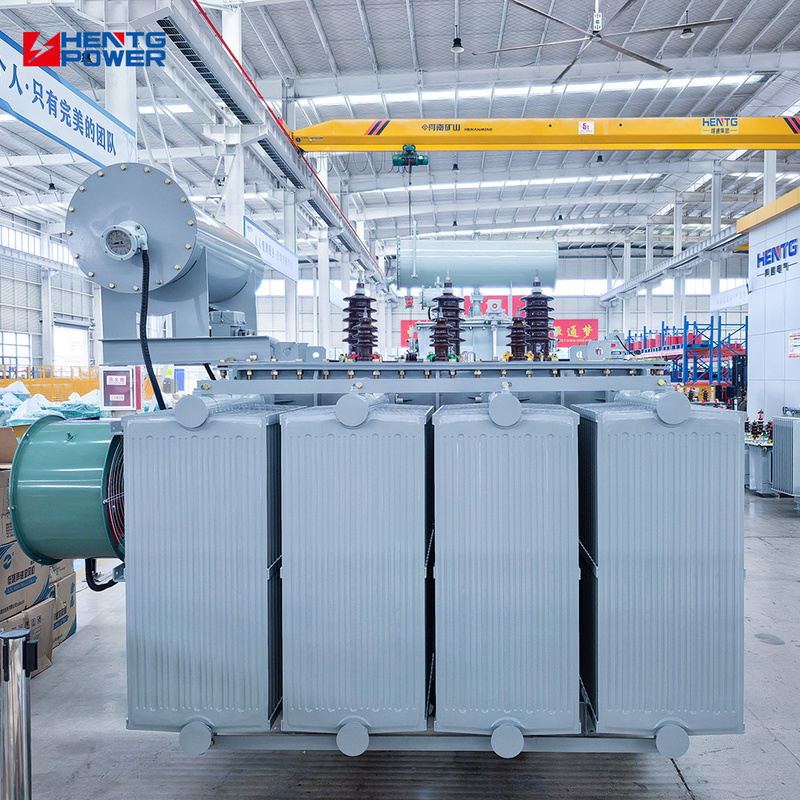

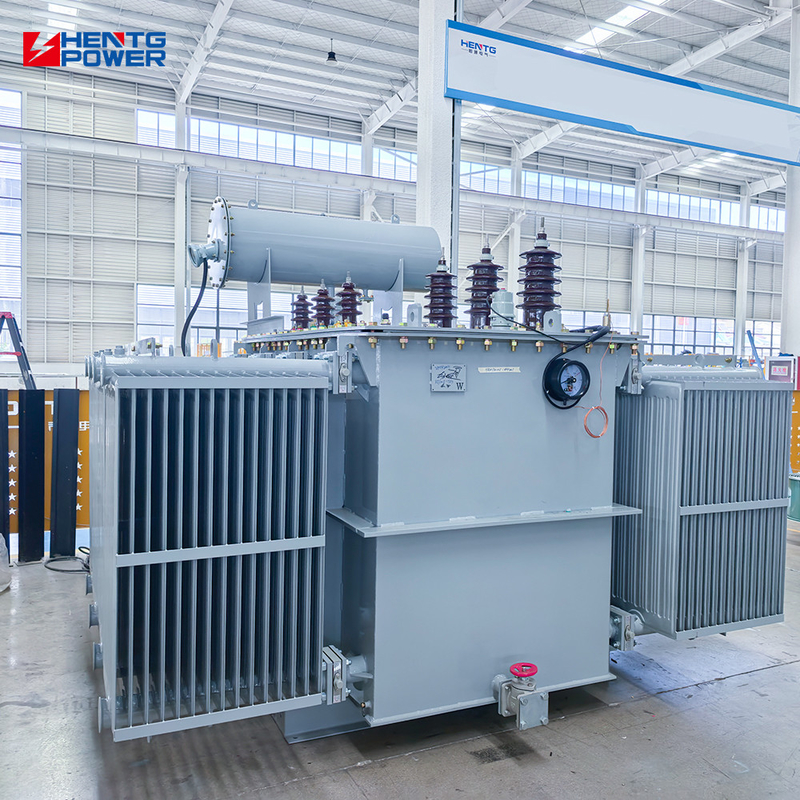

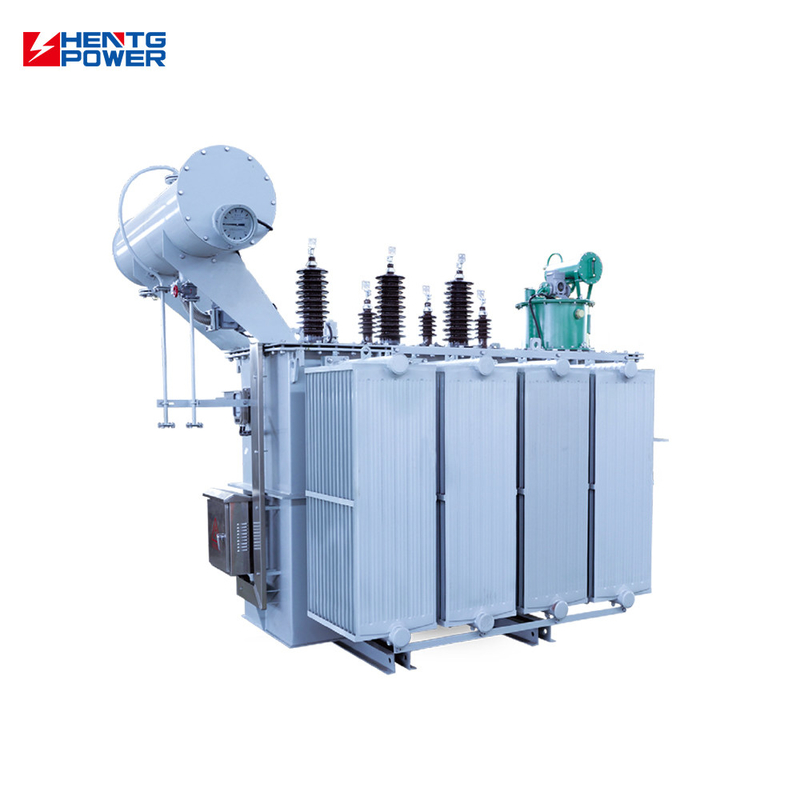

Oil Filled Distribution Transformer Three Phase Electronic Transformer 1500 Kva 1600 Kva 2500kva
Product Summary
Oil Filled Distribution Transformer Three Phase Electronic Transformer 1500 Kva 1600 Kva 2500kva Product Specifications Attribute Value Frequency 50Hz, 60Hz, 50/60Hz Phase Three Coil Number Three Windings, Multi Winding, Two Windings, Single Winding Application Distribution System Coil Structure ...
Key Attributes
Brand Name:
HENTG Power
Model Number:
ZGS Series
Place of Origin:
China
Certification:
CE
MOQ:
1
Price:
CN¥8900-12898/sets
Product Custom Attributes
Highlight
Oil Filled Distribution Transformer Three Phase
,Three Phase Electronic Transformer 1500 Kva
Frequency:
50Hz, 60Hz, 50/60Hz
Phase:
Three
Coil Number:
Three Windings, Multi Winding, Two Windings, Single Winding
Application:
Distribution System
Coil Structure:
Shell-Type Coil, Layer Coil, Fully Sealed Construction, Disc Coil, Round Coil
Output Voltage:
10kV, 415V, 110V, 220V, 380V, 400V , 440V, 480V, 11kV
Input Voltage:
11kV, 10.5kV, 3kV, 12.47kV, 6.6kV, 6.3kV, 6kV, 10kV, 35kV, 69kV, 110kV, 115kV, 132kV, 220kV, 400kV
Type:
Isolation Transformer, Voltage Regulator Transformer, AUTOTRANSFORMER, Field Adjustable Transformer, Oil-Immersed Transformer, Dual Winding Transformer, Oil-Immersed Transformer
Product Name:
Three Phase Oil Immersed Transformer
Application:
Power Distribution System Power Transformer
Rated Capacity:
630KVA-2500KVA
Cooling Method:
Oil Cooling
Vector Group:
Dyn11 / Yyn0
Material:
Cooper
Warranty:
3 Years
Product Description
Oil Filled Distribution Transformer Three Phase Electronic Transformer 1500 Kva 1600 Kva 2500kva
Product Specifications
| Attribute | Value |
|---|---|
| Frequency | 50Hz, 60Hz, 50/60Hz |
| Phase | Three |
| Coil Number | Three Windings, Multi Winding, Two Windings, Single Winding |
| Application | Distribution System |
| Coil Structure | Shell-Type Coil, layer coil, fully sealed construction, Disc Coil, round coil |
| Output Voltage | 10kV, 415V, 110V, 220V, 380V, 400V, 440V, 480V, 11kV |
| Input Voltage | 11kV, 10.5kV, 3kV, 12.47kV, 6.6kV, 6.3kV, 6kV, 10kV, 35kV, 69kV, 110kV, 115kV, 132kV, 220kV, 400kV |
| Type | Isolation Transformer, Voltage Regulator Transformer, AUTOTRANSFORMER, Field Adjustable Transformer, Oil-Immersed Transformer, Dual Winding Transformer |
| Rated Capacity | 630KVA-2500KVA |
| Cooling Method | Oil Cooling |
| Vector Group | Dyn11 / Yyn0 |
| Material | Copper |
| Warranty | 3 Years |
Key Features & Benefits
- High Efficiency & Low Operating Costs: The use of oil-immersed technology ensures minimal losses, lowering operational expenses.
- Durability: Designed for extended life, providing reliability for decades, even in harsh conditions.
- Flexible Application: Ideal for use in power stations, substations, industrial plants, and commercial buildings.
Technical Specifications (35KV Three-Phase Oil Immersed Transformer)
| Capacity (KVA) | HV (KV) | HV Tapping | LV (KV) | Vector Group | No-load Loss (W) | On-load Loss (W) | No-load Current (%) | Short Circuit Impedance (%) |
|---|---|---|---|---|---|---|---|---|
| 630 | 35 | ±5% | 3.15 6.3 10.5 |
Yd11 | 830 | 7870 | 1.1 | 6.5 |
| 800 | 35 | ±5% | 3.15 6.3 10.5 |
Yd11 | 980 | 9410 | 1 | 6.5 |
| 1000 | 35 | ±5% | 3.15 6.3 10.5 |
Yd11 | 1150 | 11540 | 1 | 6.5 |
| 1250 | 35 | ±5% | 3.15 6.3 10.5 |
Yd11 | 1410 | 13940 | 0.9 | 6.5 |
| 1600 | 35 | ±5% | 3.15 6.3 10.5 |
Yd11 | 1700 | 16670 | 0.8 | 6.5 |
| 2000 | 35 | ±5% | 3.15 6.3 10.5 |
Yd11 | 2180 | 18380 | 0.7 | 6.5 |
| 2500 | 35 | ±5% | 3.15 6.3 10.5 |
Yd11 | 2560 | 19670 | 0.6 | 6.5 |
Our Process
Step 1: Consultation & Design
We respond to inquiries within 1 hour and recommend suitable transformers according to your needs. We provide quotations and payment terms. Our professional drawing and technical teams confirm all drawing contents within 7 days after payment, including technical data, weight, and parts list.
Step 2: Production & Quality Control
After finalizing the production drawing, we prepare stock, manufacture, and conduct quality inspections before shipment. We provide QC reports and test reports to ensure product quality. Special accessory requirements can be accommodated.
Step 3: Installation & Support
Our professional team provides installation guidance and on-site support. We offer more than 2 years of warranty service.
Technical Advantages
- Optimized for 35kV Medium Voltage Networks - Designed specifically for 35kV distribution systems, common in industrial zones and utility substations.
- Stable and Balanced Three-Phase Power Supply - Delivers consistent voltage across all phases for heavy-duty equipment.
- Efficient Oil-Immersed Cooling System - Uses mineral or natural ester insulating oil for effective heat dissipation.
- High Reliability and Robust Construction - Built to withstand electrical, mechanical, and thermal stress in demanding environments.
Frequently Asked Questions
Who are we?
HENTG POWER is a professional designer, manufacturer and installer of power system solutions founded in 2011, occupying 100,000 square meters and specializing in reliable, high-performance solutions for global power systems.
How can we guarantee quality?
We conduct pre-production sampling, final inspection before shipment, and provide QC & test reports. We accept Factory Acceptance Tests (FAT) and manufacture transformers up to 500KV 480MVA based on international standards.
Why choose us?
We have professional drawing and technical teams that confirm drawings within 7 days, plus 30+ senior engineers offering 24/7 online service with 30-minute response times.
What services can we provide?
We accept OEM orders and negotiate business payment terms.
-
