Pole Mounted Step Up And Down Transformer 25 Kva Single Phase Oil Filled Transformer

Pole Mounted Step Up Down Transformer

Step Up And Down Transformer 25 Kva

25 Kva Single Phase Oil Filled Transformer

Place of Origin:

Hunan, China

Brand Name:

HENTG Power

Certification:

Model Number:

D11

Chat Now

Request A Quote

Product Details

Type:

Power Transformer, Oil-filled Transformer

Material:

Aluminum, Aluminum Winding

Frequency:

50Hz, 60Hz

Shape:

Coil, ROUND

Toplogy:

BUCK

Winding Material:

Aluminum

Application:

Power

Phase:

Single Phase

Coil Structure:

Wound Coil

Coil Number:

Dual-winding Coil

Input Voltage:

10kV, 3kV, 6kV, 15kV, 35kV, 69kV, 110kV, 115kV, 220kV, 400kV, Other

Output Voltage:

110V, 380V, 220V, 440V, 480V, 11kV, 415V

Product Name:

Single Phase Pole Mounted Transformer

Application:

Power Distribution System

Usage:

Power Electronic

Primary Voltage:

10KV/11KV/24KV/33KV/36KV

Standard:

IEC60076

Cooling Method:

ONAN

Feature:

High Efficiency

Protection Level:

IP23

Efficiency:

98%

Insulation Class:

Class A

Rated Power:

10-100kVA

Dimensions:

Customizable

Weight:

100-500kg

Operating Temperature:

40°C

Rated Voltage:

11kV

Mounting Type:

Pole Mounted

Highlight:

Pole Mounted Step Up Down Transformer

Step Up And Down Transformer 25 Kva

25 Kva Single Phase Oil Filled Transformer

Payment & Shipping Terms

Minimum Order Quantity

2 sets

Price

CN¥12,172.36-54,878.87/pieces

Variable Voltage Oil Immersed Distribution Transformer Mv Hv Pole Mounted Class H Insulation

Chat Now

Video

1 Phase Oil Immersed Pole Mounted Transformer 167KVA 250KVA 333KVA High Efficiency

Chat Now

Video

Single Phase Pole Mounted Oil Type Transformer 25/34.5KV 240/480V 250KVA

Chat Now

Video

Step Down Pole Mounted Single Phase Transformer Dual Voltage 15KVA To 167KVA

Chat Now

+86 15074989773

info@hentgpower.com

Chat Now

Product Description

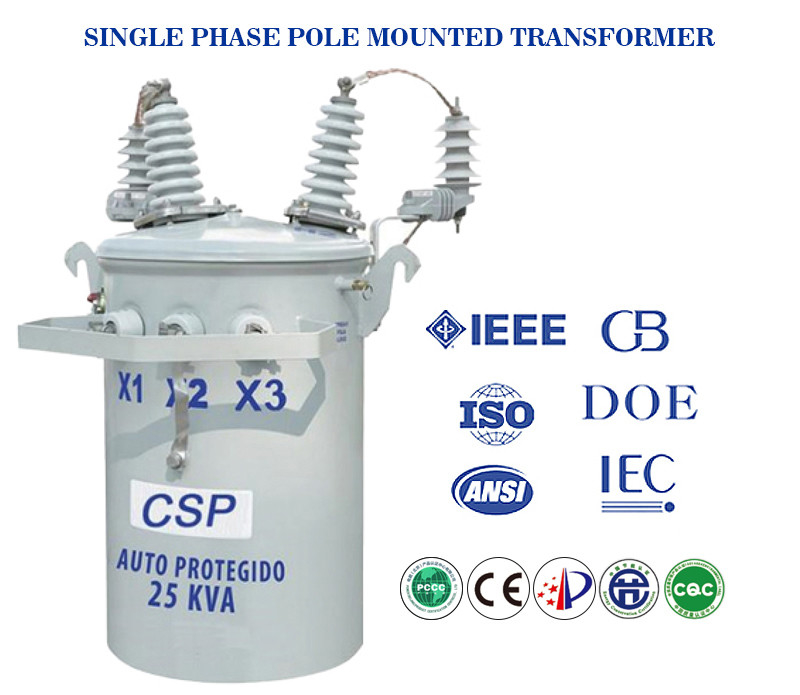

Pole Mounted Step Up And Down Transformer 25 Kva Single Phase Oil Filled Transformer

Product Specifications

Attribute	Value
Type	power transformer, Oil-filled Transformer
Material	Aluminum, Aluminum Winding
Frequency	50Hz, 60Hz
Shape	Coil, ROUND
Toplogy	BUCK
Winding Material	Aluminum
Application	Power Distribution System
Phase	Single Phase
Coil Structure	Wound Coil
Input Voltage	10kV, 3kV, 6kV, 15kV, 35kV, 69kV, 110kV, 115kV, 220kV, 400kV, Other
Output Voltage	110V, 380V, 220V, 440V, 480V, 11kV, 415V
Standard	IEC60076
Cooling Method	ONAN
Protection Level	IP23
Efficiency	98%
Rated Power	10-100kVA
Weight	100-500kg
Operating Temperature	40°C
Mounting Type	Pole Mounted

Technical Details

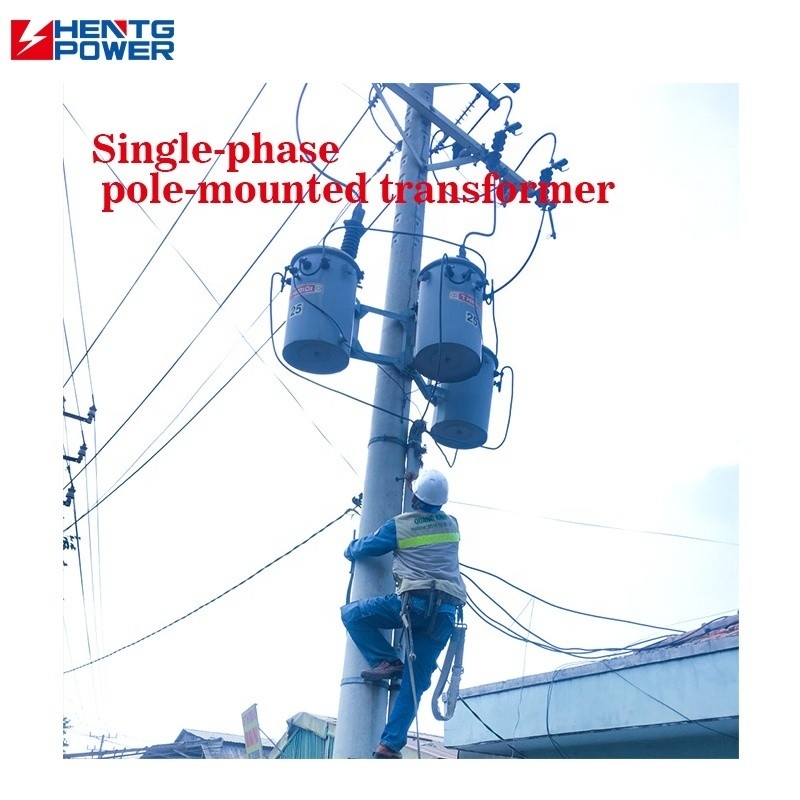

Single-phase pole transformer

Rated capacity (KVA)	HV	Tapping range	LV	No-load loss	Load loss	Dimension (mm)	Efficiency
15	2400 4160 7200 7620 12000 12470 13200 13800 14400 19920 24940 34500	±2* 2.5%	110 120 208 240 277 347 415 416 480 600 690	60 80 100 120 130 150	330 370 450 620 850 1150	520 560 610 635 754 770 795	98.8
25							99.0
37.5							99.1
50							99.1
75							99.2
100							99.3
167							99.3
250							99.4
333							99.4
500							99.5

Usage Guidelines

Installation Warning

Safety Distance: ≥3m from Buildings, ≥4.5m above Ground (Road)
Grounding Requirements: Independent Grounding Electrode Resistance <10Ω, Grounding Wire Cross-Sectional Area ≥25mm²

Troubleshooting Guide

Phenomenon	Possible Cause	Emergency Measures
Abnormal humming	Loose core	Tighten bolts during power outage
Oil temperature > 85℃	Overload/poor heat dissipation	Forced air cooling + load reduction
Bushing flashover	Dirt accumulation	Live cleaning (certification required)
