Industrial Grade Pole Mounted Electrical Power Transformer 15kVA-100kVA 60Hz Frequency
Industrial Grade Pole Mounted Electrical Power Transformer 15kVA-100kVA 60Hz Frequency Product Specifications Attribute Value Frequency 60Hz Phase Single Phase Application Power Transformer Output Voltage 110V, 220V, 380V, 400V, 440V, 480V Input Voltage 11kV, 10.5kV, 3kV, 6.6kV, 6.3kV, 35kV, 12.47kV, 6kV Type Pole Mounted Transformer Standard DOE/IEC60076/IEEE Warranty 2 Years Vector Group Dyn11/Yyn0/Yd11/YNd11 MOQ 1 Set Usage Outdoor Power Line Operation Customized Accept
Pole Mounted Electrical Power Transformer
,Industrial Grade Pole Mounted Transformer
| Attribute | Value |
|---|---|
| Frequency | 60Hz |
| Phase | Single Phase |
| Application | Power Transformer |
| Output Voltage | 110V, 220V, 380V, 400V, 440V, 480V |
| Input Voltage | 11kV, 10.5kV, 3kV, 6.6kV, 6.3kV, 35kV, 12.47kV, 6kV |
| Type | Pole Mounted Transformer |
| Standard | DOE/IEC60076/IEEE |
| Warranty | 2 Years |
| Vector Group | Dyn11/Yyn0/Yd11/YNd11 |
| MOQ | 1 Set |
| Usage | Outdoor Power Line Operation |
| Customized | Accept |
HENTG Power Transformer 10Kva 15Kva 25Kva 37.5Kva 50Kva 75Kva 100Kva 167Kva Single Phase Pole Mounted Transformer
Industrial-grade single-phase pole-type transformer 25kVA
- Powerful power: Supports up to 25kVA power output to meet industrial needs
- Heavy load capacity: Suitable for high-load equipment, excellent stability
- All-round protection: Equipped with multiple safety protection measures
This 25kVA industrial-grade single-phase pole-type transformer is designed for industrial use and provides strong and stable power output. Whether it is large equipment or heavy-load applications, it can do it. Its comprehensive safety protection design ensures the safety of equipment and personnel.
| Capacity (KVA) | HV | Tapping range | LV | No-load loss | Load loss | Dimension (mm) | Efficiency |
|---|---|---|---|---|---|---|---|
| 15 |
2400 4160 7200 7620 12000 12470 13200 13800 14400 19920 24940 34500 |
±2* 2.5% |
110 120 208 240 277 347 415 416 480 600 690 |
60 80 100 120 130 150 |
330 370 450 620 850 1150 |
520 560 610 635 754 770 795 |
98.82 |
| 25 | 98.95 | ||||||
| 37.5 | 99.05 | ||||||
| 50 | 99.11 | ||||||
| 75 | 99.19 | ||||||
| 100 | 99.25 | ||||||
| 167 | 99.33 |
- Reduced Line Losses and Improved Power Supply Efficiency
- Installed close to the load, these transformers shorten the low-voltage supply radius
- Low-voltage line losses are reduced by over 99%, greatly enhancing energy utilization efficiency
- Efficient and Energy-Saving Structural Design
- Features a high-efficiency, energy-saving wound core design
- Compact and lightweight, making installation and transportation easier

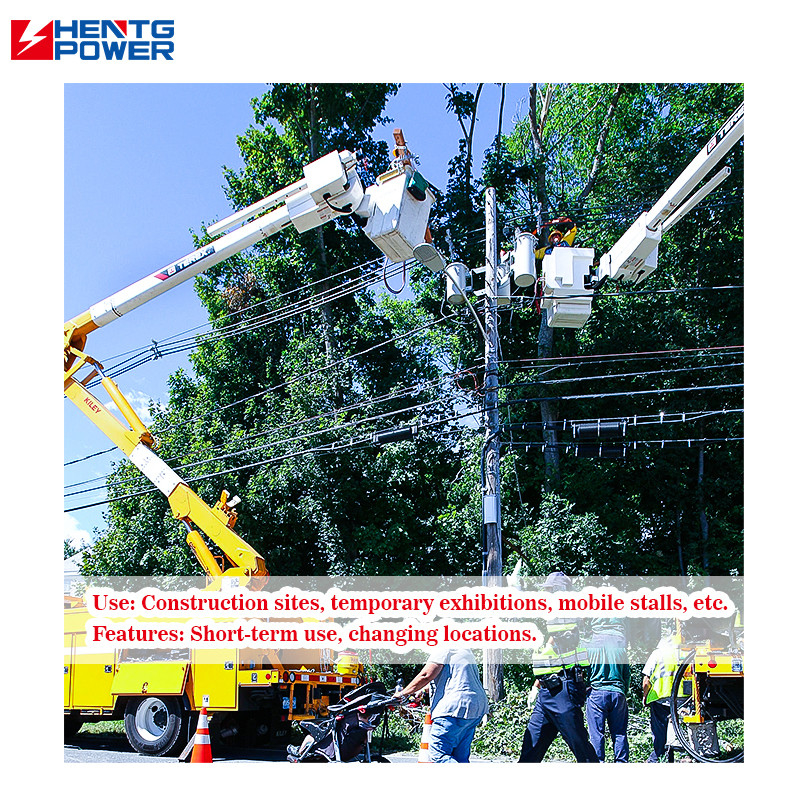

- Flexible Installation
- Utilizes pole-mounted suspension installation, allowing direct mounting on utility poles
- Ideal for rural and suburban areas
- Cost-Effective
- Requires low capital investment compared to traditional transformer systems
- Well-suited for large-scale deployment
We will respond to your inquiry within 1 hour and recommend suitable transformer according to your needs. We provide reasonable quotations and payment terms. Our professional drawing and technical teams will confirm all contents on the drawing with you within 7 days after payment.

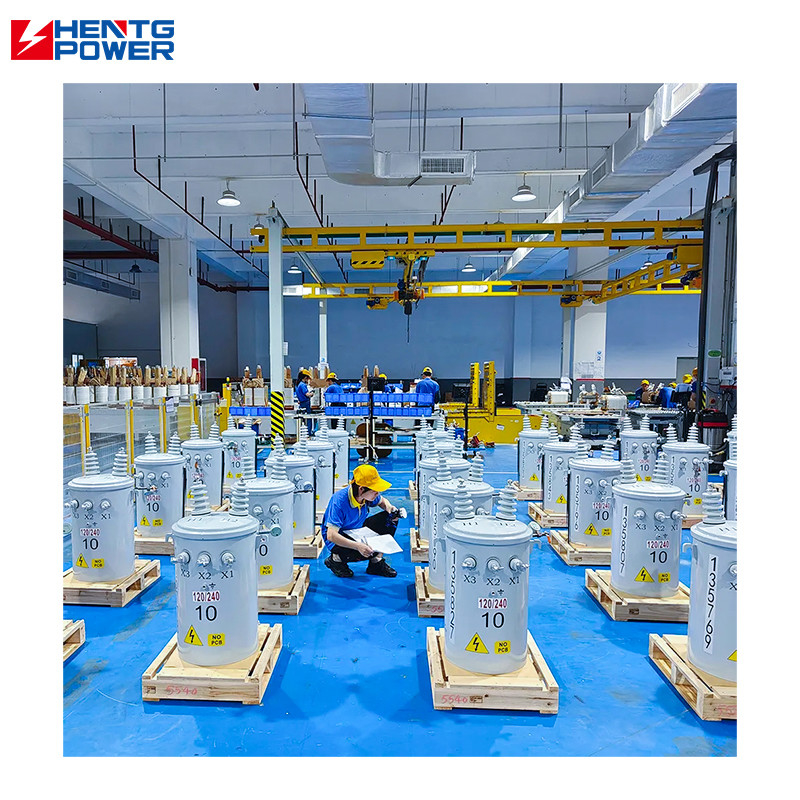

After designing the production drawing, the factory prepares stock, produces, and conducts quality inspection before shipment. We provide QC report and test report. Our raw materials are strictly screened.
We have a professional team to guide the installation, and also support on-site installation. We provide more than 2 years of warranty service.
HENTG POWER is a professional designer, manufacturer and installer of power system solution around the World, was founded in 2011, occupies 100,000 square meter. specializing in reliable, high-performance solutions for global power systems.
Always a pre-production sample before mass production; Always final Inspection before shipment. We provide QC & test reports and accept FAT(Factory Acceptance Test). Factory can manufacture oil type and dry type distribution transformer, max 500KV 480MVA power transformer, GIS, switchgear, substation, based on ANSI/IEEE/DOE2016/CSA/IEC60076 standard. We provide over 2 years warranty service.
We have professional and independent drawing and technical teams. We can confirm all contents on drawings within 7 days. Our technical team with 30+ senior engineers offers 24 hours online service with response within 30 min.
We accept OEM, business payment are negotiated.
-
