Place of Origin:
Jiangsu, China
Brand Name:
HENTG Power
Certification:
CE
Model Number:
ZGS Series
Video
Video
| Attribute | Value |
|---|---|

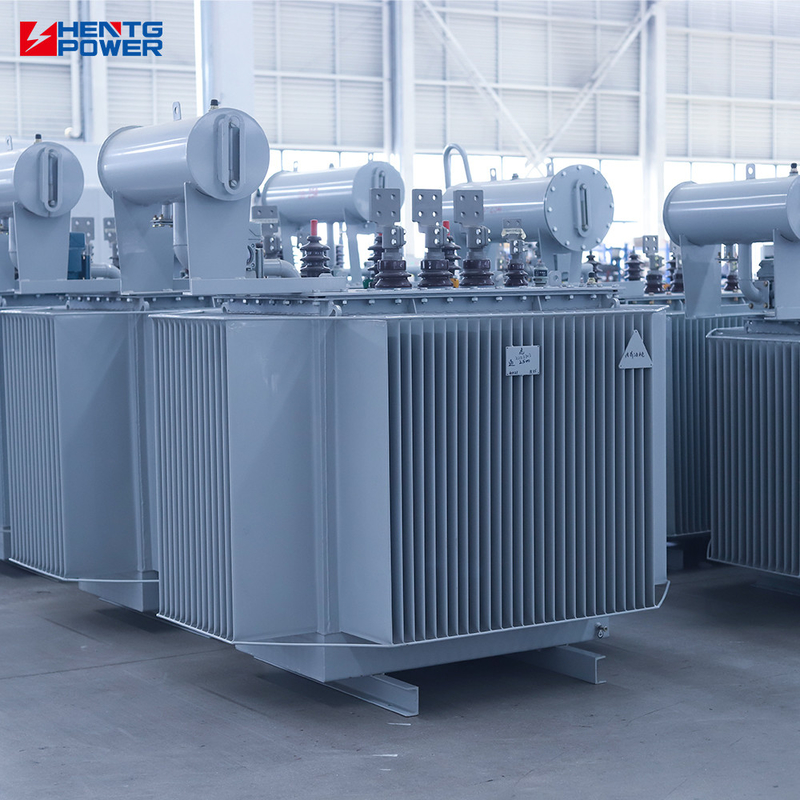

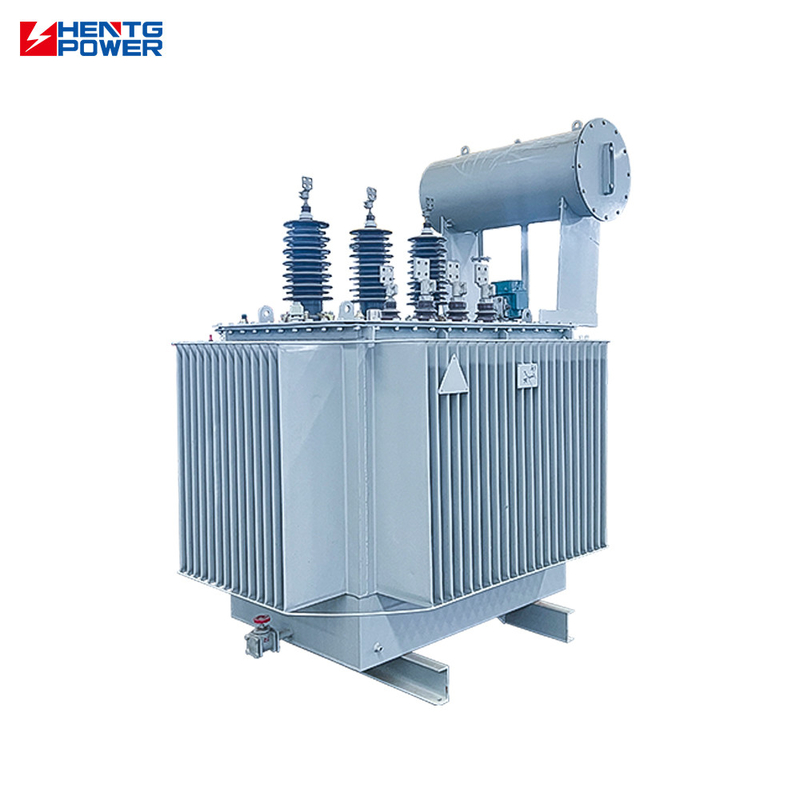

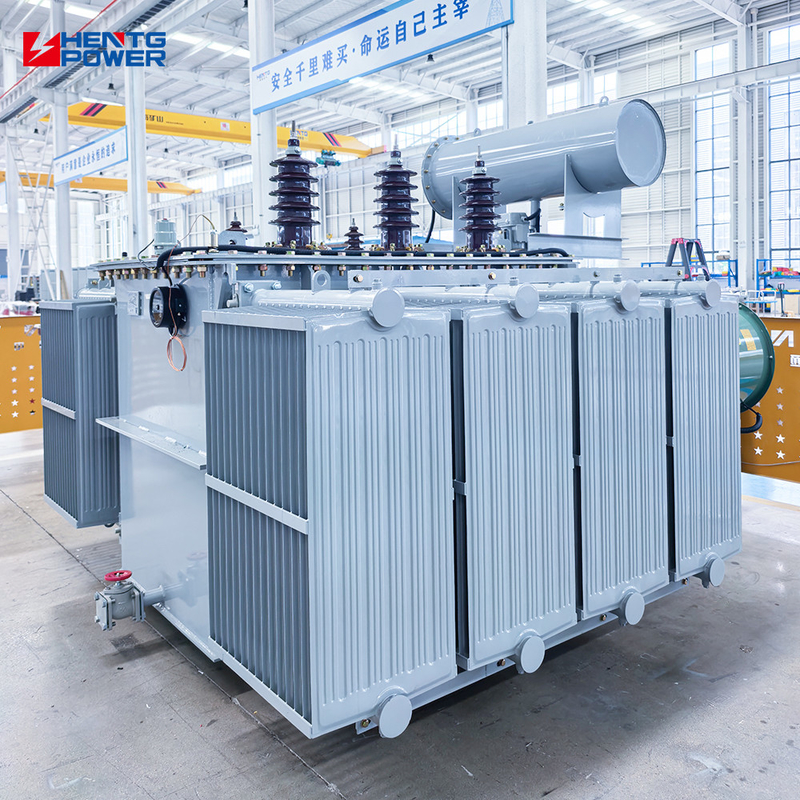

| Type | Distribution transformer, Oil-filled Transformer |
| Material | Aluminum, Copper |
| Frequency | 50Hz, 60Hz |
| Winding Material | Aluminum, Copper |
| Application | Power Distribution System |
| Phase | Three |
| Input Voltage | 6kV, 3kV, 10kV, 69kV, 110kV, 115kV, 132kV, 400kV, 220kV |
| Output Voltage | 415V, 380V, 220V, 110V, 440V, 480V, 11kV |
| Primary Voltage | 35~38.5KV±5% |
| Cooling Method | ONAN ONAF OFAF |
| Standard | IEC ANSI |
| Capacity | 2000KVA |
| Vector Group | Yd11/YNd11 |
| Capacity (KVA) | HV (KV) | HV Tapping | LV (KV) | Vector Group | No-load Loss (W) | On-load Loss (W) | No-load Current (%) | Short Circuit Impedance (%) |
|---|---|---|---|---|---|---|---|---|
| 630 | 35 | ±5% | 3.15 6.3 10.5 |
Yd11 | 830 | 7870 | 1.1 | 6.5 |
| 800 | 35 | ±5% | 3.15 6.3 10.5 |
Yd11 | 980 | 9410 | 1 | 6.5 |
| 1000 | 35 | ±5% | 3.15 6.3 10.5 |
Yd11 | 1150 | 11540 | 1 | 6.5 |
| 1250 | 35 | ±5% | 3.15 6.3 10.5 |
Yd11 | 1410 | 13940 | 0.9 | 6.5 |
| 1600 | 35 | ±5% | 3.15 6.3 10.5 |
Yd11 | 1700 | 16670 | 0.8 | 6.5 |
| 2000 | 35 | ±5% | 3.15 6.3 10.5 |
Yd11 | 2180 | 18380 | 0.7 | 6.5 |
We respond within 1 hour with suitable transformer recommendations, quotations, and payment terms. Our professional team confirms all drawing details within 7 days after payment, including technical data, weight, and parts list.
After finalizing production drawings, we prepare stock, manufacture, and conduct rigorous quality inspections. We provide QC reports and test reports, with strict raw material screening for quality assurance.
Our professional team provides installation guidance and on-site support. We offer more than 2 years warranty service for complete peace of mind.
HENTG POWER is a professional designer, manufacturer and installer of power system solutions founded in 2011, specializing in reliable, high-performance solutions for global power systems.
We conduct pre-production samples and final inspections before shipment, providing QC & test reports. We accept Factory Acceptance Tests and offer over 2 years warranty service.
We have professional drawing and technical teams that confirm all drawing details within 7 days, with 30+ senior engineers offering 24-hour online service and 30-minute response time.
We accept OEM orders with negotiated business payment terms.
