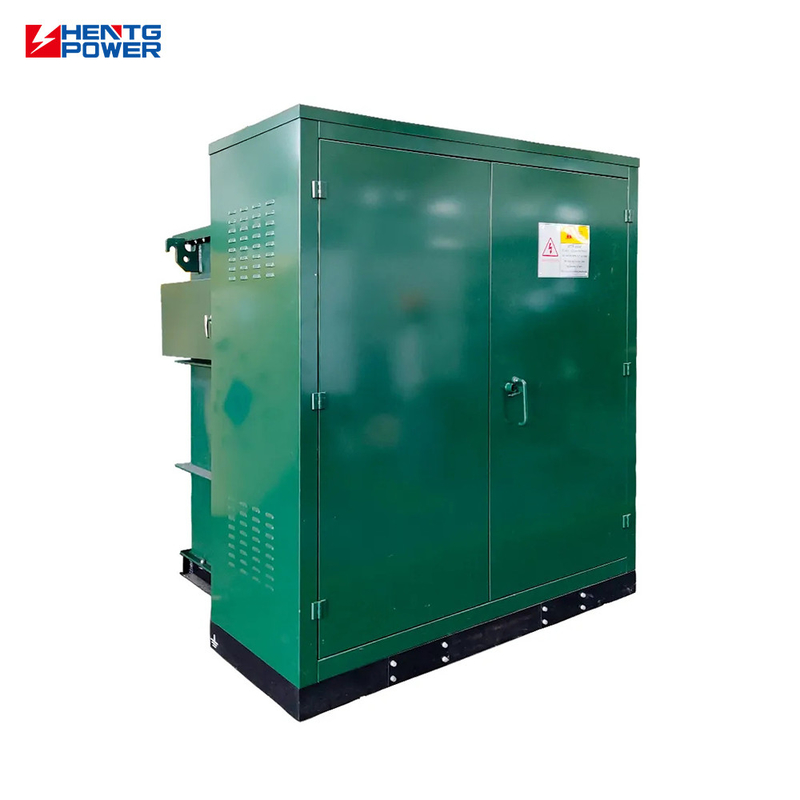

Pad Mounted Medium Voltage Step Up Transformer 750kVA 3 Phase Electrical Transformer
Pad Mounted Medium Voltage Step Up Transformer 750kVA 3 Phase Electrical Transformer Product Overview Pad Mounted Medium Voltage Instrument Transformers Step Up Transformer 750kVA Electrical Transformer 3 Phase Technical Specifications Capacity (KVA) HV Tapping Range LV No-load Loss Load Loss Impedance Efficiency 750 2400-34500V ±2X2.5% 110-690V 880 7500 4.0-6.3 99.4 Product Attributes Type Distribution Transformer, Oil-filled Transformer Material Aluminum, Aluminum Winding
Medium Voltage Step Up Transformer
,Pad Mounted 3 Phase Electrical Transformer
,Pad Mounted Step Up Transformer 750kVA
Pad Mounted Medium Voltage Instrument Transformers Step Up Transformer 750kVA Electrical Transformer 3 Phase
| Capacity (KVA) | HV | Tapping Range | LV | No-load Loss | Load Loss | Impedance | Efficiency |
|---|---|---|---|---|---|---|---|
| 750 | 2400-34500V | ±2X2.5% | 110-690V | 880 | 7500 | 4.0-6.3 | 99.4 |
| Type | Distribution Transformer, Oil-filled Transformer |
|---|---|
| Material | Aluminum, Aluminum Winding |
| Frequency | 50Hz, 60Hz |
| Input Voltage | 3kV, 6kV, 10kV, 15kV, 35kV, 69kV, 110kV, 115kV, 132kV, 400kV |
| Output Voltage | 11kV, 110V, 220V, 380V, 440V, 480V |
| Cooling Method | ONAN ONAF OFAF |
| Core Material | Amorphous Alloy Steel |
| Application | Industrial Power Distribution |
- Manufactured by professionals with over 30 years of transformer production experience
- Compliant with international standards: ANSI, CSA, DOE, NEMA, IEEE
- Certified by UL, CUL, and CSA for quality assurance
- Sealed metal enclosure (iron or aluminum alloy) for weather and corrosion resistance
- Ground or concrete base installation suitable for outdoor or space-limited locations
- Lightweight and compact design for easier transportation and maintenance

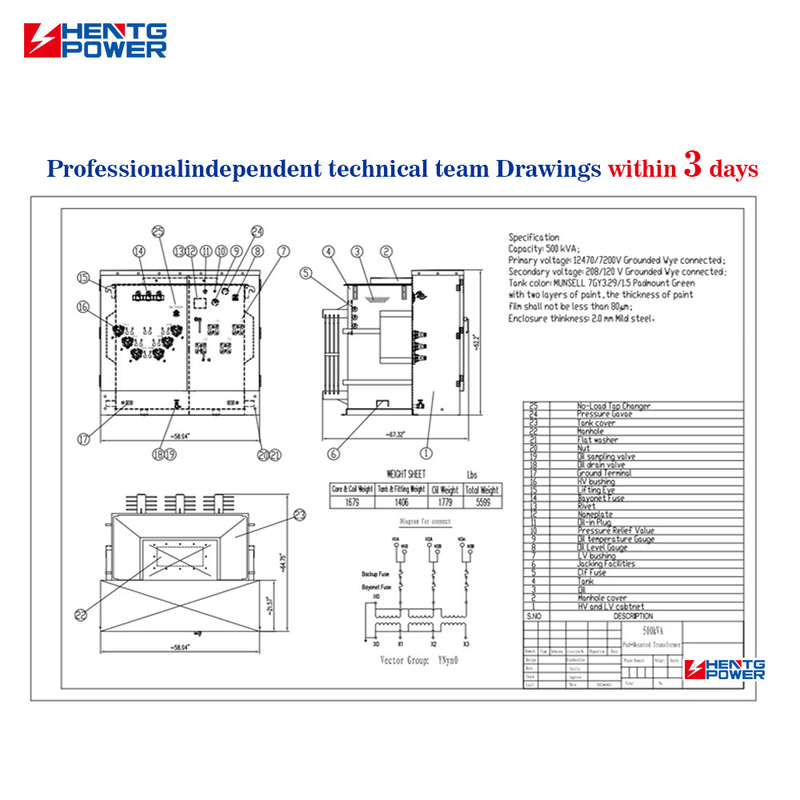

- Fully customizable solutions with detailed transformer drawings provided
- Reliable Performance: Strict quality control ensures long-term stable operation
- Durable Construction: Protective enclosure extends service life and reduces maintenance
- Versatile Installation: Suitable for urban and remote locations with space constraints
- Cost-Effective: Lightweight design reduces transportation and installation costs
- Custom Solutions: Tailored designs to meet specific project requirements
This high-quality transformer provides stable, long-term performance that minimizes production interruptions and economic losses from equipment failures. The durable design and comprehensive certifications ensure peace of mind for industrial power distribution applications.
-
