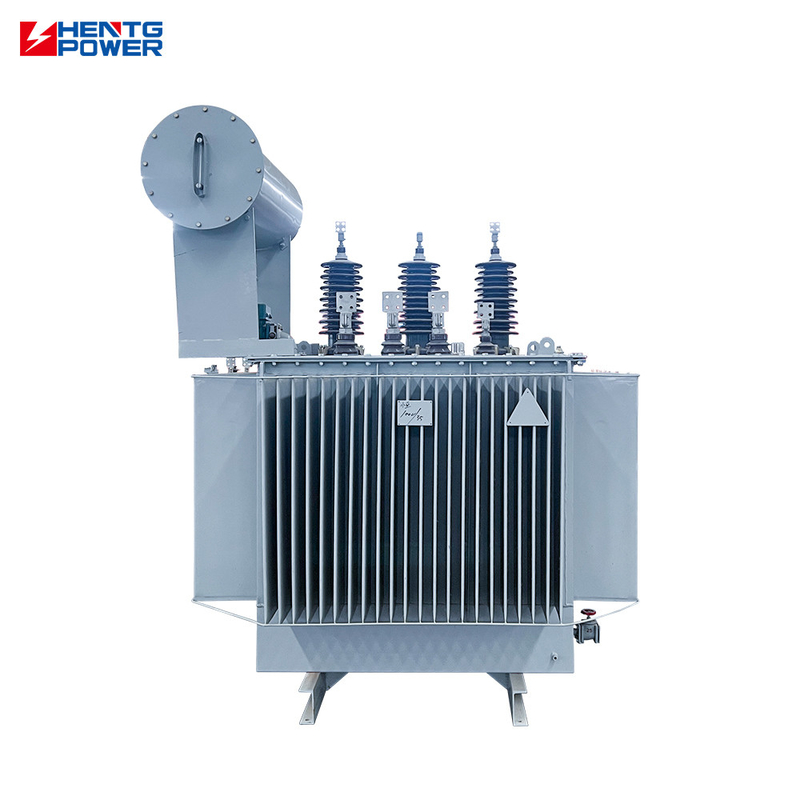

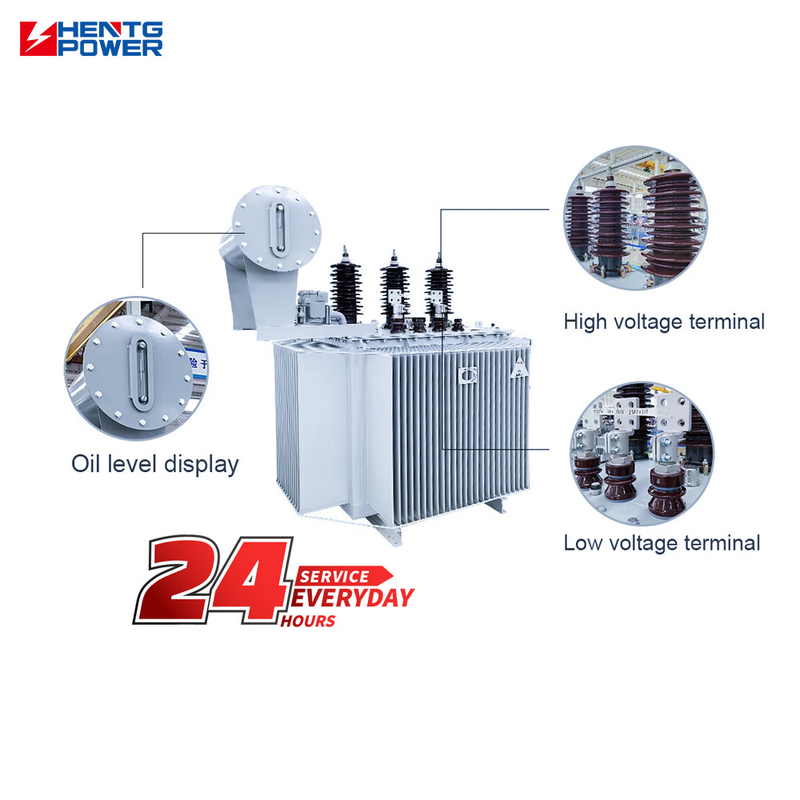

Industrial Zones Oil Filled Distribution Transformer 3 Phase 1500Kva 2500kva Step Up Transformer
Industrial Zones Oil Filled Distribution Transformer 3 Phase 1500Kva-2500kva Step Up Transformer Product Specifications Attribute Value Frequency 50Hz, 60Hz, 50/60Hz Phase Three Application Distribution system Output Voltage 10kV, 415V, 110V, 220V, 380V Input Voltage 11kV, 10.5kV, 3kV, 12.47kV, 6...
Oil Filled Distribution Transformer 3 Phase
,Industrial Zones Oil Filled Distribution Transformer
,Industrial Zones Step Up Transformer
| Attribute | Value |
|---|---|
| Frequency | 50Hz, 60Hz, 50/60Hz |
| Phase | Three |
| Application | Distribution system |
| Output Voltage | 10kV, 415V, 110V, 220V, 380V |
| Input Voltage | 11kV, 10.5kV, 3kV, 12.47kV, 6.6kV |
| Type | Oil-Immersed Transformer |
| Material | Aluminum, Copper |
| Winding Material | Aluminum, Copper |
- Power Plants: Efficient power conversion for industrial applications
- Substations: Reliable voltage transformation in high-demand networks
- Renewable Energy Systems: Optimized for use with solar and wind power plants
- Industrial Facilities: Power supply for large-scale manufacturing and processing units
| Capacity (KVA) | HV (KV) | HV Tapping | LV (KV) | Vector Group | No-load Loss (W) | On-load Loss (W) | No-load Current (%) | Short Circuit Impedance (%) |
|---|---|---|---|---|---|---|---|---|
| 630 | 35 | ±5% | 3.15 6.3 10.5 |
Yd11 | 830 | 7870 | 1.1 | 6.5 |
| 800 | 980 | 9410 | 1 | |||||
| 1000 | 1150 | 11540 | 1 | |||||
| 1250 | 1410 | 13940 | 0.9 | |||||
| 1600 | 1700 | 16670 | 0.8 | |||||
| 2000 | 2180 | 18380 | 0.7 | |||||
| 2500 | 2560 | 19670 | 0.6 |
We respond to inquiries within 1 hour and recommend suitable transformers according to your needs. We provide reasonable quotations and payment terms. Our professional drawing team confirms all design details within 7 days after payment.
After design approval, we prepare stock, produce, and conduct quality inspection before shipment. We provide QC & test reports and accept Factory Acceptance Tests (FAT).
We provide professional installation guidance and on-site support. All products come with more than 2 years warranty service.
- Optimized for 35kV Medium Voltage Networks: Designed for industrial zones, rural power grids, and utility substations. Provides efficient step-down transformation from sub-transmission to distribution voltage levels.
- Stable and Balanced Three-Phase Power Supply: Delivers consistent voltage across all three phases, ideal for industrial plants and large-scale energy consumers.
- Efficient Oil-Immersed Cooling System: Uses mineral or natural ester insulating oil for effective heat dissipation and dielectric insulation.
- High Reliability and Robust Construction: Built to withstand electrical, mechanical, and thermal stress in demanding environments.
HENTG POWER is a professional designer, manufacturer and installer of power system solutions founded in 2011, occupying 100,000 square meters and specializing in reliable, high-performance solutions for global power systems.
We always provide pre-production samples and final inspection before shipment with QC & test reports. We accept FAT and manufacture transformers up to 500KV 480MVA based on international standards.
We have professional drawing and technical teams with 30+ senior engineers offering 24/7 online service with 30-minute response time.
We accept OEM and custom business payment terms.
-
