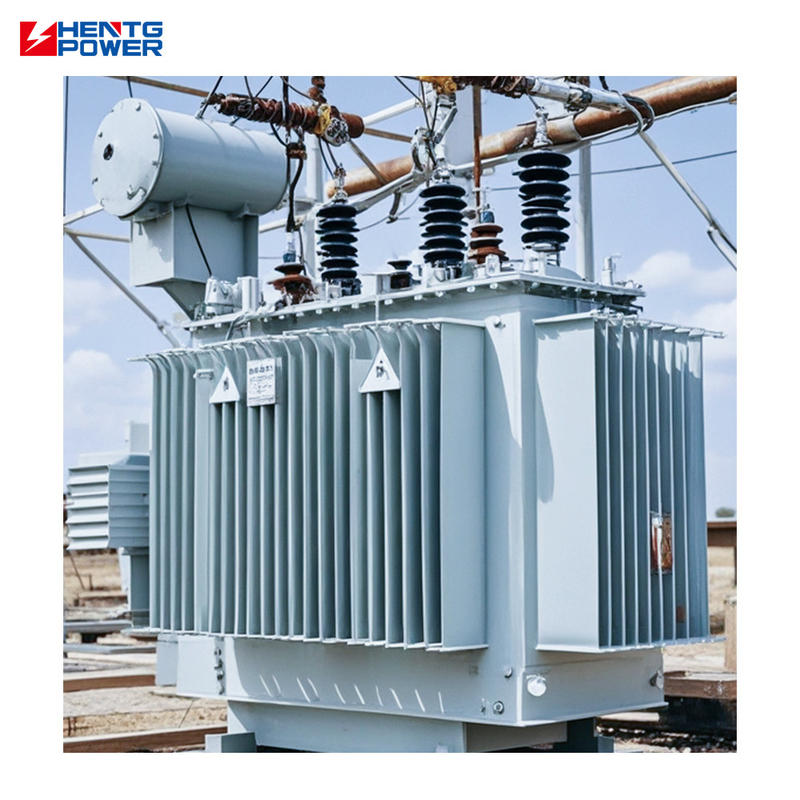

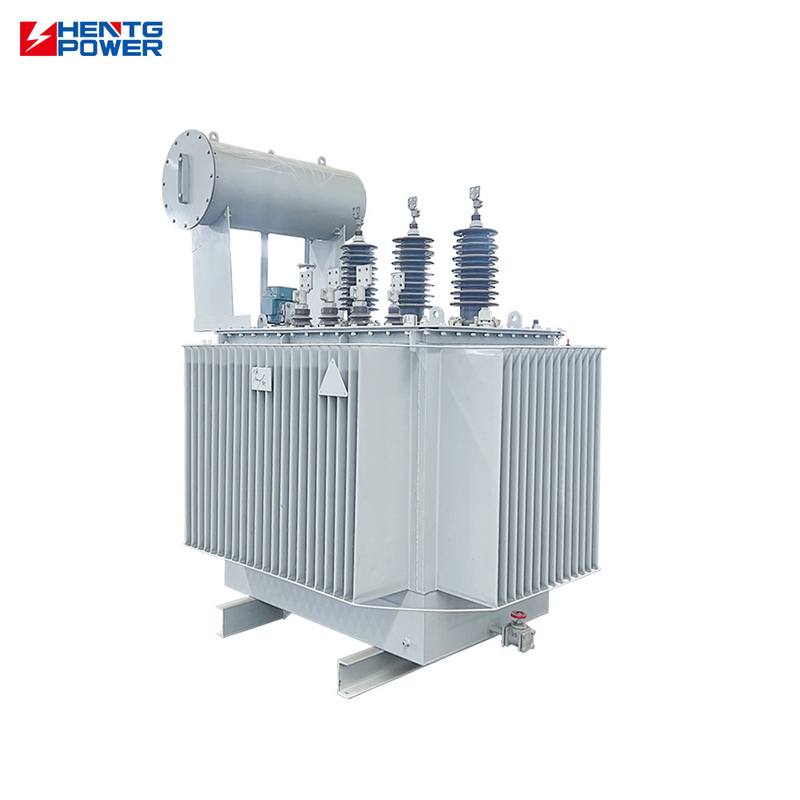

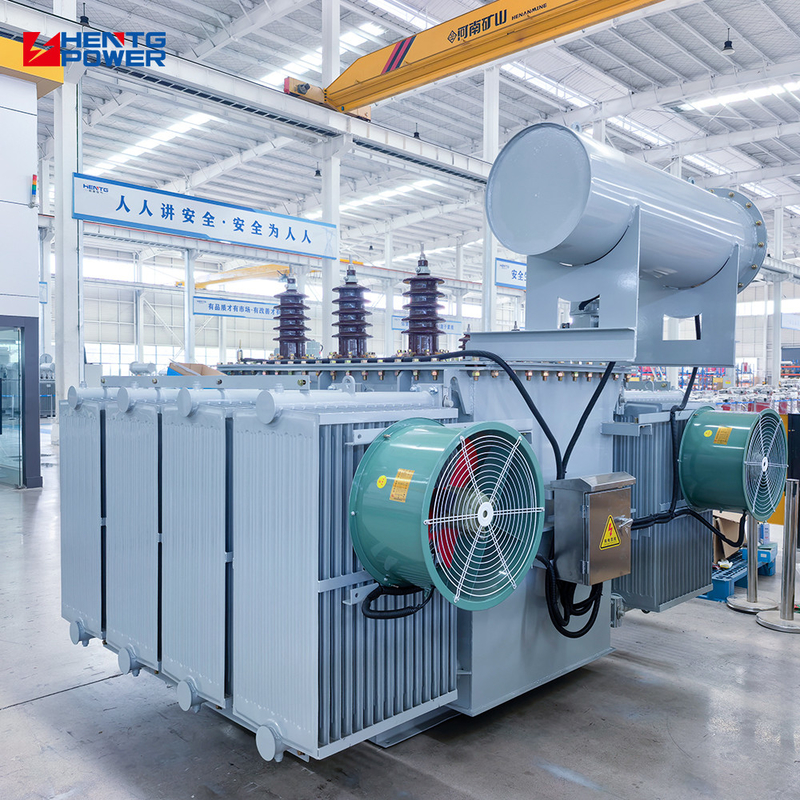

35kv Class Power Transformer Single Coil Shape 3 Phase Oil Immersed Type 30KVA 1000KVA
35kV Class Power Transformer Single Coil Shape 3 Phase Oil Immersed Type 30KVA-1000KVA Product Specifications Attribute Value Frequency 50Hz, 60Hz, 50/60Hz Phase Three Application Distribution system Output Voltage 220V, 380V, 400V, 440V, 480V, 11kV Input Voltage 12.47kV, 6.6kV, 6.3kV, 6kV, 10kV, 35kV, 69kV, 110kV, 115kV, 132kV, 220kV, 400kV Type Oil-Immersed Transformer Rated Capacity 10KVA-50000KVA Cooling Method Oil Cooling Key Features High Voltage Rating: 35kV for
Single Coil Shape Power Transformer
,1000KVA 3 Phase Power Transformer
,35kv Power Transformer Oil Immersed Type
| Attribute | Value |
|---|---|
| Frequency | 50Hz, 60Hz, 50/60Hz |
| Phase | Three |
| Application | Distribution system |
| Output Voltage | 220V, 380V, 400V, 440V, 480V, 11kV |
| Input Voltage | 12.47kV, 6.6kV, 6.3kV, 6kV, 10kV, 35kV, 69kV, 110kV, 115kV, 132kV, 220kV, 400kV |
| Type | Oil-Immersed Transformer |
| Rated Capacity | 10KVA-50000KVA |
| Cooling Method | Oil Cooling |
- High Voltage Rating: 35kV for superior performance in medium voltage applications
- Wide Power Range: Available from 50kVA to 3150kVA to suit various power needs
- Oil-Immersed Technology: Uses mineral oil for effective heat dissipation and reliable performance
- Efficient Design: Reduced no-load losses and low noise, ensuring energy efficiency and quiet operation
| Capacity (KVA) | HV (KV) | HV Tapping | LV (KV) | Vector Group | No-load Loss (W) | On-load Loss (W) | No-load Current (%) | Short Circuit Impedance (%) |
|---|---|---|---|---|---|---|---|---|
| 630 | 35 | ±5% | 3.15 6.3 10.5 |
Yd11 | 830 | 7870 | 1.1 | 6.5 |
| 800 | 35 | ±5% | 3.15 6.3 10.5 |
Yd11 | 980 | 9410 | 1 | 6.5 |
| 1000 | 35 | ±5% | 3.15 6.3 10.5 |
Yd11 | 1150 | 11540 | 1 | 6.5 |
| 1250 | 35 | ±5% | 3.15 6.3 10.5 |
Yd11 | 1410 | 13940 | 0.9 | 6.5 |
| 1600 | 35 | ±5% | 3.15 6.3 10.5 |
Yd11 | 1700 | 16670 | 0.8 | 6.5 |
| 2000 | 35 | ±5% | 3.15 6.3 10.5 |
Yd11 | 2180 | 18380 | 0.7 | 6.5 |
| 2500 | 35 | ±5% | 3.15 6.3 10.5 |
Yd11 | 2560 | 19670 | 0.6 | 6.5 |
We respond to inquiries within 1 hour with suitable transformer recommendations, competitive quotations, and payment terms. Our professional drawing and technical teams confirm all drawing details within 7 days after payment, including technical data, weight, and parts list.
After finalizing production drawings, we prepare stock, manufacture, and conduct rigorous quality inspections before shipment. We provide QC reports and test reports, with raw materials strictly screened for quality assurance.
Our professional team provides installation guidance and on-site support. All products come with a minimum 2-year warranty service.
- 30+ senior engineers offering 24/7 online support with 30-minute response time
- 100,000m² factory with 250 workers and 30+ engineers
- 4 production lines with 10,000+ sets annual production capacity
- 100% OQC testing with 25 detection parameters
- 15 years power transformer design and production experience
- Products comply with GB 20052-2024/ANSI/IEEE/DOE2016/CSA/IEC60076 standards
- Cross-industry power transformer solutions
- Global on-site technical support
HENTG POWER is a professional designer, manufacturer and installer of power system solutions worldwide, founded in 2011 with a 100,000 square meter facility. We specialize in reliable, high-performance solutions for global power systems.
We conduct pre-production sampling and final inspections before shipment, providing QC & test reports. We accept Factory Acceptance Tests (FAT). Our factory produces oil and dry type distribution transformers up to 500KV 480MVA, GIS, switchgear, and substations, complying with ANSI/IEEE/DOE2016/CSA/IEC60076 standards, with a minimum 2-year warranty.
We have professional, independent drawing and technical teams that confirm all drawing details within 7 days. Our team of 30+ senior engineers provides 24/7 online support with 30-minute response times.
We accept OEM orders and negotiate business payment terms to meet customer requirements.
-
