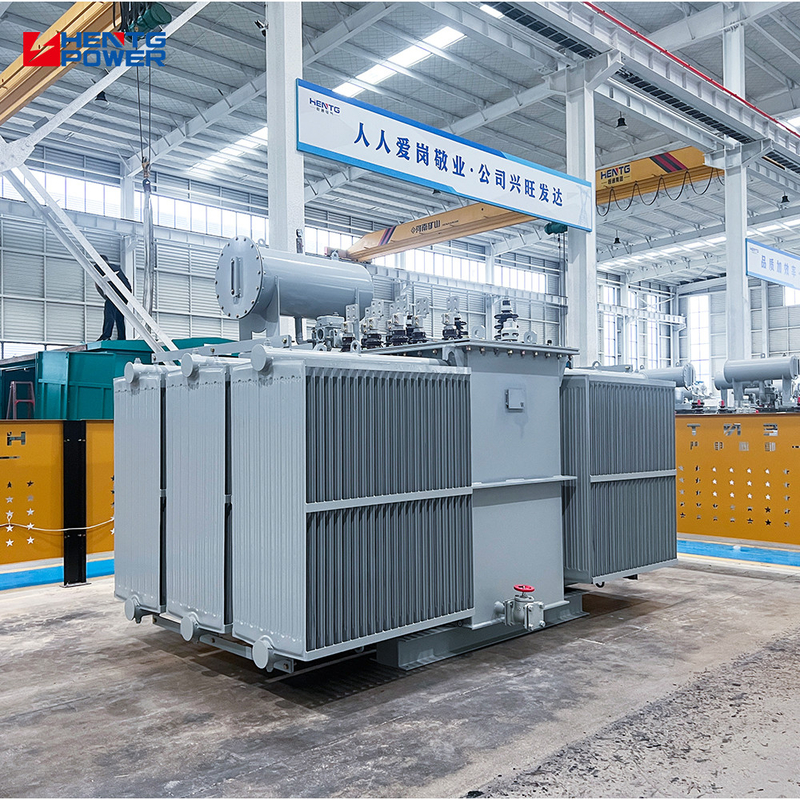

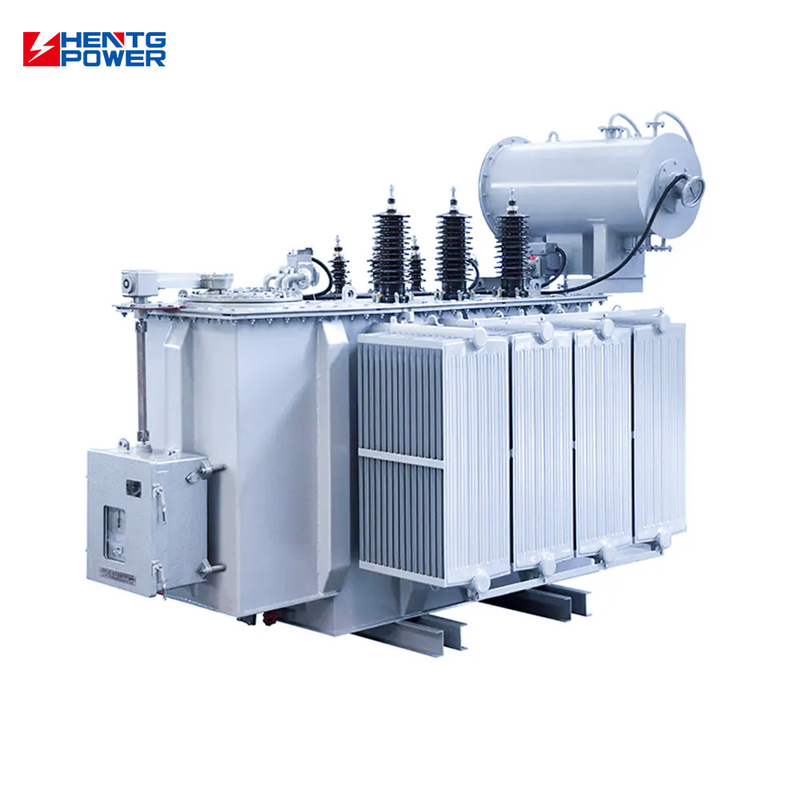

35kv 1600kva 2500kva Power Plant Distribution Transformer Variable Voltage Oil Type
35kV 1600kVA/2500kVA Power Plant Distribution Transformer (Variable Voltage Oil Type) Product Specifications Attribute Value Frequency 50Hz, 60Hz Phase Three Coil Number Two Windings, Multi Winding, Three Windings Application Power Transformer Coil Structure Shell-Type Coil, layer coil, fully sealed construction, Disc Coil, round coil Output Voltage 10kV, 415V, 110V, 220V, 380V, 400V, 480V Input Voltage 11kV, 10.5kV, 3kV, 12.47kV, 6.6kV, 6.3kV, 6kV, 10kV, 35kV Type Voltage
Oil Type Power Plant Distribution Transformer
,Power Plant Distribution Transformer Variable Voltage
,2500kva Power Plant Distribution Transformer
| Attribute | Value |
|---|---|
| Frequency | 50Hz, 60Hz |
| Phase | Three |
| Coil Number | Two Windings, Multi Winding, Three Windings |
| Application | Power Transformer |
| Coil Structure | Shell-Type Coil, layer coil, fully sealed construction, Disc Coil, round coil |
| Output Voltage | 10kV, 415V, 110V, 220V, 380V, 400V, 480V |
| Input Voltage | 11kV, 10.5kV, 3kV, 12.47kV, 6.6kV, 6.3kV, 6kV, 10kV, 35kV |
| Type | Voltage Regulator Transformer, AUTOTRANSFORMER, Oil-Immersed Transformer |
| Product Name | 35kV class 3 phase power transformer |
| Winding Material | Copper / Aluminum |
| Cooling Method | ONAN ONAF OFAF |
| Customization | Accept |
- Oil-Immersed Technology: Uses mineral oil for effective heat dissipation and reliable performance.
- Corrosion-resistant Material: Built with high-quality materials for durability in harsh environments.
- Compact and Robust Construction: Designed for space-saving and long-lasting use.
| Capacity (KVA) | HV (KV) | HV Tapping | LV (KV) | Vector Group | No-load Loss (W) | On-load Loss (W) | No-load Current (%) | Short Circuit Impedance (%) |
|---|---|---|---|---|---|---|---|---|
| 630 | 35~38.5 | ±2*2.5% | 3.15 3.3 6.3 6.6 10.5 11 |
Ynd11 | 830 | 7870 | 1.1 | 6.5 |
| 800 | 980 | 9410 | 1 | |||||
| 1000 | 1150 | 11540 | 1 | |||||
| 1250 | 1410 | 13940 | 0.9 | |||||
| 1600 | 1700 | 16670 | 0.8 | |||||
| 2000 | 2180 | 18380 | 0.7 | |||||
| 2500 | 2560 | 19670 | 0.6 | |||||
| 3150 | 3040 | 23090 | 0.56 | 7 | ||||
| 4000 | 3620 | 27360 | 0.56 | |||||
| 5000 | 4320 | 31380 | 0.48 | |||||
| 6300 | 5250 | 35060 | 0.48 | 7.5 | ||||
| 8000 | 7200 | 38480 | 0.42 | |||||
| 10000 | 8700 | 45320 | 0.42 | |||||
| 12500 | 10080 | 53870 | 0.4 | 8 | ||||
| 16000 | 12160 | 65840 | 0.4 | |||||
| 20000 | 14400 | 79520 | 0.4 | |||||
| 25000 | 17020 | 94050 | 0.32 | |||||
| 31500 | 20220 | 112860 | 0.32 |
We respond to inquiries within 1 hour and recommend suitable transformers based on your requirements. We provide competitive quotations and payment terms. Our professional drawing and technical teams confirm all drawing details within 7 days after payment, including technical data, weight, and parts list.
After finalizing production drawings, we prepare materials, manufacture, and conduct rigorous quality inspections before shipment. We provide QC reports and test reports, and accept Factory Acceptance Tests (FAT). Our transformers comply with ANSI/IEEE/DOE2016/CSA/IEC60076 standards.
Our professional team provides installation guidance and on-site support. We offer comprehensive warranty service for over 2 years.
HENTG POWER is a professional designer, manufacturer and installer of power system solutions founded in 2011. Our 100,000 square meter facility specializes in reliable, high-performance solutions for global power systems.
We conduct pre-production samples and final inspections before shipment, providing QC & test reports. We accept Factory Acceptance Tests (FAT) and manufacture transformers up to 500KV 480MVA capacity, complying with international standards. Our products come with over 2 years warranty.
Our professional drawing and technical teams (30+ senior engineers) confirm drawings within 7 days and provide 24/7 support with 30-minute response times.
We accept OEM orders and negotiate business payment terms to meet customer requirements.
-
