Sealed Tank Design 3 Phase Padmounted Transformers 225kVA Power Distribution
Sealed Tank Design 3 Phase Padmounted Transformers 225kVA Power Distribution Product Specifications Attribute Value Type Distribution transformer, power transformer, Oil-filled Transformer Winding Material Aluminum Application Power Distribution System Input Voltage 3kV, 6kV, 10kV, 15kV, 35kV, 69kV, 110kV, 220kV, 400kV, 115kV, 132kV Output Voltage 5V, 400V, 208V, 200V, 415V, 127V, 11kV, 12V, 24V, 48V, 110V, 220V, 36V, 380V, 440V, 480V, 9V Cooling Method ONAN ONAF Rated Power
Sealed Tank Design Padmounted Transformers
,3 Phase Padmounted Transformers 225kVA
| Attribute | Value |
|---|---|
| Type | Distribution transformer, power transformer, Oil-filled Transformer |
| Winding Material | Aluminum |
| Application | Power Distribution System |
| Input Voltage | 3kV, 6kV, 10kV, 15kV, 35kV, 69kV, 110kV, 220kV, 400kV, 115kV, 132kV |
| Output Voltage | 5V, 400V, 208V, 200V, 415V, 127V, 11kV, 12V, 24V, 48V, 110V, 220V, 36V, 380V, 440V, 480V, 9V |
| Cooling Method | ONAN ONAF |
| Rated Power | 15 kVA to 500 kVA |
| Insulation Class | Class 1 |
| Capacity (KVA) | HV | Tapping range | LV | No-load loss | Load loss | Impedance | Efficiency |
|---|---|---|---|---|---|---|---|
| 75 | 2400 4160 7200 7620 12000 12470 13200 13800 14400 19920 24940 34500 | ±2X2.5% | 110 120 208 240 277 347 415 416 480 600 690 | 130 | 100 | 4.0-6.3 | 99.03 |
| 152 | 200 | 1800 | 99.16 | ||||
| 225 | 350 | 3100 | 99.23 | ||||
| 300 | 430 | 3700 | 99.27 | ||||
| 500 | 600 | 5410 | 99.35 |

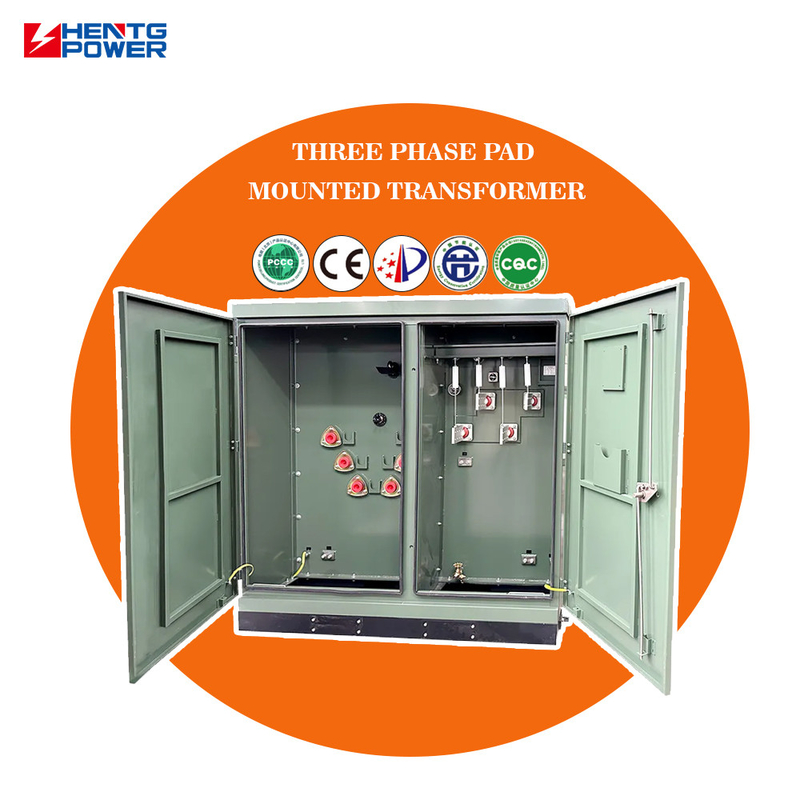

The 225kVA Three-Phase Pad-Mounted Transformer is designed for commercial and light industrial power distribution. Its sealed, tamper-resistant construction makes it ideal for ground-level outdoor installations in residential communities, business parks, and utility zones. This compact transformer delivers consistent voltage and low maintenance requirements, combining durability and efficiency in a compact, weatherproof package.
- Power Rating: 225kVA
- Configuration: Three-phase, pad-mounted
- Voltage Options: Customizable per project (e.g., 13.8kV to 480V)
- Cooling Type: ONAN (Oil Natural Air Natural)
- Sealed tank design with tamper-proof construction
- Corrosion-resistant steel enclosure
- Dead-front or live-front options available
- Low noise operation for urban use
- Compliant with IEEE, ANSI, and NEMA standards
-
