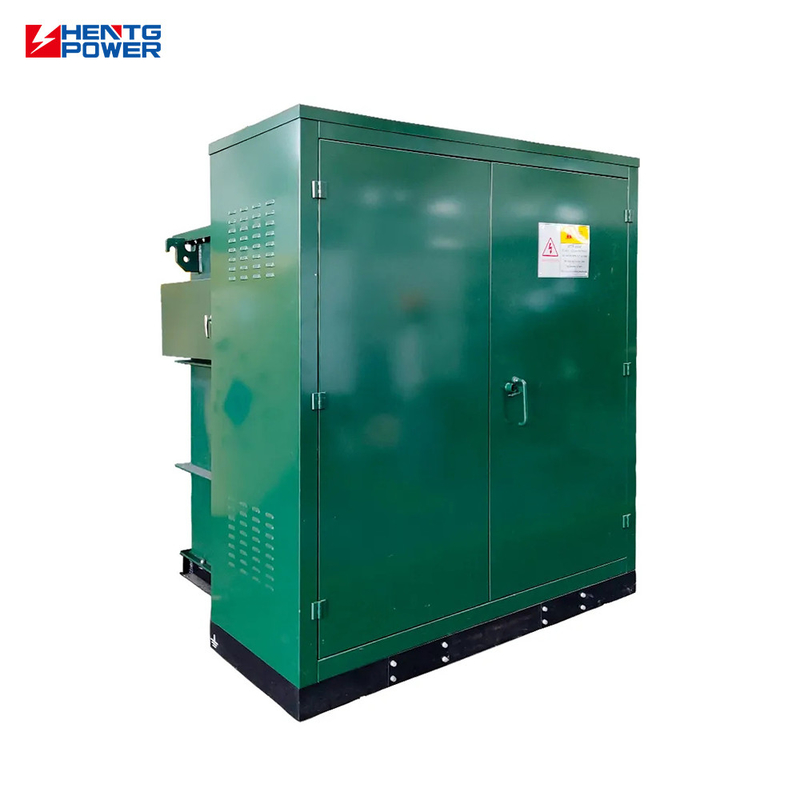

Aluminum Winding Outdoor Pad Mounted Transformer 150kVA 50Hz Frequency Low Noise
Aluminum Winding Outdoor Pad Mounted Transformer 150kVA 50Hz Frequency Low Noise Key Specifications Attribute Value Type Distribution transformer, power transformer, Oil-filled Transformer Frequency 50Hz Winding Material Aluminum Application Power Distribution System Coil Structure TOROIDAL Input Voltage 10kV Output Voltage 400V, 208V, 200V, 48V, 110V, 220V, 36V, 380V, 440V, 480V Sound Level 65dBA Power Rating 5 kVA to 500 kVA Mounting Type Pad-mounted Tank Material 304
Outdoor Pad Mounted Transformer 150kVA
,50Hz Frequency Outdoor Pad Mounted Transformer
| Attribute | Value |
|---|---|
| Type | Distribution transformer, power transformer, Oil-filled Transformer |
| Frequency | 50Hz |
| Winding Material | Aluminum |
| Application | Power Distribution System |
| Coil Structure | TOROIDAL |
| Input Voltage | 10kV |
| Output Voltage | 400V, 208V, 200V, 48V, 110V, 220V, 36V, 380V, 440V, 480V |
| Sound Level | 65dBA |
| Power Rating | 5 kVA to 500 kVA |
| Mounting Type | Pad-mounted |
| Tank Material | 304 Stainless Steel |
| Efficiency | ＞99.10% |
| Rated Capacity | 100~2500kVA Or Customized |
| UL Certificate Numbers | UL-US-2431836-0, UL-CA-2423202-0 |
The 150kVA Three-Phase Pad-Mounted Transformer is a high-performance power distribution solution designed for outdoor installations. Built for medium to large commercial, industrial, and infrastructure applications, this transformer ensures efficient, stable, and reliable power delivery with low maintenance needs. Its rugged construction, oil-immersed insulation, and weatherproof design make it ideal for demanding environments while maintaining high energy efficiency and low noise operation.
- Rated Capacity: 150kVA - Designed for medium to large-scale commercial and industrial applications
- Three-Phase Power: Provides reliable and balanced power for equipment requiring three-phase power supply
- Pad-Mounted Design: Ideal for outdoor installations with compact space-saving design
- Oil-Immersed Insulation: Efficient heat dissipation and superior insulation performance
- Low Noise Emission: Operates quietly with ≤ 55 dB, suitable for noise-sensitive areas
- Weatherproof Construction: Resistant to moisture, dust, and temperature fluctuations
- IP23 Protection Rating: Protection against dust and water ingress for reliable outdoor use
Ensures stable and continuous power supply for commercial, industrial, and infrastructure applications.
Compact pad-mounted design allows installation in areas with limited space.
Low no-load and load losses reduce electricity consumption and operational costs.
Oil-immersed design reduces need for frequent inspections and maintenance.
Built to withstand outdoor elements for long-term operation in challenging environments.
- Ideal for powering machinery, control systems, HVAC, and lighting in commercial and industrial facilities
- Robust, weatherproof design suitable for parks, street lighting, and remote locations
- Compliant with IEC 60076 and other international transformer standards
- Flexible voltage configurations and protection levels (IP44, IP54) available
- Environmentally friendly design with minimized energy losses
HENTG POWER is a professional designer, manufacturer and installer of power system solutions worldwide, founded in 2011. Our quality assurance includes:
- Pre-production samples before mass production
- Final inspection before shipment with QC & test reports
- Factory Acceptance Test (FAT) available
- Manufacturing capability up to 500KV 480MVA power transformers
- Compliance with ANSI/IEEE/DOE2016/CSA/IEC60076 standards
- 2+ years guarantee service
-
