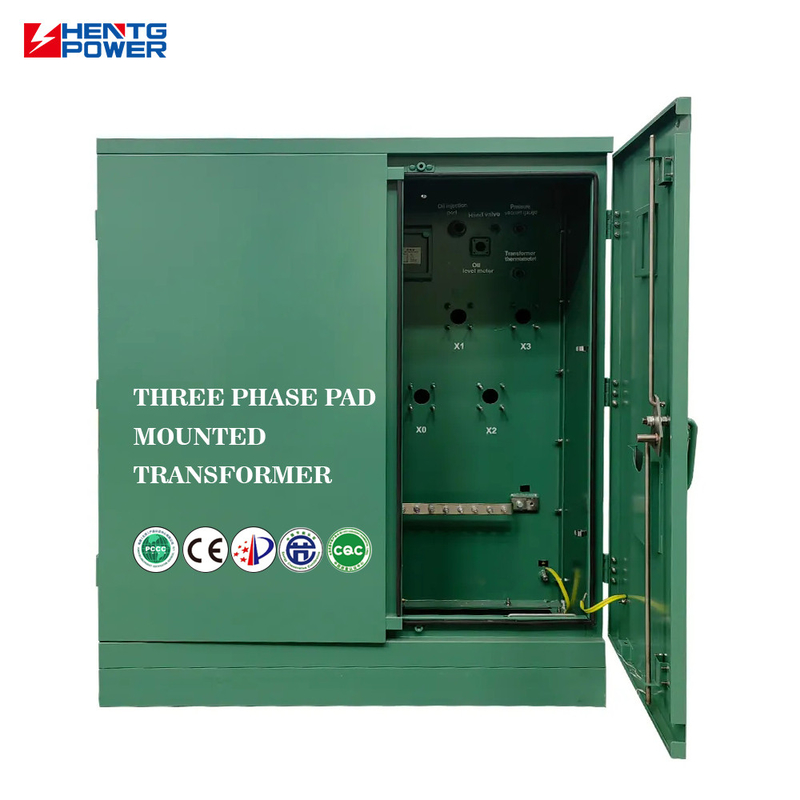

1500kVA Industrial Three Phase Pad Mounted Transformer Tamper Resistant Design
1500kVA Industrial Three Phase Pad Mounted Transformer Tamper Resistant Design Product Specifications Attribute Value Type Distribution transformer, power transformer, Oil-filled Transformer Frequency 50Hz, 60Hz Winding Material Aluminum Application Power Distribution System Phase Three Coil Structure TOROIDAL Input Voltage 10kV Output Voltage 277V, 480V Insulation Class Class A Standard ANSI, IEC Voltage Class 15 kV to 35 kV Impedance Voltage 5.8% Primary Voltage 8320V
Industrial Three Phase Pad Mounted Transformer
,1500kVA Pad Mounted Transformer
,Tamper Resistant Pad Mounted Transformer
| Attribute | Value |
|---|---|
| Type | Distribution transformer, power transformer, Oil-filled Transformer |
| Frequency | 50Hz, 60Hz |
| Winding Material | Aluminum |
| Application | Power Distribution System |
| Phase | Three |
| Coil Structure | TOROIDAL |
| Input Voltage | 10kV |
| Output Voltage | 277V, 480V |
| Insulation Class | Class A |
| Standard | ANSI, IEC |
| Voltage Class | 15 kV to 35 kV |
| Impedance Voltage | 5.8% |
| Primary Voltage | 8320V |
| Cooling Type | ONAN/KNAN |
| Insulation Level | E Class |
| Capacity (KVA) | No-load loss | Load loss | Impedance | Efficiency |
|---|---|---|---|---|
| 75 | 130 | 100 | 4.0-6.3 | 99.03 |
| 152 | 200 | 1800 | 99.16 | |
| 225 | 350 | 3100 | 99.23 | |
| 300 | 430 | 3700 | 99.27 | |
| 500 | 600 | 5410 | 99.35 | |
| 750 | 880 | 7500 | 99.4 | |
| 1000 | 1000 | 10300 | 99.43 | |
| 1500 | 1400 | 14500 | 99.48 | |
| 2000 | 1800 | 18300 | 99.51 | |
| 2500 | 2300 | 23100 | 99.53 |
- Pad-mounted three-phase configuration
- Oil-immersed self-cooled system
- Tamper-proof, weather-resistant enclosure
- Low-noise and vibration operation
- Durable, maintenance-minimized design
- International compliance (IEEE, ANSI, IEC)
- High Power Capacity: Handles large electrical loads with stability and precision, ideal for high-demand environments.
- Built for Outdoors: Enclosure is engineered to withstand harsh weather, temperature extremes, and vandalism.
- Reduced Maintenance Needs: Oil-immersed cooling and sealed tank reduce the need for regular maintenance.
- Space-Saving Installation: Pad-mounted design simplifies site preparation and reduces installation footprint.
- Reliable Safety: Integrated protections and a sealed structure guard against faults and external risks.
- Operational Efficiency: Designed to minimize energy loss and maximize performance across years of use.
- Versatile Compatibility: Suitable for integration into diverse power distribution systems, from substations to industrial grids.
- Utility Substations: Delivers consistent voltage transformation and backup support.
- Manufacturing & Processing Plants: Powers large machinery, conveyors, and automation systems.
- Renewable Energy Projects: Converts and distributes electricity from solar or wind power sources.
- Large Commercial Complexes: Ideal for shopping centers, office parks, and mixed-use developments.
- Institutional Campuses: Serves hospitals, universities, and airports with safe, scalable power supply.

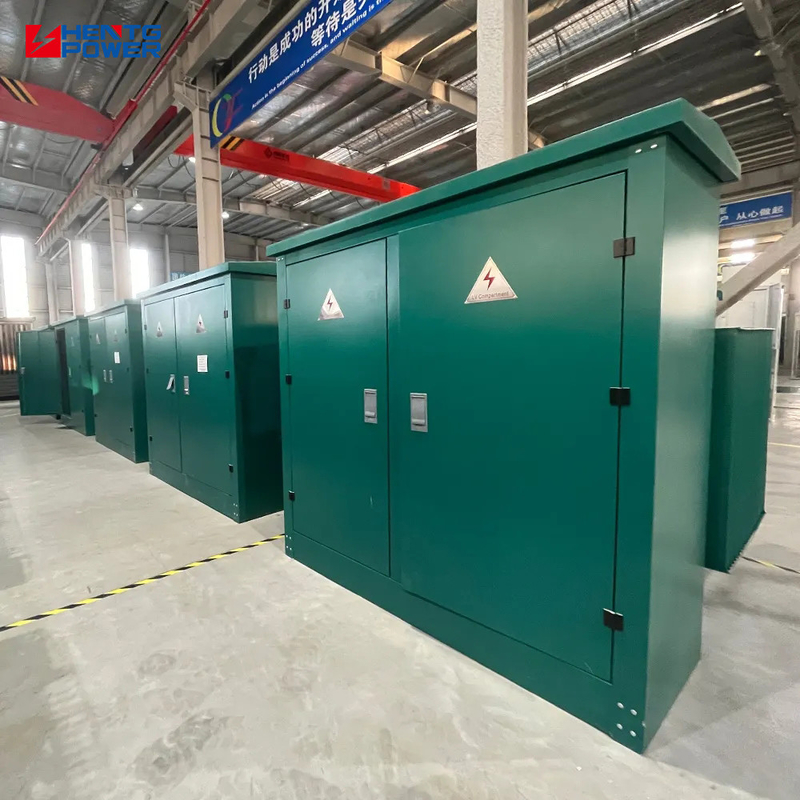

HENTG POWER is a professional designer, manufacturer and installer of power system solutions around the World, founded in 2011, occupying 100,000 square meters. We specialize in reliable, high-performance solutions for global power systems.
We always provide a pre-production sample before mass production and conduct final inspection before shipment, including QC & test reports. We accept FAT (Factory Acceptance Test). Our factory can manufacture oil type and dry type distribution transformers, max 500KV 480MVA power transformer, GIS, switchgear, substation, based on ANSI/IEEE/DOE2016/CSA/IEC60076 standard. We provide a guarantee service of over 2 years.
We have a professional and independent drawing team and technical team, capable of confirming all drawing contents with you within 7 days. Our technical team includes 30+ senior engineers offering 24-hour online service with responses within 30 minutes.
We accept OEM, and business payment terms are negotiable. We have a professional team to guide the installation, and also support on-site installation. We will provide you with more than 2 years of warranty service.
-
