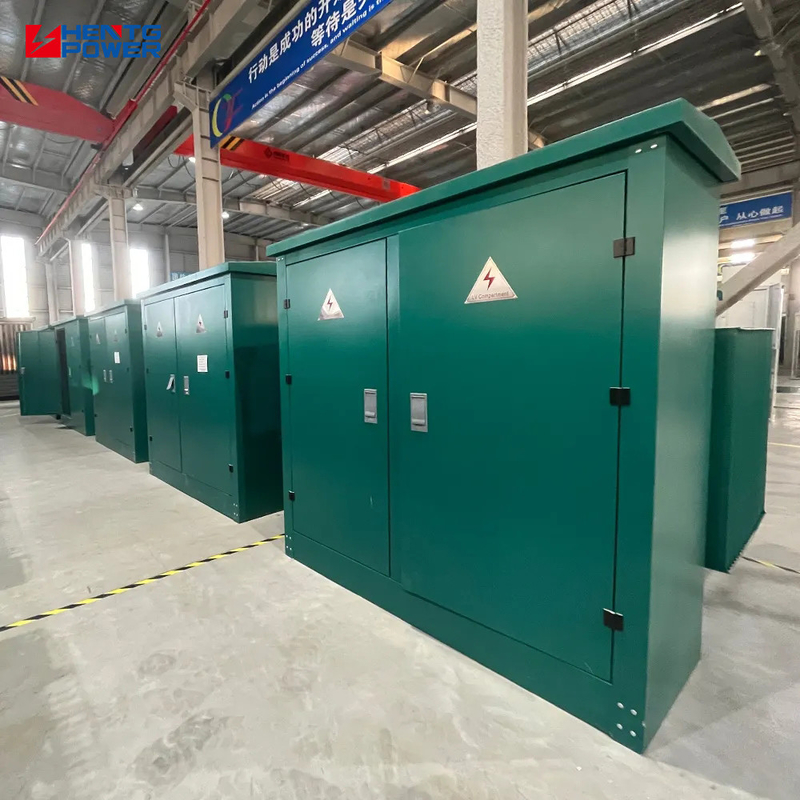

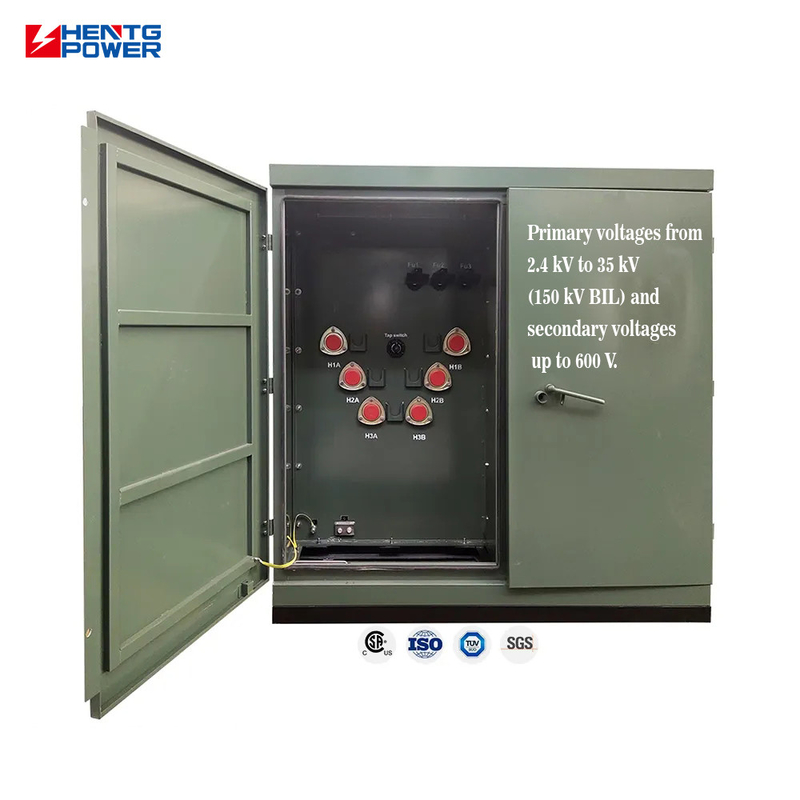

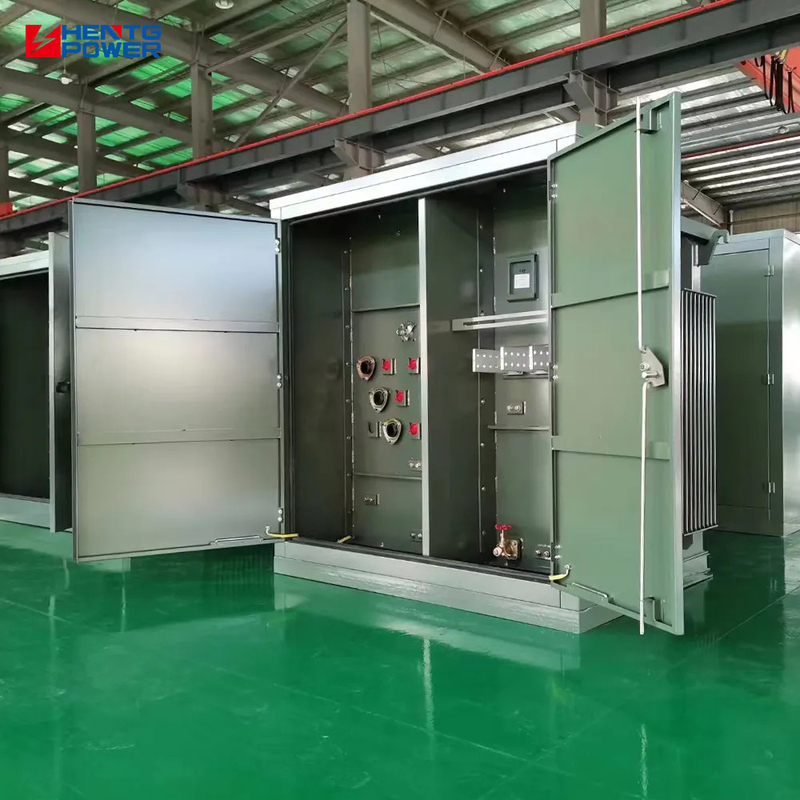

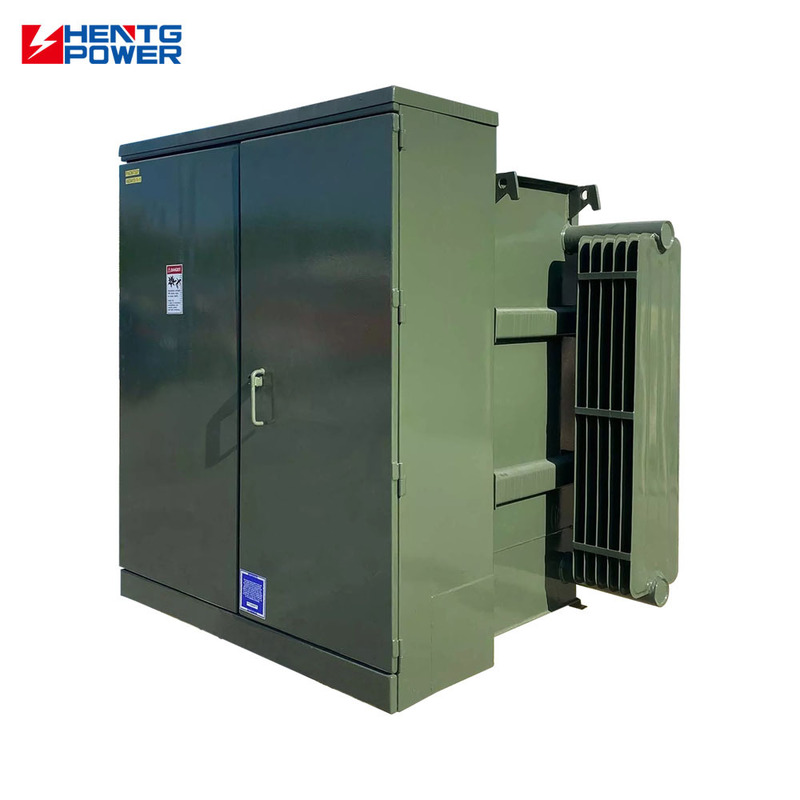

Three Phase Pad Mounted Transformer Step Up Step Down 500KVA 750KVA 1000kVA 1500KVA
Three Phase Pad Mounted Transformer Step Up Step Down 500KVA 750KVA 1000kVA 1500KVA Product Specifications Attribute Value Frequency 60Hz Phase Single Phase Application Power Transformer Output Voltage 110V, 220V, 380V, 400V, 440V, 480V Input Voltage 11kV, 10.5kV, 3kV, 6.6kV, 6.3kV, 35kV, 12.47kV, 6kV Type Pad Mounted Transformer Standard DOE/IEC60076/IEEE Warranty 2 Years Vector Group Dyn11/Yyn0/Yd11/YNd11 Usage Outdoor Power Line Operation High Voltage 11kv 10kv 6.3kv 6kv
Three Phase Pad Mounted Transformer 1500KVA
,500KVA Step Up Step Down Transformer
| Attribute | Value |
|---|---|
| Frequency | 60Hz |
| Phase | Single Phase |
| Application | Power Transformer |
| Output Voltage | 110V, 220V, 380V, 400V, 440V, 480V |
| Input Voltage | 11kV, 10.5kV, 3kV, 6.6kV, 6.3kV, 35kV, 12.47kV, 6kV |
| Type | Pad Mounted Transformer |
| Standard | DOE/IEC60076/IEEE |
| Warranty | 2 Years |
| Vector Group | Dyn11/Yyn0/Yd11/YNd11 |
| Usage | Outdoor Power Line Operation |
| High Voltage | 11kv 10kv 6.3kv 6kv 14.4KV 25KV 34.5KV |
| Low Voltage | 120-240/240-480/347/600 |
| Transformer Feed Type | Radial Feed |
| UL Certificate Numbers | UL-US-2431836-0, UL-CA-2423202-0 |
| Rated Capacity | 75KVA to 10000KVA Available |
| Secondary Voltage | 480Y/277 |
| Feed Type | Loop Feed |
| Cooling Method | ONAN |
| Tank Material | 304 Stainless Steel |
| Dimensions | 71-W x 73-D x 71-H |
| Insulation Class | Class A |
- Modular plate heat dissipation structure with compact layout and high heat dissipation efficiency
- Suitable for industrial, commercial, and new energy distribution scenarios with limited space
- Rated frequency 50Hz/60Hz with maximum operating voltage up to 38.5kV
- Capacity range covers 150kVA to 2500kVA (customizable)
- Complies with ANSI C57, IEC 60076, GB 1094, and GB 17467-2010 standards
- Improved heat dissipation efficiency with space-saving design
- Wide voltage and capacity range with customization services
- Strict compliance with international and domestic standards
- Versatile applications across multiple industries
- Suitable for both long-term stable and temporary emergency power supply
- Stable long-term operation with reduced overheating risks
- Lower maintenance costs and improved equipment reliability
- Customized solutions to match specific power requirements
- Reliable power guarantee for improved operational efficiency
- Wide adaptability for various projects and scenarios
HENTG POWER is a professional designer, manufacturer and installer of power system solutions around the World, founded in 2011, occupying 100,000 square meters, specializing in reliable, high-performance solutions for global power systems.
Always a pre-production sample before mass production; Always final Inspection before shipment. We will provide QC & test reports. We accept FAT (Factory Acceptance Test). Factory can manufacture oil type and dry type distribution transformer, max 500KV 480MVA power transformer, GIS, switchgear, substation, based on ANSI/IEEE/DOE2016/CSA/IEC60076 standard. We will provide you with the guarantee service of over 2 years.
We have the professional and independent drawing team and technical team. It is expected that we can confirm all the contents on the drawings with you within 7 days. We have a professional technical team with 30+ senior engineers offering 24 hours online service and response within 30 minutes.
Accept OEM, business payment are negotiated.
-
