Dua Winding Coil Three Phase Pad Mounted Transformer Oil Immersed 1500kVA Fully Sealed

Dua Winding Coil Three Phase Pad Mounted Transformer Oil Immersed 1500kVA Fully Sealed

Dua Winding Coil Pad Mounted Transformer

1500kVA Three Phase Pad Mounted Transformer

Fully Sealed Pad Mounted Transformer

Place of Origin:

Jiangsu, China

Brand Name:

HENTG Power

Certification:

CE

Model Number:

ZGS Series

Chat Now
Request A Quote
Dua Winding Coil Three Phase Pad Mounted Transformer Oil Immersed 1500kVA Fully Sealed
Dua Winding Coil Three Phase Pad Mounted Transformer Oil Immersed 1500kVA Fully Sealed Dua Winding Coil Three Phase Pad Mounted Transformer Oil Immersed 1500kVA Fully Sealed Dua Winding Coil Three Phase Pad Mounted Transformer Oil Immersed 1500kVA Fully Sealed
Product Details
Type:
Distribution Transformer, Oil-filled Transformer
Material:
Aluminum, Copper, Copper Winding
Frequency:
50Hz, 60Hz
Shape:
Rectangle
Application:
Power
Phase:
Three
Coil Structure:
TOROIDAL
Coil Number:
Dual-winding Coil
Input Voltage:
380V, 180V, 115V, 3kV, 6kV, 10kV
Output Voltage:
5V, 400V , 208V, 200V, 415V
Product Name:
Three Phase Transformer
Application:
Power Distribution System
Highlight:

Dua Winding Coil Pad Mounted Transformer

,

1500kVA Three Phase Pad Mounted Transformer

,

Fully Sealed Pad Mounted Transformer

Payment & Shipping Terms
Minimum Order Quantity
2 sets
Price
CN¥63,888.83-216,524/sets
RELATED PRODUCTS
Good price Outdoor Oil Immersed Power Transformer 3 Phase Pad Mounted 750kVA online Video

Outdoor Oil Immersed Power Transformer 3 Phase Pad Mounted 750kVA

Chat Now
Good price 750kVA Three Phase Oil Filled Pad Mounted Transformer Outdoor Power Solution online Video

750kVA Three Phase Oil Filled Pad Mounted Transformer Outdoor Power Solution

Chat Now
Good price Oil Immersed Three Phase Pad Mounted Transformer 225KVA CE Certified ONAN Cooling online Video

Oil Immersed Three Phase Pad Mounted Transformer 225KVA CE Certified ONAN Cooling

Chat Now
Good price Three Phase Pad Mounted Transformer Step Up Step Down 500KVA 750KVA 1000kVA 1500KVA online Video

Three Phase Pad Mounted Transformer Step Up Step Down 500KVA 750KVA 1000kVA 1500KVA

Chat Now
Contact Us
+86 15074989773
info@hentgpower.com
Chat Now
Product Description
Dua Winding Coil Three Phase Pad Mounted Transformer Oil Immersed 1500kVA Fully Sealed
Product Specifications
Attribute Value
Type distribution transformer, Oil-filled Transformer
Material Aluminum, Copper, Copper Winding
Frequency 50Hz, 60Hz
Shape Rectangle
Application Power
Phase Three
Coil Structure TOROIDAL
Coil Number Dual-winding coil
Input Voltage 380V, 180V, 115V, 3kV, 6kV, 10kV
Output Voltage 5V, 400V, 208V, 200V, 415V
Product Name Three Phase Transformer
Application Power Distribution System
Technical Parameters

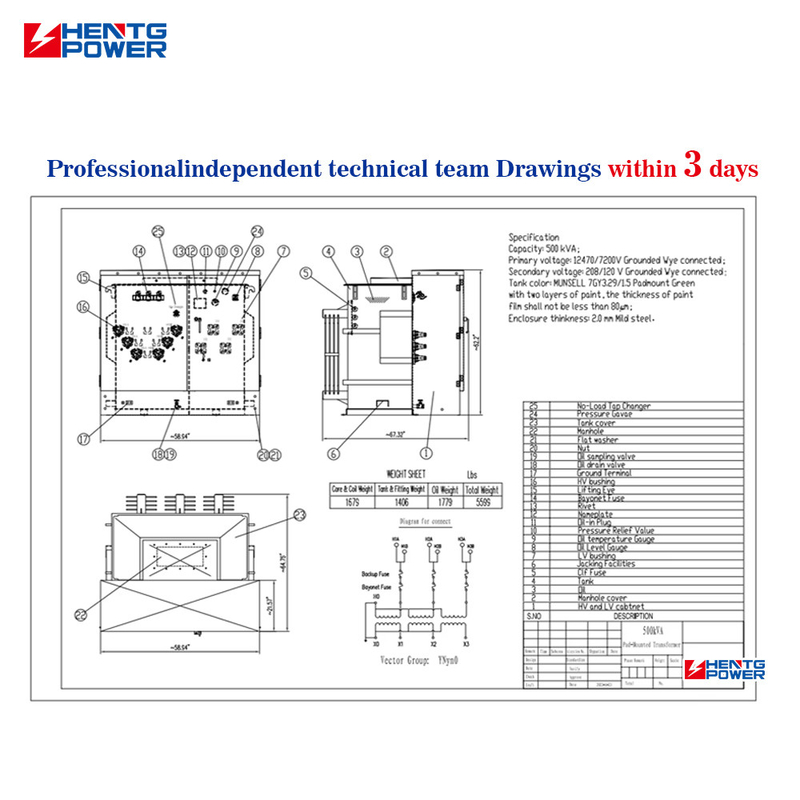

Dua Winding Coil Three Phase Pad Mounted Transformer Oil Immersed 1500kVA Fully Sealed 0
Capacity (KVA) HV Tapping range LV No-load loss Load loss Impedance Efficiency
75 2400 4160 7200 7620 12000 12470 13200 13800 14400 19920 24940 34500 ±2X2.5% 110 120 208 240 277 347 415 416 480 600 690 130 100 4.0-6.3 99.03
152 200 1800 99.16
225 350 3100 99.23
300 430 3700 99.27
500 600 5410 99.35
750 880 7500 99.4
1000 1000 10300 99.43
1500 1400 14500 99.48
2000 1800 18300 99.51
2500 2300 23100 99.53

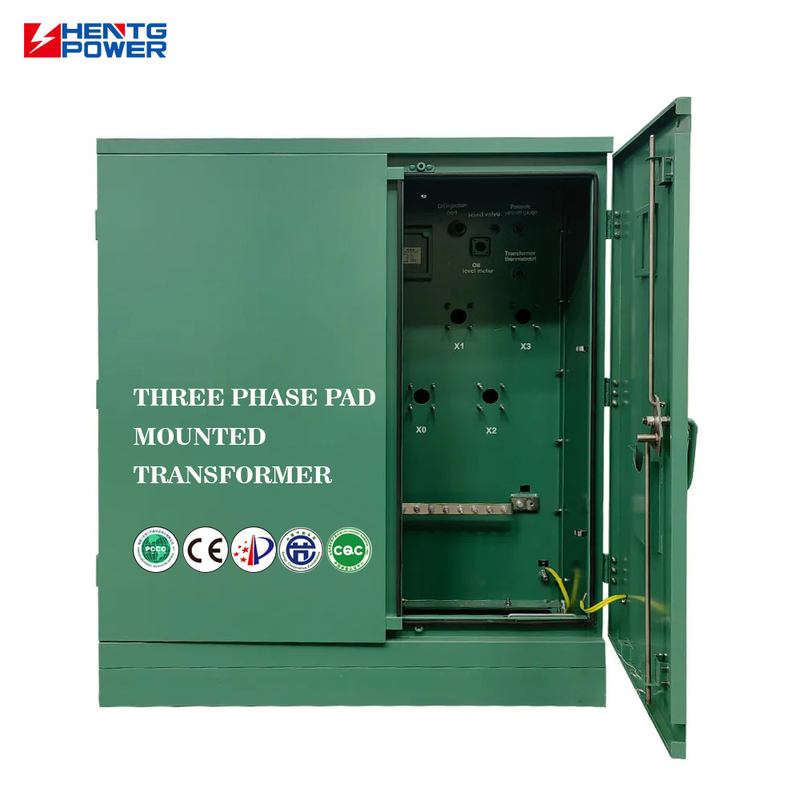

Dua Winding Coil Three Phase Pad Mounted Transformer Oil Immersed 1500kVA Fully Sealed 1
Product Features
  • Compact structure with 33% smaller volume compared to European-style box transformers of same capacity
  • Fully sealed and insulated structure eliminates need for safety fences
  • Multiple power supply schemes with terminal power support
  • S11 oil-immersed design with low loss, low temperature rise, and strong overload capacity
  • Double-fuse protection mechanism with current and temperature sensitive plug-in fuse
  • 200A cable connector operable under load with isolating switch characteristics
  • Dyn11 winding connection with three-phase four-column core structure
  • Anti-corrosion cabinet design with special spray paint treatment
Key Advantages
The compact volume design facilitates transportation and installation, reducing space requirements. The fully sealed structure improves safety while reducing maintenance costs and environmental impact. Diverse power supply schemes enhance reliability with quick backup switching capability.
Customer Benefits
Reduced installation space requirements and simplified installation process. Safe operation protects personnel and minimizes equipment downtime. Energy-efficient operation lowers long-term costs. Stable power supply extends equipment lifespan and improves production efficiency. Aesthetic design integrates well with urban environments.
Company Information
Who are we?
HENTG POWER is a professional designer, manufacturer and installer of power system solutions worldwide, founded in 2011 with 100,000 square meter facility, specializing in reliable, high-performance solutions for global power systems.
How can we guarantee quality?
Pre-production samples before mass production; final inspection before shipment with QC & test reports. We accept FAT (Factory Acceptance Test). Our factory manufactures oil type and dry type distribution transformers up to 500KV 480MVA power transformers, GIS, switchgear, and substations based on ANSI/IEEE/DOE2016/CSA/IEC60076 standards. We provide 2+ years guarantee service.
Why choose us?
Professional drawing and technical teams can confirm all drawing contents within 7 days. Our technical team includes 30+ senior engineers offering 24/7 online service with 30-minute response time.
What services can we provide?
We accept OEM orders with negotiated business payment terms.
