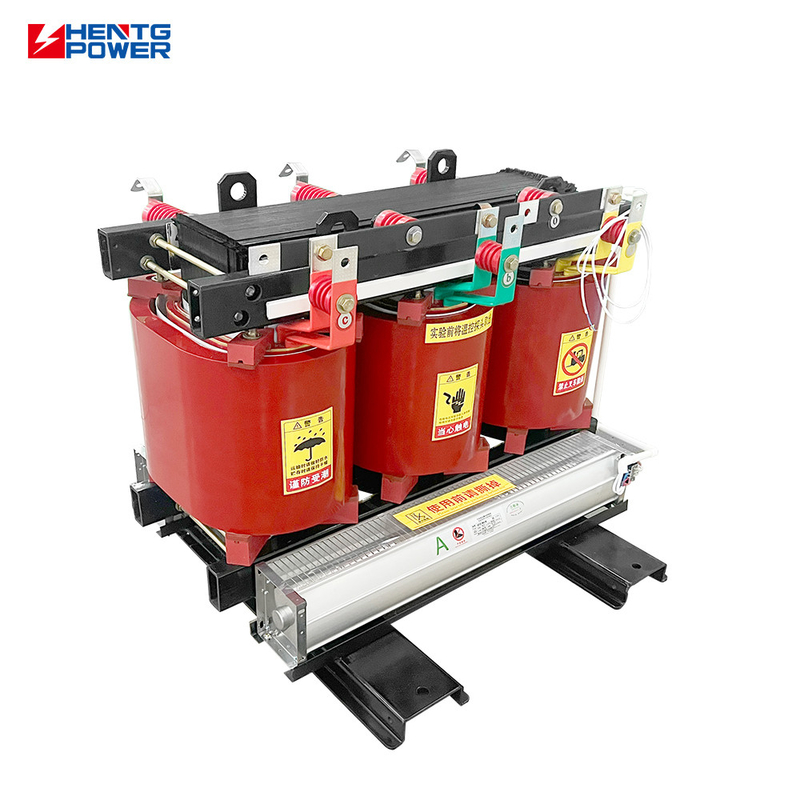

50kVA Dry Type Three Phase Transformer Moisture Proof Structure Distribution Transformer

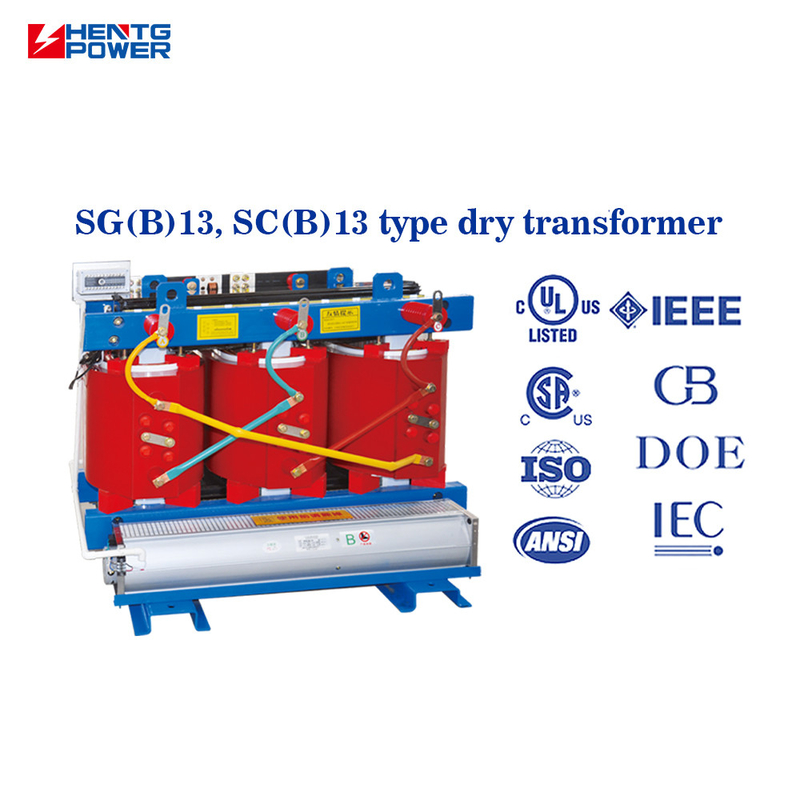

50kVA Dry Type Three Phase Transformer Moisture Proof Structure Distribution Transformer The SCB13 Series 50kVA Dry-Type Transformer is a compact and efficient solution designed for small to mid-scale power distribution needs. Engineered with epoxy resin insulation and advanced core technology, it ensures stable voltage output, low energy loss, and superior safety performance. Ideal for indoor installations such as residential buildings, control rooms, and light industrial
50kVA Dry Type Three Phase Transformer
,Moisture Proof Dry Distribution Transformer
| Attribute | Value |
|---|---|
| Type | Distribution transformer |
| Material | Copper, 100% Copper |
| Frequency | 50Hz, 60Hz |
| Phase | Three |
| Input Voltage | 10kV, 6kV, 6.3kV |
| Output Voltage | 0.4kV |
| Rated Capacity | 30KVA-2500KVA |
| Cooling Method | ANAF |
| Operating Temperature | 40°C to +180°C |
| Vector Group | Dyn11/Yyn0 |
| Rated capacity (KVA) | Vector Group | Voltage Combination | HV | Tapping range | LV | No-load loss | Load loss | No-load current |
|---|---|---|---|---|---|---|---|---|
| 30 | Yyn0 / Dyn11 | 10 6.3 6 | ±5% ±2X2.5% (+3/-1)X2.5% | 0.4 | 135 | 640 | 2 | 4.0 |
| 50 | 195 | 900 | 2 | |||||
| 80 | 265 | 1240 | 1.5 | |||||
| 100 | 290 | 1410 | 1.5 | |||||
| 125 | 340 | 1660 | 1.3 | |||||
| 160 | 385 | 1910 | 1.3 | |||||
| 200 | 445 | 2270 | 1.1 | |||||
| 250 | 515 | 2480 | 1.1 | 6.0 | ||||
| 315 | 635 | 3120 | 1 | |||||
| 400 | 705 | 3590 | 1 | |||||
| 500 | 835 | 4390 | 1 | |||||
| 630 | 965 | 5290 | 0.85 | |||||
| 800 | 1090 | 6260 | 0.85 | |||||
| 1000 | 1270 | 7310 | 0.85 | |||||
| 2500 | 2590 | 15400 | 0.7 |

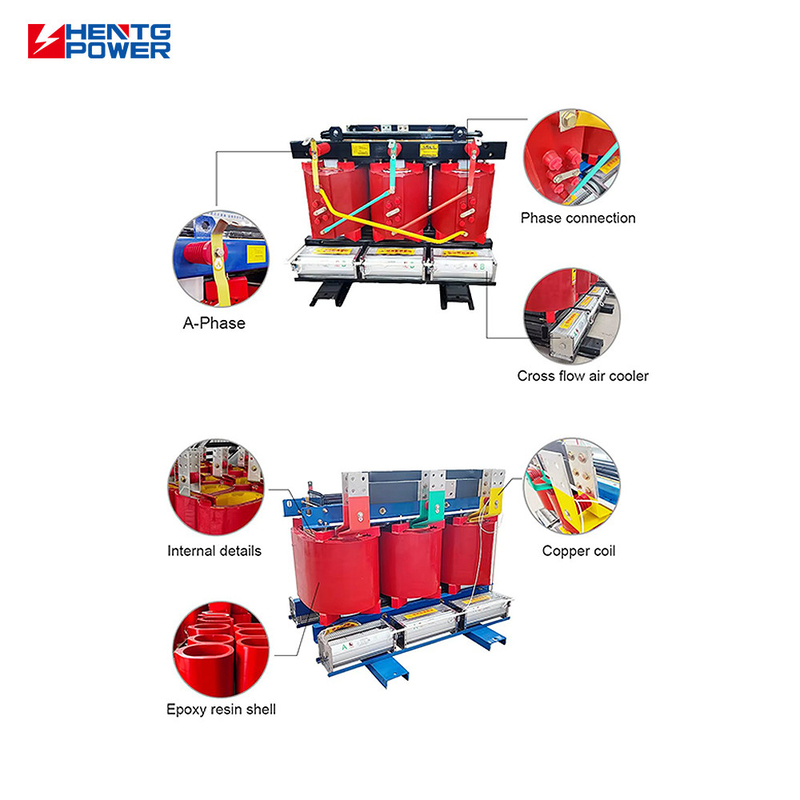

- Advanced Epoxy Resin Casting: Provides excellent insulation and mechanical strength.
- Low-Loss Silicon Steel Core: Minimizes core losses, enhancing energy efficiency.
- Oil-Free & Fire-Safe Design: Uses air natural cooling (AN), eliminating oil-related risks.
- Low Noise Performance: Operates quietly, suitable for residential and office environments.
- Compact and Lightweight: Space-saving design enables easy installation in tight areas.
- Moisture-Proof Construction: Reliable operation even in humid or dusty conditions.
- Energy Savings: Lower operating losses lead to reduced electricity costs over time.
- Safety Assurance: Non-flammable, non-explosive materials ensure peace of mind in populated areas.
- Maintenance-Free: No oil changes or filter replacements required.
- Environmentally Friendly: Clean, quiet, and free of harmful emissions.
- Fast Installation: Lightweight and simple wiring structure allows for quick setup.
- Residential Buildings: Supplies safe and stable power to lighting, heating, and appliances.
- Small Offices & Shops: Supports consistent electrical output for computers, lights, and HVAC systems.
- Control Cabinets: Integrated into power control systems for local load regulation.
- Telecommunication Stations: Provides clean power to sensitive electronics and backup systems.
- Renewable Energy Systems: Converts and distributes power in small solar or wind installations.
-
