Name: Multi Winding Coil Dry Type Transformer High Capacity 30kva-1000kVA Distribution Transformer
Brand: Hunan Hentg Power Electric Technology Co., Ltd.
SKU: SC14
Price: 67.00 USD
Availability: InStock

Home > products > Dry Type Transformer >

Multi Winding Coil Dry Type Transformer High Capacity 30kva-1000kVA Distribution Transformer

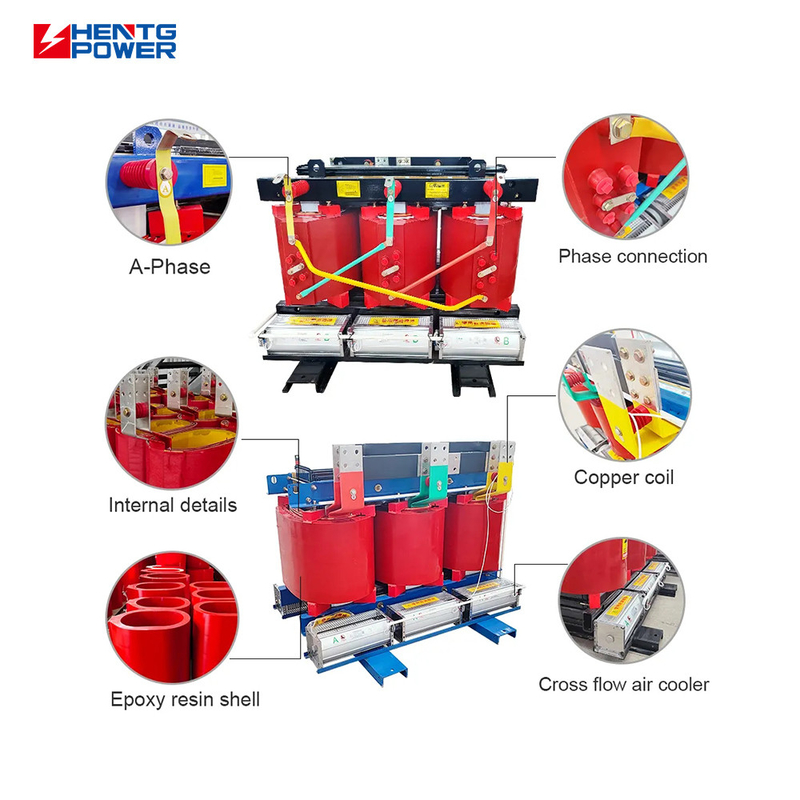

Multi Winding Coil Dry Type Transformer

Dry Type Transformer High Capacity

Place of Origin:

Jiangsu, China

Brand Name:

HENTG Power

Certification:

Model Number:

SC14

Chat Now

Request A Quote

Product Details

Type:

Distribution Transformer, Dry TypeTransformer

Material:

Aluminum, Copper, Copper Winding

Frequency:

50Hz, 60Hz

Shape:

ROUND

Winding Material:

Copper

Application:

Power

Phase:

Three

Coil Structure:

TOROIDAL

Coil Number:

Multi-winding Coil

Input Voltage:

35kV

Output Voltage:

400V

Product Name:

Three Phase Transformer

Application:

Power Distribution System

Highlight:

Multi Winding Coil Dry Type Transformer

Dry Type Transformer High Capacity

Payment & Shipping Terms

Minimum Order Quantity

2 sets

Price

CN¥61,965.75-74,928.70/sets

400Volt 200kVA 3 Phase Dry Type Transformer Low Loss Indoor Power Distribution Solution

Chat Now

Video

SCB11 Series 250kVA Dry Type Isolation Transformer 3Phase With Circular Coil Structure

Chat Now

Video

3 Phase Dry Type Transformer Step Up Step Down Transformer 1600Kva 2000Kva 2500Kva

Chat Now

Video

1600kVA Dry Type Electrical Transformers Low Loss Cast Resin Distribution Transformer 60Hz

Chat Now

+86 15074989773

info@hentgpower.com

Chat Now

Product Description

SCB11 Series 1000kVA Dry-Type Transformer

High-Capacity, Safe, and Maintenance-Free Power Distribution Solution

Product Overview

The SCB11 Series 1000kVA Dry-Type Transformer is a high-performance, environmentally friendly solution for medium-voltage to low-voltage power distribution. Designed with advanced resin insulation and an oil-free cooling system, it offers superior safety, energy efficiency, and durability. This transformer is ideal for commercial, industrial, and infrastructure projects requiring stable and clean power over long periods with minimal maintenance.

Technical Specifications

Rated Capacity	Voltage Ratio	Vector Group	No-load Losses (kw)	Impedance
30kva	380v/3kv/6kv/11kv/33kv	Dyn11/Yd11/Yyno	0.1	4%
50kva	380v/3kv/6kv/11kv/33kv		0.13	4%
100kva	380v/3kv/6kv/11kv/33kv		0.2	4%
200kva	380v/3kv/6kv/11kv/33kv		0.34	4%
315kva	380v/3kv/6kv/11kv/33kv		0.42	4%
500kva	380v/3kv/6kv/11kv/33kv		0.6	4%
1000kva	380v/3kv/6kv/11kv/33kv		1.15	4.50%

Product Attributes

Attribute	Value
Type	Distribution Transformer, Dry Type Transformer
Material	Aluminum, Copper, Copper Winding
Frequency	50Hz, 60Hz
Shape	ROUND
Winding Material	Copper
Application	Power
Phase	Three
Coil Structure	TOROIDAL
Coil Number	Multi-winding coil
Input Voltage	35kV
Output Voltage	400V

Key Features

High Capacity Output: Rated at 1000kVA for medium- to large-scale power distribution networks.
Epoxy Resin Insulation: Flame-retardant and moisture-resistant resin casting ensures electrical stability and mechanical strength.
Air-Cooled Design (AN): No oil needed--uses natural air convection for cooling, reducing maintenance and fire hazards.
Three-Phase System: Delivers balanced, consistent output to support heavy-duty equipment and facility loads.
Low Noise Level: Operates at ≤ 55 dB, making it suitable for both indoor and semi-outdoor environments.
Environmentally Safe: Oil-free and toxin-free design compliant with global environmental standards.
IP20 Protection (Upgradeable): Resistant to dust and accidental contact; options for IP23 or IP44 for more rugged environments.

Benefits

Stable Power Delivery: Prevents voltage fluctuations, ensuring the safe operation of mission-critical machinery and electronics.
Reduced Operational Costs: Energy-efficient magnetic core design reduces no-load and load losses, saving on energy bills.
Long-Term Reliability: Designed for a service life of 20+ years under normal conditions, with minimal scheduled maintenance.
Safe for Sensitive Locations: Ideal for schools, hospitals, factories, and offices where fire safety and noise levels are a concern.
Flexible Configuration: Available with customizable input/output voltages and terminal placements for varied installation needs.

Advantages

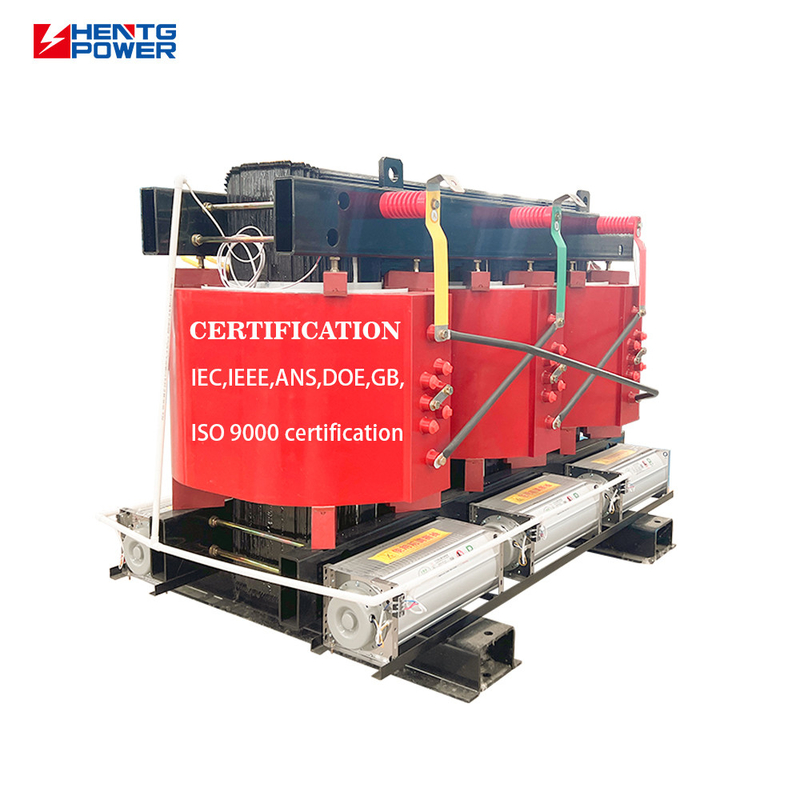

Complies with IEC & GB Standards: Engineered and tested to meet international safety and performance requirements.
Resilient Construction: Withstands short circuits, overvoltages, and mechanical stresses from transportation or handling.
Installation Friendly: Compact, floor-mounted structure saves space and simplifies setup.
Low Emission Footprint: Helps reduce carbon output with efficient energy use and zero oil waste.
Versatile Use Cases: Suitable for renewable energy stations, metro stations, shopping malls, industrial parks, and high-rise buildings.

Application Scenarios

Industrial Zones & Factories: Powering motors, automation systems, and industrial controls.
Hospitals & Clinics: Ensures continuous, safe operation of critical diagnostic and life-support equipment.
Shopping Malls & Offices: Distributes power to lighting, HVAC, and security systems efficiently.
Transportation Hubs: Stable and fire-safe power for metro, airport, and railway infrastructure.
Renewable Energy Systems: Integrates with solar farms or wind turbines for safe grid connection.

Frequently Asked Questions

Who are we?

HENTG POWER is a professional designer, manufacturer and installer of power system solution around the World, was founded in 2011, occupies 100,000 square meter. specializing in reliable, high-performance solutions for global power systems.

How can we guarantee quality?

Always a pre-production sample before mass production; Always final Inspection before shipment, We will provide QC & test reports. We accept FAT(Factory Acceptance Test). Factory can manufacture oil type and dry type distribution transformer, max 500KV 480MVA power transformer, GIS, switchgear, substation, based on ANSI/IEEE/DOE2016/CSA/IEC60076 standard. We will provide you with the guarantee service of over 2 years.

Why choose us?

We have the professional and independent drawing team and technical team, It is expected that we can confirm all the contents on the drawings with you within 7 days. we have a professional technical team with 30+ senior engineers offer 24 hours online service and response within 30 min.

What services can we provide?

Accept OEM, business payment are negotiated.
