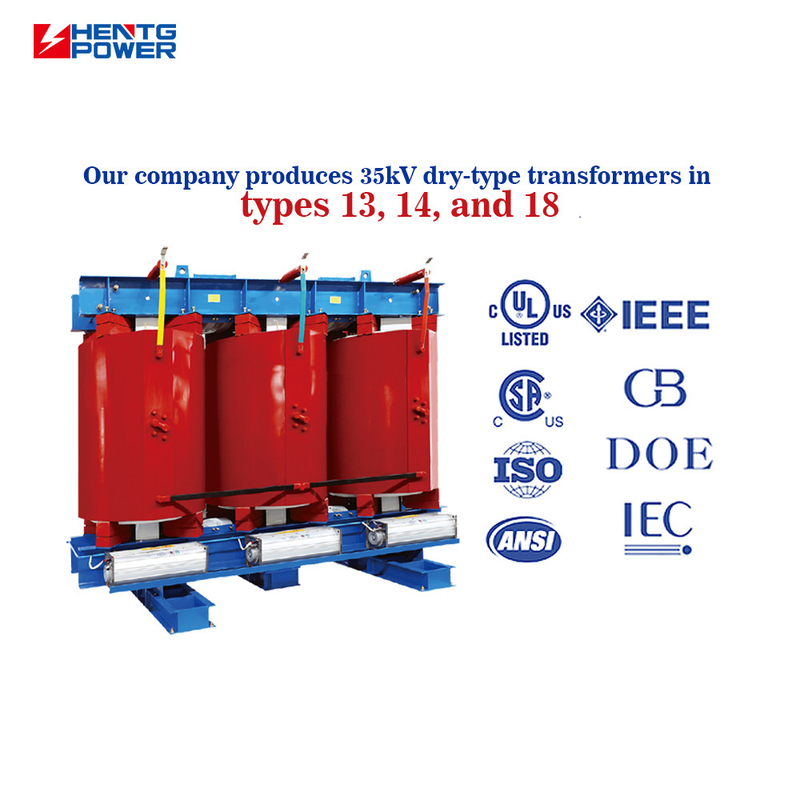

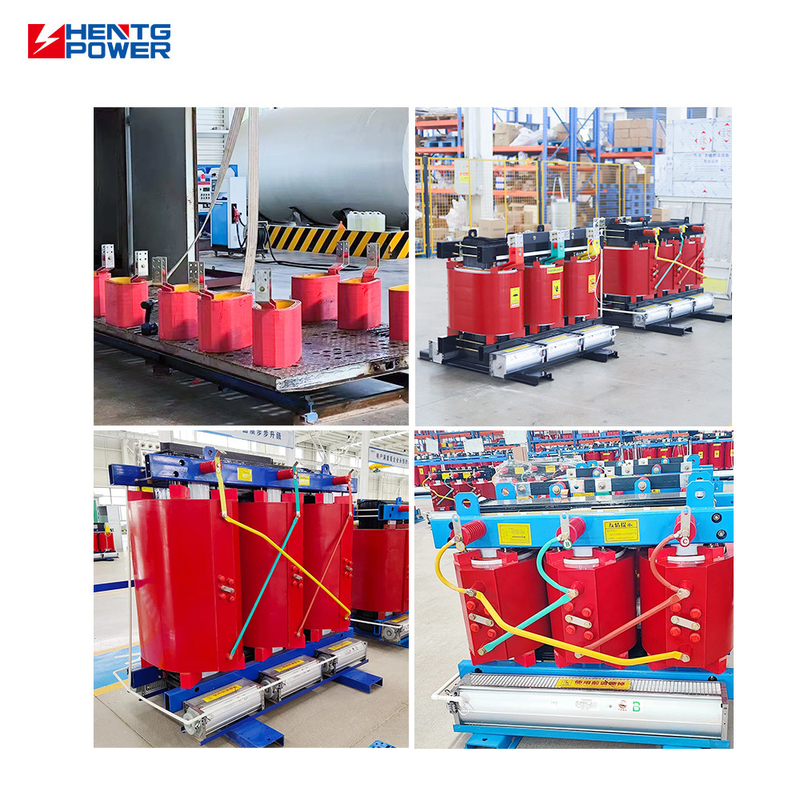

SCB11 Series Dry Type 3 Phase Distribution Transformer Maintenance Free 200kVA
SCB11 Series Dry Type 3 Phase Distribution Transformer Maintenance Free 200kVA Product Specifications Attribute Value Frequency 60Hz, 50Hz, 50/60Hz Phase Three Coil Number Three Windings, Multi Winding, Two Windings, Single Winding Application Distribution System Coil Structure Shell-Type Coil, layer coil, fully sealed construction, Disc Coil, round coil Output Voltage 400V Input Voltage 35kV Type Field Adjustable Transformer, AUTOTRANSFORMER, Dry Type Transformer, Voltage
3 phase distribution transformer maintenance free
,200kva 3 phase power transformer
,200kva 3 phase distribution transformer
| Attribute | Value |
|---|---|
| Frequency | 60Hz, 50Hz, 50/60Hz |
| Phase | Three |
| Coil Number | Three Windings, Multi Winding, Two Windings, Single Winding |
| Application | Distribution System |
| Coil Structure | Shell-Type Coil, layer coil, fully sealed construction, Disc Coil, round coil |
| Output Voltage | 400V |
| Input Voltage | 35kV |
| Type | Field Adjustable Transformer, AUTOTRANSFORMER, Dry Type Transformer, Voltage Regulator Transformer, Isolation Transformer, Dual Winding Transformer, Dry |
| Rated Capacity | 200KVA |
| Material | Copper Winding |
| Rated Capacity | Voltage Ratio | Vector Group | No-load Losses(kw) | Impedance |
|---|---|---|---|---|
| 30kva | 380v/3kv/6kv/11kv/33kv | Dyn11/Yd11/Yyno | 0.1 | 4% |
| 50kva | 380v/3kv/6kv/11kv/33kv | 0.13 | 4% | |
| 100kva | 380v/3kv/6kv/11kv/33kv | 0.2 | 4% | |
| 200kva | 380v/3kv/6kv/11kv/33kv | 0.34 | 4% | |
| 315kva | 380v/3kv/6kv/11kv/33kv | 0.42 | 4% | |
| 500kva | 380v/3kv/6kv/11kv/33kv | 0.6 | 4% | |
| 1000kva | 380v/3kv/6kv/11kv/33kv | 1.15 | 4.50% |
The SCB11 Series 200kVA Dry-Type Transformer is engineered to deliver safe, efficient, and environmentally friendly power distribution for commercial and industrial applications. Its epoxy resin insulation and oil-free, air-cooled design ensure low maintenance, high reliability, and excellent performance in demanding indoor environments. Ideal for settings where safety, low noise, and long service life are crucial.
- Epoxy Resin Cast Insulation: Enhances thermal stability and electrical insulation, offering superior resistance to dust, humidity, and fire.
- Air-Cooled (AN): Efficient heat dissipation without the need for oil or forced ventilation.
- Low Loss Design: Optimized magnetic core and copper windings reduce load and no-load losses.
- Quiet Operation: Sound level ≤ 50 dB, suitable for indoor environments.
- Flame-Retardant Materials: Meets strict fire safety standards for peace of mind in enclosed spaces.
- Three-Phase Output: Ensures stable power delivery for balanced loads.
- Reliable Power Supply: Delivers steady voltage output with minimal fluctuations, protecting sensitive equipment.
- Low Maintenance Costs: Dry-type construction eliminates the need for oil monitoring or fluid replacement.
- Environmentally Friendly: Free of oil and hazardous substances, safe for schools, hospitals, and office buildings.
- Space-Saving Design: Compact structure suitable for indoor electrical rooms and tight installation spaces.
- Long-Lasting Performance: Heat-resistant design prevents aging and degradation over time.
- Excellent Safety Profile: Fireproof, explosion-proof, and non-toxic design ensures maximum operational safety.
- IEC & CE Certified: Fully compliant with international safety and performance standards.
- Durable Construction: High mechanical strength withstands transportation, short circuits, and voltage surges.
- Customizable Voltage: Supports custom input/output voltage levels for specific application needs.
- Broad Application Range: Ideal for industrial workshops, commercial buildings, schools, residential complexes, and more.
- Commercial Buildings: Reliable and safe power distribution for HVAC, elevators, and lighting systems.
- Industrial Plants: Supplies clean power to motors, controls, and automated machinery.
- Hospitals: Delivers stable voltage to sensitive diagnostic and medical equipment.
- Data Centers & IT Rooms: Filters out harmonics and ensures uninterrupted service.
- Educational Institutions: Quiet and safe for classrooms and lab environments.

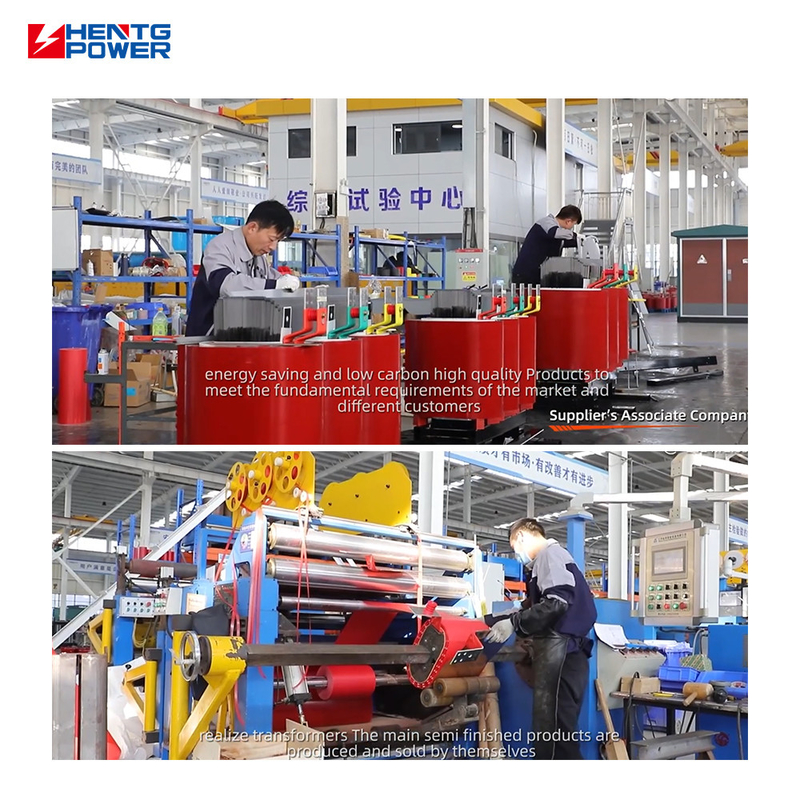

HENTG POWER is a professional designer, manufacturer and installer of power system solution around the World, was founded in 2011, occupies 100,000 square meter. specializing in reliable, high-performance solutions for global power systems.
Always a pre-production sample before mass production; Always final Inspection before shipment, We will provide QC & test reports. We accept FAT(Factory Acceptance Test). Factory can manufacture oil type and dry type distribution transformer, max 500KV 480MVA power transformer, GIS, switchgear, substation, based on ANSI/IEEE/DOE2016/CSA/IEC60076 standard. We will provide you with the guarantee service of over 2 years.
We have the professional and independent drawing team and technical team, It is expected that we can confirm all the contents on the drawings with you within 7 days. we have a professional technical team with 30+ senior engineers offer 24 hours online service and response within 30 min.
Accept OEM, business payment are negotiated.
-
