Place of Origin:
Hunan, China
Brand Name:
HENTG Power
Certification:
CE
Model Number:
SC(B)13
| Attribute | Value |
|---|---|
| Type | distribution transformer |
| Material | silicon steel sheet, Aluminum |
| Frequency | 50Hz, 60Hz |
| Shape | Rectangle |
| Winding Material | Aluminum |
| Application | Potential |
| Phase | Three |
| Coil Structure | TOROIDAL |
| Coil Number | Multi-winding coil |
| Input Voltage | 10kV |
| Output Voltage | 0.4kV |
| Rated capacity | 30KVA-2500KVA |
| Cooling Method | ANAF |
| Core material | CRGO Silicon Steel Core |
| Rated voltage | 6/6.3/10/10.5/11KV |
| Vector Group | Dyn11/Yyn0 |
| Working frequency | 50/60KHz |
| Operating temperature | 40°C To +180°C |

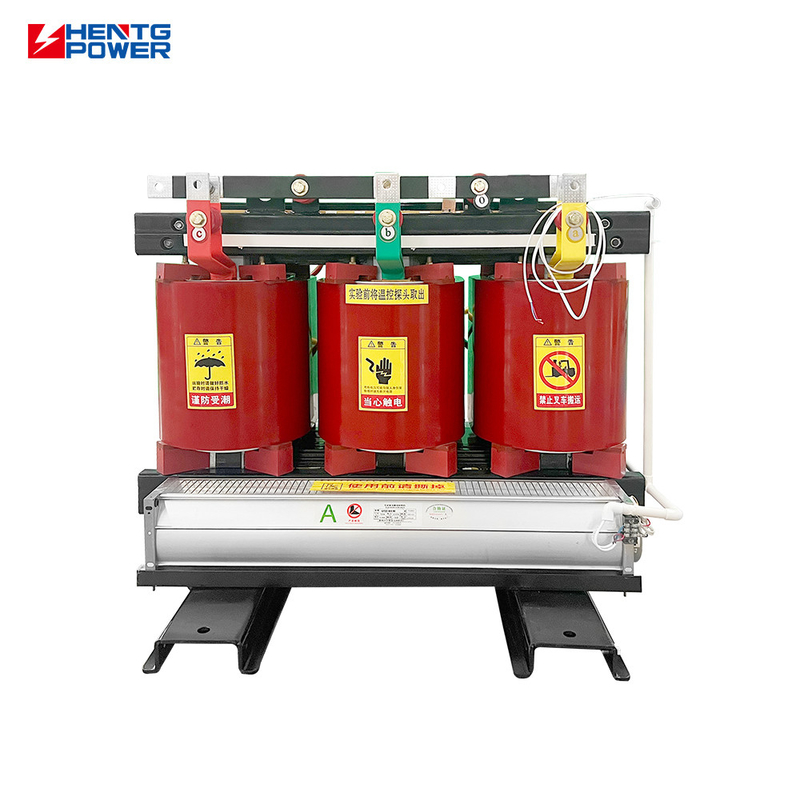

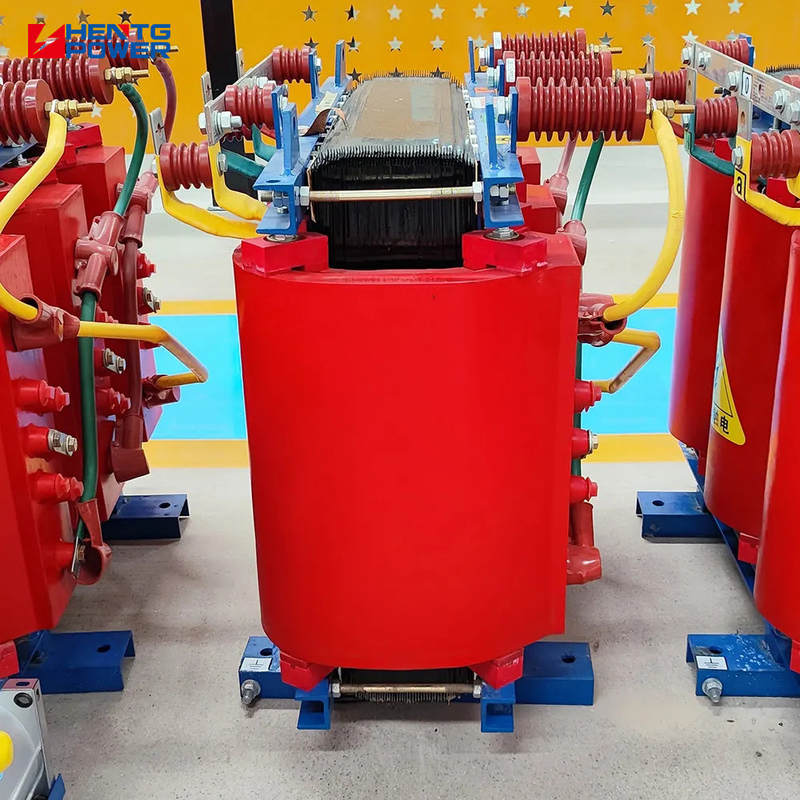

250kVA Dry-Type Isolation Transformer | High Reliability | Safe, Quiet Power Distribution
The SCB13 Series 250kVA dry-type isolation transformer is a robust and energy-efficient solution for powering critical loads. Designed with a high-grade silicon steel core and vacuum epoxy resin casting, it ensures safe, quiet, and stable power delivery in commercial, medical, and industrial environments. It offers enhanced insulation, low maintenance, and high short-circuit strength.
| Rated capacity (KVA) | Vector Group | Voltage Combination | No-load loss | Load loss | No-load current | Impedance |
|---|---|---|---|---|---|---|
| 30 | Yyn0 / Dyn11 | 10 6.3 6 | 135 | 640 | 2 | 4.0 |
| 50 | 195 | 900 | 2 | |||
| 80 | 265 | 1240 | 1.5 | |||
| 100 | 290 | 1410 | 1.5 | |||
| 125 | 340 | 1660 | 1.3 | |||
| 160 | 385 | 1910 | 1.3 | |||
| 200 | 445 | 2270 | 1.1 | |||
| 250 | 515 | 2480 | 1.1 | |||
| 315 | 635 | 3120 | 1 | |||
| 400 | 705 | 3590 | 1 | |||
| 500 | 835 | 4390 | 1 | |||
| 630 | 965 | 5290 | 0.85 | 6.0 | ||
| 800 | 1090 | 6260 | 0.85 | |||
| 1000 | 1270 | 7310 | 0.85 | |||
| 1250 | 1500 | 8720 | 0.85 | |||
| 1600 | 1760 | 10500 | 0.85 | |||
| 2000 | 2190 | 13000 | 0.7 | |||
| 2500 | 2590 | 15400 | 0.7 |
HENTG POWER is a professional designer, manufacturer and installer of power system solution around the World, was founded in 2011, occupies 100,000 square meter. specializing in reliable, high-performance solutions for global power systems.
Always a pre-production sample before mass production; Always final Inspection before shipment, We will provide QC & test reports. We accept FAT(Factory Acceptance Test). Factory can manufacture oil type and dry type distribution transformer, max 500KV 480MVA power transformer, GIS, switchgear, substation, based on ANSI/IEEE/DOE2016/CSA/IEC60076 standard. We will provide you with the guarantee service of over 2 years.
We have the professional and independent drawing team and technical team, It is expected that we can confirm all the contents on the drawings with you within 7 days. we have a professional technical team with 30+ senior engineers offer 24 hours online service and response within 30 min.
Accept OEM, business payment are negotiated.
