Place of Origin:
Hunan, China
Brand Name:
HENTG Power
Certification:
CE
Model Number:
SC(B)13

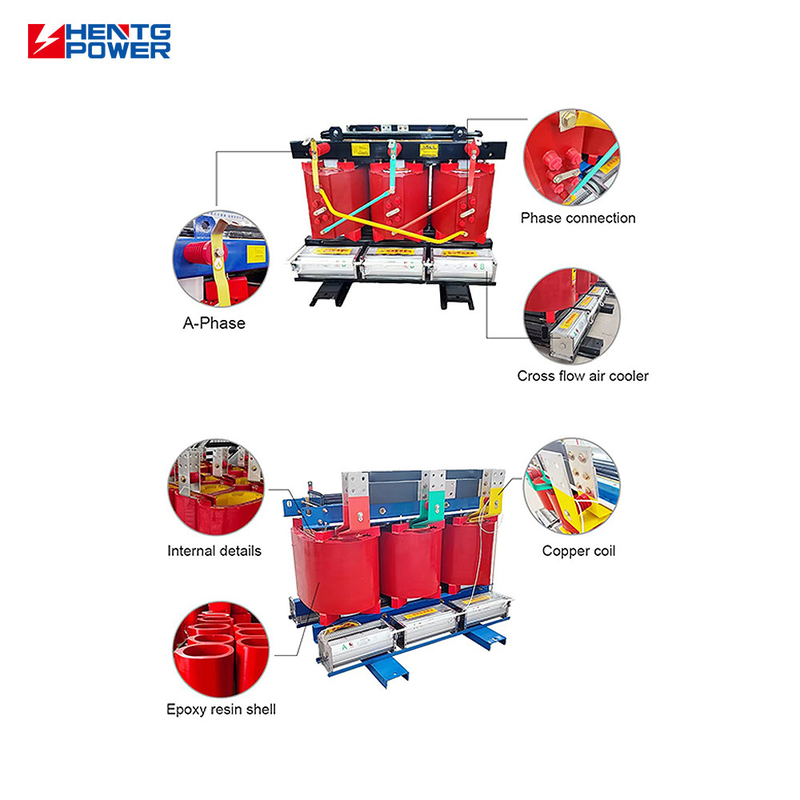

The SCB13 Series 30kVA dry-type isolation transformer is specifically engineered for small and medium-scale applications where high-quality, stable, and interference-free power is critical. Built with flame-retardant epoxy resin and a compact structure, it ensures long-lasting insulation, safety, and minimal maintenance. This transformer is an excellent solution for powering sensitive electronics, automation systems, and laboratory equipment.
| Attribute | Value |
|---|---|
| Frequency | 50Hz, 60Hz |
| Phase | Three |
| Coil Number | Three Windings, Multi Winding, Two Windings, Single Winding |
| Application | power transformer |
| Coil Structure | round coil, Disc Coil, fully sealed construction, layer coil, Shell-Type Coil |
| Output Voltage | 400V |
| Input Voltage | 10kV |
| Type | Dry Type Transformer, Isolation Transformer |
| Rated capacity | 30KVA |
| Warranty | 2 Years |
| Vector Group | Dyn11 / Yyn0 |
| Customized | Accept |
| Tapping Range | 2X2.5% / 5% |
| Advantage | Temperature Detection & Protection System |
| Winding Material | Aluminum |
| Application | Hospital, airport, tunnel, chemical plant etc. |
| Size | according to the client request |
| Working Voltage | 10/0.4KV |
| Transformer Type | dry type Transformer |
| Packing | wooden box |
| Installation Type | Indoor/Outdoor |
| Frequency Characteristics | 50/60Hz |
| Insulation Material | epoxy resin |
| Voltage Rating | Up to 36 kV |
| Insulation Level | H.V LI/AC 75/28 L.V LI/AC 0/0 |
| Phase Number | Three-phase |
| Cooling Method | Air Natural/Air Forced |
| Use | Power |
| Rated capacity (KVA) | Vector Group | Voltage Combination | No-load loss | Load loss | No-load current | Impedance |
|---|---|---|---|---|---|---|
| 30 | Yyn0 / Dyn11 | 10 6.3 6 | 135 | 640 | 2 | 4.0 |
| 50 | 195 | 900 | 2 | |||
| 80 | 265 | 1240 | 1.5 | |||
| 100 | 290 | 1410 | 1.5 | |||
| 125 | 340 | 1660 | 1.3 | |||
| 160 | 385 | 1910 | 1.3 | |||
| 200 | 445 | 2270 | 1.1 | |||
| 250 | 515 | 2480 | 1.1 | |||
| 315 | 635 | 3120 | 1 | |||
| 400 | 705 | 3590 | 1 | |||
| 500 | 835 | 4390 | 1 | |||
| 630 | 965 | 5290 | 0.85 | 6.0 | ||
| 630 | 935 | 5360 | 0.85 | |||
| 800 | 1090 | 6260 | 0.85 | |||
| 1000 | 1270 | 7310 | 0.85 | |||
| 1250 | 1500 | 8720 | 0.85 | |||
| 1600 | 1760 | 10500 | 0.85 | |||
| 2000 | 2190 | 13000 | 0.7 | |||
| 2500 | 2590 | 15400 | 0.7 |
HENTG POWER is a professional designer, manufacturer and installer of power system solution around the World, was founded in 2011, occupies 100,000 square meter. specializing in reliable, high-performance solutions for global power systems.
Always a pre-production sample before mass production; Always final Inspection before shipment, We will provide QC & test reports. We accept FAT(Factory Acceptance Test). Factory can manufacture oil type and dry type distribution transformer, max 500KV 480MVA power transformer, GIS, switchgear, substation, based on IEEE/DOE2016/CSA/IEC60076 standard. We will provide you with the guarantee service of over 2 years.
We have the professional and independent drawing team and technical team, It is expected that we can confirm all the contents on the drawings with you within 7 days. we have a professional technical team with 30+ senior engineers offer 24 hours online service and response within 30 min.
Accept OEM, business payment are negotiated.
