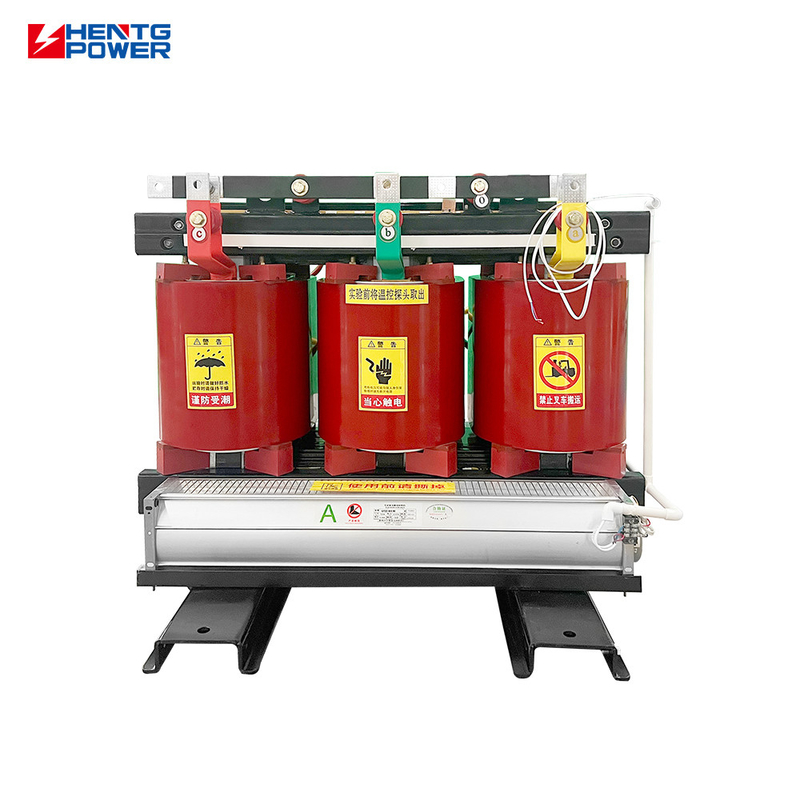

630kVA Dry Type Transformer Low Noise Maintenance Free 3 Phase Isolation Transformer
630kVA Dry Type Transformer Low Noise Maintenance Free 3 Phase Isolation Transformer Product Specifications Attribute Value Type distribution transformer Material Copper, Copper Winding Frequency 50Hz, 60Hz Shape Rectangle Winding Material Copper Application Potential Phase Three Coil Structure TOROIDAL Coil Number Multi-winding coil Input Voltage 10kV Output Voltage 0.4kV Rated Capacity 30KVA-2500KVA Cooling Method ANAF Feature High Security Rated Voltage 6/6.3/10/10.5/11KV
Dry Type Transformer Low Noise
,3 Phase Isolation Transformer Dry Type
,630kVA 3 Phase Isolation Transformer
| Attribute | Value |
|---|---|
| Type | distribution transformer |
| Material | Copper, Copper Winding |
| Frequency | 50Hz, 60Hz |
| Shape | Rectangle |
| Winding Material | Copper |
| Application | Potential |
| Phase | Three |
| Coil Structure | TOROIDAL |
| Coil Number | Multi-winding coil |
| Input Voltage | 10kV |
| Output Voltage | 0.4kV |
| Rated Capacity | 30KVA-2500KVA |
| Cooling Method | ANAF |
| Feature | High Security |
| Rated Voltage | 6/6.3/10/10.5/11KV |
| Vector Group | Dyn11/Yyn0 |
| Working Frequency | 50/60KHz |
| Operating Temperature | 40 To +180 |
| Transformer Type | SC-B-13 |
| Rated capacity (KVA) | Vector Group | Voltage Combination | No-load loss | Load loss | No-load current | Impedance |
|---|---|---|---|---|---|---|
| 30 | Yyn0 / Dyn11 | 10 6.3 6 | 135 | 640 | 2 | 4.0 |
| 50 | 195 | 900 | 2 | |||
| 80 | 265 | 1240 | 1.5 | |||
| 100 | 290 | 1410 | 1.5 | |||
| 125 | 340 | 1660 | 1.3 | |||
| 160 | 385 | 1910 | 1.3 | |||
| 200 | 445 | 2270 | 1.1 | |||
| 250 | 515 | 2480 | 1.1 | |||
| 315 | 635 | 3120 | 1 | |||
| 400 | 705 | 3590 | 1 | |||
| 500 | 835 | 4390 | 1 | |||
| 630 | 965 | 5290 | 0.85 | 6.0 | ||
| 630 | 935 | 5360 | 0.85 | |||
| 800 | 1090 | 6260 | 0.85 | |||
| 1000 | 1270 | 7310 | 0.85 | |||
| 1250 | 1500 | 8720 | 0.85 | |||
| 1600 | 1760 | 10500 | 0.85 | |||
| 2000 | 2190 | 13000 | 0.7 | |||
| 2500 | 2590 | 15400 | 0.7 |
- Electrical Isolation: Provides complete isolation between primary and secondary circuits, preventing interference and reducing ground loop issues.
- Epoxy Resin Insulation: High dielectric strength and excellent moisture resistance, ensuring safety and reliability in harsh environments.
- Low Noise Operation: Noise level ≤ 50dB, making it suitable for indoor applications such as offices, hospitals, and research facilities.
- Fire-Retardant Design: Made with flame-retardant epoxy resin to prevent fire hazards.
- Compact Design: Optimized for space-saving installation in various indoor environments.
- Enhanced Equipment Safety: Isolates the power source from sensitive equipment, ensuring optimal protection from electrical surges, noise, and voltage fluctuations.
- Stable Power Quality: Reduces electrical interference, providing consistent and high-quality power output, ideal for sensitive equipment.
- Energy Efficiency: Designed with low-loss materials to minimize energy consumption and reduce operational costs.
- Environmentally Friendly: With no oil and a flame-retardant structure, eliminates environmental pollution risks.
- Long-Lasting Durability: Designed for long-term operation, with a lifespan of over 20 years under normal conditions.
- Zero Maintenance Costs: Dry-type design eliminates the need for oil checks and regular maintenance.
- Flexible Installation Options: Can be installed in floor-mounted, cabinet-integrated, or wall-mounted configurations.
- Compliance with International Standards: Conforms to IEC, ANSI, and GB codes.
- Data Centers
- Hospitals
- Laboratories
- Communication Equipment
- Industrial Automation
- Office Buildings
-
