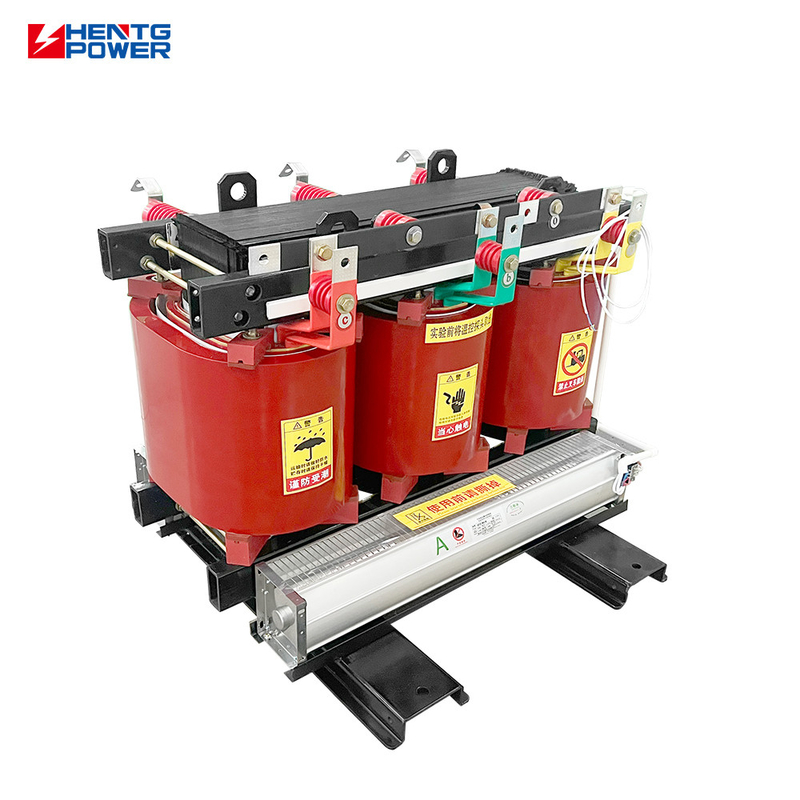

SCB13 Series 3 Phase Power Transformer Isolation Transformer 500KVA 630 KVA
SCB13 Series 3 Phase Power Transformer Isolation Transformer 500KVA 630 KVA Product Specifications Attribute Value Frequency 50Hz, 60Hz Phase Three Coil Number Three Windings, Multi Winding Application Power Transformer Coil Structure Round Coil, Disc Coil, Layer Coil, Shell-Type Coil Output Voltage 400V Input Voltage 10kV Type Dry Type Transformer, Isolation Transformer Rated Capacity 500KVA, 630 KVA Vector Group Dyn11 / Yyn0 Tapping Range 2*2.5%/5% Advantage Good Thermal
500kva 3 phase power transformer
,500kva three phase power transformer
,630 kva 3 phase power transformer
| Attribute | Value |
|---|---|
| Frequency | 50Hz, 60Hz |
| Phase | Three |
| Coil Number | Three Windings, Multi Winding |
| Application | Power Transformer |
| Coil Structure | Round Coil, Disc Coil, Layer Coil, Shell-Type Coil |
| Output Voltage | 400V |
| Input Voltage | 10kV |
| Type | Dry Type Transformer, Isolation Transformer |
| Rated Capacity | 500KVA, 630 KVA |
| Vector Group | Dyn11 / Yyn0 |
| Tapping Range | 2*2.5%/5% |
| Advantage | Good Thermal Stability |
| Winding Material | Aluminum |
| Application Environment | Tough conditions, such as high-humidity |
| Rated Capacity (KVA) | Vector Group | Voltage Combination | No-load Loss | Load Loss | No-load Current | Impedance | ||
|---|---|---|---|---|---|---|---|---|
| 30 | Yyn0 / Dyn11 | 10 6.3 6 | ±5% ±2X2.5% (+3/-1)X2.5% | 0.4 | 135 | 640 | 2 | 4.0 |
| 50 | 195 | 900 | 2 | |||||
| 630 | 965 | 5290 | 0.85 | 6.0 |

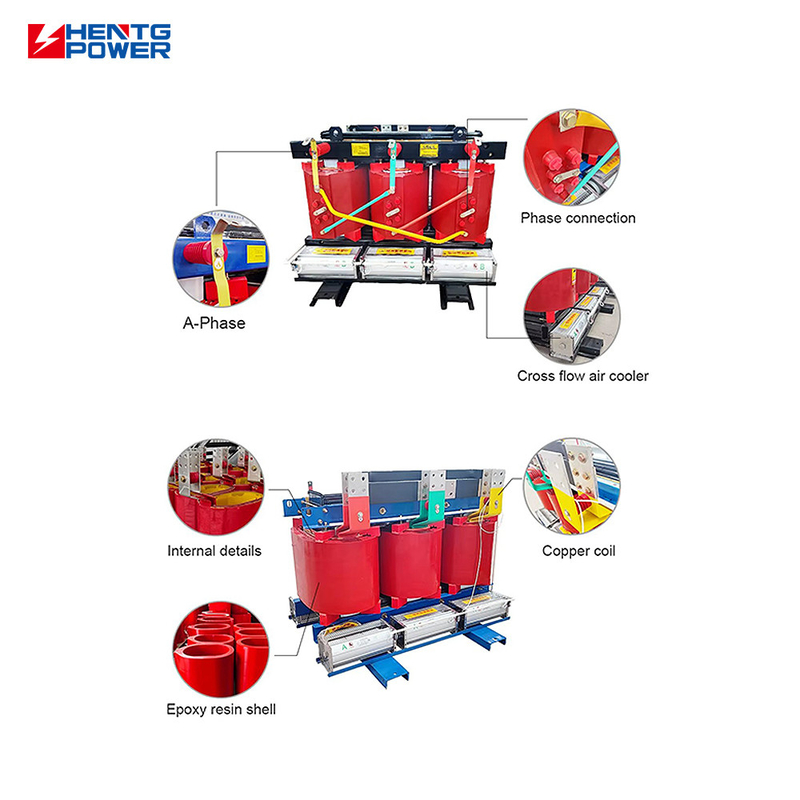

- Electrical Isolation: Prevents interference, ground loops, and surges
- High-Performance Core: Uses low-loss silicon steel, reducing energy loss
- Resin Cast Insulation: Excellent thermal performance, self-extinguishing, moisture-proof
- Quiet Operation: Noise level ≤ 50dB, suitable for indoor use
- No Oil, No Risk: Fireproof, explosion-proof, eco-friendly
- Boost Power Quality: Reduce harmonic interference and ensure stable voltage
- Improve Device Lifespan: Protect downstream sensitive equipment
- Energy Cost Savings: High efficiency reduces long-term operational costs
- Reliable for Critical Systems: Excellent for uninterrupted or mission-critical environments
- Maintenance-Free: No oil changing, leakage, or filtering required
- Long Service Life: Designed for 20+ years of reliable operation
- Safe for Human Proximity: Fully enclosed, anti-touch design
- Adaptable Installation: Floor-mounted or cabinet-integrated options
- Data Centers
- Hospitals
- Commercial Buildings
- Industrial Automation
- Substations & Power Rooms
- Public Infrastructure
-
