Place of Origin:
Jiangsu, China
Brand Name:
HENTG Power
Certification:
CE
Model Number:
SC(B)13
| Attribute | Value |
|---|---|
| Type | distribution transformer, SC-B-13 |
| Material | Copper, Copper Winding |
| Frequency | 50Hz, 60Hz |
| Shape | Rectangle |
| Winding Material | Copper |
| Application | Potential |
| Phase | Three |
| Coil Structure | TOROIDAL |
| Coil Number | Multi-winding coil |
| Input Voltage | 10kV |
| Output Voltage | 0.4kV |
| Product name | Three Phase Transformer |
| Rated capacity | 30KVA-2500KVA |
| Cooling Method | ANAF |
| Feature | High Security |
| Rated voltage | 6/6.3/10/10.5/11KV |
| Vector Group | Dyn11/Yyn0 |
| Working frequency | 50/60KHz |

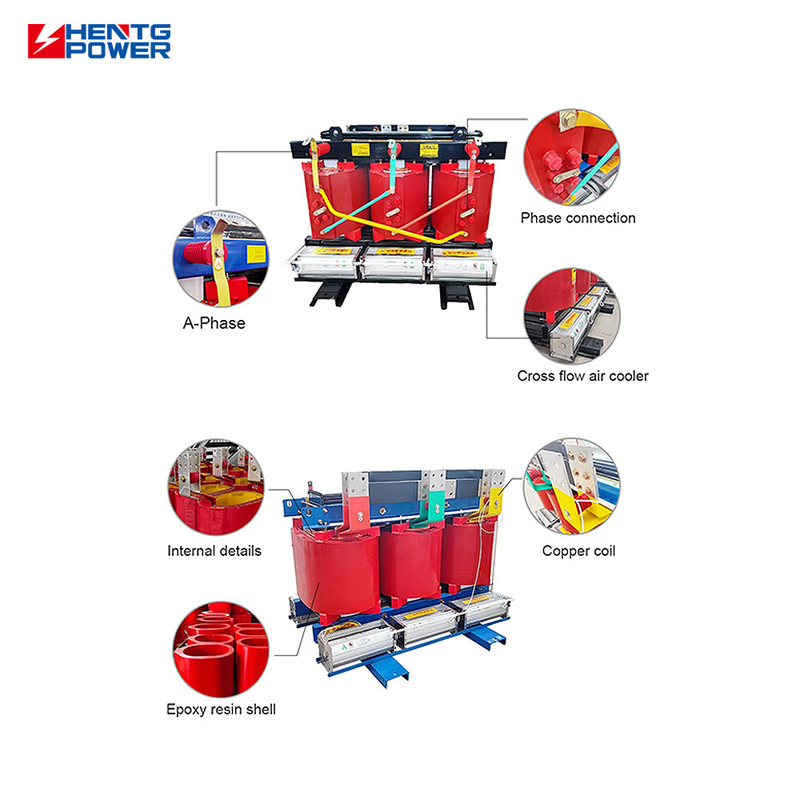

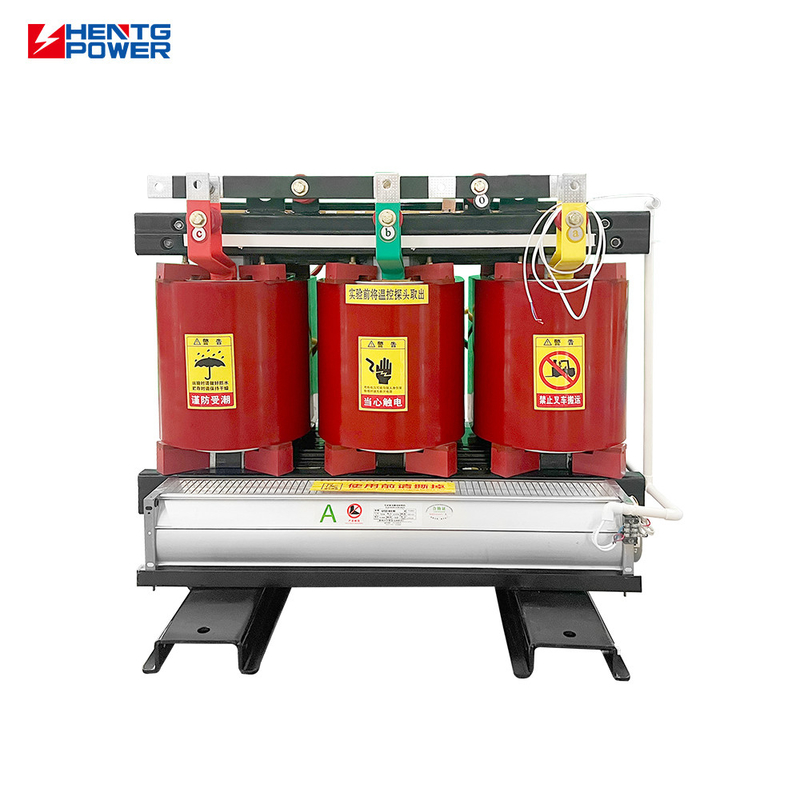

SCB13 Series 1250kVA Cast Resin Dry-Type Transformer | High Efficiency | Fire-Safe | Eco-Friendly
The SCB13 1250kVA dry-type transformer is a premium cast resin transformer designed for safe, low-loss, and maintenance-free operation. With upgraded insulation and reduced losses, it is widely used in urban power distribution, commercial buildings, factories, hospitals, and energy projects. SCB13 performs exceptionally well under heavy load and fluctuating conditions, making it ideal for demanding industrial environments.
| Rated capacity (KVA) | Vector Group | Voltage Combination | Performance Data | |||
|---|---|---|---|---|---|---|
| No-load loss | Load loss | No-load current | Impedance | |||
| 30 | Yyn0 / Dyn11 | 10 6.3 6 | 135 | 640 | 2 | 4.0 |
| 50 | 195 | 900 | 2 | |||
| 80 | 265 | 1240 | 1.5 | |||
| 100 | 290 | 1410 | 1.5 | |||
| 125 | 340 | 1660 | 1.3 | |||
| 160 | 385 | 1910 | 1.3 | |||
| 200 | 445 | 2270 | 1.1 | |||
| 250 | 515 | 2480 | 1.1 | |||
| 315 | 635 | 3120 | 1 | |||
| 400 | 705 | 3590 | 1 | |||
| 500 | 835 | 4390 | 1 | |||
| 630 | 965 | 5290 | 0.85 | 6.0 | ||
| 800 | 1090 | 6260 | 0.85 | |||
| 1000 | 1270 | 7310 | 0.85 | |||
| 1250 | 1500 | 8720 | 0.85 | |||
| 1600 | 1760 | 10500 | 0.85 | |||
| 2000 | 2190 | 13000 | 0.7 | |||
| 2500 | 2590 | 15400 | 0.7 | |||
HENTG POWER is a professional designer, manufacturer and installer of power system solution around the World, was founded in 2011, occupies 100,000 square meter. specializing in reliable, high-performance solutions for global power systems.
Always a pre-production sample before mass production; Always final Inspection before shipment, We will provide QC & test reports. We accept FAT(Factory Acceptance Test). Factory can manufacture oil type and dry type distribution transformer, max 500KV 480MVA power transformer, GIS, switchgear, substation, based on ANSI/IEEE/DOE2016/CSA/IEC60076 standard. We will provide you with the guarantee service of over 2 years.
We have the professional and independent drawing team and technical team, It is expected that we can confirm all the contents on the drawings with you within 7 days. we have a professional technical team with 30+ senior engineers offer 24 hours online service and response within 30 min.
Accept OEM, business payment are negotiated.
