Place of Origin:
Hunan, China
Brand Name:
HENTG Power
Certification:
CE
Model Number:
SC(B)11
| Attribute | Value |
|---|---|
| Type | power transformer, distribution transformer, Dry TypeTransformer |
| Frequency | 50Hz, 60Hz |
| Winding Material | Aluminum |
| Phase | Three |
| Coil Structure | Layered Winding |
| Coil Number | Triple-winding coil |
| Input Voltage | 10kV |
| Output Voltage | 400V |
| Cooling Method | Fan System |
| Material | Aluminum Winding |
| Transformer type | Dry Isolation |
| Vector Group | Dyn11/Yyn0 |
| Rated Voltage | 6-10kV |
| Insulation Class | Class F or H |
| Temperature Rise | Up to 150°C |
| Cool Method | AN/AF |

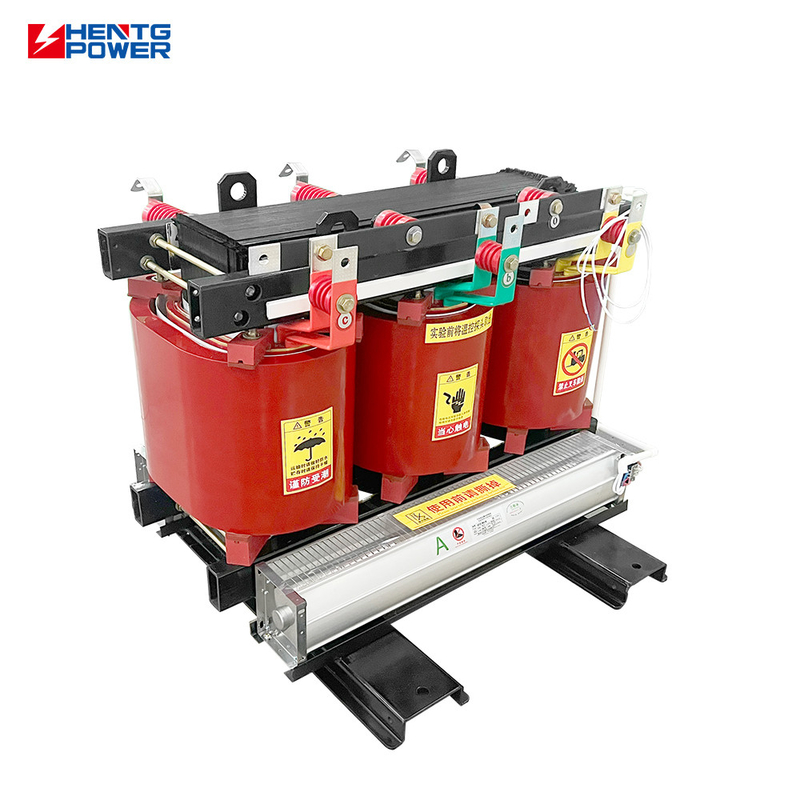

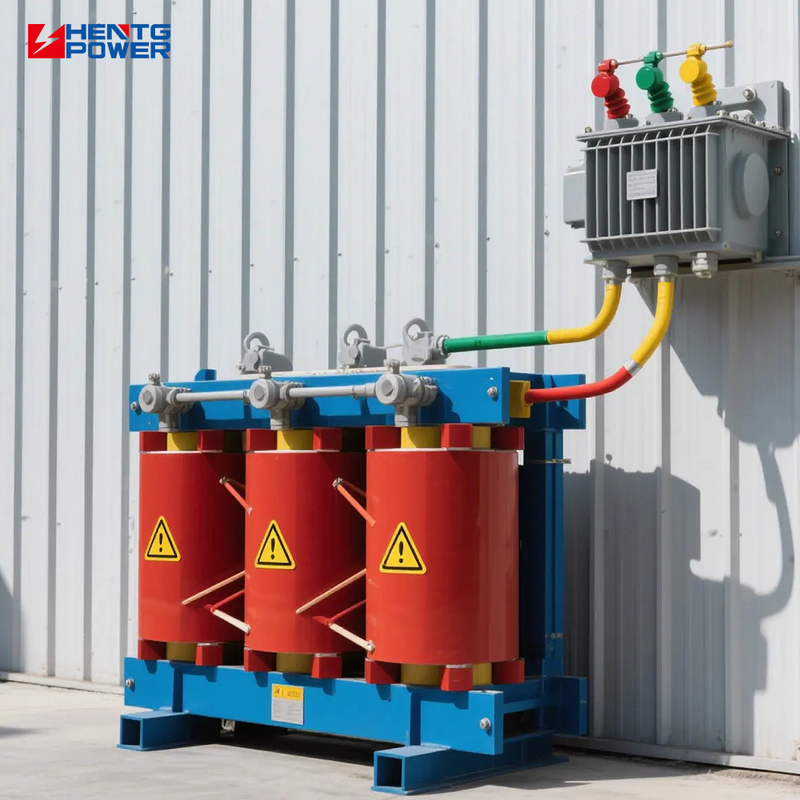

Energy Saving Dry Type Transformer Small Cast Resin 2000KVA for Efficient Power Transformer
The SCB11 Series 2000kVA epoxy resin cast dry-type transformer is engineered with premium materials and advanced manufacturing techniques. It offers high efficiency, low loss, low noise, and superior fire resistance. Ideal for power distribution systems in commercial buildings, industrial plants, hospitals, and data centers.
| Rated capacity (KVA) | Vector Group | Voltage Combination | HV | Tapping range | LV | No-load loss | Load loss | No-load current | Impedance |
|---|---|---|---|---|---|---|---|---|---|
| 30 | Yyn0 / Dyn11 | 10 6.3 6 | ±5% ±2X2.5% (+3/-1)X2.5% | 0.4 | 135 | 640 | 2 | 4.0 | |
| 50 | 195 | 900 | 2 | ||||||
| 80 | 265 | 1240 | 1.5 | ||||||
| 100 | 290 | 1410 | 1.5 | ||||||
| 125 | 340 | 1660 | 1.3 | ||||||
| 160 | 385 | 1910 | 1.3 | ||||||
| 200 | 445 | 2270 | 1.1 | ||||||
| 250 | 515 | 2480 | 1.1 | ||||||
| 315 | 635 | 3120 | 1 | ||||||
| 400 | 705 | 3590 | 1 | ||||||
| 500 | 835 | 4390 | 1 | ||||||
| 630 | 965 | 5290 | 0.85 | 6.0 | |||||
| 630 | 935 | 5360 | 0.85 | ||||||
| 800 | 1090 | 6260 | 0.85 | ||||||
| 1000 | 1270 | 7310 | 0.85 | ||||||
| 1250 | 1500 | 8720 | 0.85 | ||||||
| 1600 | 1760 | 10500 | 0.85 | ||||||
| 2000 | 2190 | 13000 | 0.7 | ||||||
| 2500 | 2590 | 15400 | 0.7 |
HENTG POWER is a professional designer, manufacturer and installer of power system solution around the World, was founded in 2011, occupies 100,000 square meter. specializing in reliable, high-performance solutions for global power systems.
Always a pre-production sample before mass production; Always final Inspection before shipment, We will provide QC & test reports. We accept FAT(Factory Acceptance Test). Factory can manufacture oil type and dry type distribution transformer, max 500KV 480MVA power transformer, GIS, switchgear, substation, based on ANSI/IEEE/DOE2016/CSA/IEC60076 standard. We will provide you with the guarantee service of over 2 years.
We have the professional and independent drawing team and technical team, It is expected that we can confirm all the contents on the drawings with you within 7 days. we have a professional technical team with 30+ senior engineers offer 24 hours online service and response within 30 min.
Accept OEM, business payment are negotiated.
