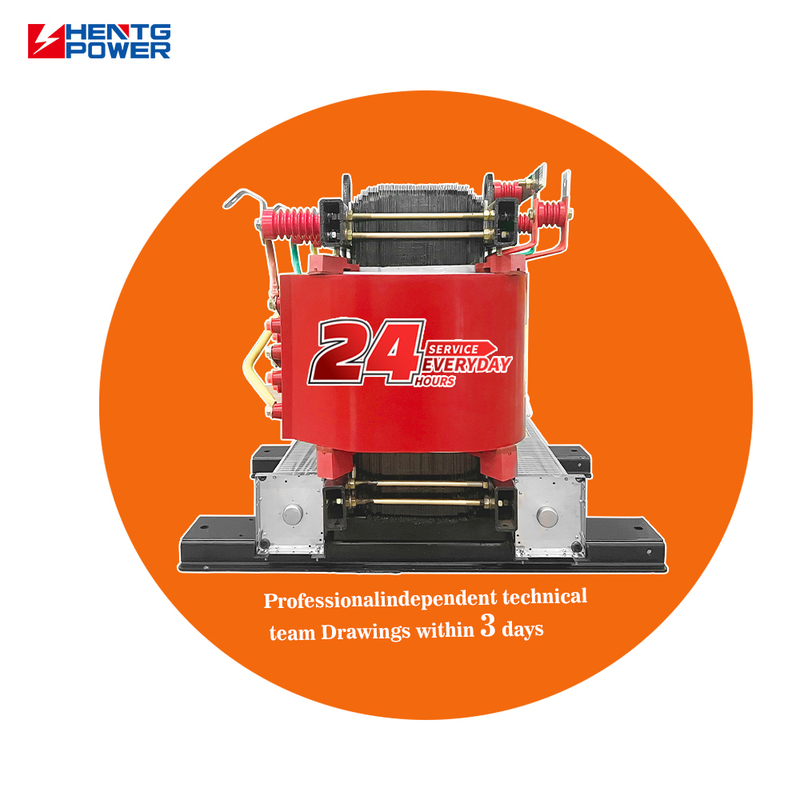

Copper Winding Cast Resin Dry Type Transformer 3 Phase 315KVA 400KVA 500KVA 630KVA
Copper Winding Cast Resin Dry Type Transformer 3 Phase 315KVA 400KVA 500KVA 630KVA Product Specifications Attribute Value Type Distribution transformer, Power Isolation Transformer Frequency 50Hz, 60Hz Winding Material Copper Application Power Phase Three Coil Structure Layered Winding Coil Number Triple-winding coil Input Voltage 3kV, 6kV, 10kV, 15kV, 35kV, 69kV, 110kV, 220kV, 400kV, 115kV, 132kV Output Voltage 5V, 400V, 208V, 200V, 415V, 127V, 11kV, 12V, 24V, 48V, 110V,
Dry Type Transformer 3 Phase 315KVA
,Copper Winding Dry Cast Resin Transformers
,630KVA Cast Resin Dry Type Transformer
| Attribute | Value |
|---|---|
| Type | Distribution transformer, Power Isolation Transformer |
| Frequency | 50Hz, 60Hz |
| Winding Material | Copper |
| Application | Power |
| Phase | Three |
| Coil Structure | Layered Winding |
| Coil Number | Triple-winding coil |
| Input Voltage | 3kV, 6kV, 10kV, 15kV, 35kV, 69kV, 110kV, 220kV, 400kV, 115kV, 132kV |
| Output Voltage | 5V, 400V, 208V, 200V, 415V, 127V, 11kV, 12V, 24V, 48V, 110V, 220V, 36V, 380V, 440V, 480V, 9V |
| Cooling Method | ANAF |
| Vector Group | Dyn11/Yyn0 |
| Transformer Type | S13-MRL Oil-immersed Transformer |
| Rated Capacity (KVA) | Vector Group | Voltage Combination | No-load Loss | Load Loss | No-load Current | Impedance |
|---|---|---|---|---|---|---|
| 30 | Yyn0 / Dyn11 | 10 6.3 6 ±5% ±2X2.5% (+3/-1)X2.5% 0.4 | 135 | 640 | 2 | 4.0 |
| 50 | 195 | 900 | 2 | |||
| 80 | 265 | 1240 | 1.5 | |||
| 100 | 290 | 1410 | 1.5 | |||
| 125 | 340 | 1660 | 1.3 | |||
| 160 | 385 | 1910 | 1.3 | |||
| 200 | 445 | 2270 | 1.1 | |||
| 250 | 515 | 2480 | 1.1 | |||
| 315 | 635 | 3120 | 1 | |||
| 400 | 705 | 3590 | 1 | |||
| 500 | 835 | 4390 | 1 | |||
| 630 | 965 | 5290 | 0.85 | 6.0 |

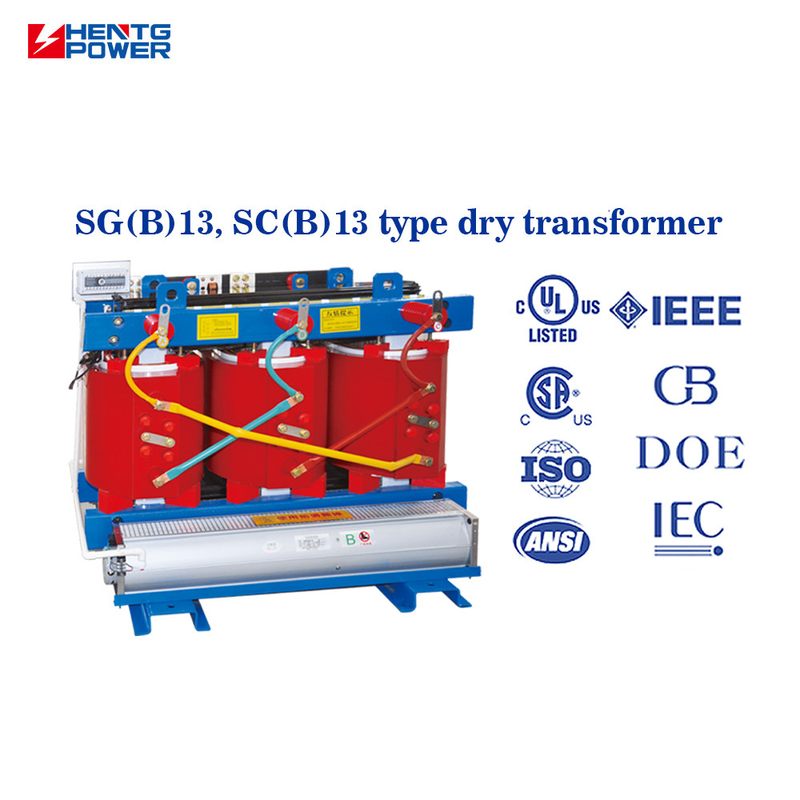

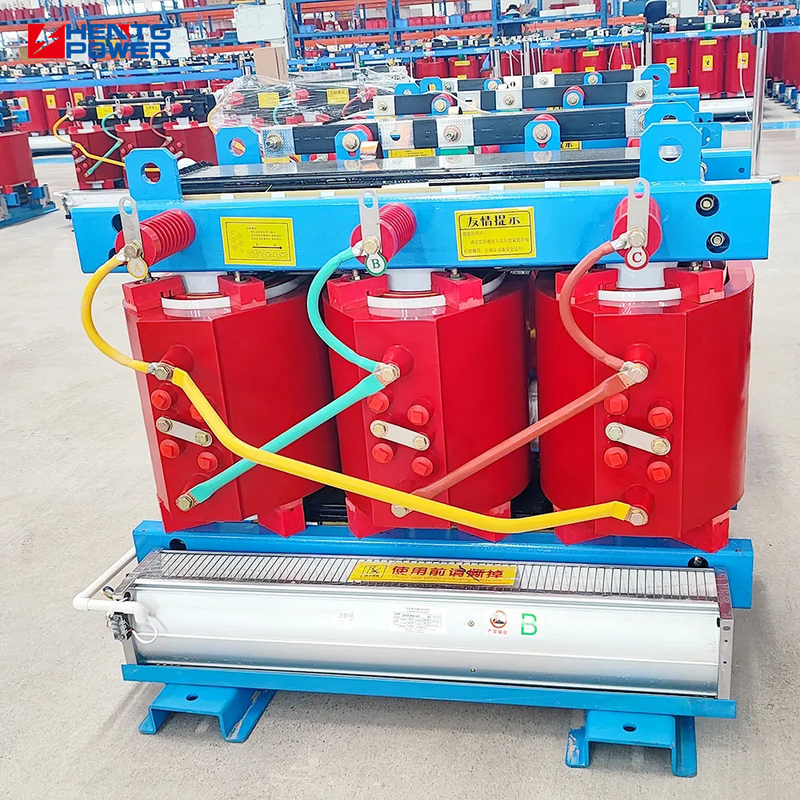

The cast resin dry type transformer is a type of SC(B) dry transformer with epoxy resin, widely used in various industrial applications. Its winding surface consists of high-quality protective material that forms a durable cover, ensuring reliable performance even in harsh environments with dust and humidity.
This transformer utilizes advanced resin casting technology where coils are cast in a vacuum state using specialized equipment. The epoxy resin serves as an insulating material, making it also known as an epoxy cast resin dry type transformer.
We respond to inquiries within 1 hour, recommending suitable transformers based on your requirements. Our team provides competitive quotations and payment terms. Within 7 days after payment, we confirm all technical specifications, weight, and parts list through detailed drawings.
After finalizing production drawings, we prepare materials and begin manufacturing. All raw materials undergo strict screening. Our quality control includes QC reports and test reports for every unit. We can provide special accessories upon request.
Our professional team provides installation guidance and on-site support when needed. All products come with a minimum 2-year warranty. We're committed to creating win-win partnerships with our clients.
- Safety Performance: Oil-free design prevents fire and explosion risks, ideal for high-safety environments
- Environmental Characteristics: Pollution-free operation with low noise levels, meeting green energy standards
- Structural Strength: Advanced casting technology and premium insulation materials ensure high mechanical strength and short-circuit resistance
- Thermal Stability: Minimal partial discharge and excellent thermal stability for long-term high-load operation
- Intelligent Control: Temperature monitoring system with automatic air cooling, alarm, and trip functions
- Energy Efficiency: No-load and load losses below national standards, delivering significant energy savings
- Heat Dissipation: Natural and forced air cooling options provide strong overload capacity for temporary peak demands
HENTG POWER is a professional designer, manufacturer and installer of power system solutions, founded in 2011 with a 100,000 square meter facility. We specialize in reliable, high-performance solutions for global power systems.
We conduct pre-production sampling and final inspections before shipment, providing QC and test reports. We manufacture oil-type and dry-type distribution transformers up to 500KV 480MVA, following ANSI/IEEE/DOE2016/CSA/IEC60076 standards, with a minimum 2-year warranty.
Our professional team of 30+ senior engineers provides 24/7 technical support with 30-minute response times. We confirm all drawing details within 7 days and offer comprehensive after-sales service.
We accept OEM orders and offer flexible payment terms tailored to your business needs.
-
