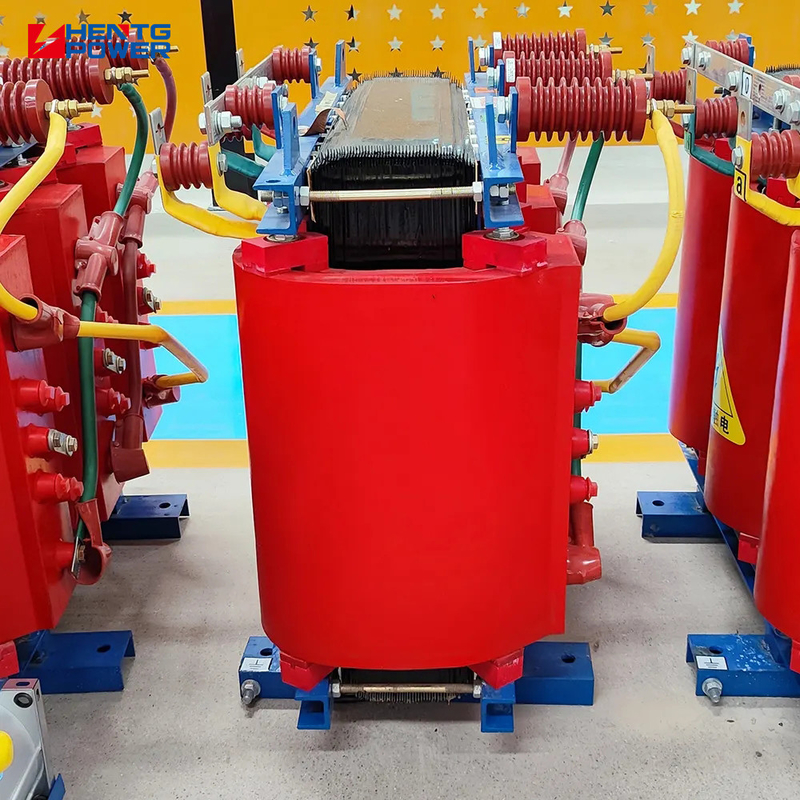

125kVA Dry Type Transformer With Cooling Fans , Copper Winding Isolation Transformer
125kVA Dry Type Transformer With Cooling Fans, Copper Winding Isolation Transformer Product Specifications Attribute Value Frequency 50Hz, 60Hz Phase Three Coil Number Three Windings, Multi Winding Application Power transformer Coil Structure Shell-Type Coil, layer coil, Disc Coil, round coil Output Voltage 415V, 110V, 220V, 380V, 400V, 440V, 480V Input Voltage 10.5kV, 11kV, 3kV, 12.47kV, 6.6kV, 6.3kV, 6kV Type Isolation Transformer, Dry Type Transformer, AUTOTRANSFORMER

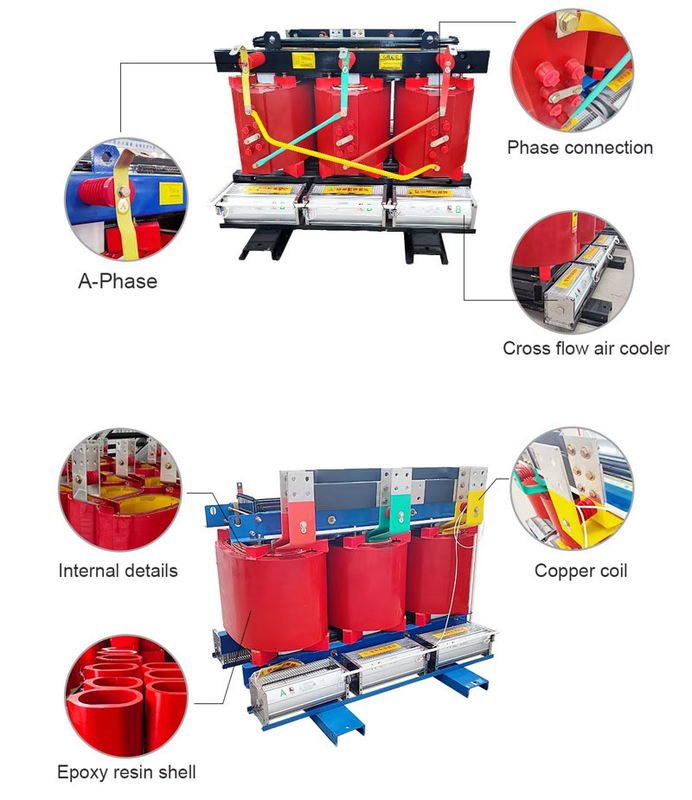

125kVA Copper Winding Isolation Transformer
,Dry Type Transformer With Cooling Fans
| Attribute | Value |
|---|---|
| Frequency | 50Hz, 60Hz |
| Phase | Three |
| Coil Number | Three Windings, Multi Winding |
| Application | Power transformer |
| Coil Structure | Shell-Type Coil, layer coil, Disc Coil, round coil |
| Output Voltage | 415V, 110V, 220V, 380V, 400V, 440V, 480V |
| Input Voltage | 10.5kV, 11kV, 3kV, 12.47kV, 6.6kV, 6.3kV, 6kV |
| Type | Isolation Transformer, Dry Type Transformer, AUTOTRANSFORMER |
| Warranty | 36 Months |
| Winding Material | 100% Copper |
| Vector Group | Dyn11 / Yyn0 |
| Cooling Method | With Cooling Fans |
| Customized | Accept |
| Application | Fire Prevention & Explosion Protection |

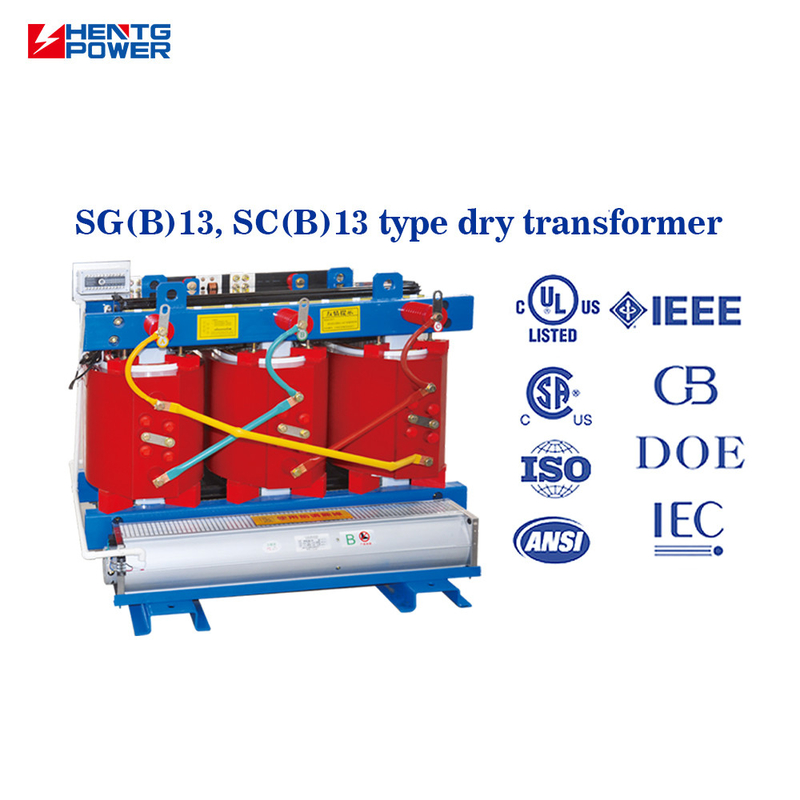

| Name | Type SC(B)13 Dry Transformer |
| Rated capacity (KVA) | Vector Group | Voltage Combination | No-load loss | Load loss | No-load current | Impedance |
|---|---|---|---|---|---|---|
| 30 | Yyn0 / Dyn11 | 10 6.3 6 | 135 | 640 | 2 | 4.0 |
| 50 | 195 | 900 | 2 | |||
| 80 | 265 | 1240 | 1.5 | |||
| 100 | 290 | 1410 | 1.5 | |||
| 125 | 340 | 1660 | 1.3 | |||
| 160 | 385 | 1910 | 1.3 | 6.0 | ||
| 200 | 445 | 2270 | 1.1 | |||
| 250 | 515 | 2480 | 1.1 | |||
| 315 | 635 | 3120 | 1 | |||
| 400 | 705 | 3590 | 1 | |||
| 500 | 835 | 4390 | 1 | |||
| 630 | 965 | 5290 | 0.85 | |||
| 630 | 935 | 5360 | 0.85 | |||
| 800 | 1090 | 6260 | 0.85 | |||
| 1000 | 1270 | 7310 | 0.85 | |||
| 1250 | 1500 | 8720 | 0.85 | |||
| 1600 | 1760 | 10500 | 0.85 |
- Rated Capacity: 125kVA - Ideal for light industrial, commercial, and infrastructure applications.
- Cast Resin Insulation: Flame-retardant and moisture-resistant epoxy for enhanced safety and reliability.
- Low-Loss Core Technology: Uses high-quality silicon steel to reduce no-load and load losses.
- Air Natural Cooling (AN): Oil-free, fanless design with quiet operation and minimal upkeep.
- Low Noise Performance: Operating sound level ≤ 45 dB, perfect for offices, schools, and healthcare spaces.
- Moisture & Pollution Resistance: Operates reliably in humid or dusty indoor environments.
- Standard IP20 Enclosure: Optional IP23/IP44 protection available for tougher applications.
- Energy Efficiency: Reduced operational losses lead to long-term savings on electricity costs.
- Enhanced Fire Safety: No oil means no fire risk, explosion hazard, or toxic leaks.
- Maintenance-Free Design: No oil to monitor, no cooling fans to replace - just plug-and-play reliability.
- Environmentally Friendly: Oil-free, recyclable materials with minimal noise and zero emissions.
- Space-Saving & Lightweight: Compact footprint allows easy integration into constrained indoor spaces.
- Stable Power Output: Delivers clean and consistent voltage for sensitive equipment and systems.
- Perfect for Small to Medium Loads: Suited for powering control systems, HVAC units, elevators, lighting, and IT infrastructure.
- Complies with Global Standards: Manufactured in accordance with IEC 60076 and GB/T 10228 for international compatibility.
- Quiet and Reliable: Ideal for indoor settings like hospitals, schools, server rooms, and retail spaces.
- Adaptable to Custom Requirements: Primary and secondary voltages, enclosures, and monitoring options can be tailored.
- Green Power Solution: Designed to support energy-saving initiatives and sustainable development goals.
-
